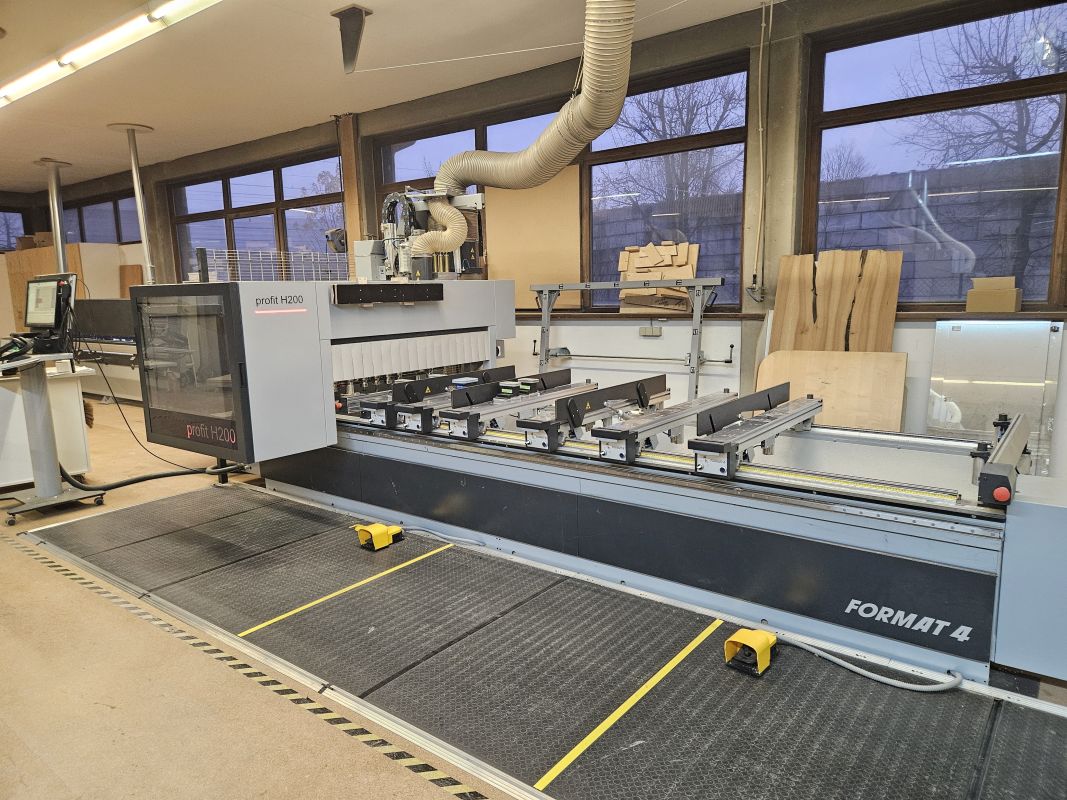

CNC machining center

CNC machining center
Brand: Felder Format4
Type: Profit H200
Year of manufacture: 2021


Technical data
Automatic central lubrication

Machining range
Axis travel
X = 4000 mm
Y = 1670 mm
Z = 500 mm

Working area
X = 3300 mm
Y = 1280 mm
Z = 250 mm Clearance height from console level depending on clamping system

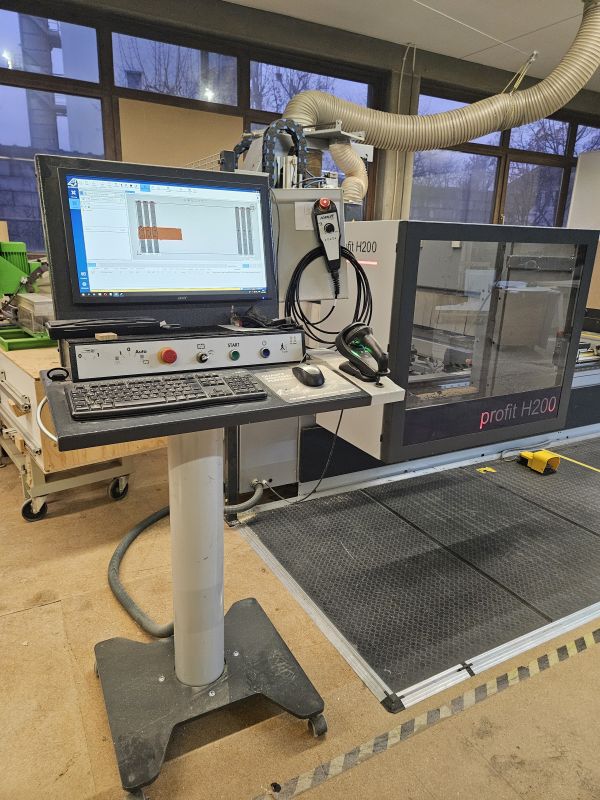

Operating terminal on left side of machine

Hand terminal for controlling the axis speed, including emergency stop switch

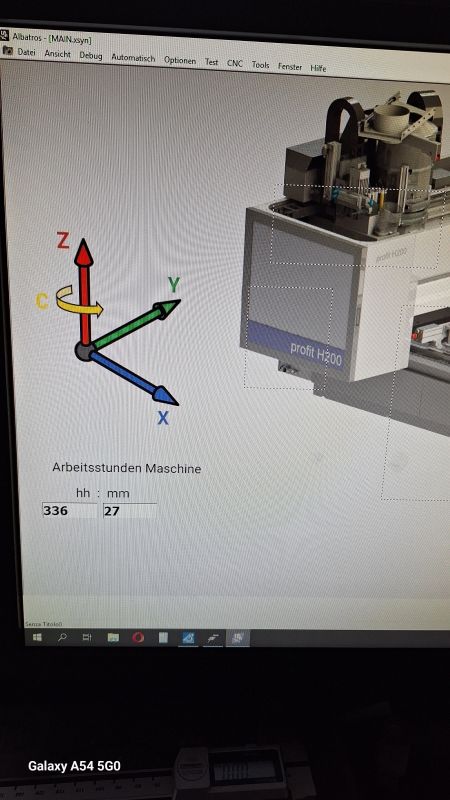

Woodflash machine software
Consisting of
- CNC board
- Tool database
- Program editor

Positioning display for the workpiece support and vacuum suction cup

Vacuum connection for template milling work on the left side of the machine: Connection diameter: 12 mm

1 vacuum pump with a total suction power of 90 m3/h 50 Hz or 108 m3/h / 60 Hz

Milling spindle 12 kW (S6) HSK F63
12 kW (S6)
Full rated power at approx. 12000 rpm
Speed 1000 - 24000 rpm
Air-cooled
C-axe 0-360° for miiling spindle

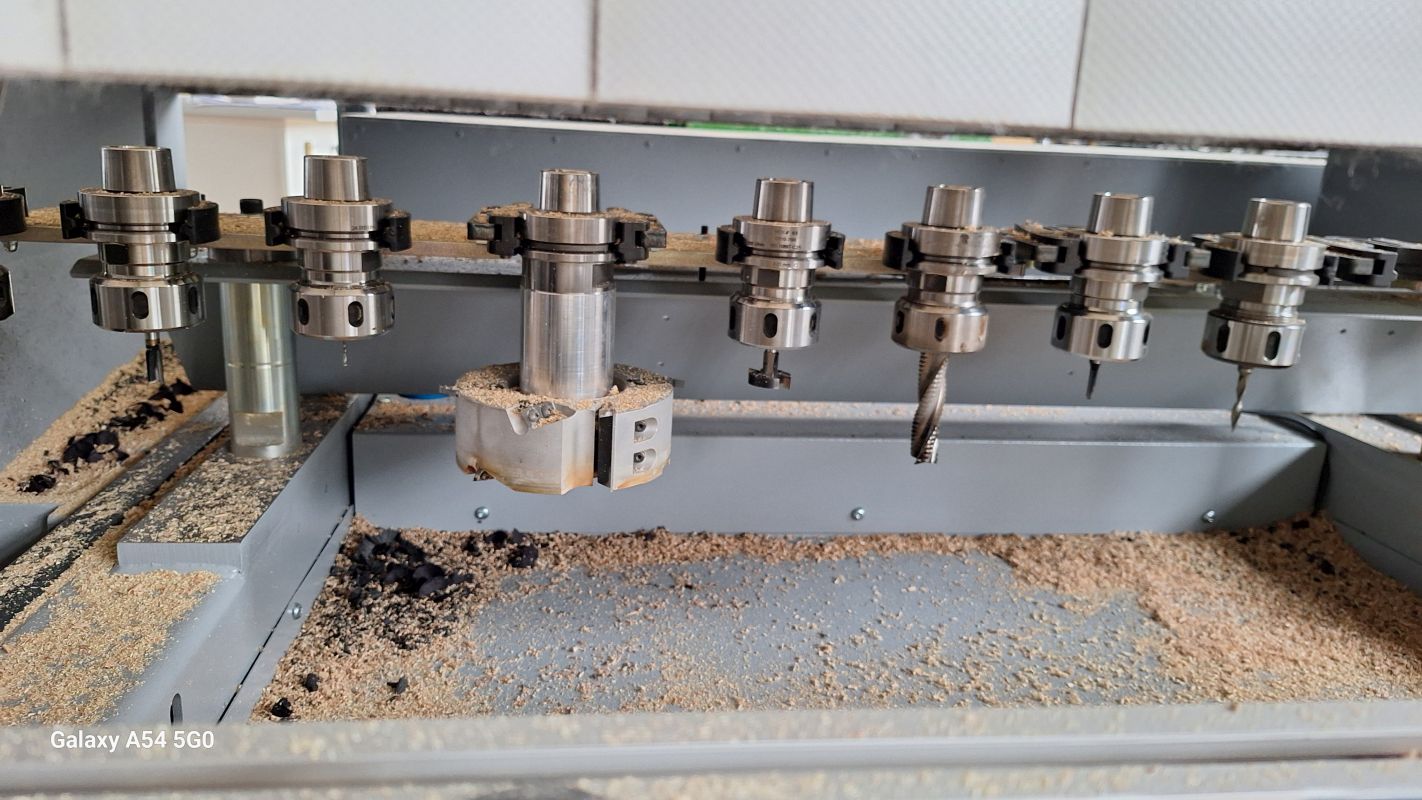

12-station linear tool changer on the left side of the machine stand, including a pickup space for aggregates
Max. tool diameter 250 mm
Max. tool length 240 mm

Drill head DH 16 4H 2S
12 vertical spindles
7 spindles in the X direction and 5 spindles in the Y direction

4 horizontal spindles
2 spindles in the X direction and 2 spindles in the Y direction
Pre-stroke = 70 mm
Drilling length = 70 mm
Shank D = 10 mm

2 groove saws, one each in the X and Y directions
Max. saw blade diameter 120 mm
Max. blade thickness 5 mm
Max. speed continuously variable 7500 rpm

Safety system with light barrier on the front



Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
