CNC working centre

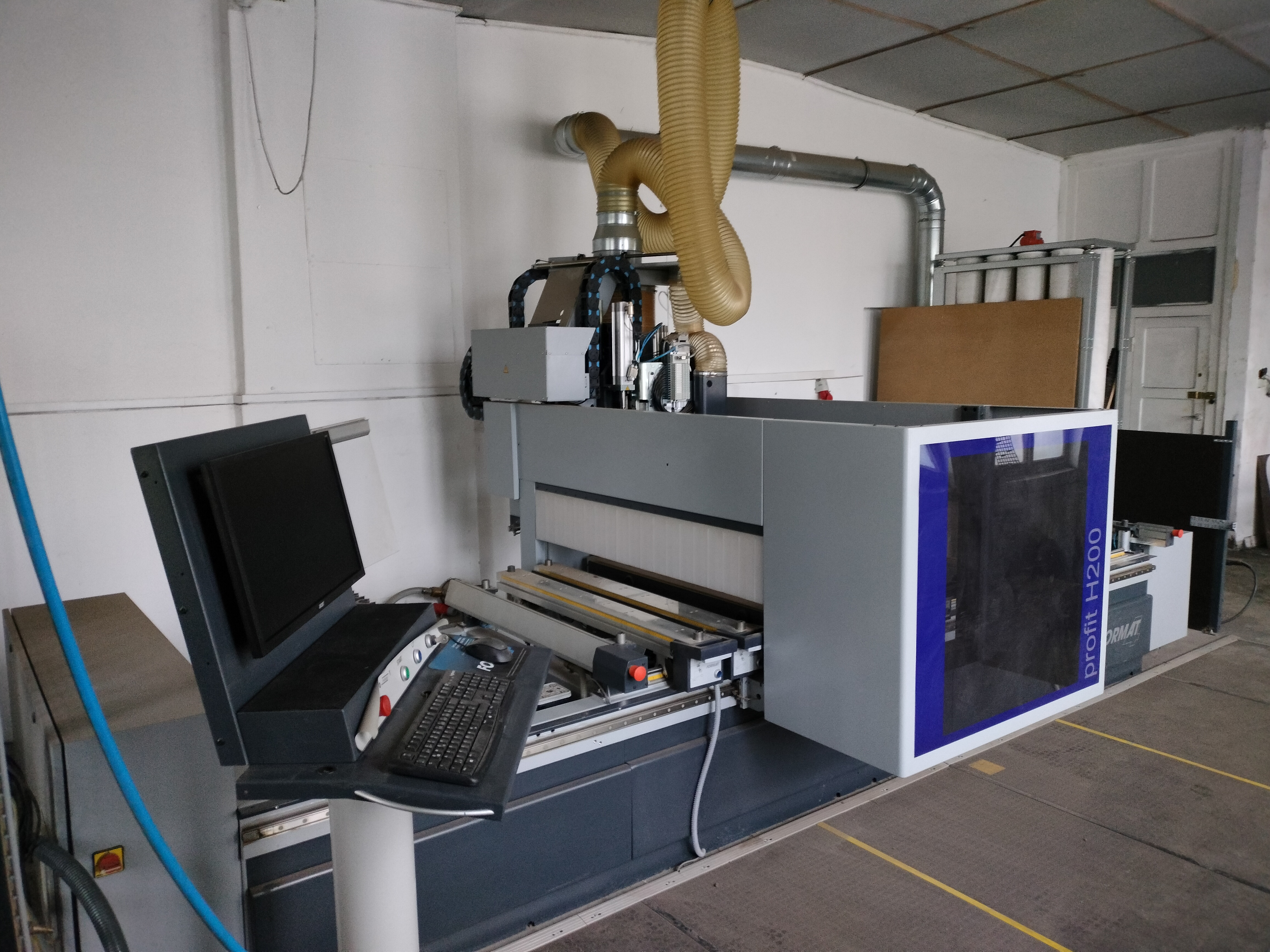

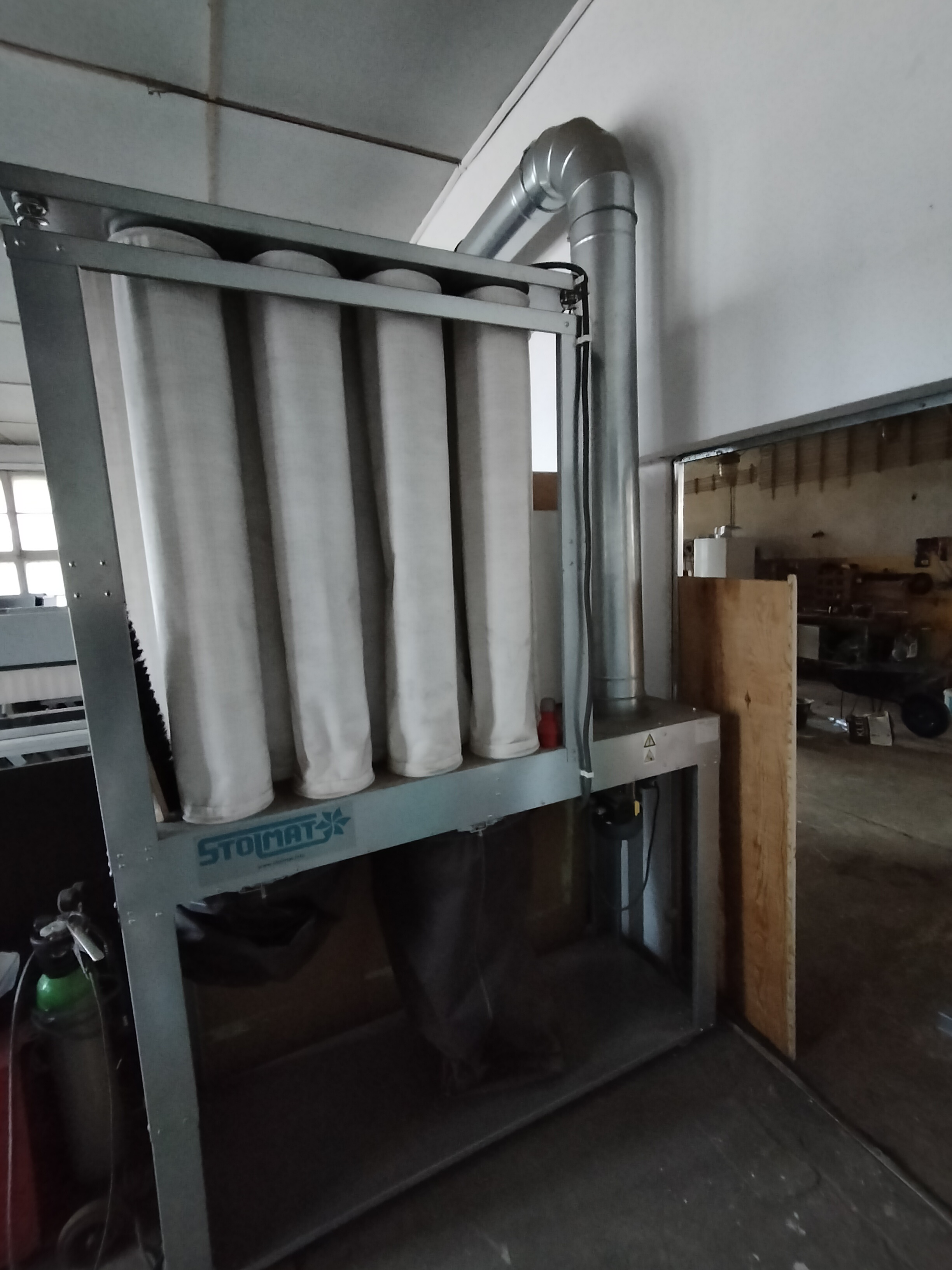

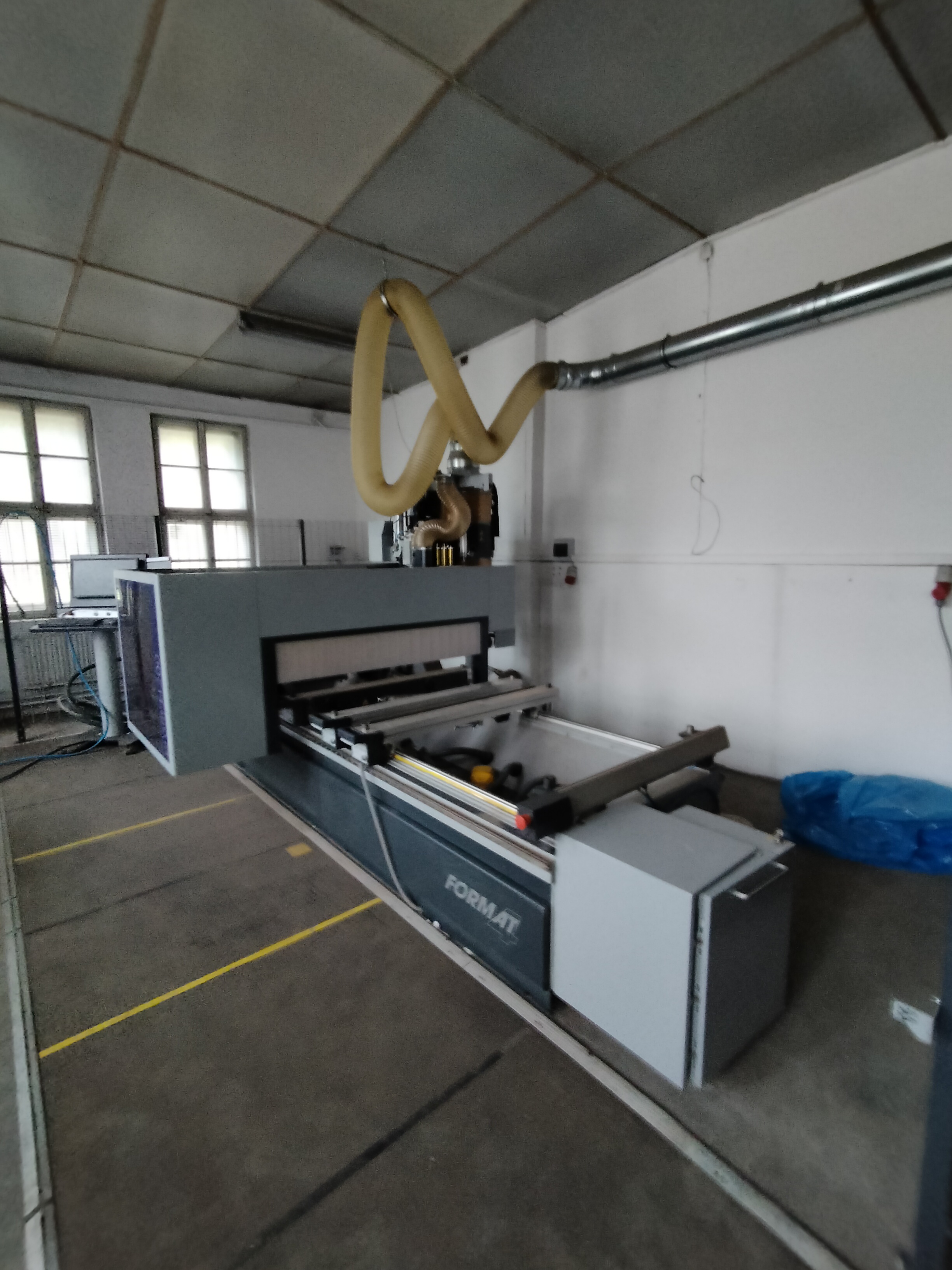

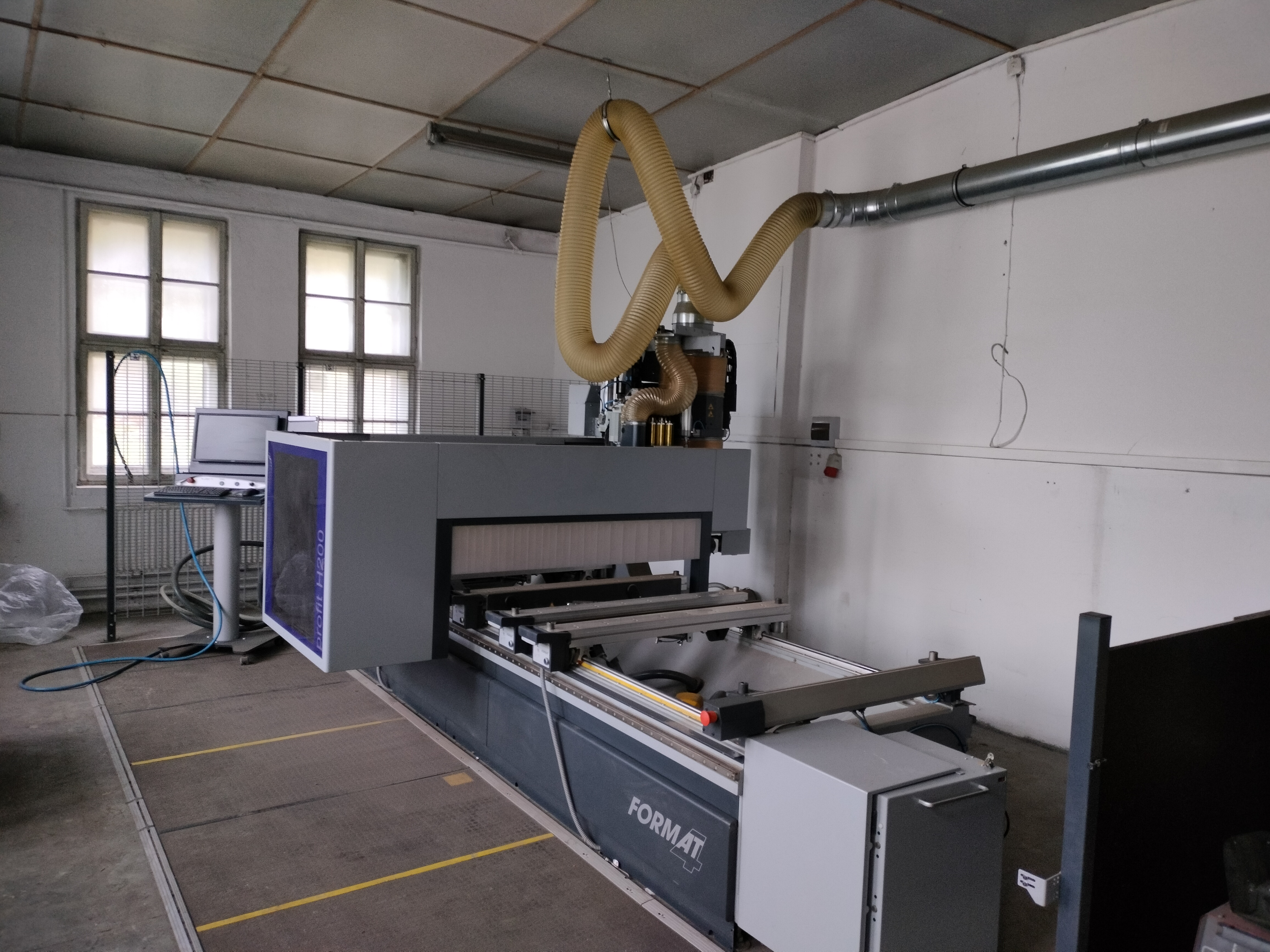

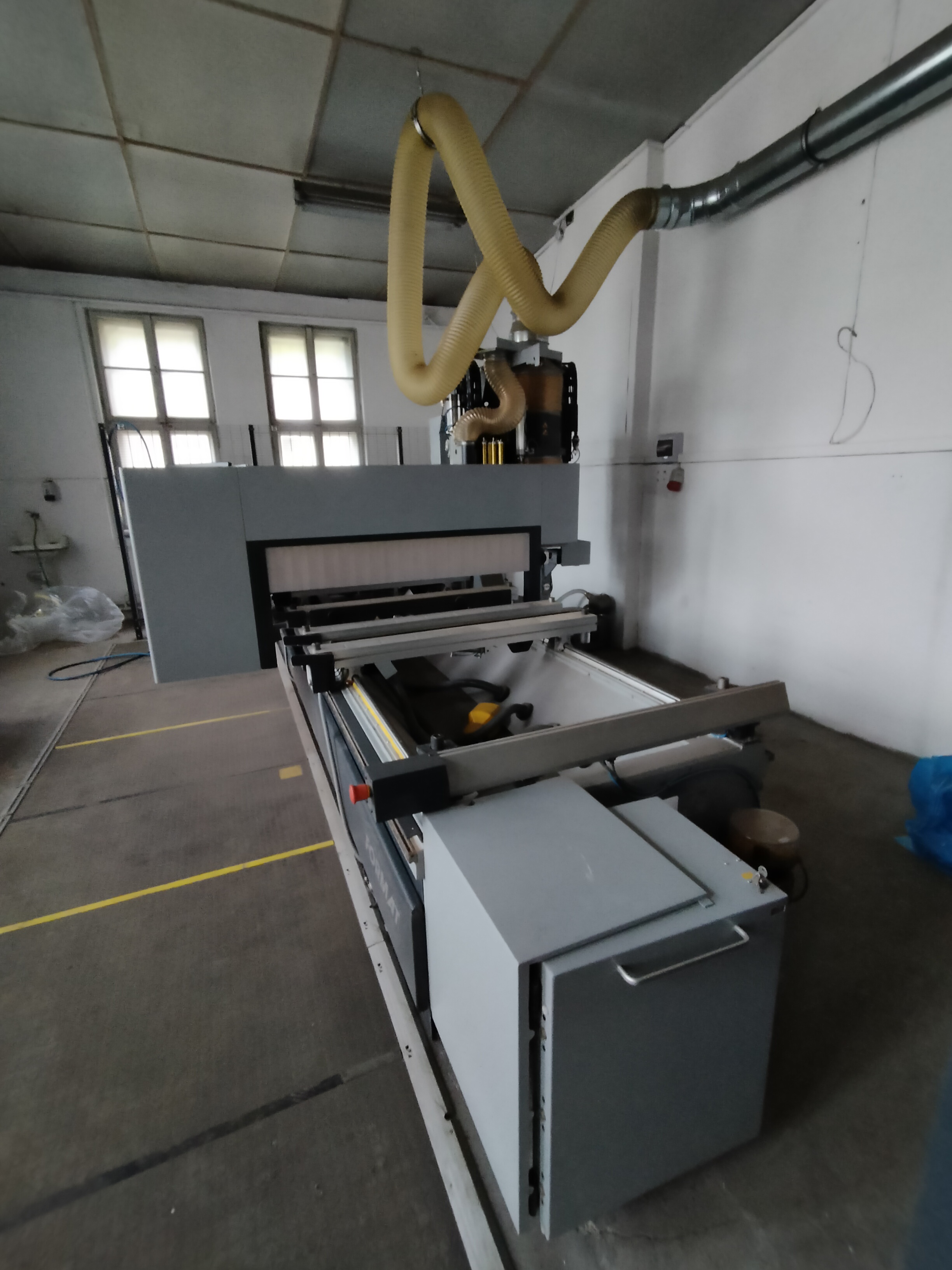

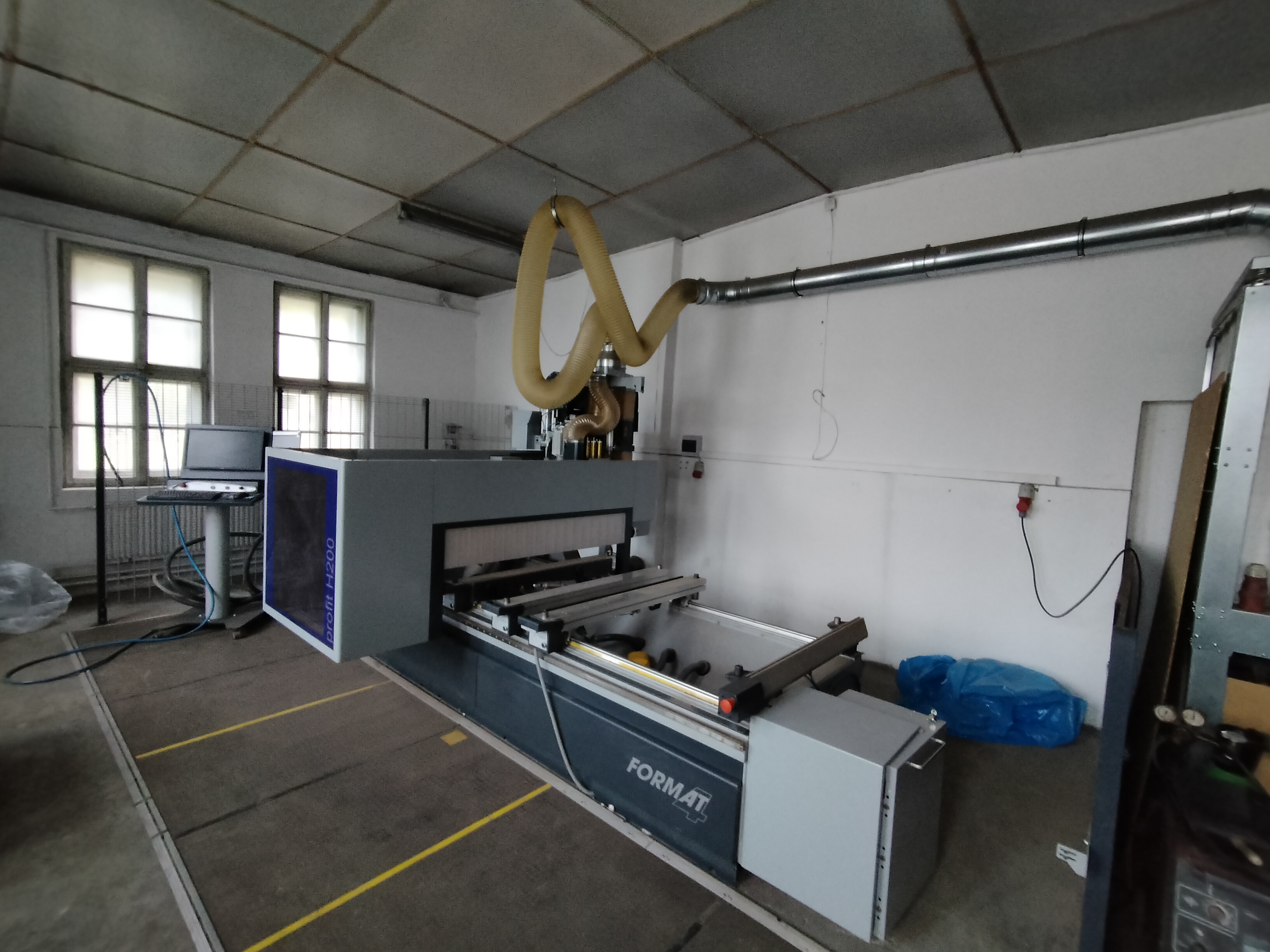

CNC working center FELDER
FORMAT4 Profit H200 13.33
YOM 2019

New machine (was only use in a school for demonstration purposes)

Number of Axes: 4
X-axis Travel: 4000 mm
Y-axis Travel: 1670 mm
Z-axis Travel: 500 mm

Technical Specification
Spindle Power: 12 kW
Spindle Speed: 24000 RPM
Additional Information

Working field (max panel size)

X: 3300 mm
Y: 1280 mm
Z clearance: 250 mm

Spindle
Tool interface: HSK F63

Rated power at: approx. 12,000 rpm

Cooling: Air-cooled

Rotation: CW / CCW

Tool magazine

Linear tool magazine (side-mounted): 12 positions

Additional linear magazine on gantry: 4 positions

Max. tool diameter: 250 mm

Max. tool length: 300 mm

Drilling unit

Model: DH 24 6H 2S

Vertical spindles: 18 (12 in X, 6 in Y)

Horizontal spindles: 6 (4 in X, 2 in Y)

Max. drill length: 70 mm

Max. tool diameter: 10 mm

Grooving saws: 2 (X and Y)

Max. saw diameter: 120 mm

Max. speed: 6,000 rpm

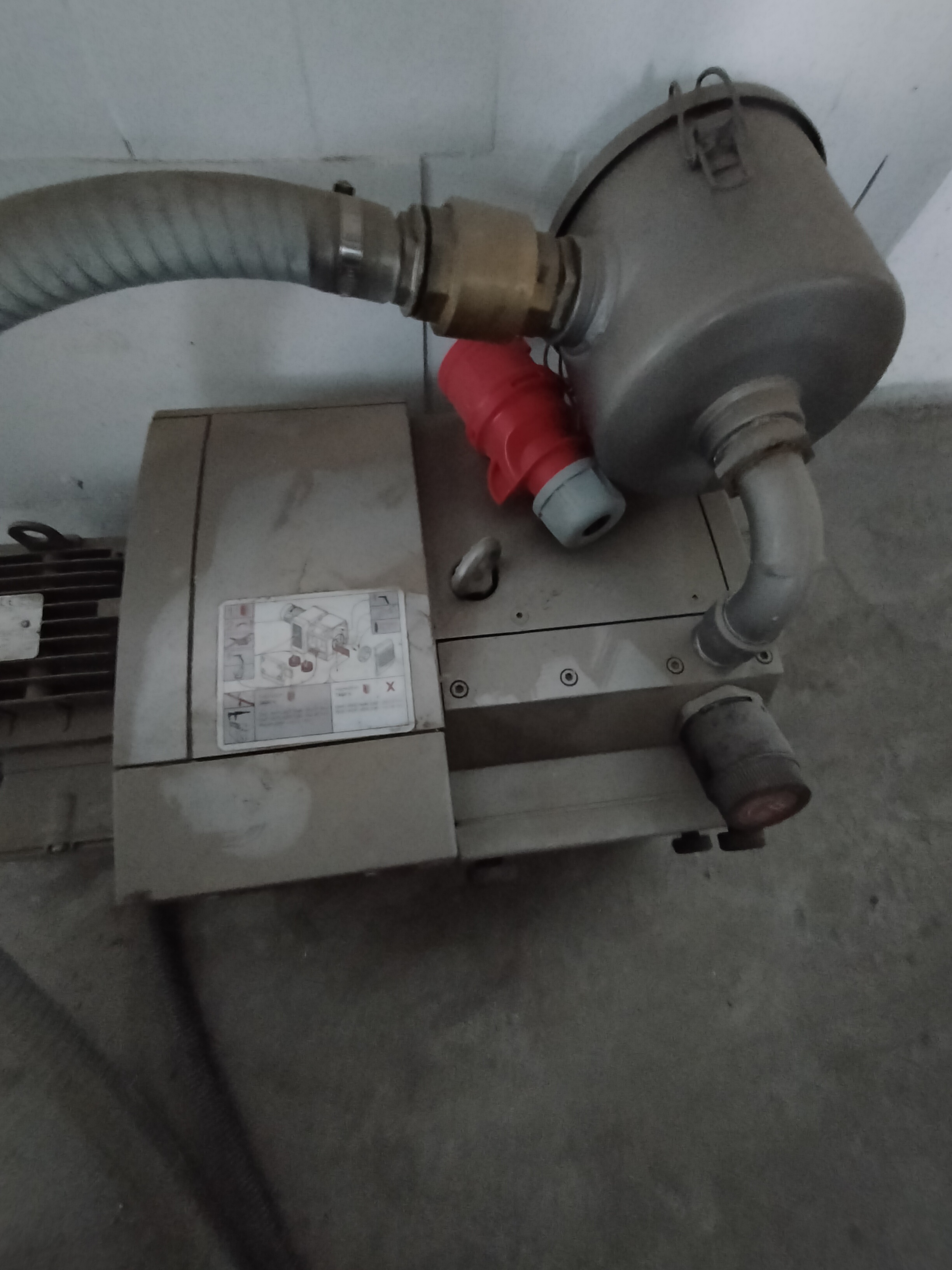

Vacuum table

6 consoles (instead of 4)

Dual-circuit vacuum system

Vacuum cups height: 100 mm

Pneumatic console locking

Adjustable side stops (Y-axis)

Axis system

X-axis: Rack and pinion drive

Y/Z-axis: Ball screw drive

Linear guideways on all axes

Central automatic lubrication

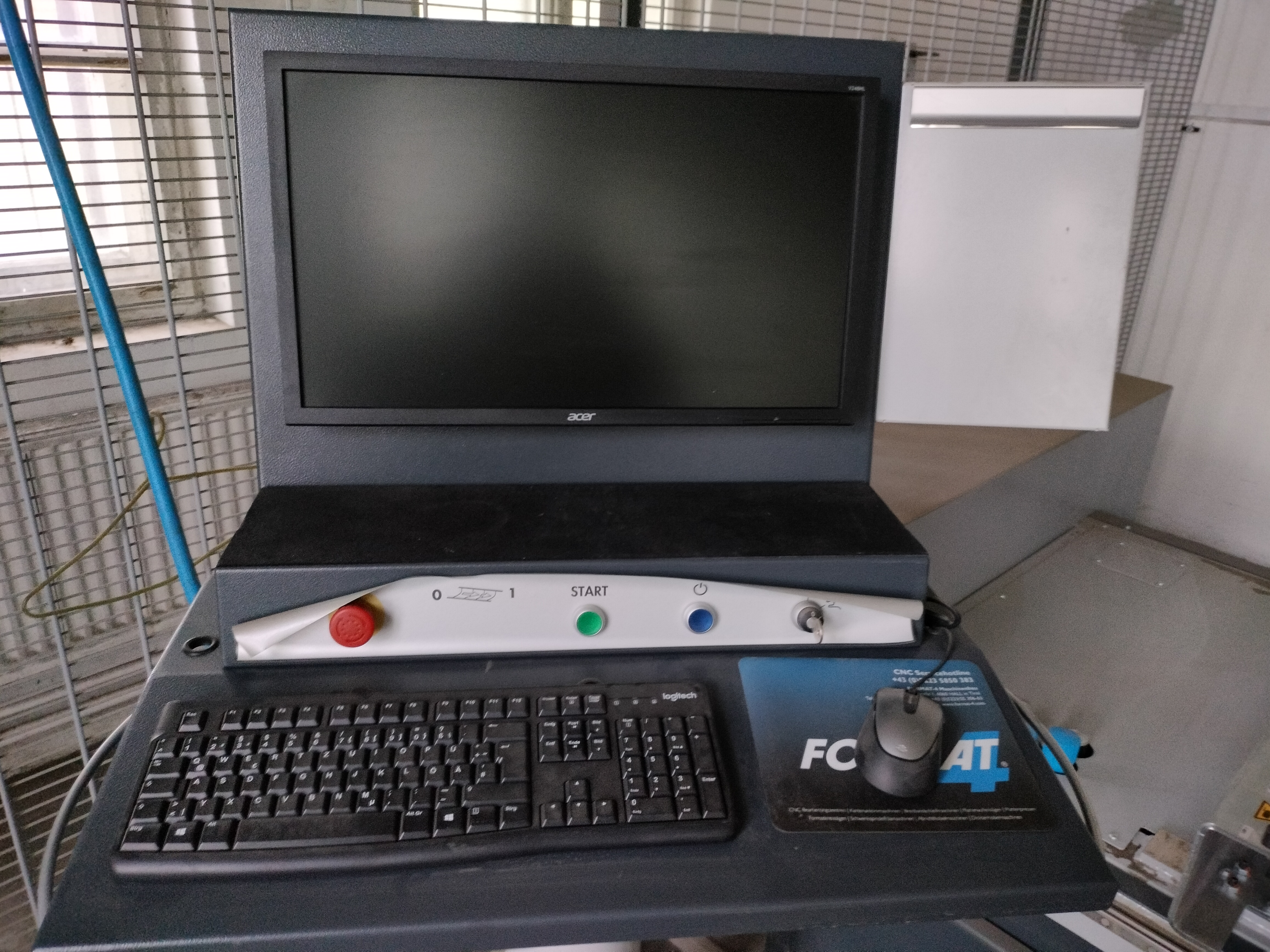

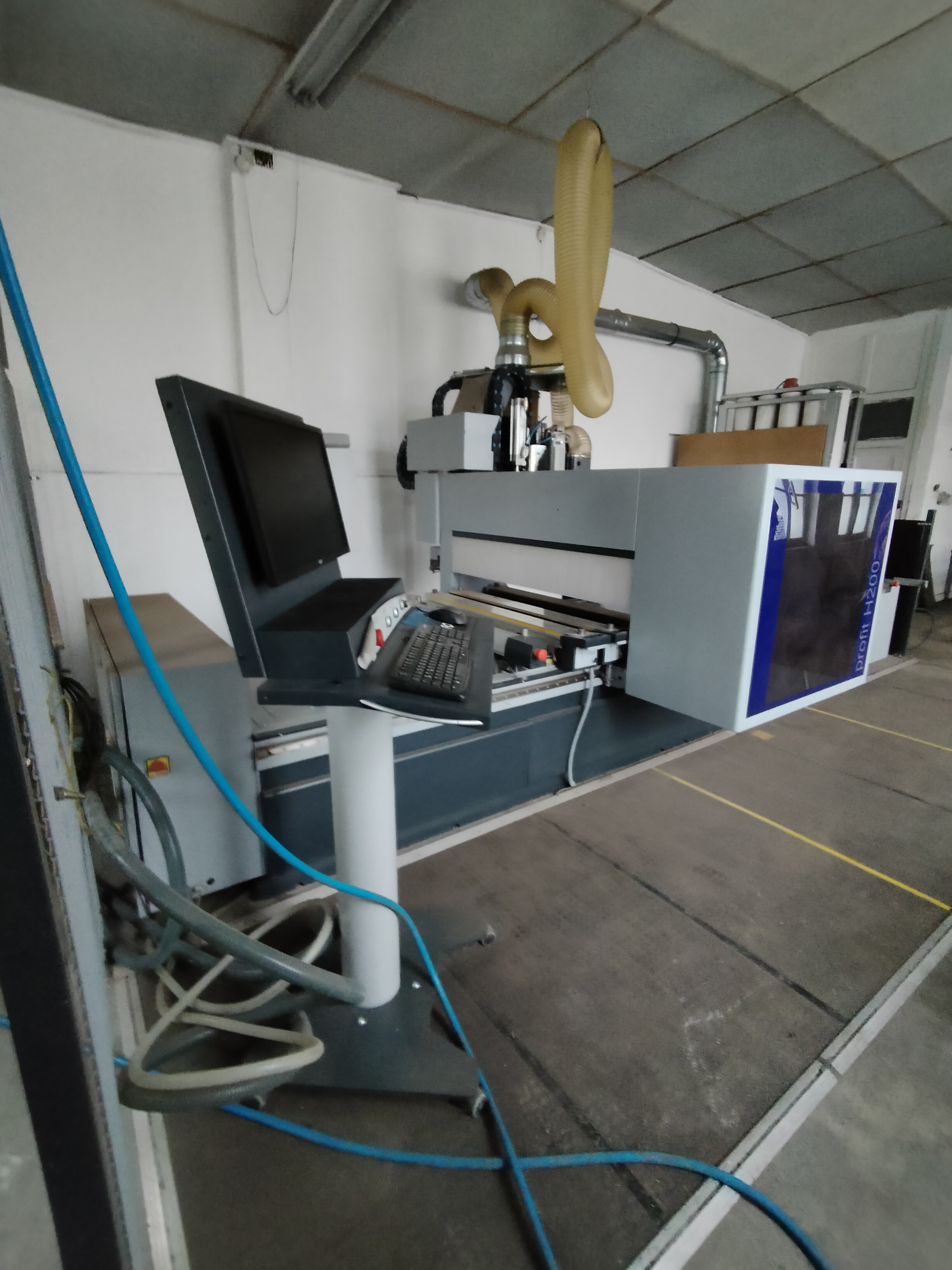

Control and software

CNC control with CAD/CAM software

3D simulation preview

DXF import capability

Parametric programming

Remote service package (internet-ready)


Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
