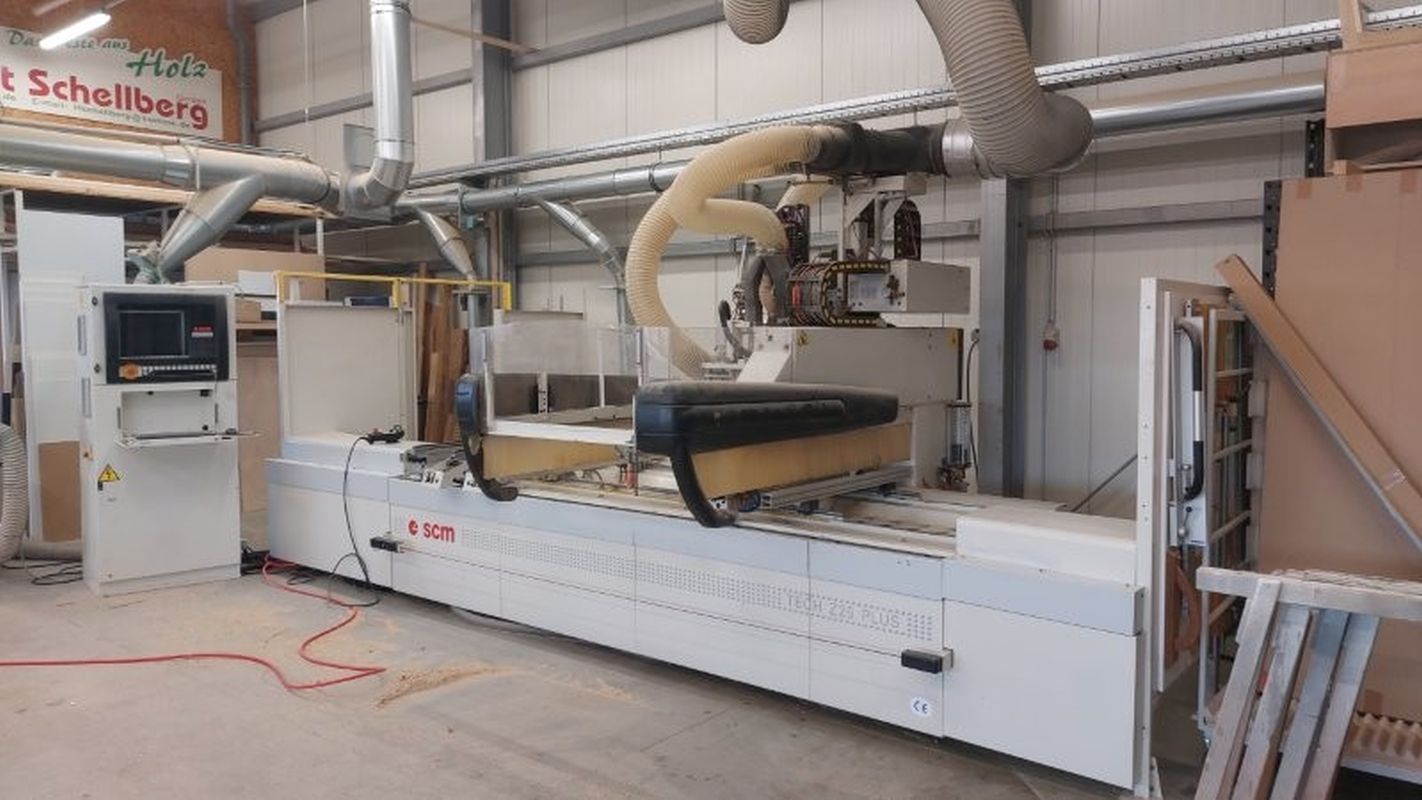

CNC machining center

CNC machining center
Brand: SCM
Type: TECH Z25
Year of manufacture: 2005


Technical data
- Working area: 2500 x 1000 mm
- Travel range (X-axis): 2980 mm
- Travel range (Y-axis): 1280 mm
- Travel range (Z-axis): 200 mm
- Programmable speed (X-axis): 25 m/min
- Programmable speed on the Y-axis: 30 m/min
- Programmable speed on the Z-axis: 22.5 m/min
- Vector speed: 40 m/min
- 16 spindles at 4000 rpm, 2.2 kW (10 vertical and 6 horizontal)
- Electric spindle with 6.6 kW, 12,000-18,000 rpm, HSK-63
- Side tool magazine with 7 positions
- Required space (LxWxH): 6970x3000x2680 mm
- Weight approx. 3295 kg



Note:
The technical data and descriptions are copies of the original order confirmation. This information is provided for informational purposes only and is not binding.
