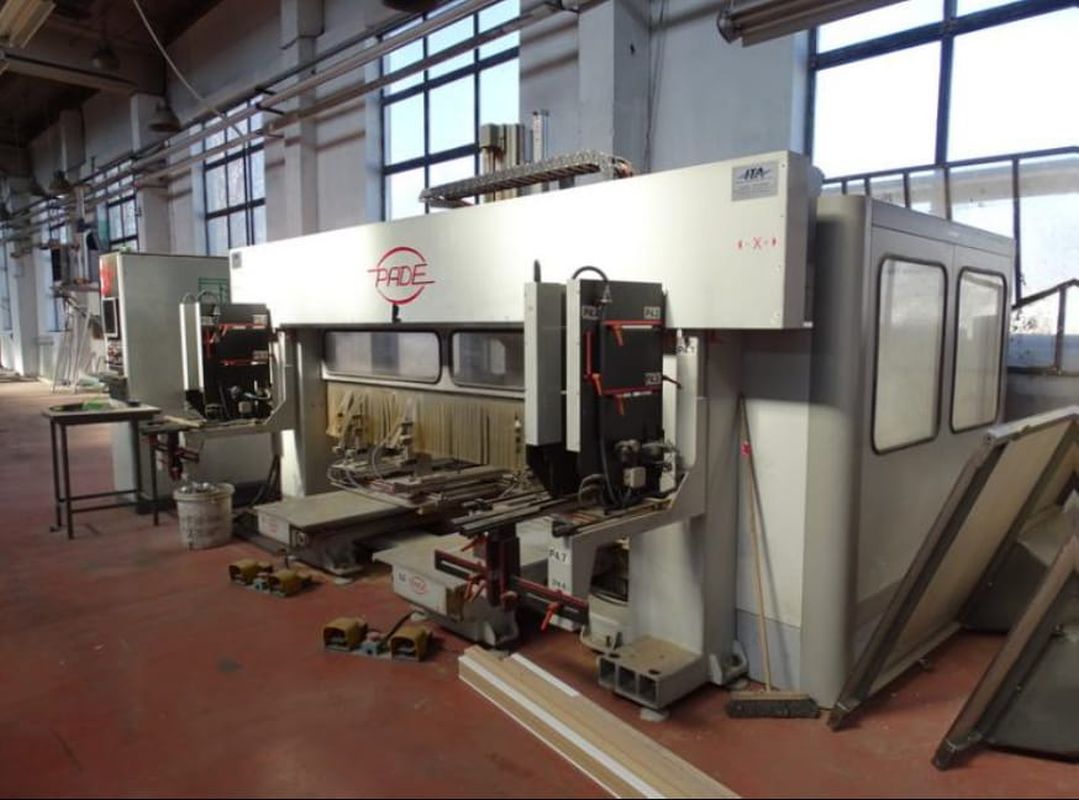

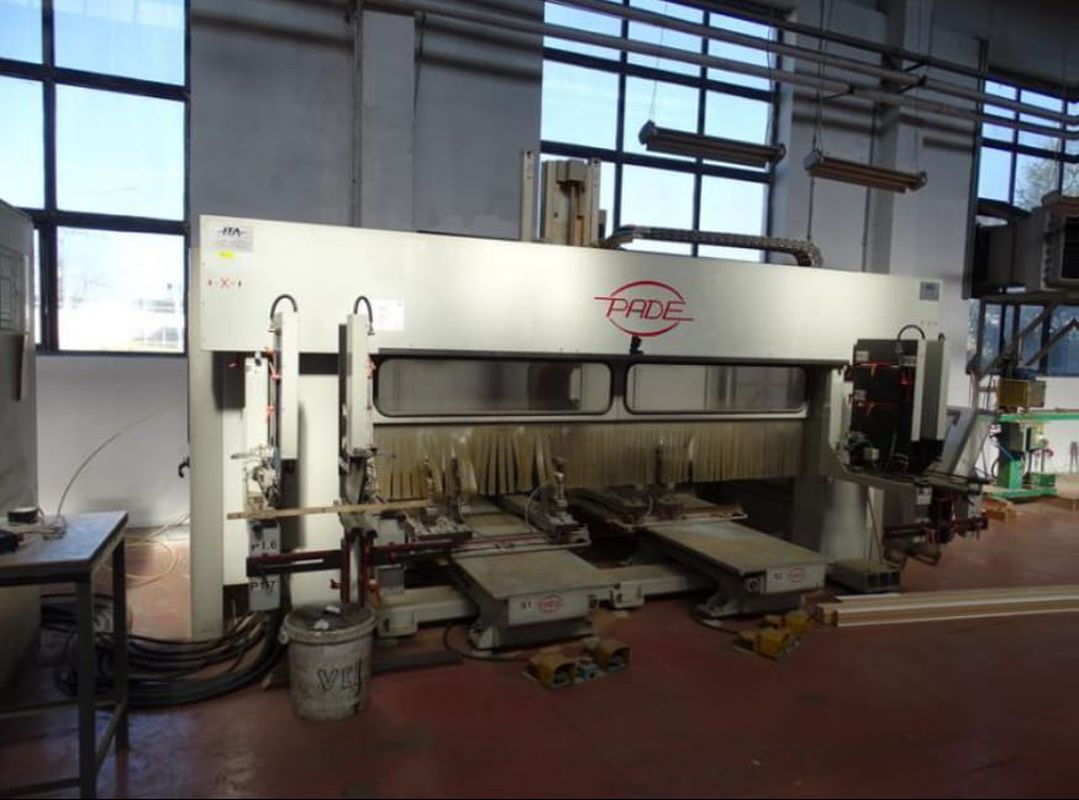

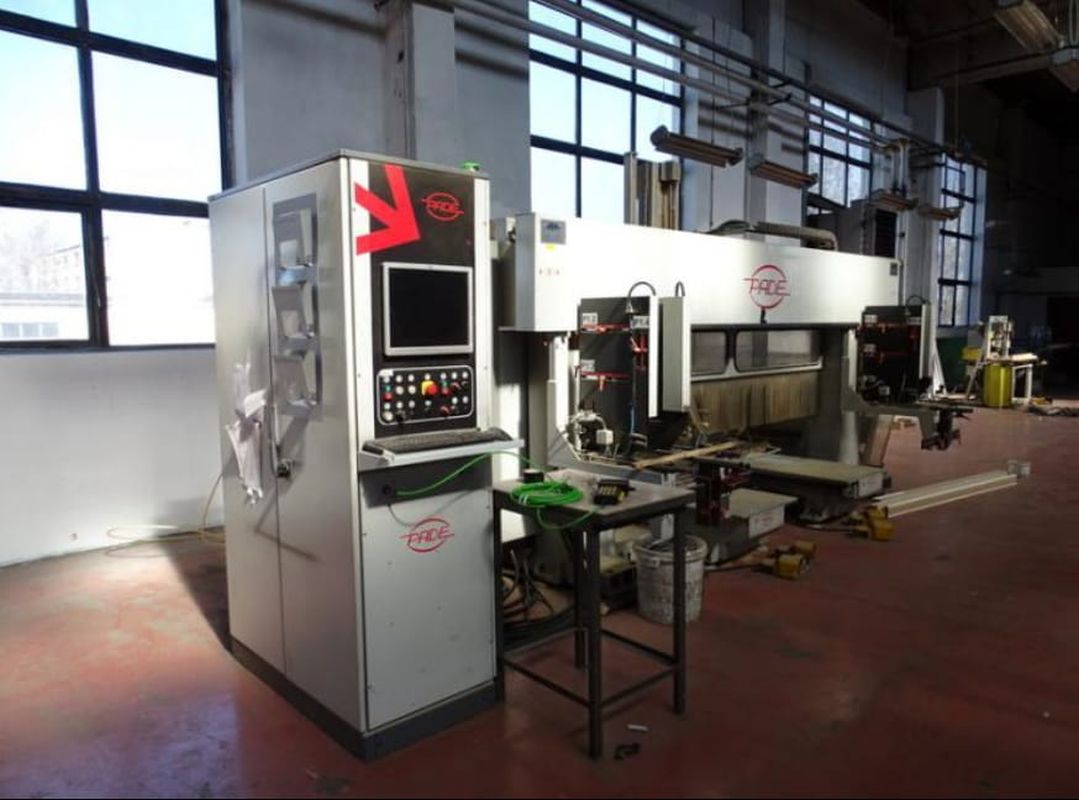

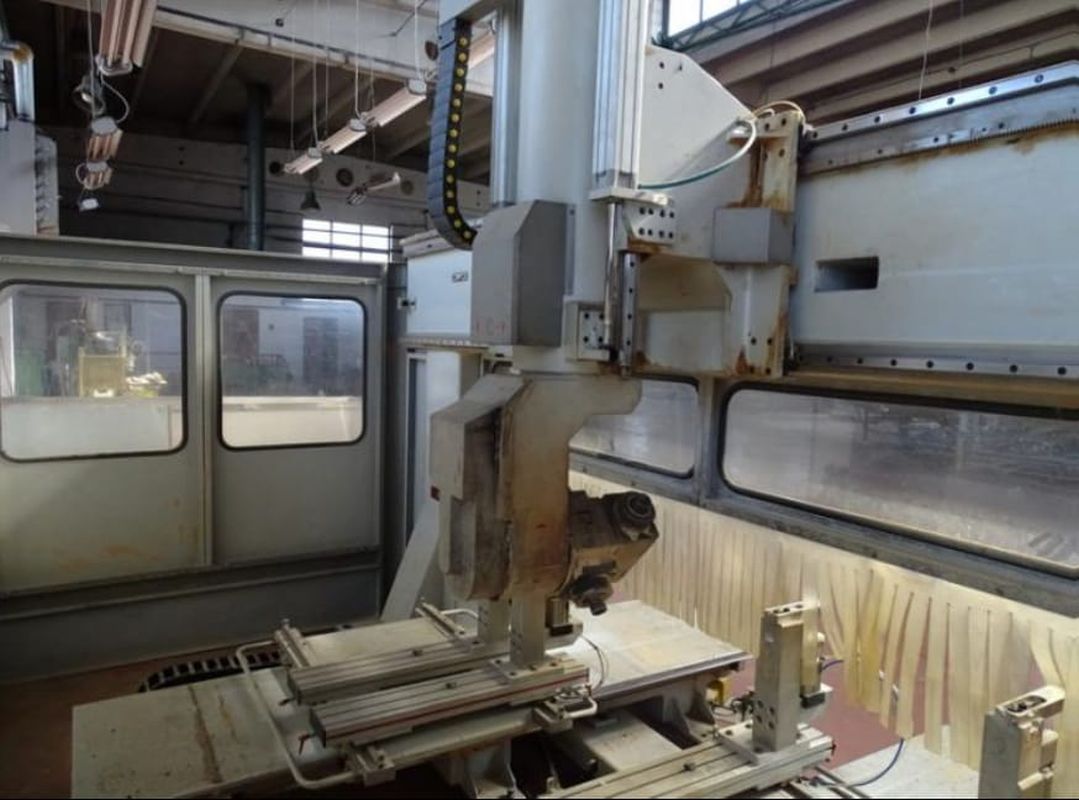

CNC Machining Center

CNC Machining Center
Brand: Pade
Type: Velux
Year of manufacture: 2010


Technical data

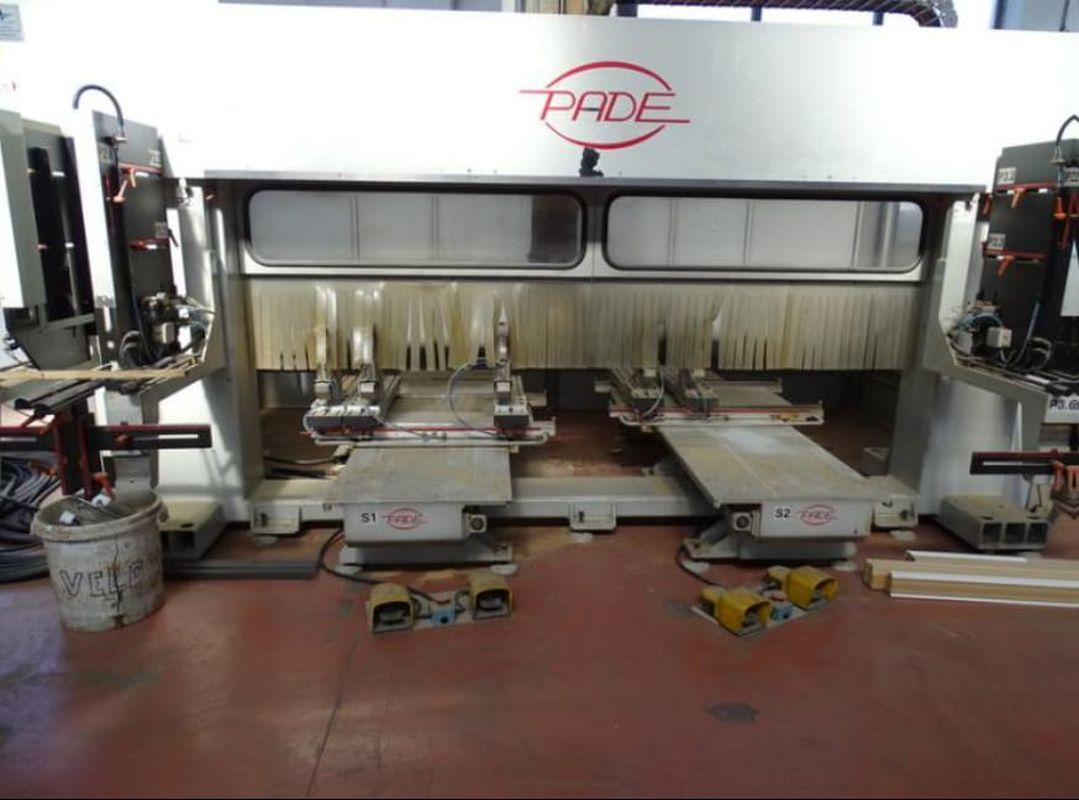

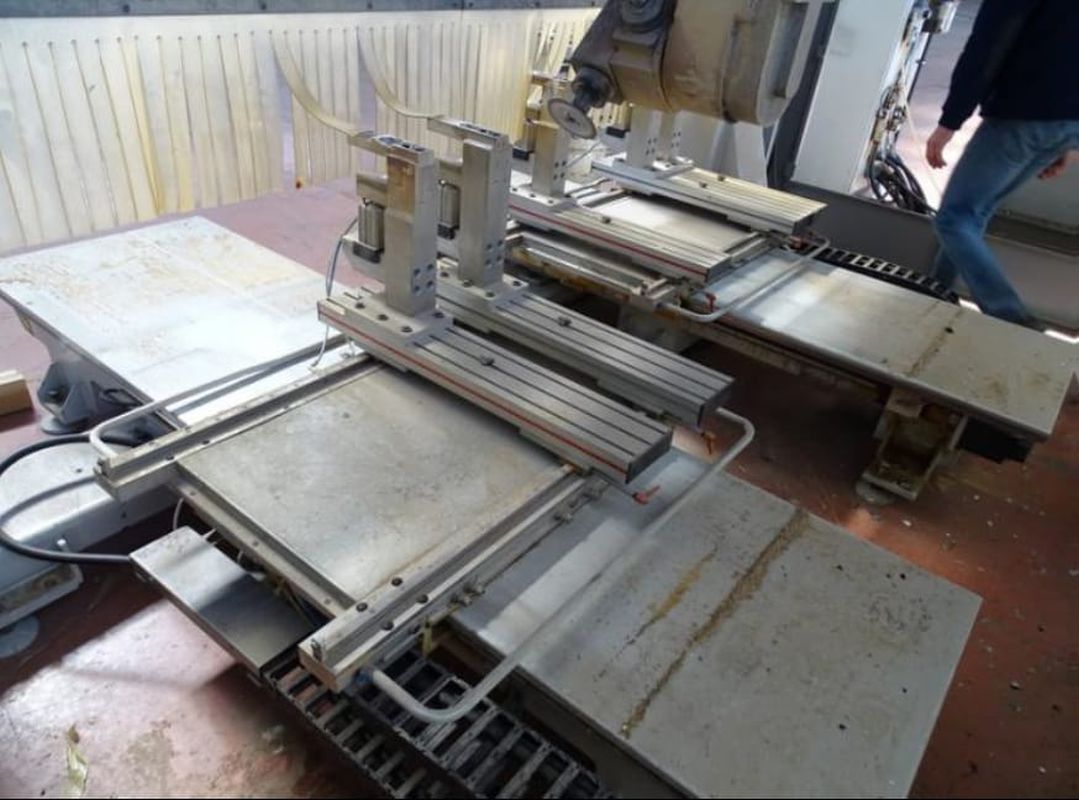

- 2 tandem worktables with 6 pneumatic clamps
- X-axis travel: 3,550 mm
- Y-axis travel: 1,800 mm
- Z-axis travel: 750 mm

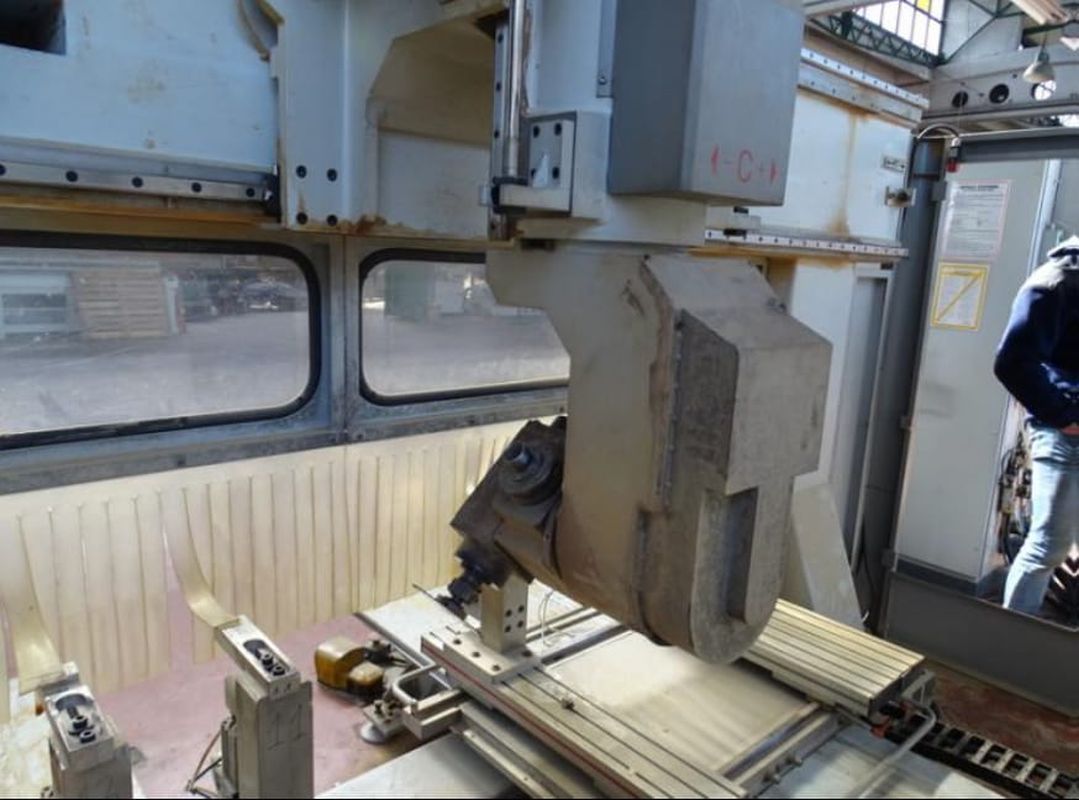

- Continuous A-axis rotation
- C-axis rotation: ±370°
- X-axis rapid speed: 100 m/min
- Y/Z-axis rapid speed: 60 m/min
- 2 + 2 tool positions with collet tool holders
- Tool holder standard: EN430E / DIN 6499
- Cylindrical tool interface
- Collet size: ER32, tool diameter 1-20 mm
- Spindle speed: 2,000-18,000 rpm
- 2 electrospindles, 7.5 kW each
- Operating air pressure: 6 bar
- Compressed air consumption: 300 Nl/min



Note:
The technical data and descriptions are copies of the order confirmation from that time. This information is provided for informational purposes only and is not binding.
