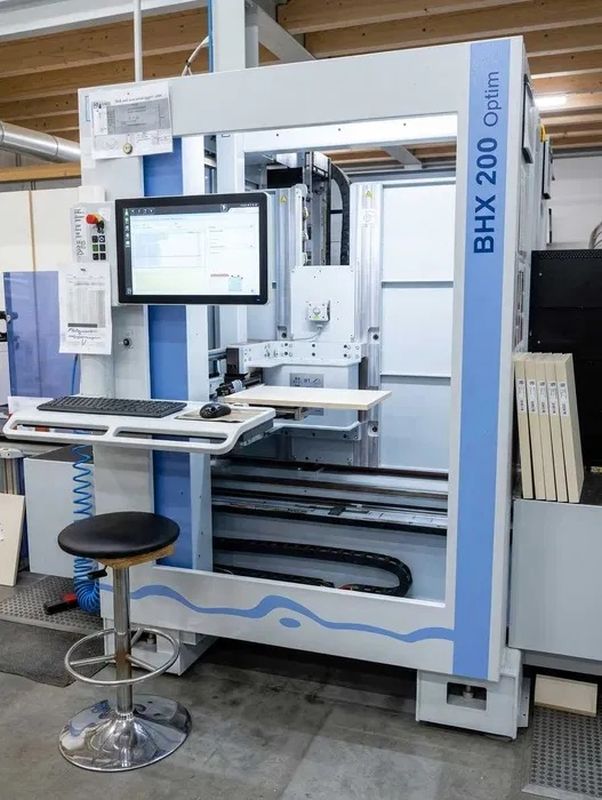

Vertical CNC Machining Center

Vertical CNC Machining Center
Brand: Homag
Type: Optimat BHX200
Year of manufacture: 2016


Technical data
- Rigid steel frame construction
- Dust-protected linear guideways
- Digital servo drives on X, Y, and Z axes
- X-axis driven by rack and pinion
- Y- and Z-axes driven by ball screws
- Rapid traverse: X/Y axes: up to 50 m/min
- Z-axis: up to 15 m/min
- Maintenance-free servo motors with high-resolution encoders

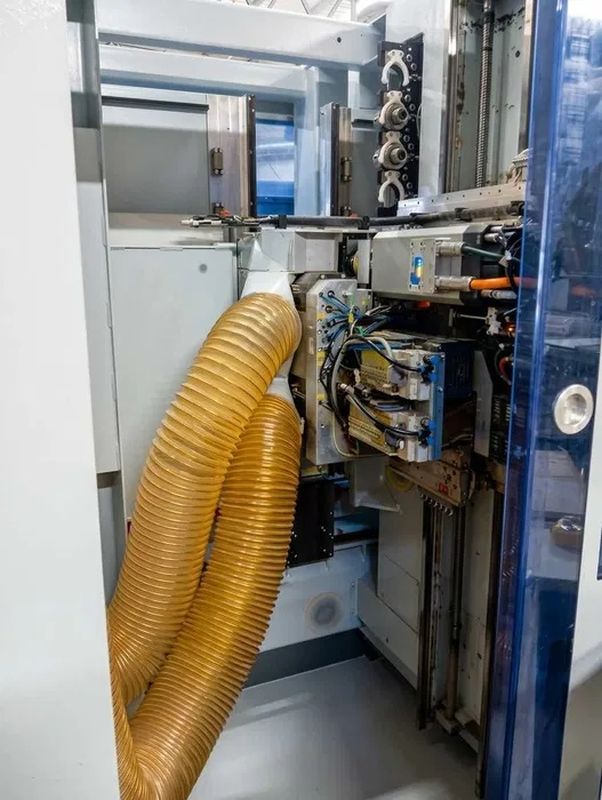

- Integrated dust extraction system for machining units
- Additional dust extraction connections

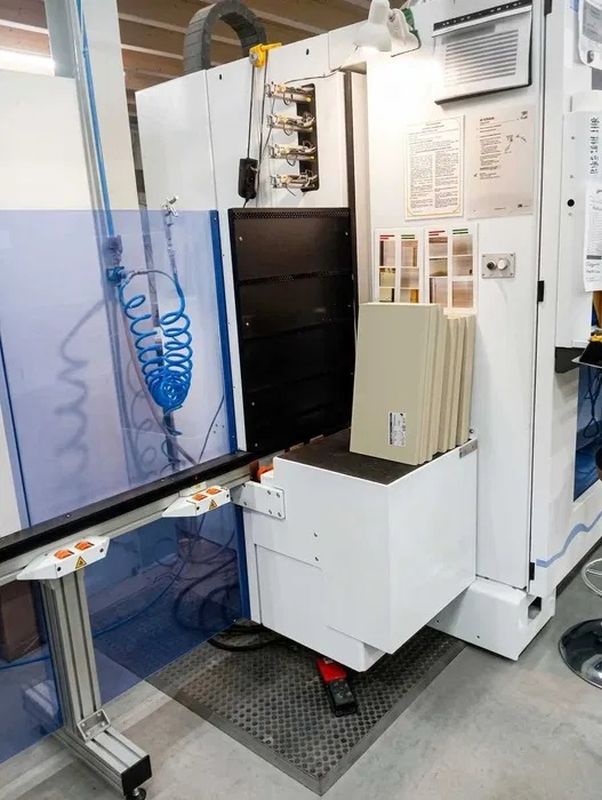

- Manual loading and unloading of workpieces
- Pneumatic positioning stop
- Working Range
- Workpiece length: 200-3,050 mm (with roller conveyor)
- Workpiece width: 50-1,250 mm
- Workpiece thickness: 8-80 mm
- Electrical Data
- Power supply: 400 V / 50 Hz
- Additional Equipment
- Air-conditioned electrical cabinet for operation above 35°C
- ECO Plus energy-saving mode with automatic standby, drive shutdown, and control system shutdown



Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
