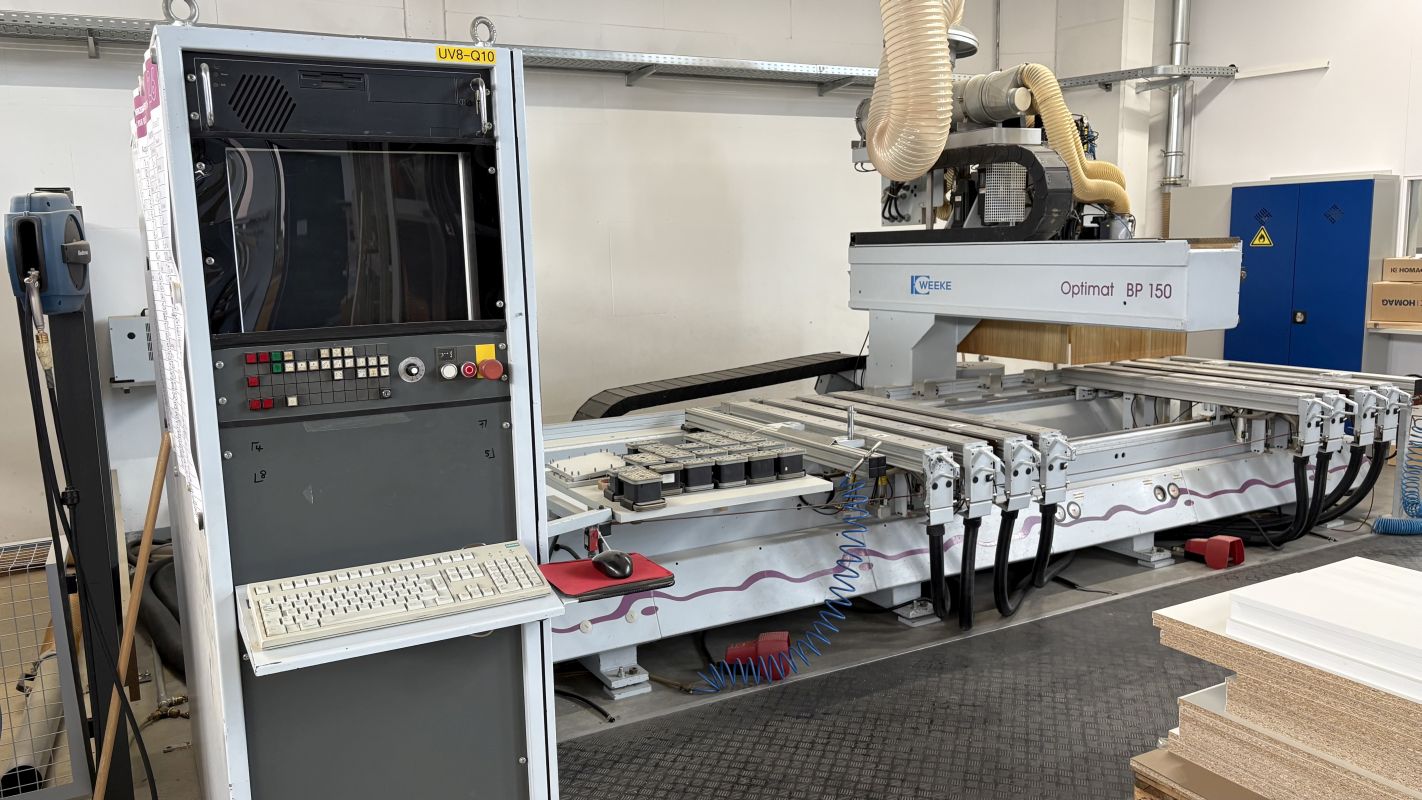

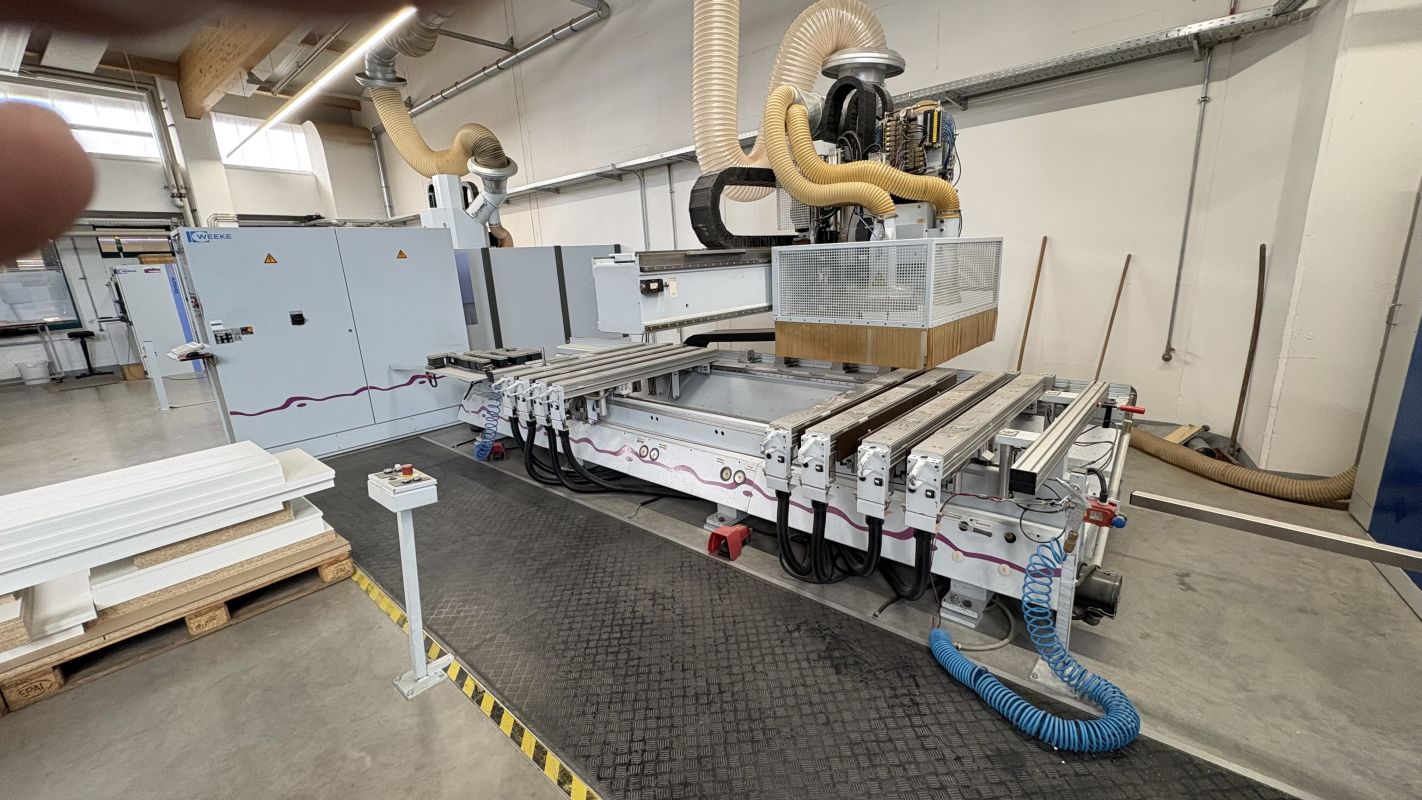

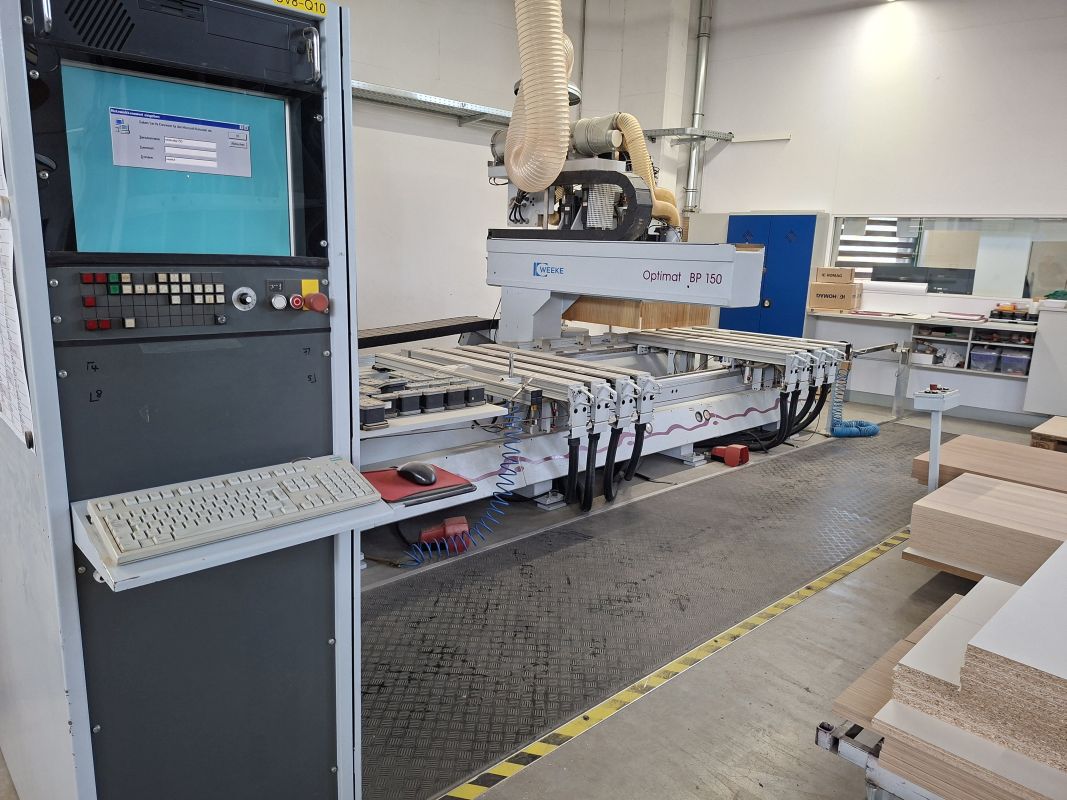

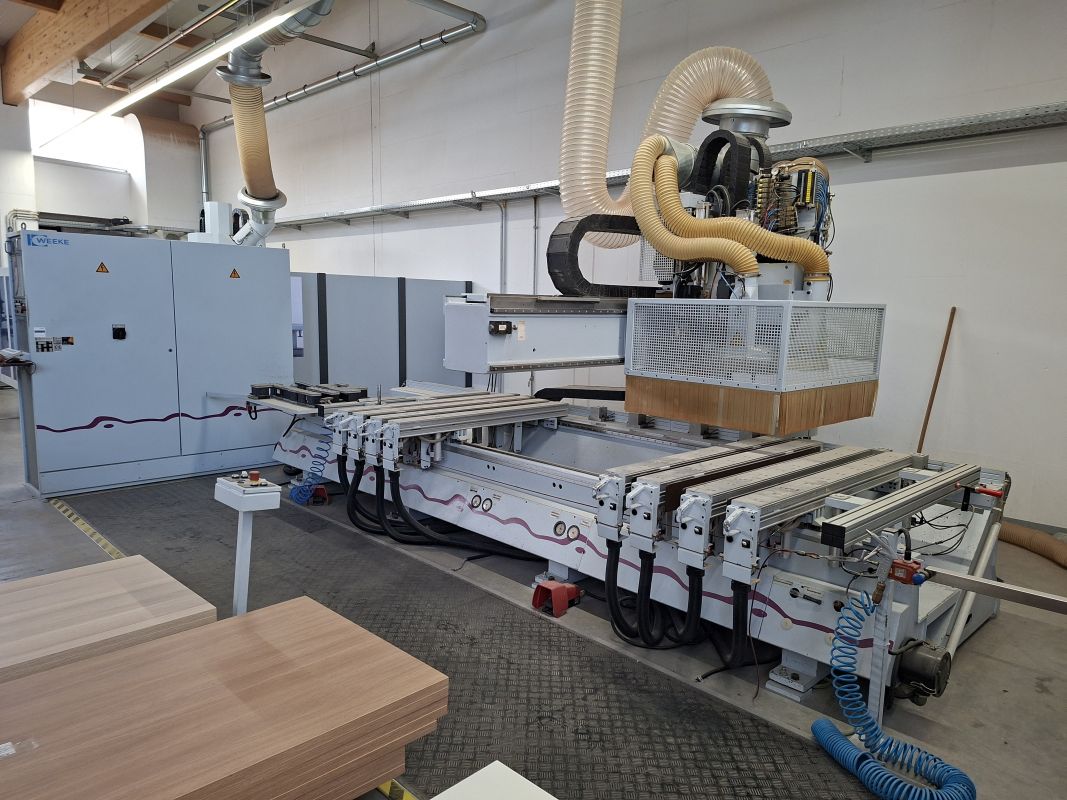

CNC machining centre

WEEKE BP 150/K – Technical Specifications
Manufacturer WEEKE
Type BP 150/K
Year of manufacture 1998

Machine type CNC machining centre / Point-to-Point
Design Gantry / cantilever machine
Working range X approx. 3,645 mm*
Working range Y approx. 1,250 mm*
Working range Z approx. 250 mm*
Number of routing spindles 1
Main spindle power 10 kW
Main spindle speed max. 24,000 rpm

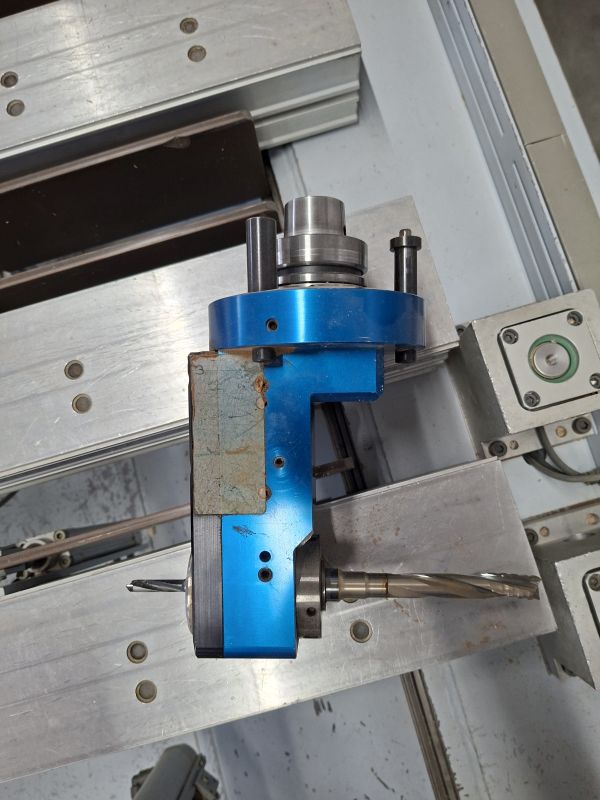

Tool holder HSK-F63
Tool changer 8-position
4th axis         Available
Vertical drilling spindles 30
Horizontal drilling spindles 6

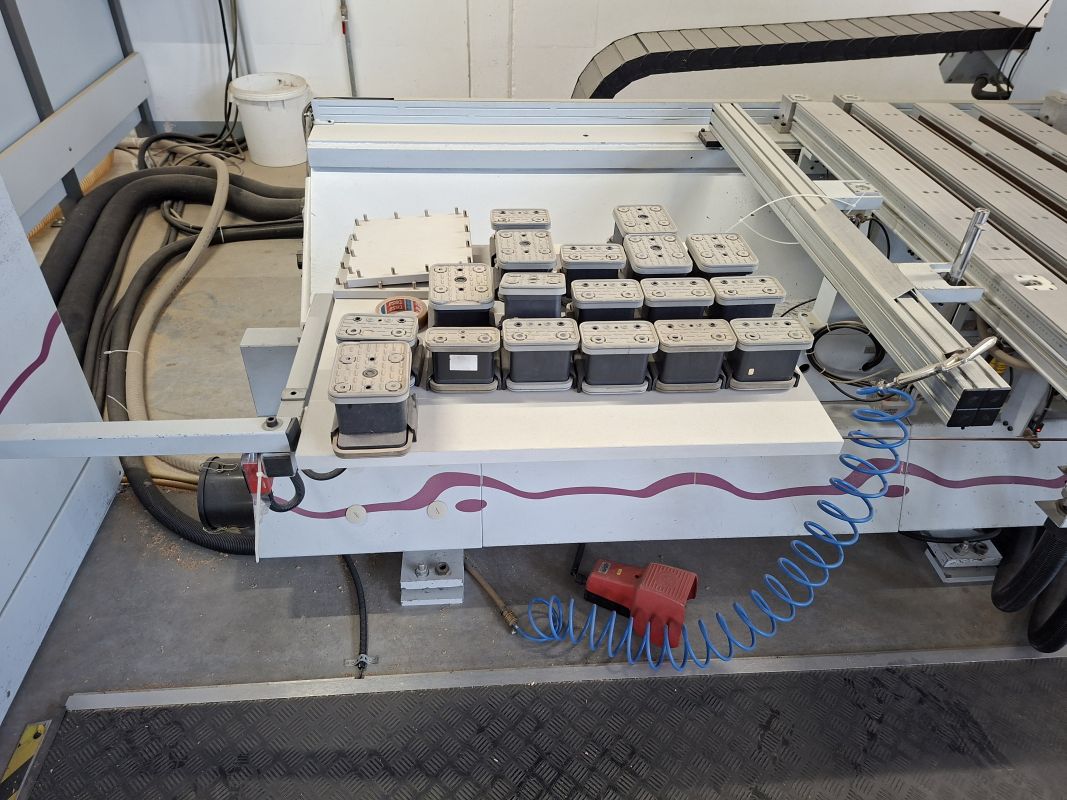

Table system Console table
Number of consoles 8

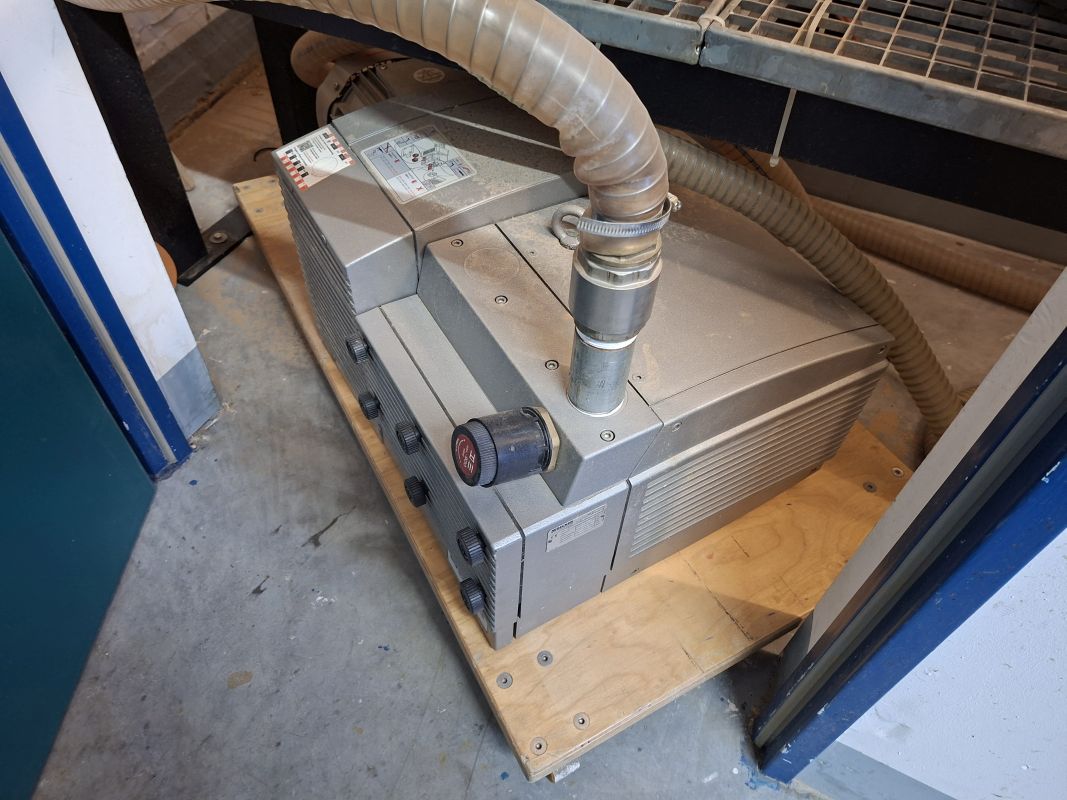

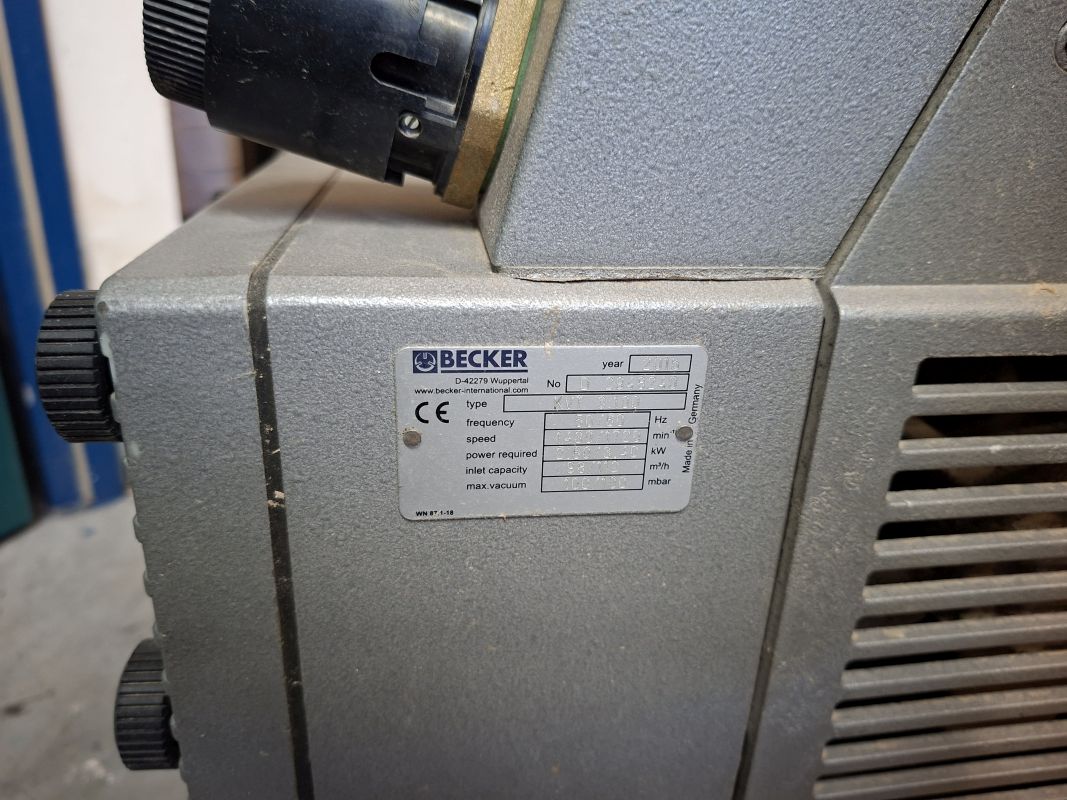

Vacuum pump
Safety system

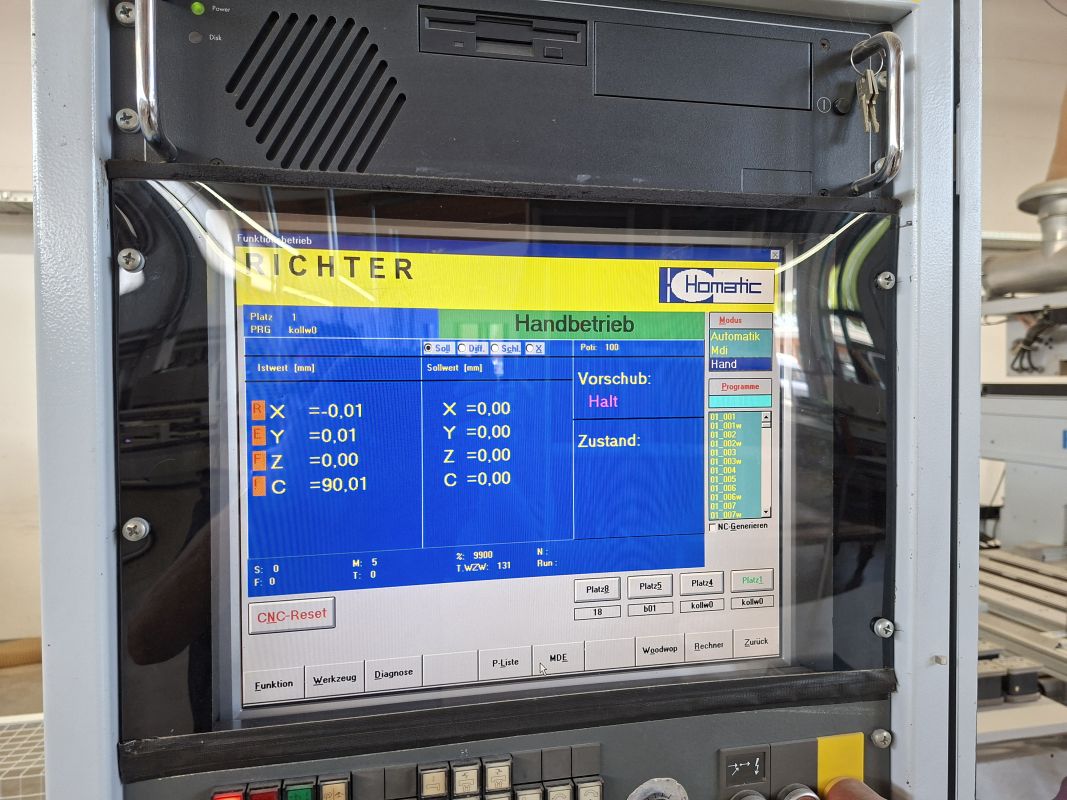

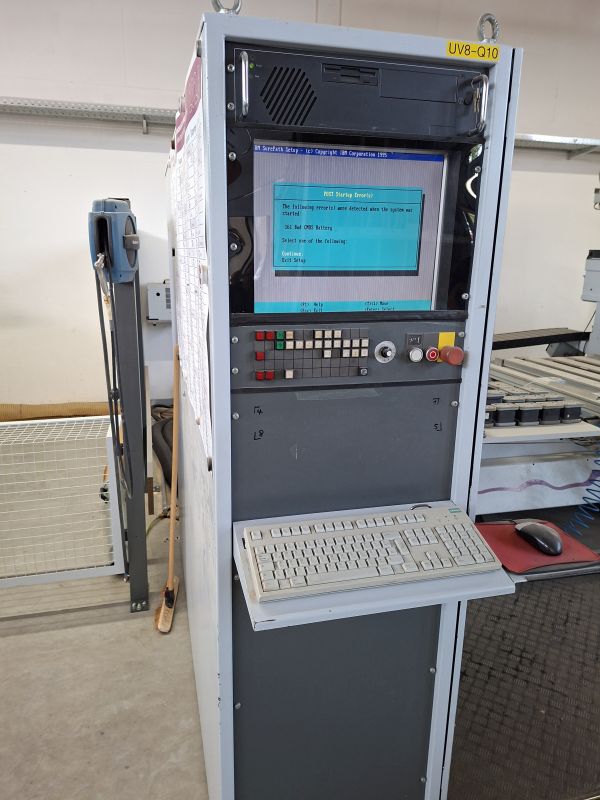

Control system HOMAG HOMATIC 2000 / HOMATIC 2000 IPC*
Software HOMAG woodWOP 4.5

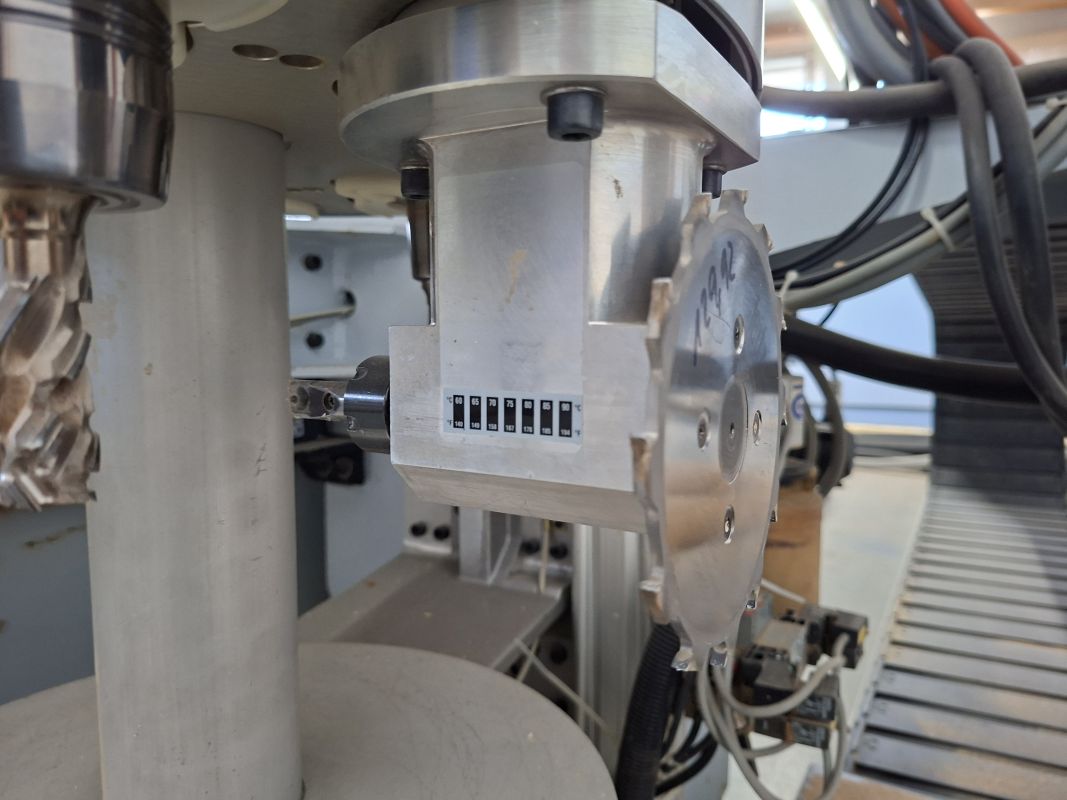

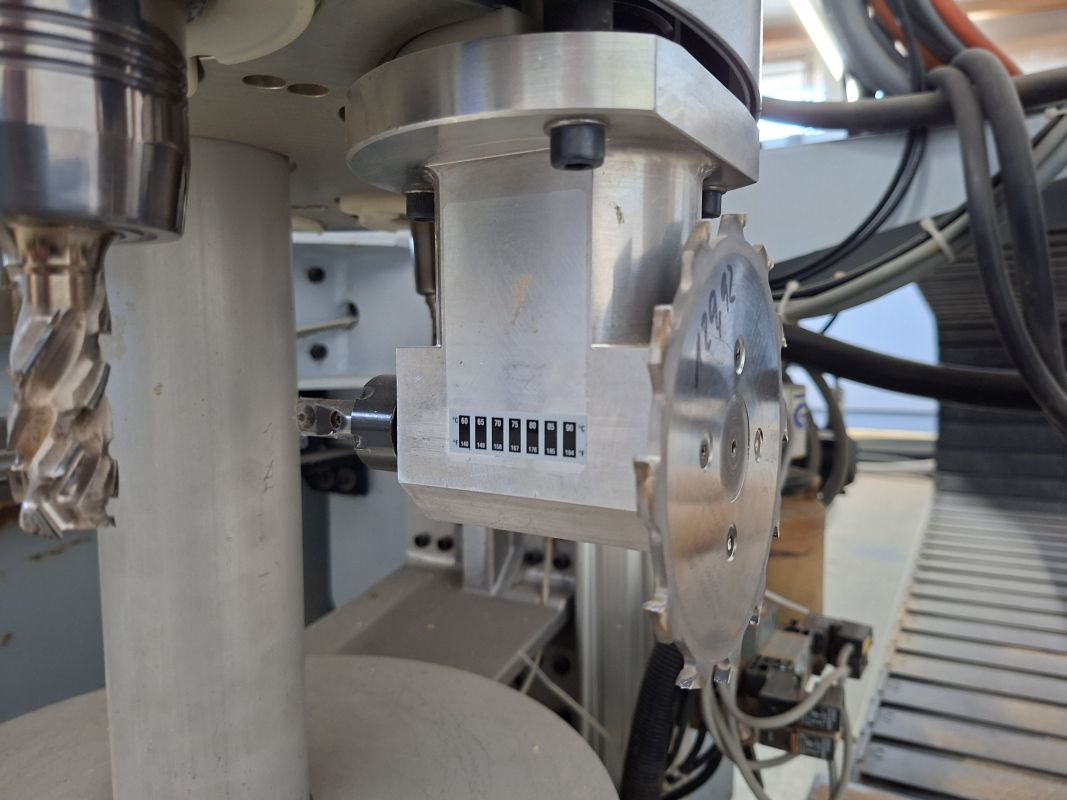

4th axis C-axis / NC-controlled additional axis*
