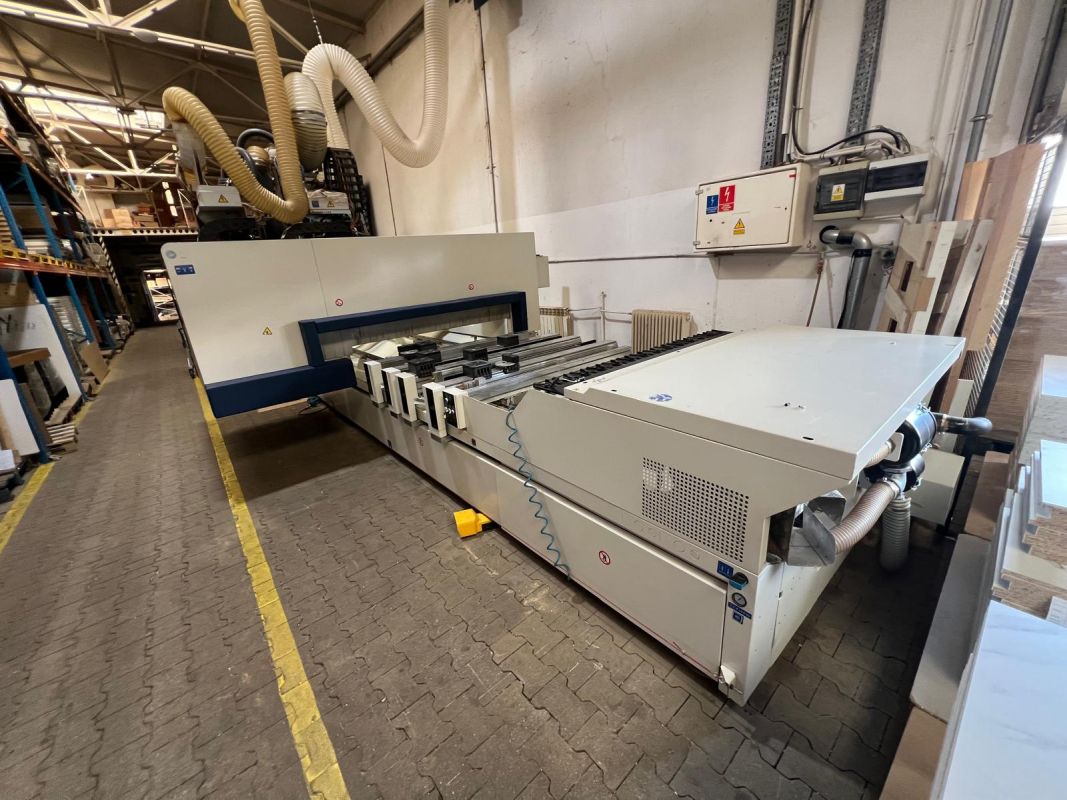

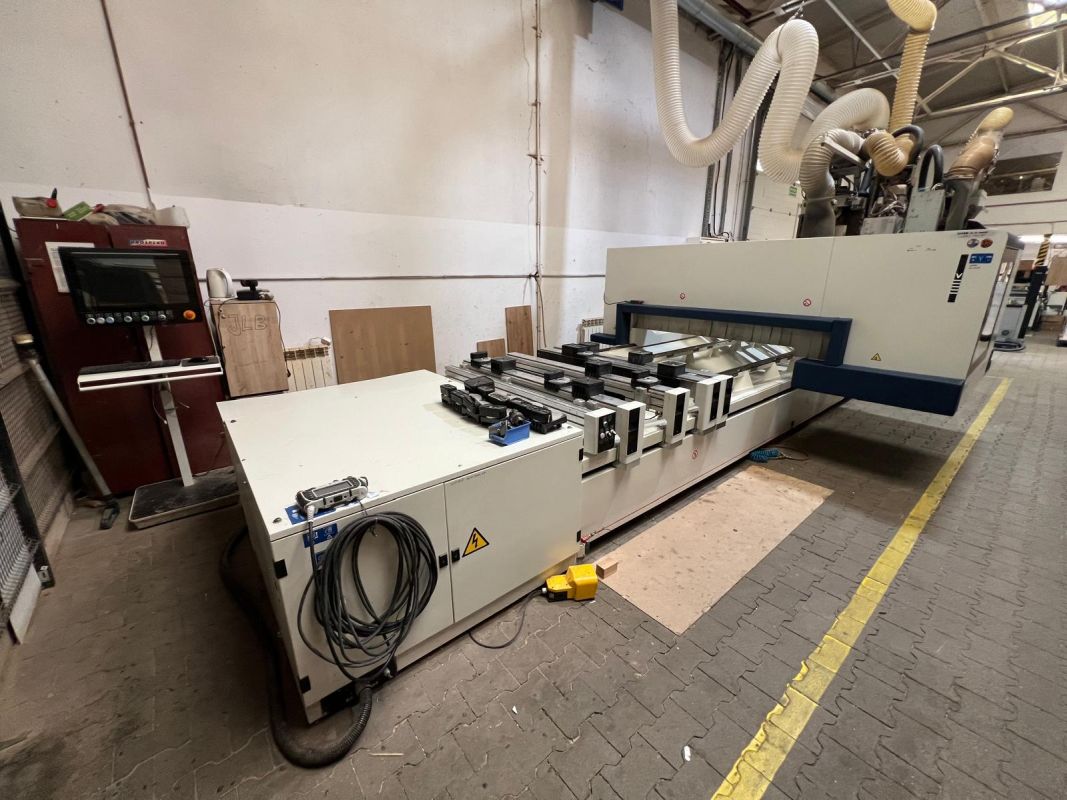

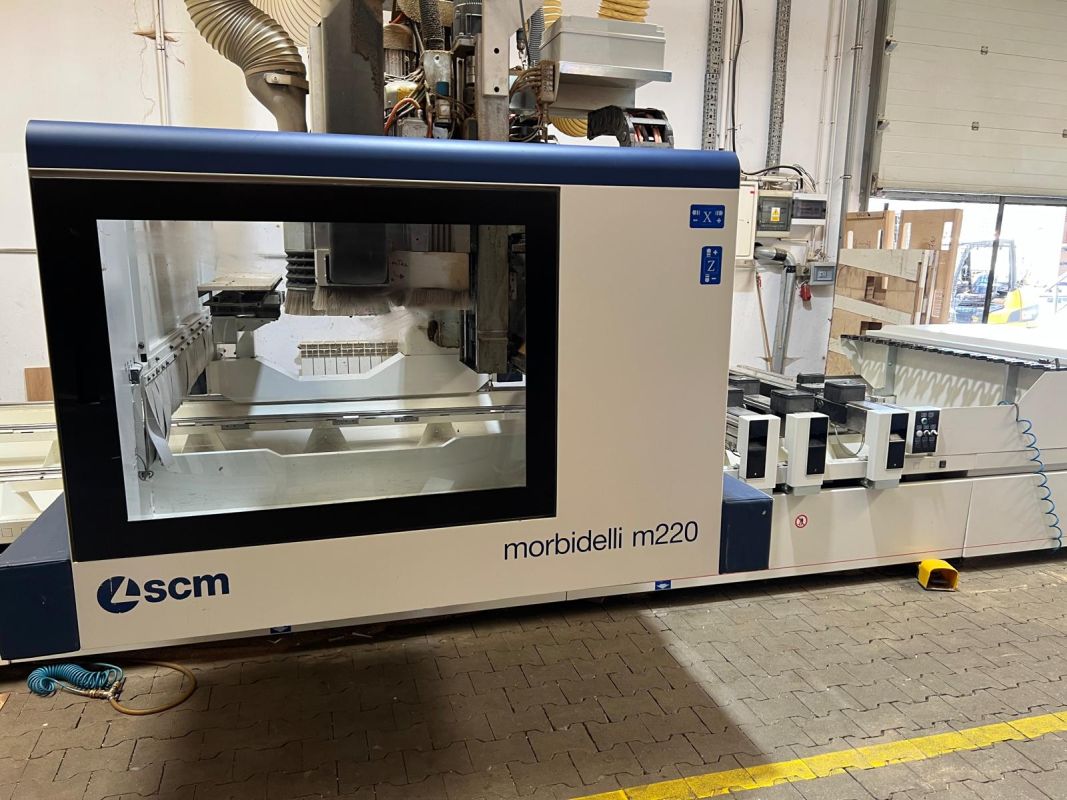

CNC Machining Center
Brand: SCM
Type: Morbidelli M220
Year of manufacture: 2019
Technical data[b]
Working area: 5,510 x 1,620 x 180 mm
15 kW liquid-cooled HSK-63F electric spindle
Speed up to 24,000 rpm

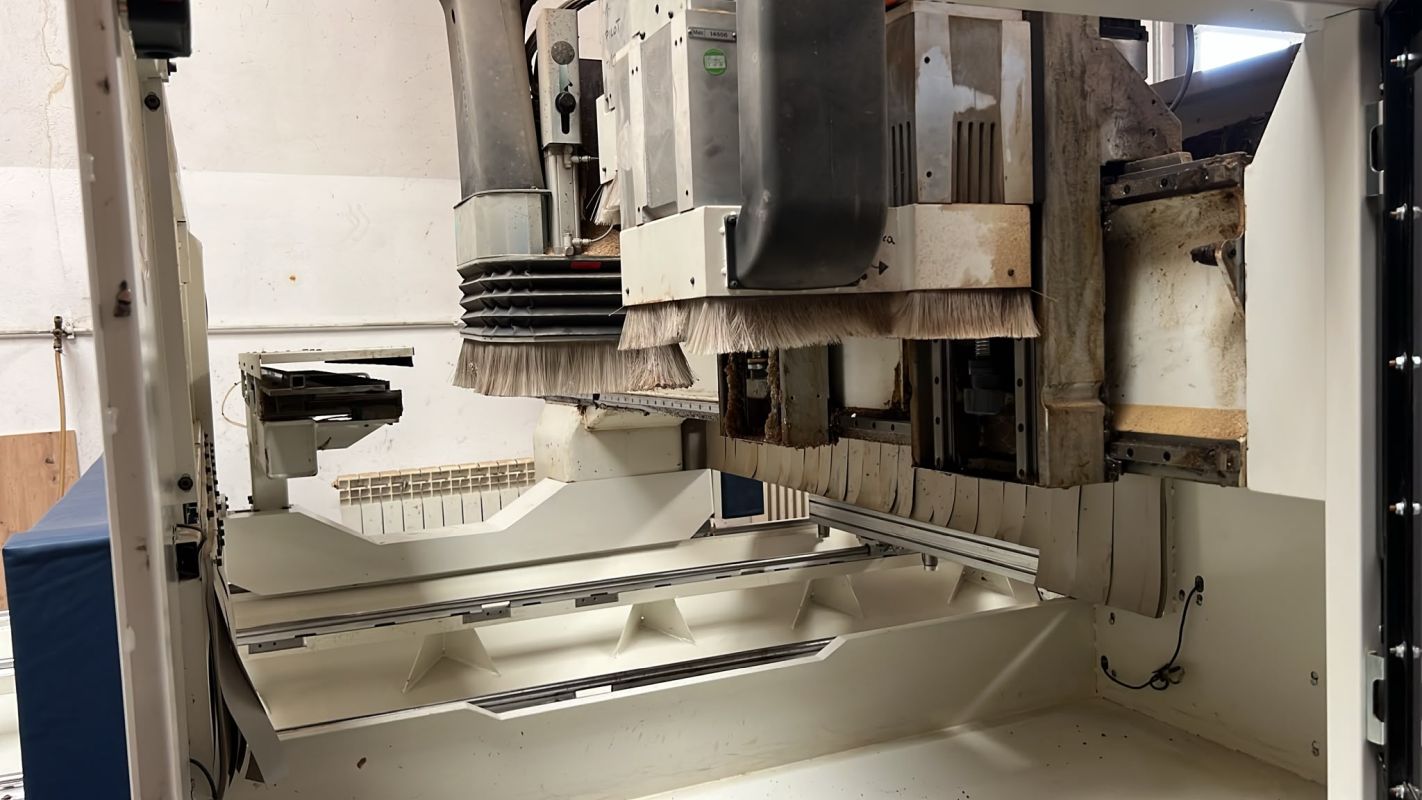

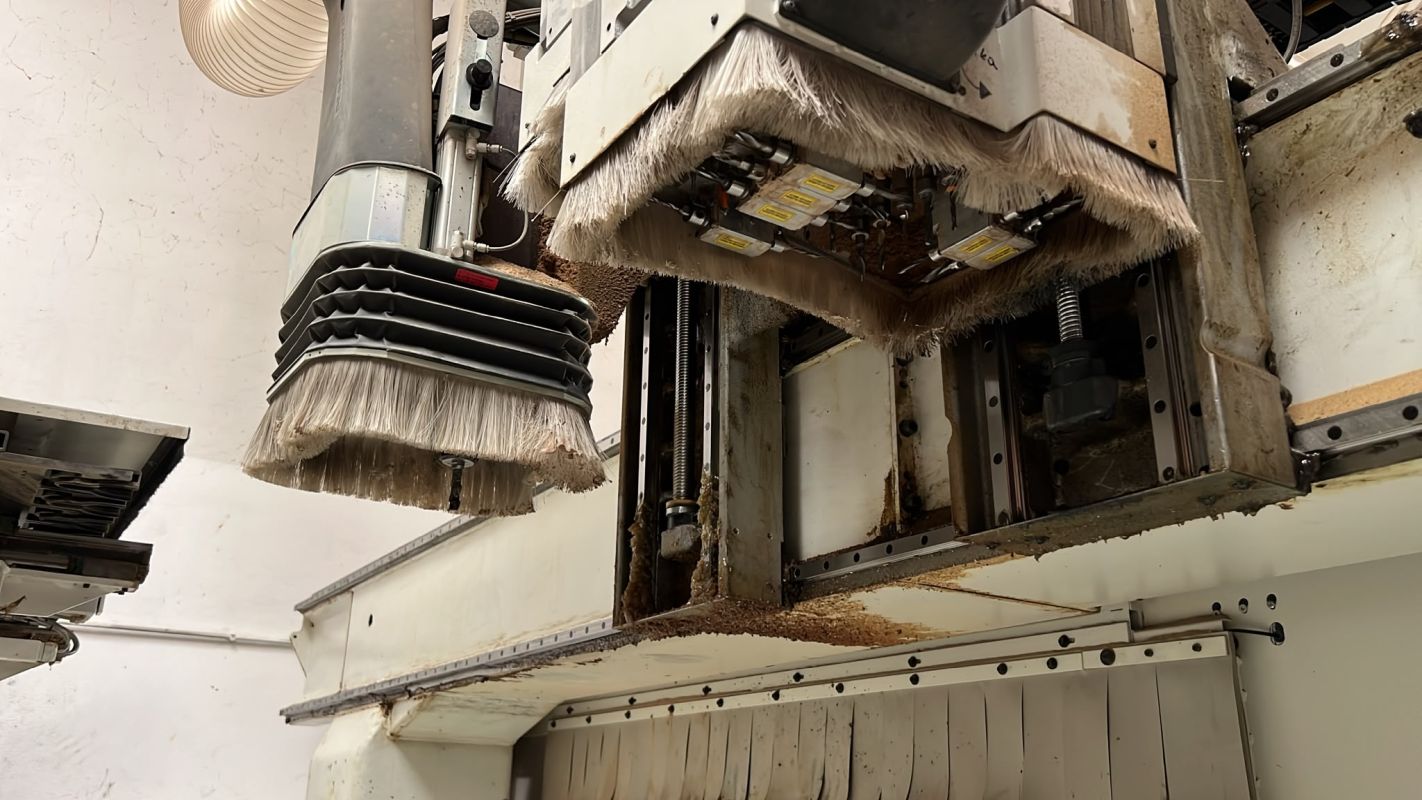

F29LTC drilling head: 17 vertical drilling spindles + 6 horizontal drilling units with dual output (3 in the X direction, 2 in the Y direction)
Integrated saw blade in the X direction
TRB14 tool magazine with 11 positions
FAST14 tool magazine with 14 positions
High-performance vacuum clamping system
TV FLEX worktable
Xilog Maestro CAD/CAM software
Positioning accuracy up to ± 0.03 mm
Travel speed up to 78 m/min
[b]Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
