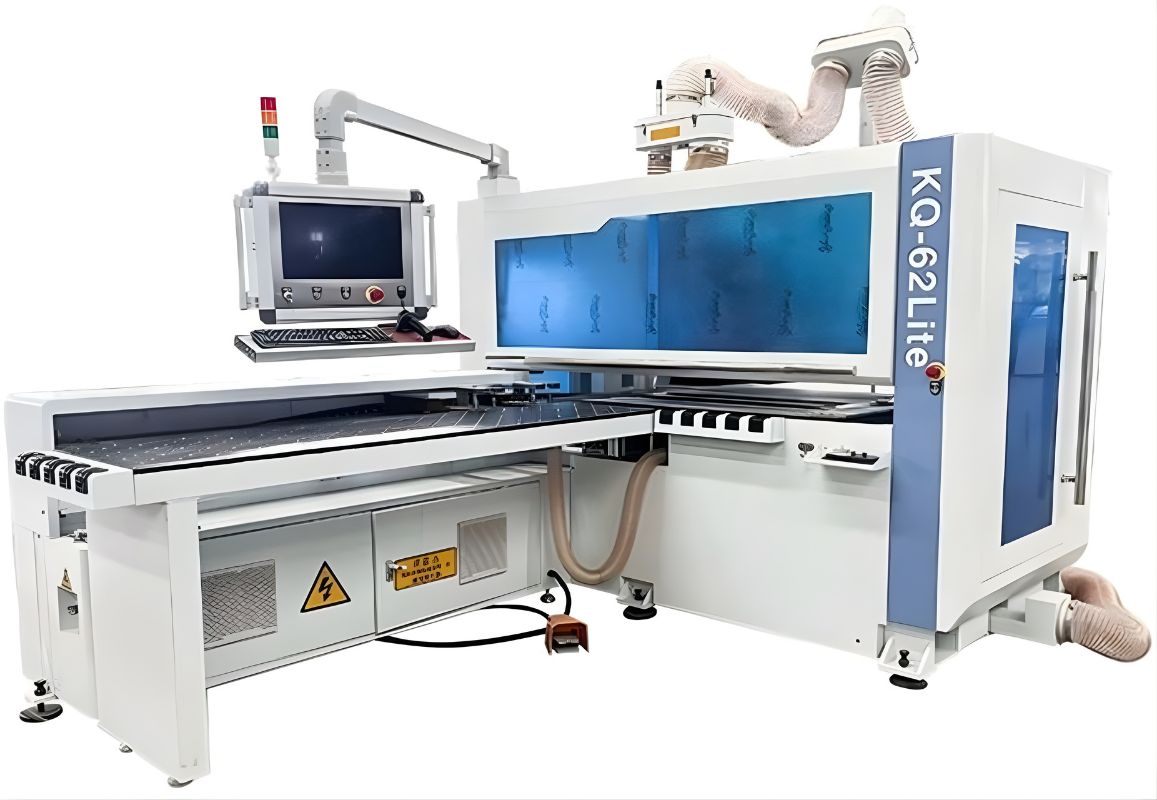

six side drilling machine
brand: QUICK
type KQ-62Lite
New machine
Technical data:
- Workpiece length: 70 - 2400 mm
- Workpiece thickness: 9 - 60 mm
- Workpiece width: 30 - 1220 mm
- Min. machining size: 50 x 70 mm
- Transport speed in X: 138 m/min
- Transport speed in Y: 90 m/min
- Transport speed in Z: 28 m/min
- Machine control: Higerman
- Working height: 890 mm
- Milling spindle: 2 x 3.5 kW, 18000 rpm
- Drilling unit: Top 9 vertical and 4 horizontal / Bottom 9 vertical
- Positioning accuracy: 0.03/1000
- Repeat accuracy: 0.02/1000
- Power consumption: 25.8 kW
