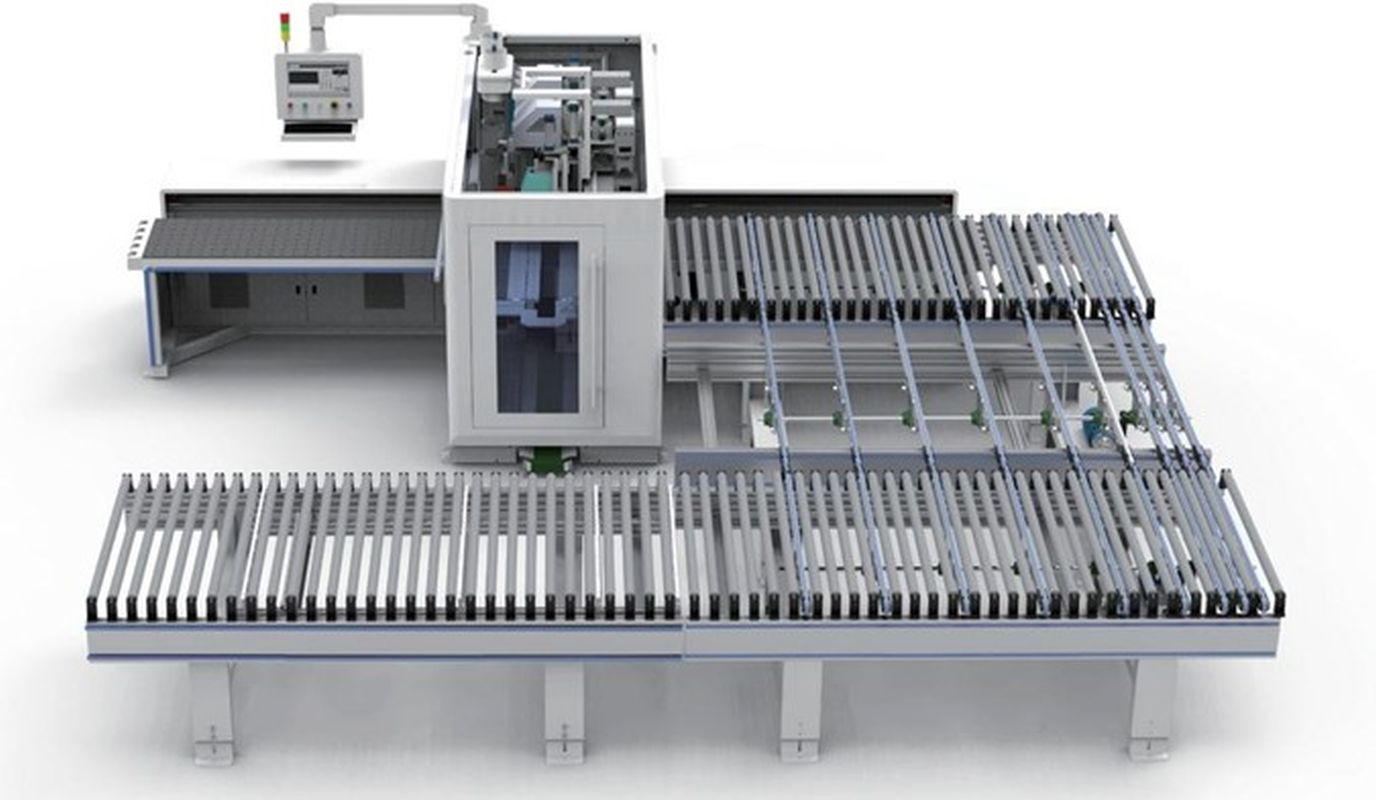

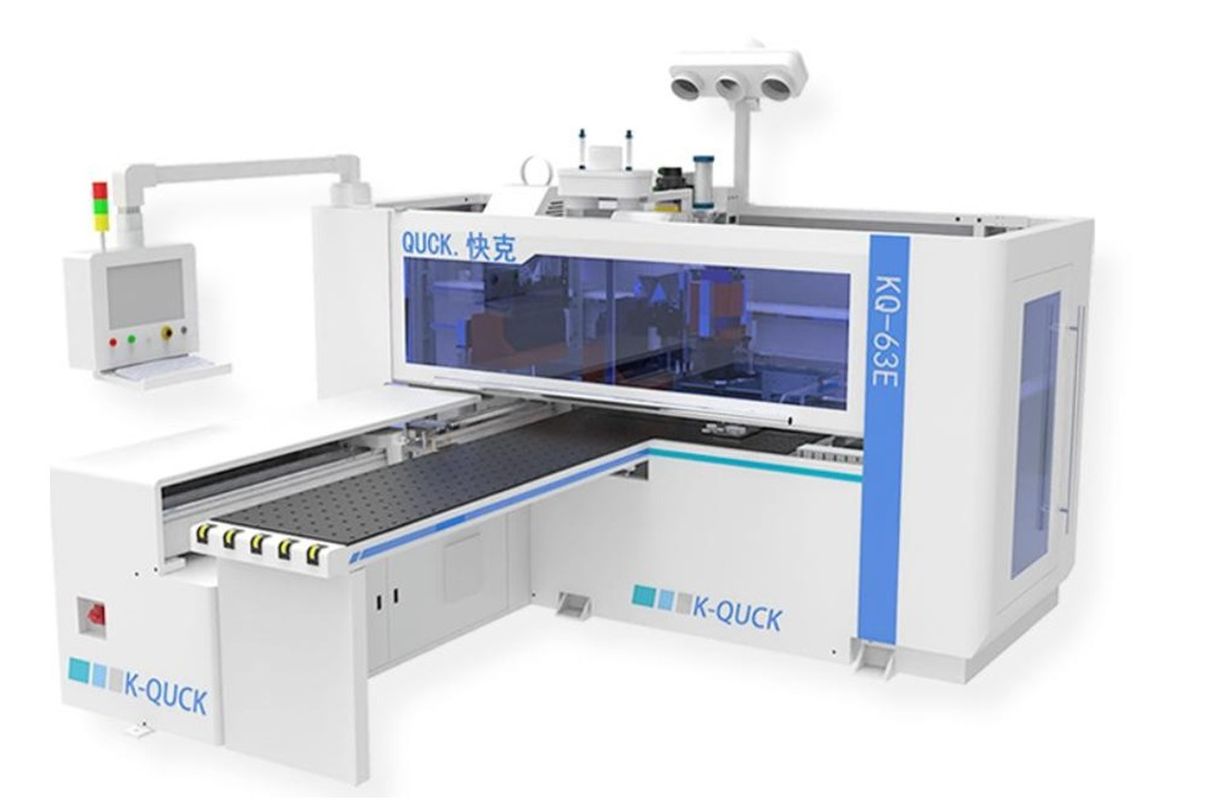

six side drilling machine
brand: QUICK
type: KQ-63E
New machine
Technical data:
- Workpiece length: 70 - 2800 mm
- Workpiece width: 50 - 1220 mm
- Workpiece thickness: 9 - 60 mm
- Min. workpiece to be machined: 70 x 30 mm
- Transport speed in X: 135 m/min
- Transport speed in Y: 90 m/min
- Transport speed in Z: 25 m/min
- Individually controllable spindles: Top 2 x 12 vertical, 4 horizontal / Bottom 1 x 7 vertical
- Machine control: Higerman (German)
- Top milling spindle: 9 kW 24000 rpm

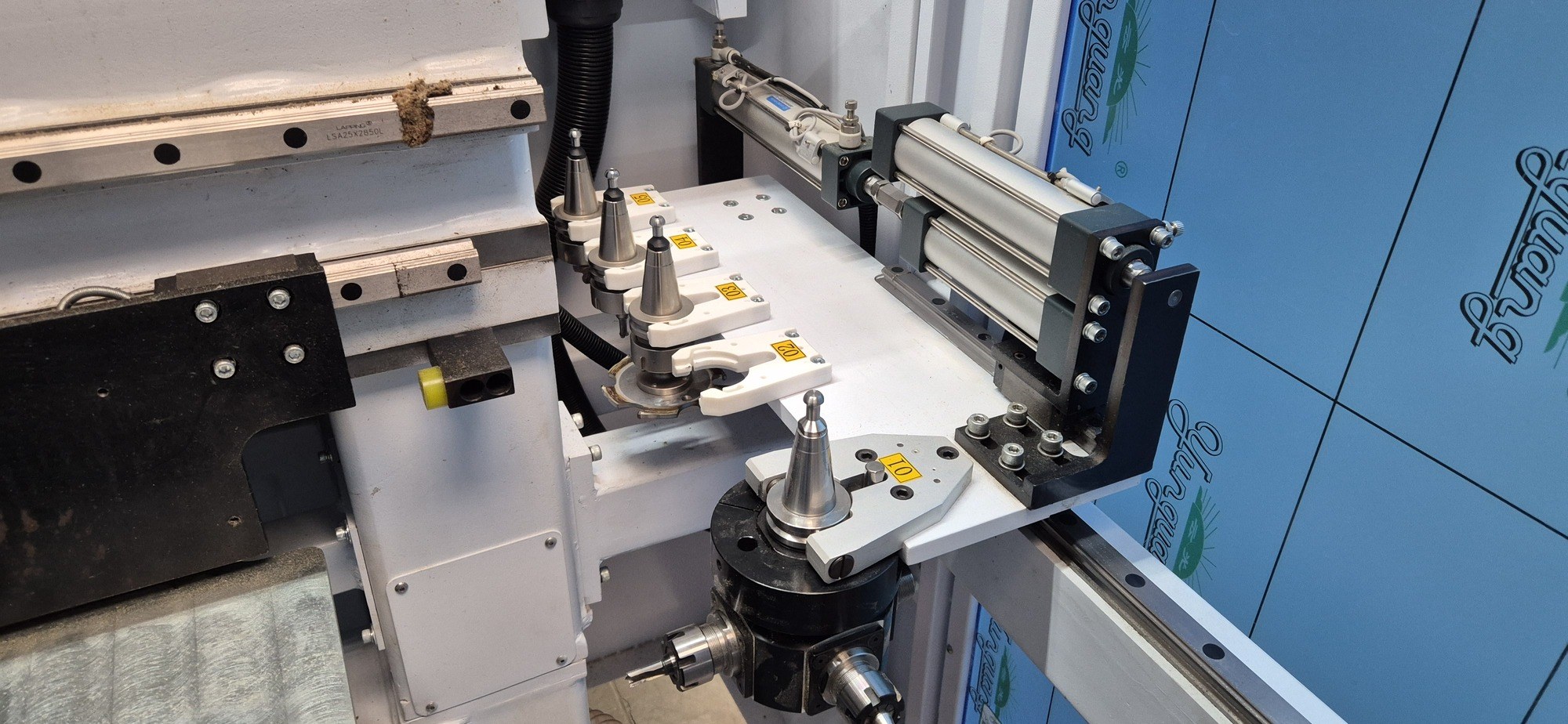

- Top tool changer: 5-fold
- Milling spindle below: 3.5 kW 18000 rpm
- Motors: brushless servo motors
- Positioning accuracy: 0.03/1000
- Repeat accuracy: 0.02/1000
including following option:
Machine with workpiece return
