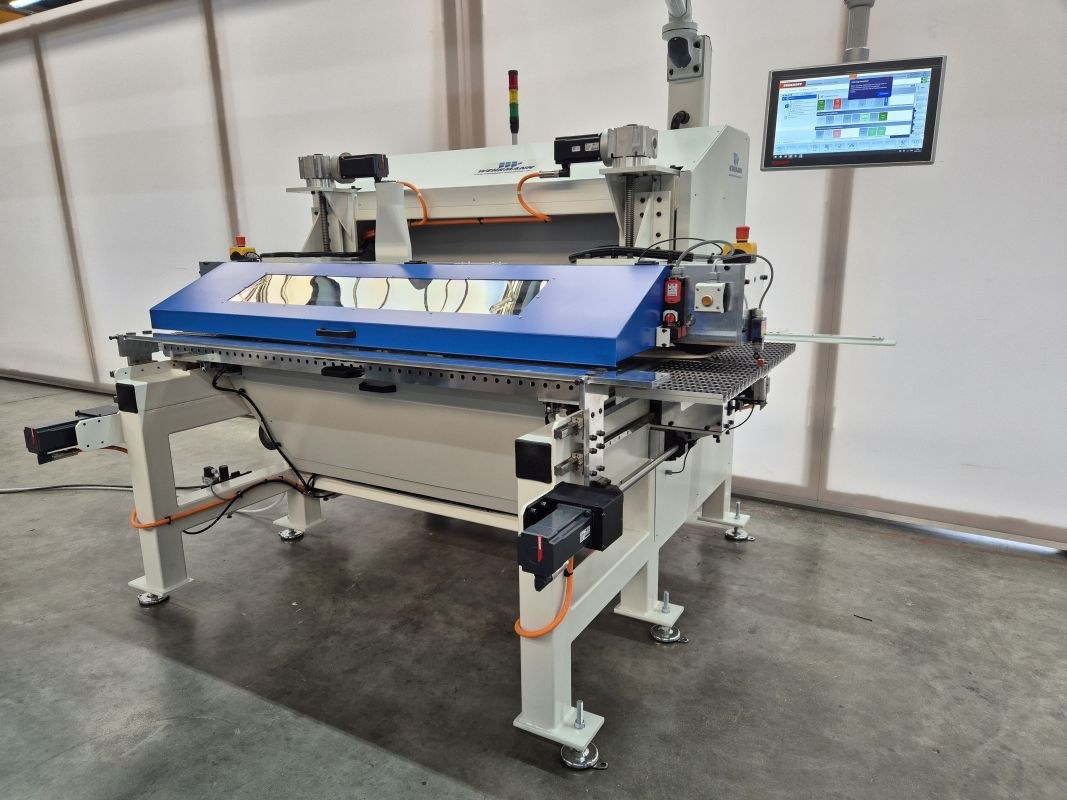

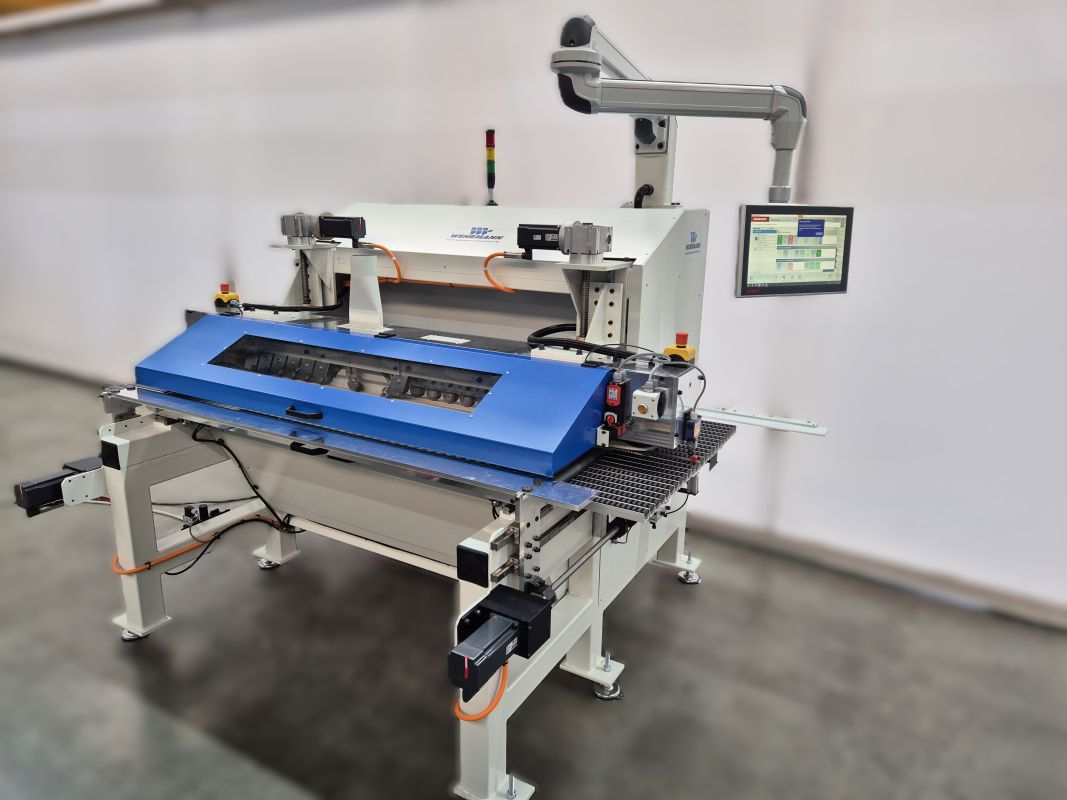

CNC-Center cut saw

CNC-Center cut saw
Brand: Wehrmann
Type: WT-50/900
New machine


for classic cutting of
workpieces made of wood/wood-based materials with laminate
(CLP, HLP), paper, foil, or veneer


Panel dimensions + data:
(formatted panel)
Length: from 140 mm
Width: min. (finished size) 50+50 mm
Width: max. (finished size) 450+450 mm (asymmetrical cutting is possible)
Thickness: 8 mm - 40 mm
Weight: approx. max. 30 kg
Workpiece shape: rectangular


Basic design:
- User-friendly combination machine with movable zero line
- All drives and adjustments are servo-controlled
- The processing motors are frequency-controlled.
- Machine frame in sturdy welded steel construction.

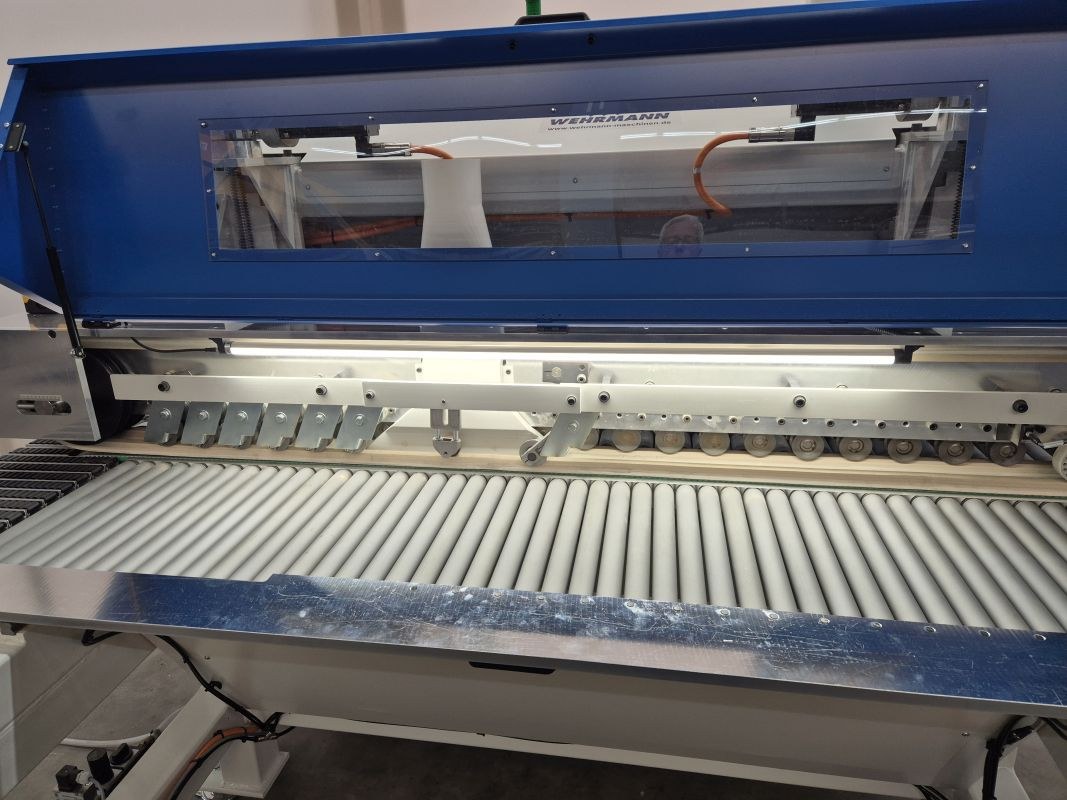

- Workpiece transport is carried out by means of a transport belt and height-adjustable top pressure. The low-maintenance transport belt has a coating for gentle workpiece transport.
The 32 mm wide V-belt of the top pressure with spring-loaded rollers ensures reliable guidance of the workpieces.


The basic machine includes:
- Sound absorber/protective hood with safety lock
- The necessary connection pieces for an external extraction system with an air velocity of at least 28 m/sec. (negative pressure 2480PA)
- A compressed air connection including maintenance unit.
- Integrated control cabinet with cooling unit for operating the machine at an ambient temperature of 10 - 45 degrees Celsius

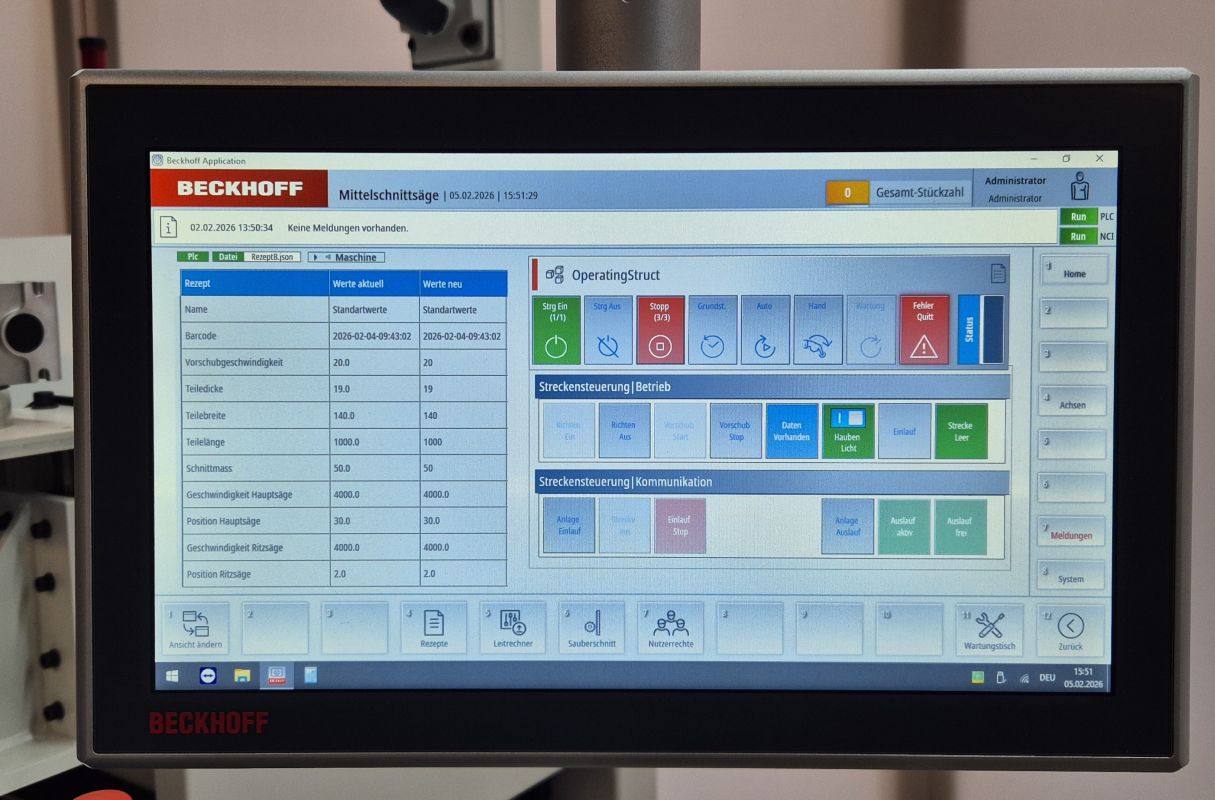

- Beckhoff PC control with multitouch - built-in 15.6-inch panel, uninterruptible power supply UPS Microsoft Windows 10 Enterprise 2021 LTSC 64-bit operating system for industrial PC
- Safety and protective measures in accordance with CE guidelines
- CE mark

Machine labeling: German
Operating instructions: German
Spare parts lists: German
Operating pressure: 6 bar
Mains voltage: 3/N/PE, 400/230 V 50Hz +/-5%
(ECD protective circuit not applicable)

Working height 900 mm

Right-hand machine (stop side on the right in the direction of travel)

Paint finish
- Base machine with cladding  Gray-white RAL 9002
- Aggregates Dust gray RAL 7037
- Protective covers  Blue (RAL 5017)
- Control panel Light gray RAL 7035

Feed speed v= 5 - 40 m/min Servo-controlled drive

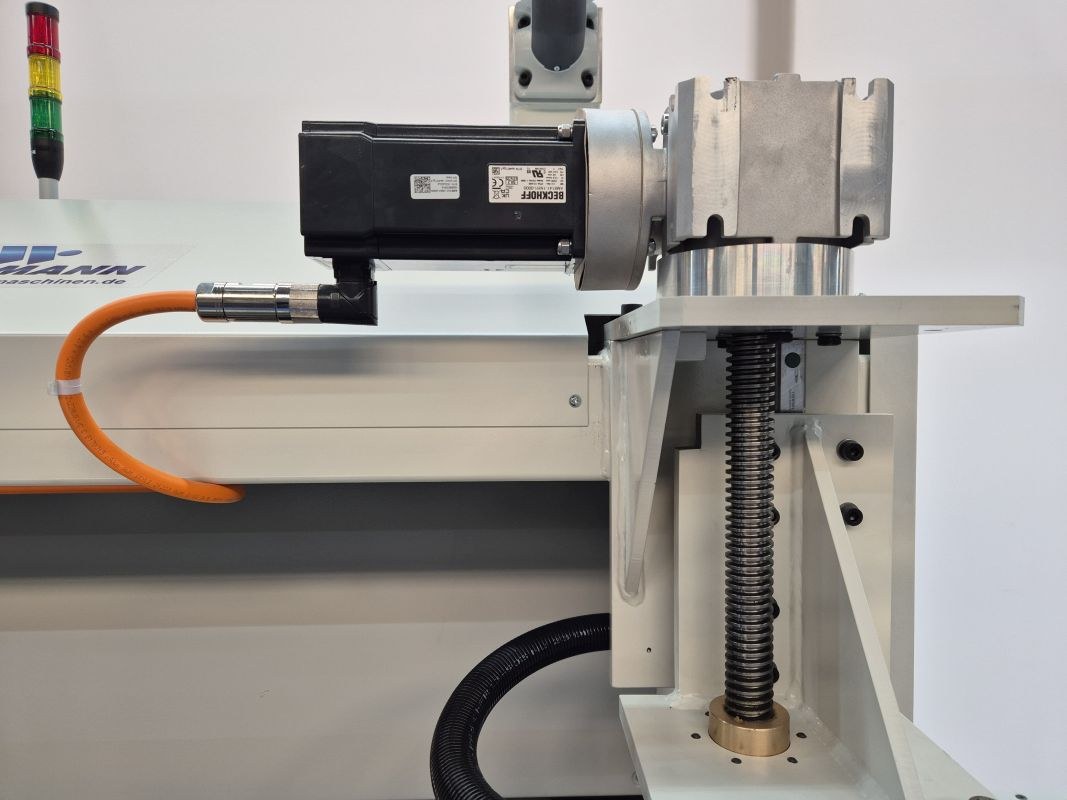

Electronic height adjustment from 5 - 45 mm, movable via Beckhoff servo axis

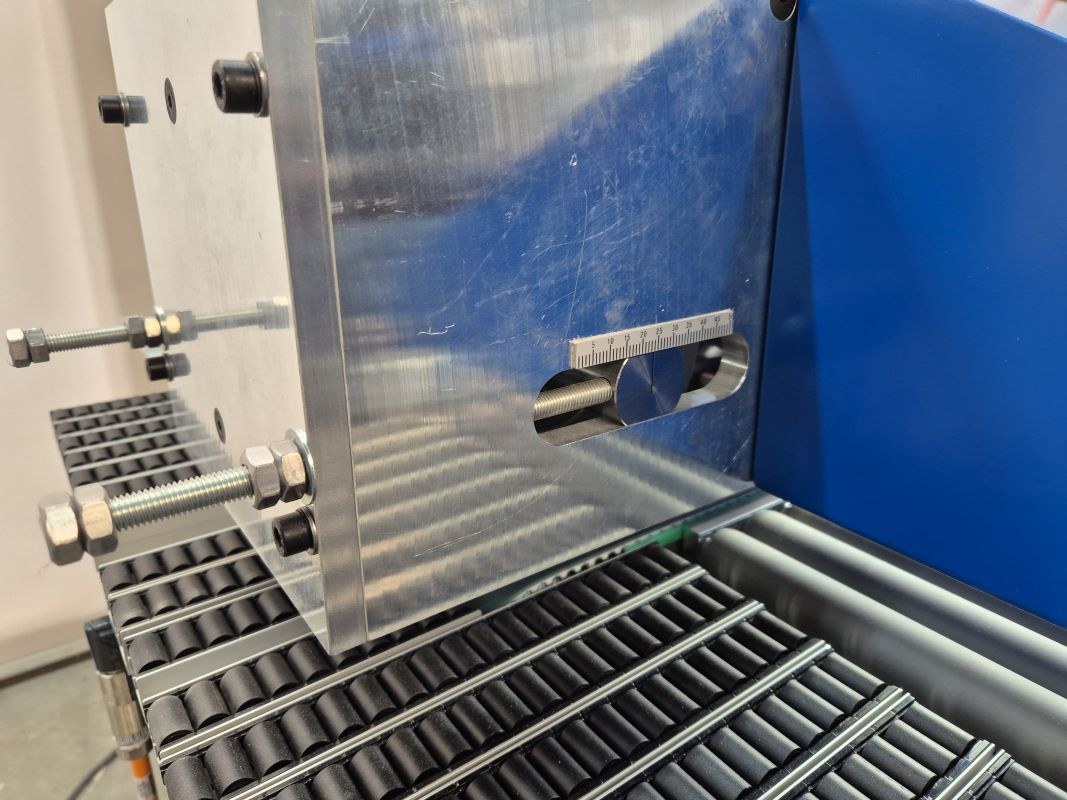

Teflon stop ruler on the right side of the machine, movable via Beckhoff servo axis

Infeed ruler on the left with pneumatically spring-loaded unit, movable via Beckhoff servo axes


Machine configuration:
Aggregate 1: Frequency-controlled scoring saw

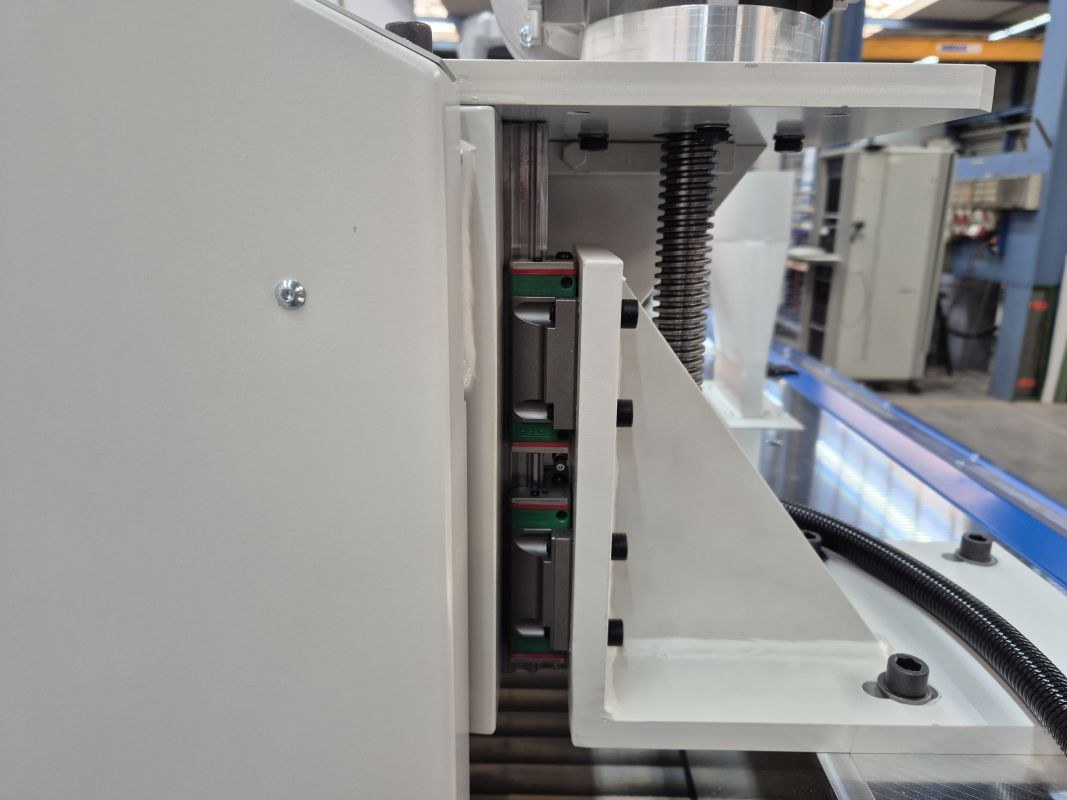

Milling stand with column guide and connection plate
Perske motor 4.4 kW 50 Hz 400 volts 4500 rpm
Tool holder D = 35 Key
External + internal thread right/left controllable via servo drive, working in tandem, non-swiveling

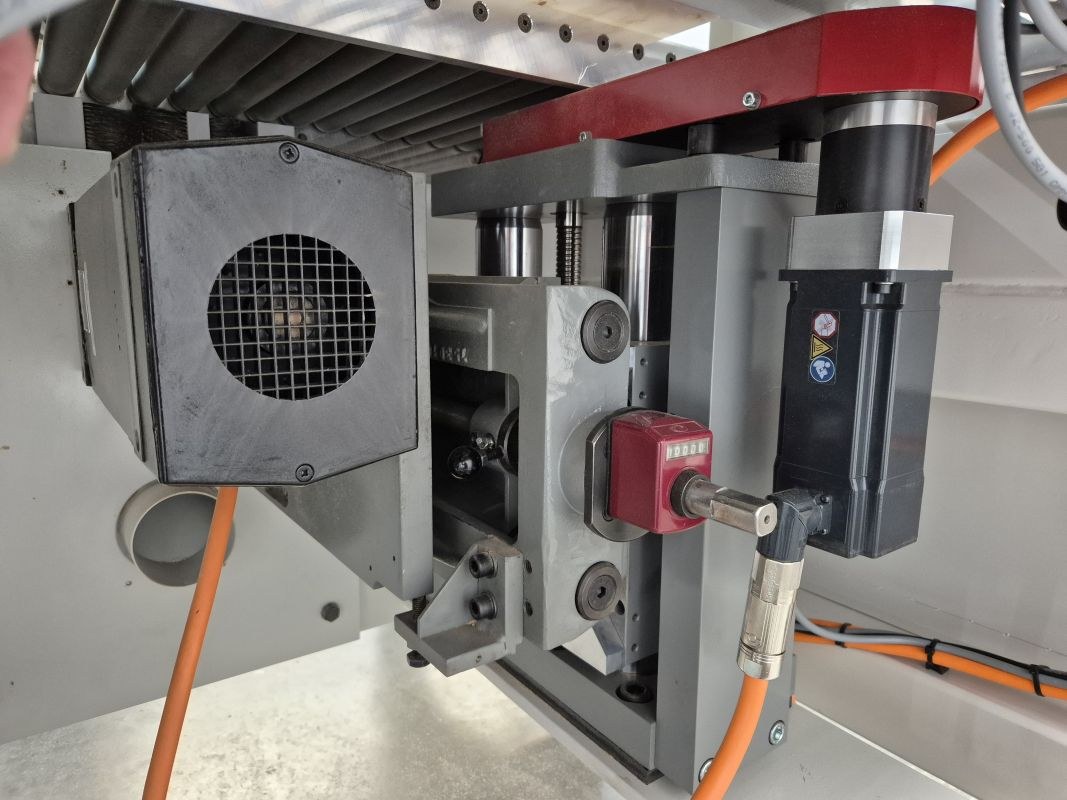

With height adjustment via Beckhoff servo axis
Lateral adjustment with mechanical digital display
Saw blade max. 350 mm
Without tools
Flow-optimized extraction hoods

Aggregate 2: Frequency-controlled saw motor
Milling stand with column guide and connection plate
Saw motor not controllable, working in counter-rotation
Motor Perske 6 KW 50 Hz 400 volts 5000 rpm.
Tool holder D = 35 Spline shaft with external + internal thread right/left
Saw blade max. D400 mm
Without tools
With split wedge adjustable by hand
With height adjustment via Beckhoff servo axis
Lateral adjustment with mechanical digital display
Flow-optimized extraction hoods


Beckhoff control technology:
- PC-based control system with integrated PLC and electronic line control
- Simple, component-oriented program creation
- Freely definable program name
- Virtually unlimited programming memory
- Operation via keyboard/mouse/touch
- Message system for operator and error messages
- MDE Basic for recording machine data: production time, setup time, downtime, fault time, number of units and adjustable recording period
- Fast data exchange between control and I/O components via EtherCat
- Uninterruptible power supply for panel PC
- Feed lock for adjacent machines or transport systems

Technical data:
- Powerful panel PC with integrated 15.6-inch display
  with touch screen, integrated keypad, keyboard, and mouse
- USB port
- Fast EtherCat interface (fieldbus)
- Ethernet network connection RJ45
- Windows operating system with TwinCat 3 system for real-time control
- PLC programming language: IEC 61131-3


OPTIONS:
- Preparation for setting up a barcode or RFID scanner with a defined file directory

- Interfaces (e.g., MQTT, UMATI, OPCUA, RFID) for integration into an Industry 4.0 environment
