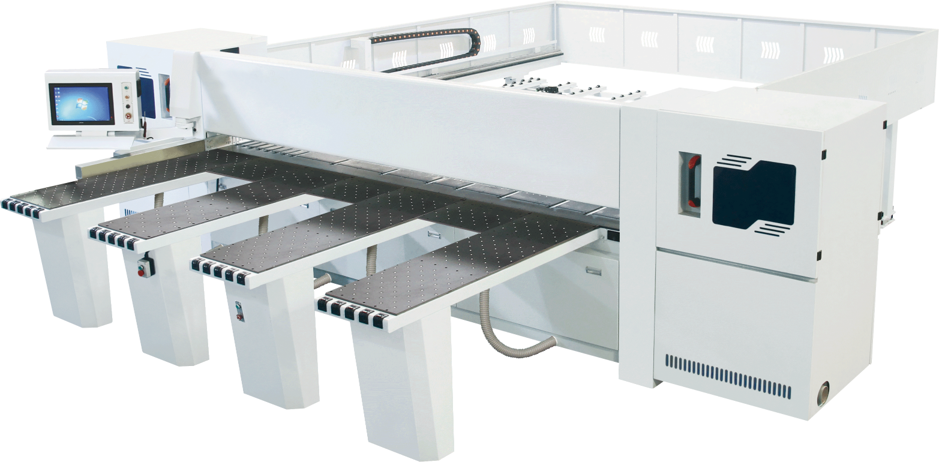

Panel Saw
Brand: Quick CNC
Type: KD 842H
New machine
Technical Specifications:
- Max. cutting width: 4200 mm
- Max. cutting height: 100 mm
- Max. cutting length: 4200 mm
- Min. cutting size: 50 mm
- Positioning accuracy: +/- 0.02 mm
- Cutting precision: +/- 0.1 mm
- Main motor power: 16.5 kW
- Scoring motor power: 2.2 kW
- Main saw blade diameter: 360 - 400 mm
- Main saw blade bore: 80 mm
- Scoring saw blade diameter: 180 mm
- Main saw blade speed: 4800 rpm
- Slide feed speed: 1 - 80 m/min
- Cutting speed: 1 - 100 m/min
- Return speed: 1 - 100 m/min
- Compressed air: 6 - 7 bar
- Machine dimensions: 6300 x 7500 x 1900 mm
- Weight: 6,000 kg
