CNC Bar Working Centre
Brand: Camam
Type: FAST WOOD 6U-CAL 6000
New machine
Special configuration for prefabricated timber construction – “Block House” system

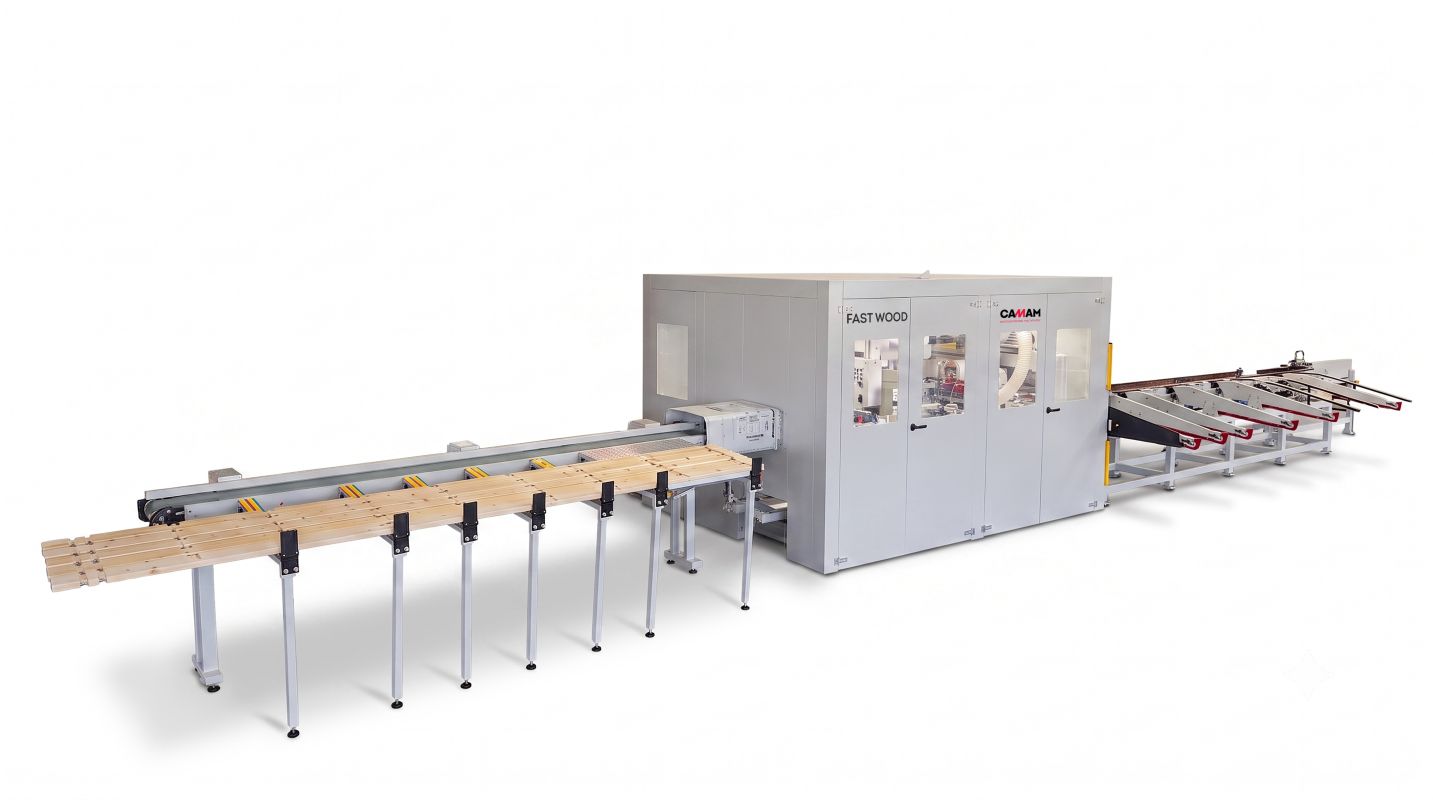

The FAST WOOD 6U CAL is a compact and highly flexible CNC working centre designed for the automated machining of timber elements for prefabricated houses and “Block House” systems.
It combines cutting, angled cutting, vertical and horizontal notching and milling in a single automated production process, making it ideal for both series and “batch one” production.
KEY FEATURES
- 6 controlled axes – 3 interpolated + 3 positioning axes
- CNC-controlled bar pusher system
- 3 machining stations for optimized production flow
- Pneumatic clamping, alignment and straightening systems at each station
- Automatic horizontal loader for bars up to 6,000 mm
- Motorized loading buffer, useful length 1,500 mm
- Maximum workpiece section: 190 × 80 mm
MACHINING CONFIGURATION
- 2 + 2 independent milling motors – 4.0 kW each, for vertical/horizontal notching
- 1 vertical routing unit – 5.6 kW
- 1 vertical cutting unit with C-axis – 5.0 kW

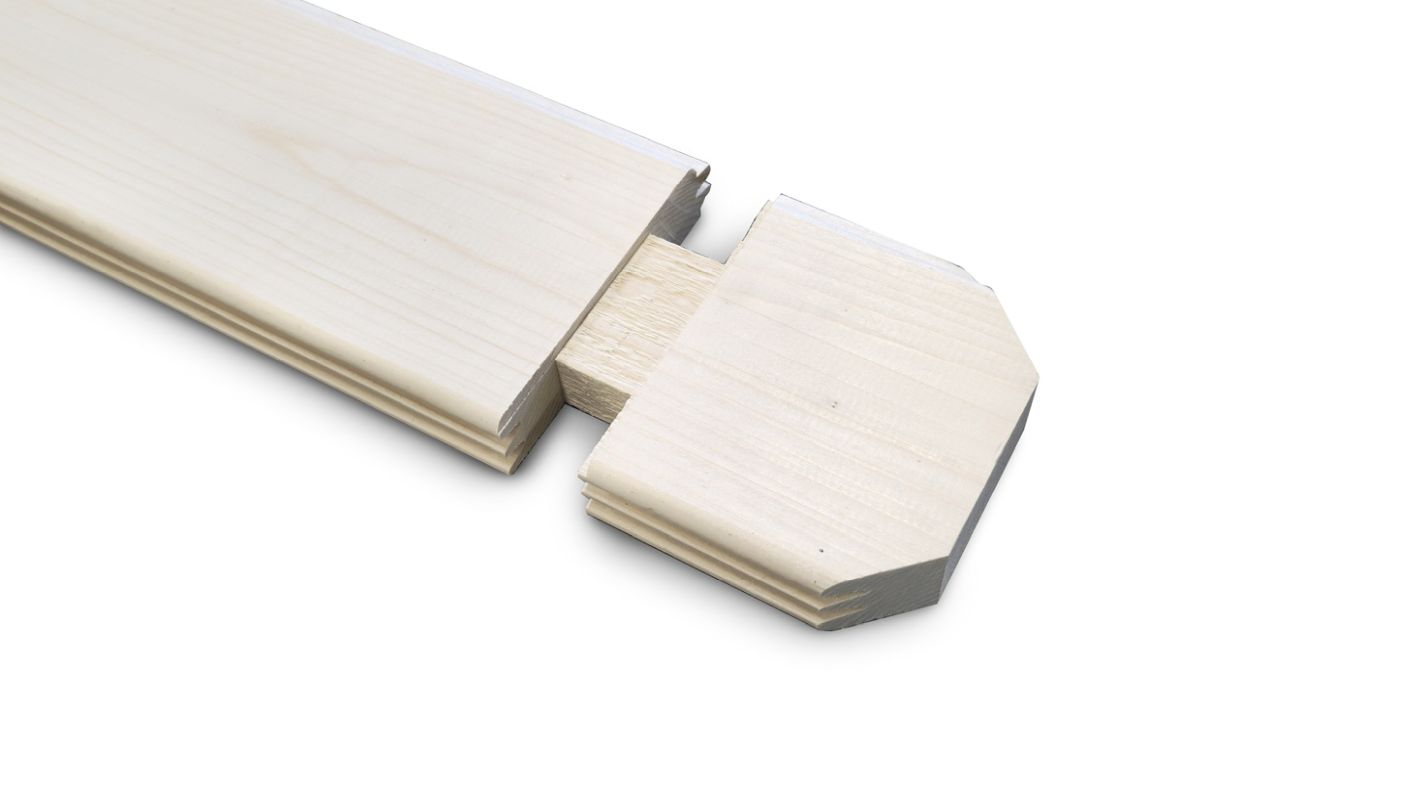

- Operations: vertical & horizontal notching, milling, end cutting and angled cutting
CNC & SOFTWARE
OSAI Open numerical control
DDX EASYWOOD CAD/CAM with parametric programming, 3D working models and simplified user interface.
SAFETY
- Complete soundproof working cabin
- Safety perimeter grid
- Light barriers for loading and unloading areas
APPLICATIONS

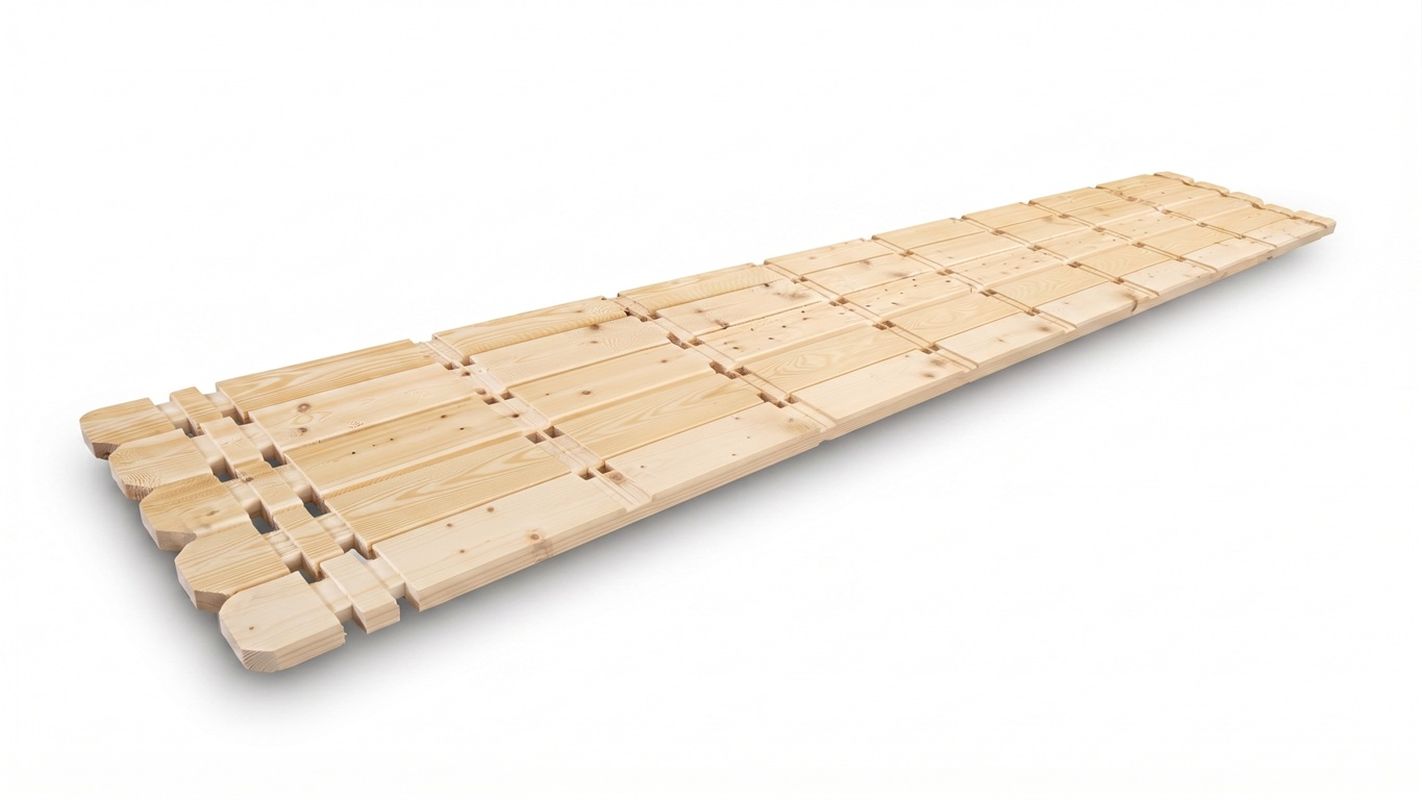

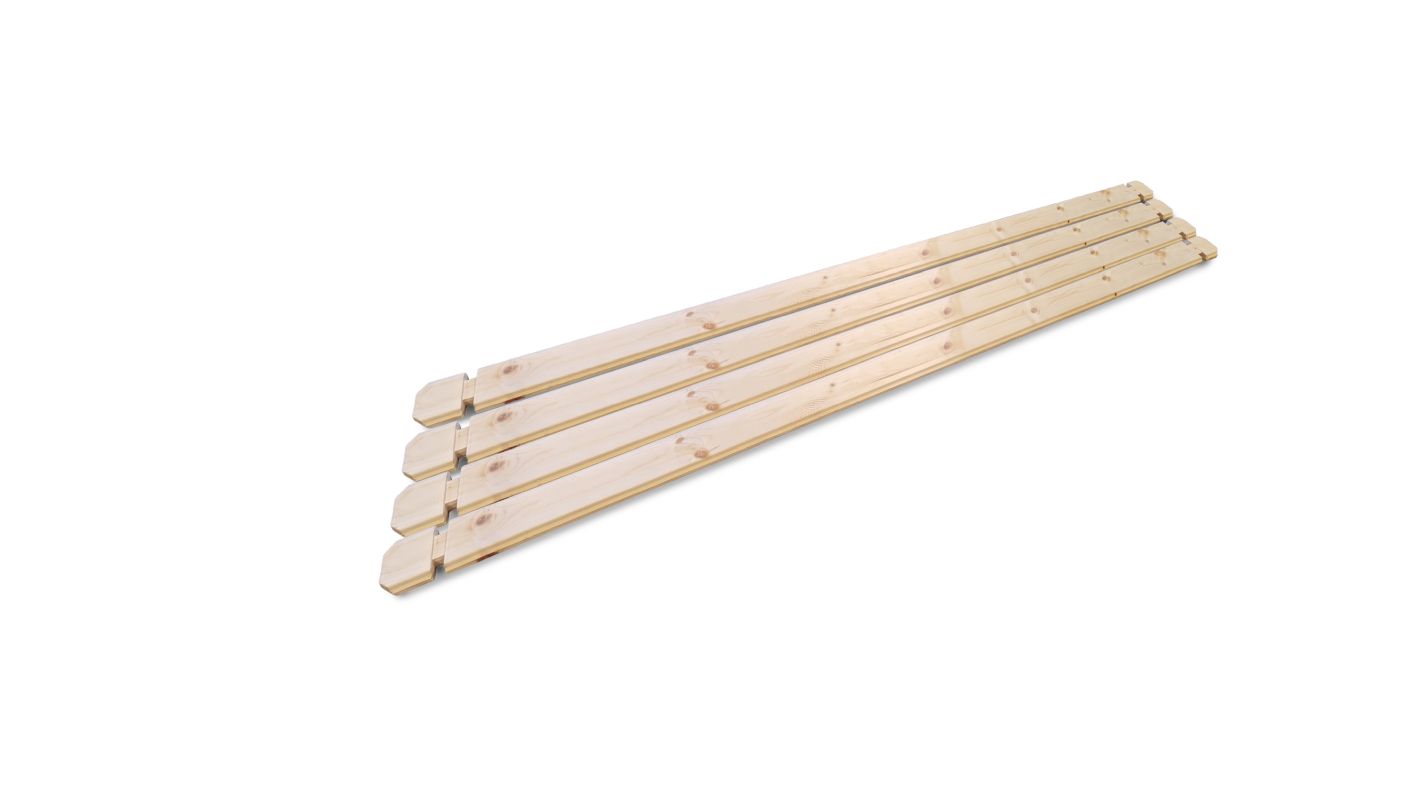

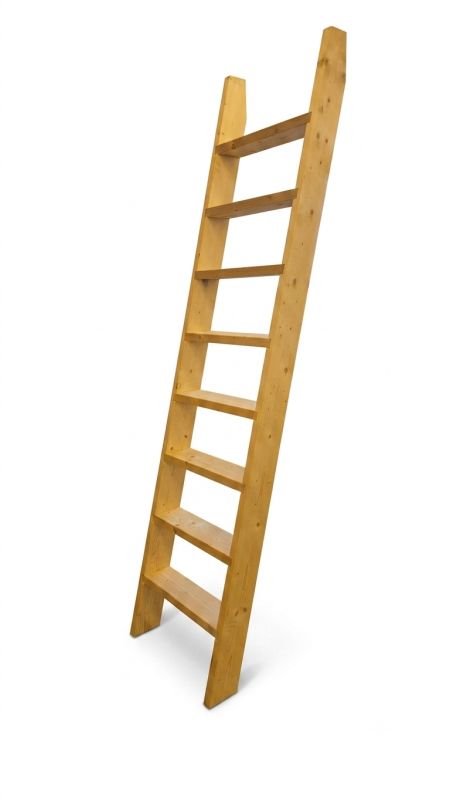

Ideal for prefabricated timber houses, Block House systems, garden structures, parks, urban furniture and various wood components.
HIGH PRODUCTIVITY • FLEXIBILITY • PRECISION • AUTOMATION
The FAST WOOD 6U CAL can be customized and configured according to specific production requirements and applications.
