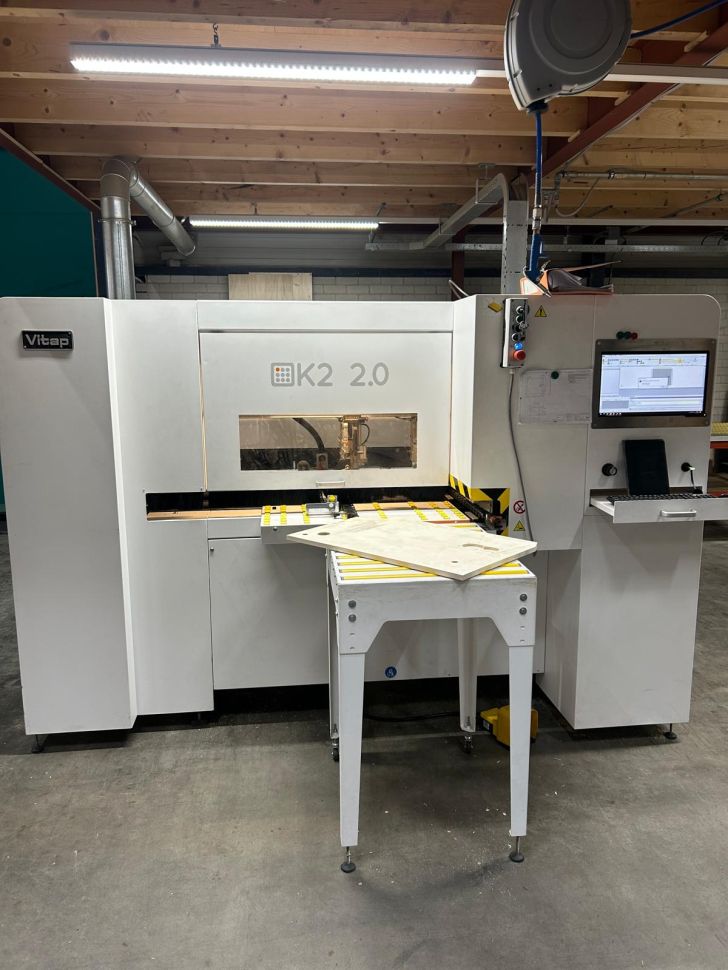

CNC drilling and milling machine

CNC drilling and milling machine
Brand: Vitap
Type: Point K2 TOP 2.0
Year of manufacture: 2018


Continuous machining, workpiece machining from below, and automatic return of the workpiece to the operator

3 controlled axes:
X-axis - uninterrupted workpiece transport via DDT (Dual Dynamic Transport System) with brushless motor
Y-axis - drilling head travel
Z-axis - drilling

- Dual “0” reference: New-generation laser for detecting the start and end of the workpiece.
The program can readjust the drilling from below to achieve perfect flushness on vertical and horizontal workpieces.
The laser consists of a transmitter and receiver to prevent errors with dark-edged materials.
- Side stops with rollers consisting of a fixed and a movable part, mechanical digital readout with automatic alignment to the 0-stop for removal of up to 3 mm on the 0-line
- Constant side clamping device for precise positioning on the 0-line.

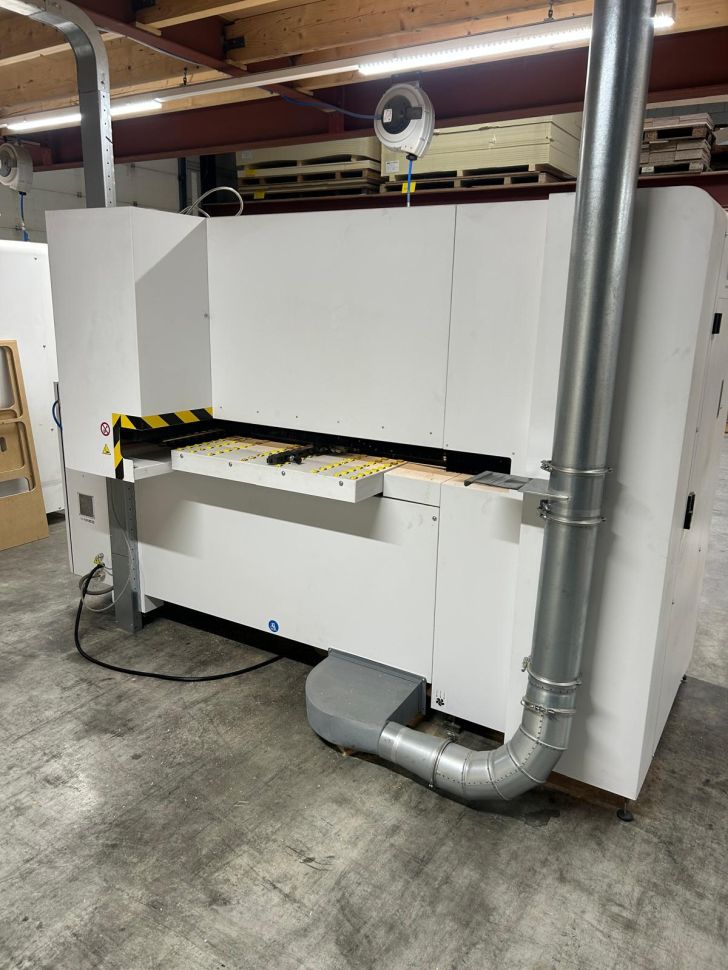

- Rear workpiece exit
- Automatic 4-station tool changer
- No workpiece length limitation

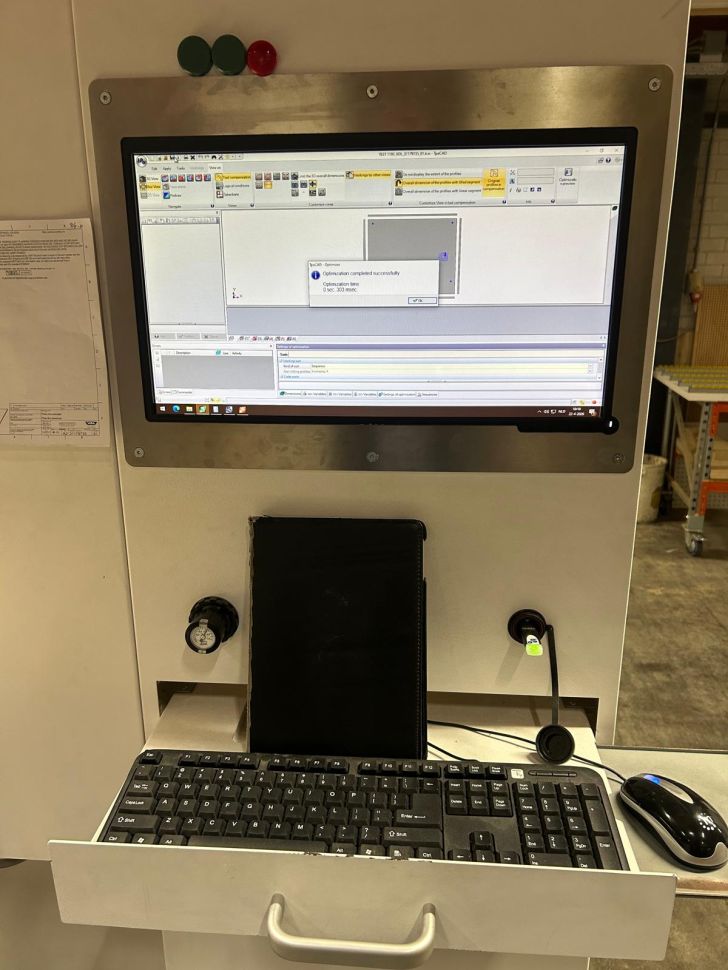

- 19" 5/4 TFT LCD monitor
- Industrial PC
- WSC operator interface with Lister, parametric tooling, and parametric setup
- CAD TPA EDI32 graphical programming, basic version
- USB port
- Saving of all files
- Macro programming
- Import of DXF files

Technical Specifications
Number of independent vertical spindles: 12
Number of independent horizontal spindles on the X-axis: (2+2)
Number of horizontal drilling spindles on the Y-axis: (2+2)
1 saw (Ø 100 mm)
5 kW electric spindle with ISO 30 taper (12,000-24,000 rpm)

Max workpiece weight: 80 kg
Max workpiece dimensions: X unlimited, Y 1200 mm, Z 50 mm
Min workpiece dimensions: X 270, Y 185 (70°), Z 4 mm

Feed rate: 25 m/min
Spindle speed: 3500 rpm
Max horizontal tool diameter: 12 mm
Max horizontal drilling depth on the X and Y axes: 30 mm
Max vertical drilling depth: 45 mm
Max vertical tool diameter: 35 mm

Air consumption: 2000 m³/h
Exhaust speed: 30 m/sec
Exhaust ports: 2x Ø 100 mm + 1x Ø 50 mm
Motor: 1.7 kW
Compressed air: 7 bar
Max. air consumption: 60 Nl/min
CE STANDARDS

- Office software - License
- Adjustable zero point for 4-sided formatting
- CE compliant



Note:
The technical specifications and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
