CNC machining center

CNC machining center

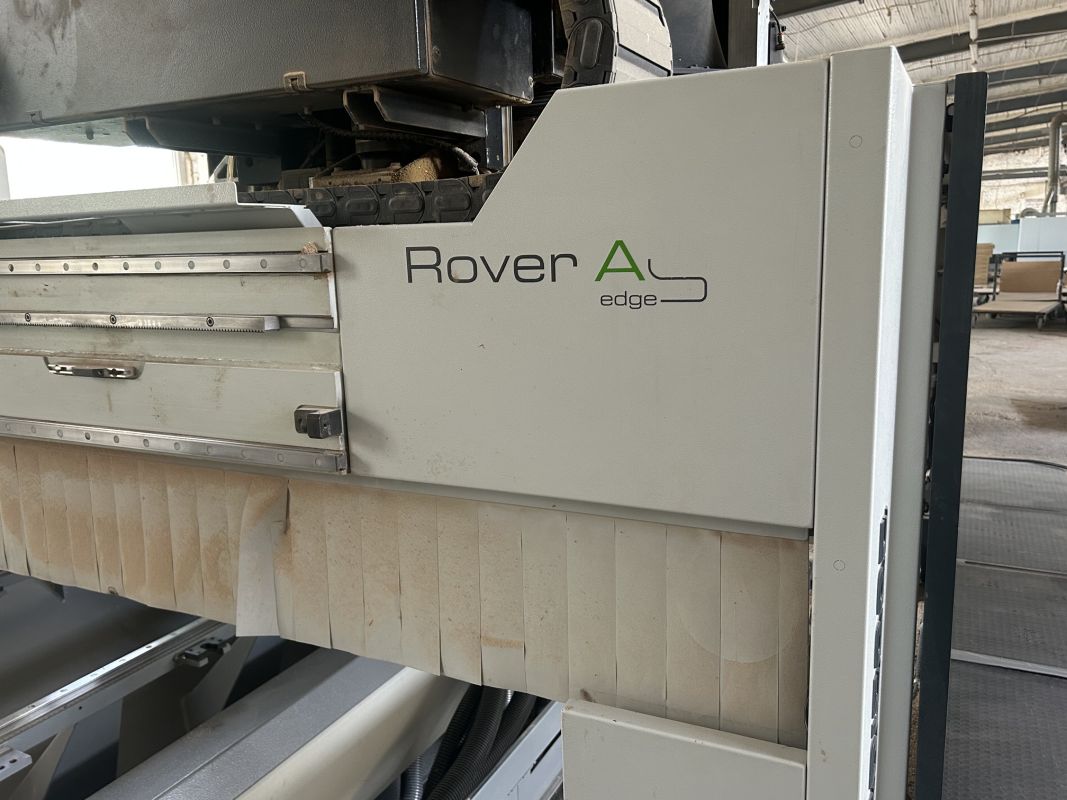

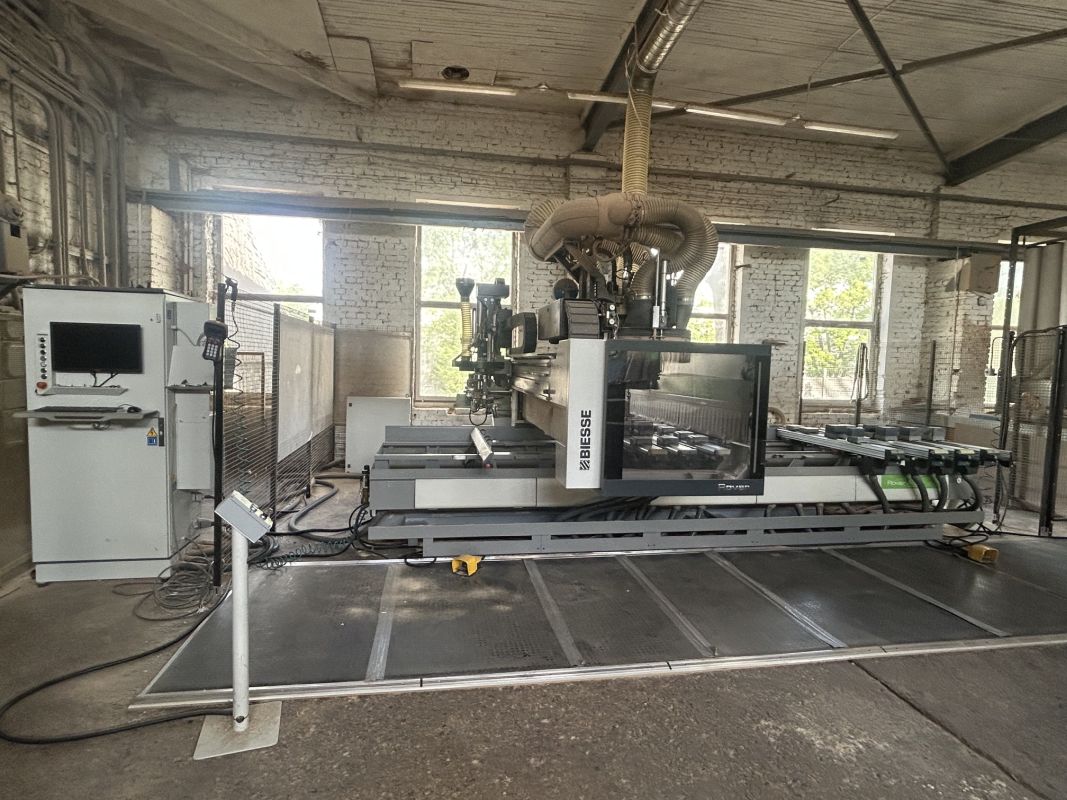

Brand: Biesse
Type: Rover A Edge 1643
Year of manufacture: 2017


Technical data
Designed for machining and edge banding of shaped/profiled panels Configuration shown in the documents indicates a 5-axis setup Working area X-axis working area: 4,320 mm Pendulum working in X: 1,620 mm Y-axis working area: approx. 1,580-1,660 mm Z-axis travel: 180 mm Edge banding X-axis working area: 3,300 mm Edge banding Y-axis working area: 1,540 mm Maximum loading width in Y: 1,900 mm, extendable up to 2,100 mm

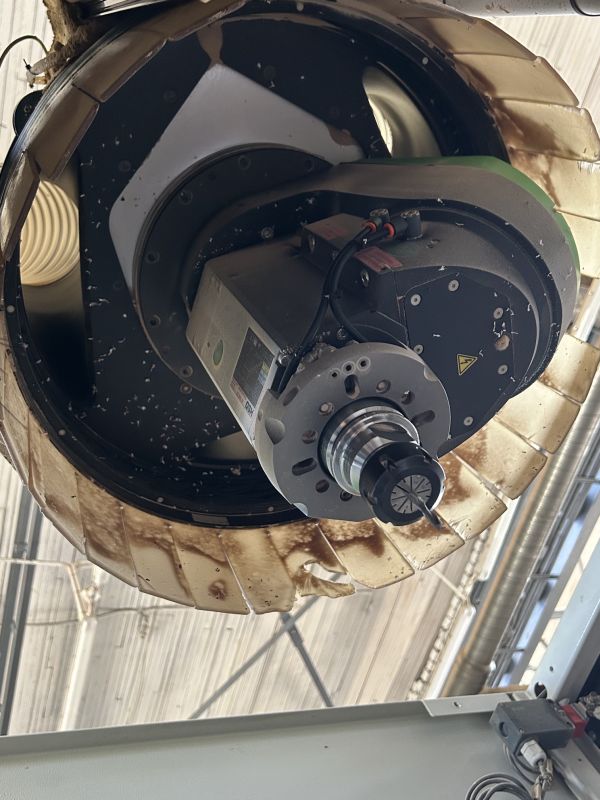

5-axis unit 5-axis machining head

C-axis: continuous 360° rotation

B-axis: continuous 360° rotation

B-axis speed: 18 rpm

C-axis speed: 18 rpm

Maximum spindle speed: 24,000 rpm

Power:

11 kW in S1 cycle

13 kW in S6 cycle

Maximum undercut angle: -10°

Collision control for the 5-axis unit

Prepared for aggregate use on the 5-axis unit



Work table and clamping ATS work table

8 support beams

32 movable carriages

32 pneumatic vacuum pods

Vacuum pods adjustable in 15° steps

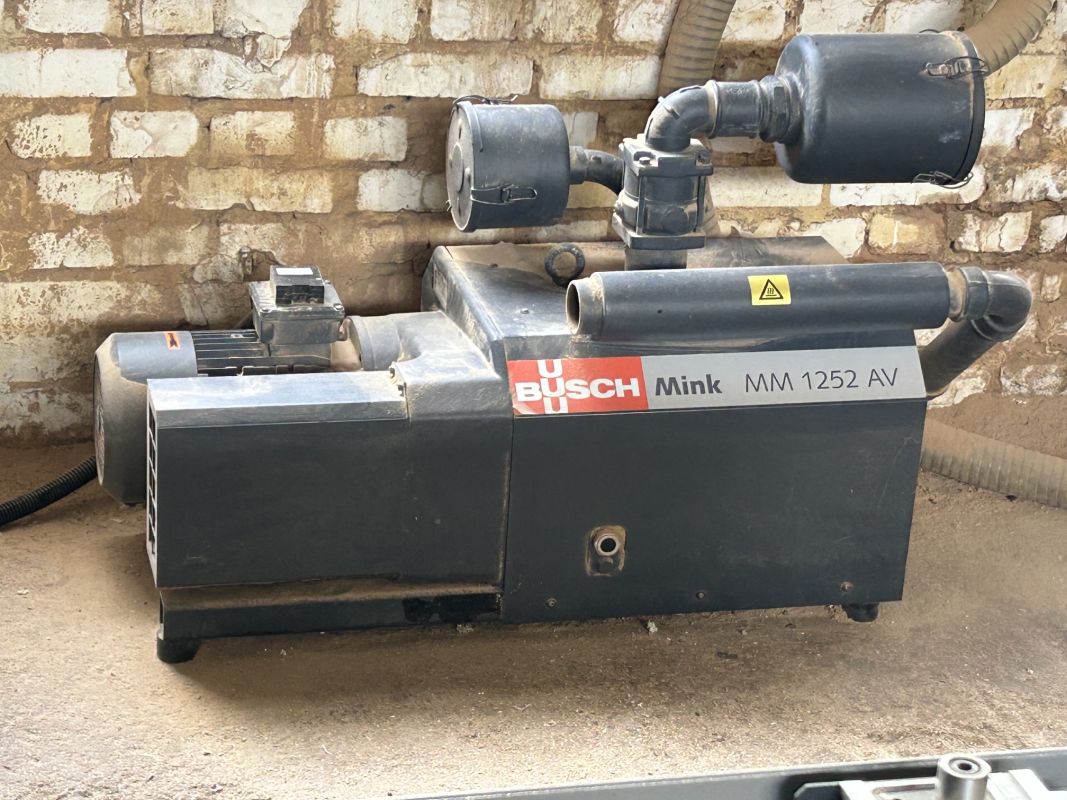

Pneumatic system divided into 2 working zones in X Vacuum pump capacity: 250 m³/h

6 lifting beams for easier loading and unloading

28 sensors for detecting lowered stops

Stops and positioning

8 rear stops

8 central stops

4 side stops, 2 left + 2 right

2 additional side stops

4 removable central stops, 2 left + 2 right

2 additional central stops

Pneumatic positioning and lowering of stops

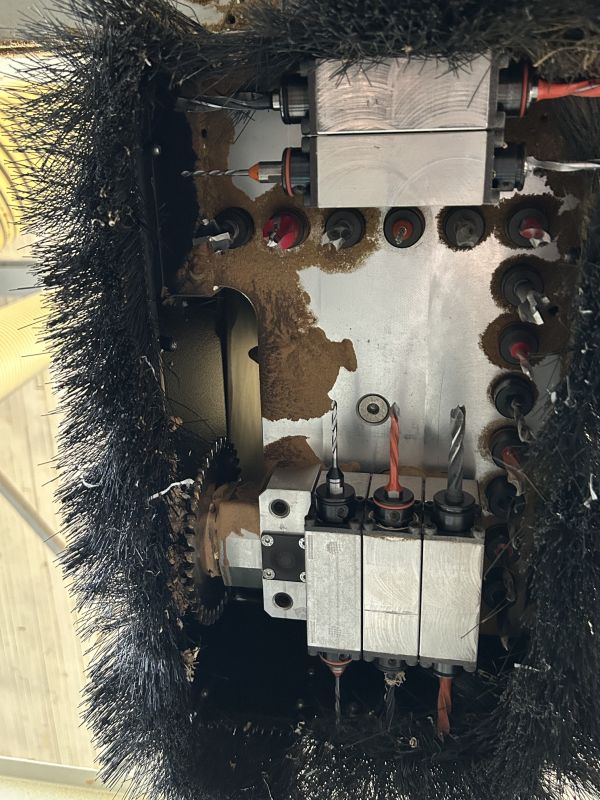

Drilling unit BH 24L drilling head

13 vertical independent spindles

5 horizontal independent spindles



Grooving saw Ø120 mm

Maximum grooving depth: 25 mm

Spindle speed programmable up to 6,000 rpm

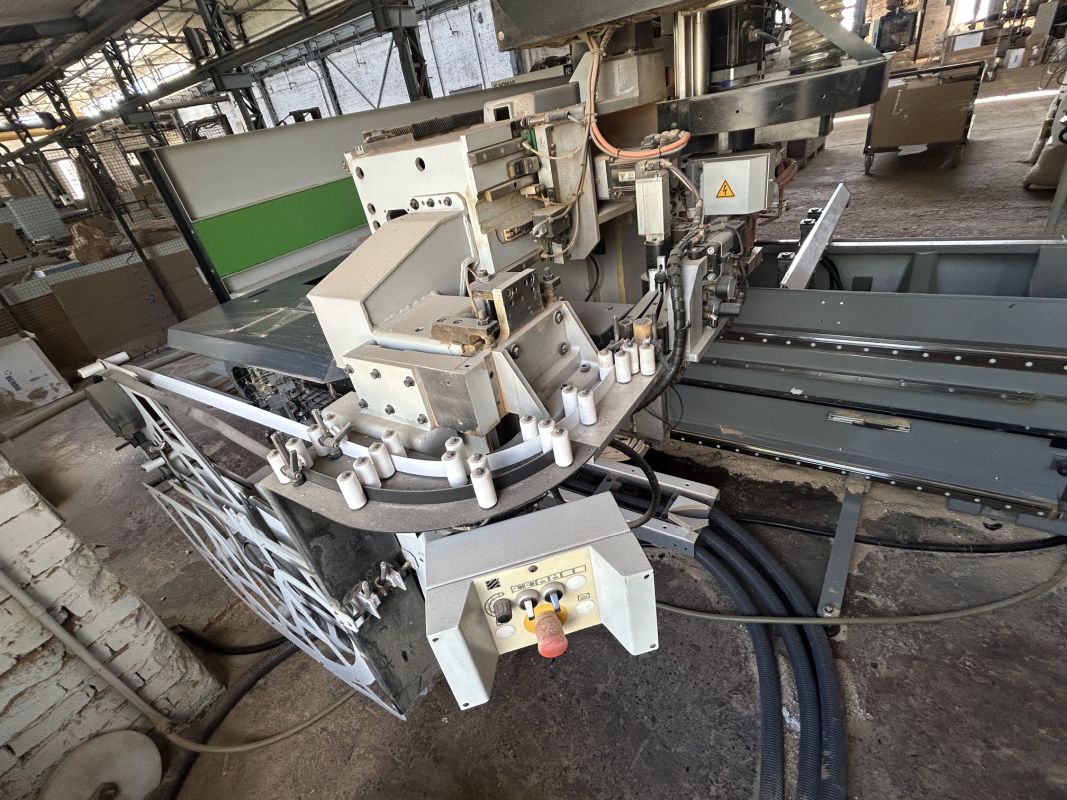

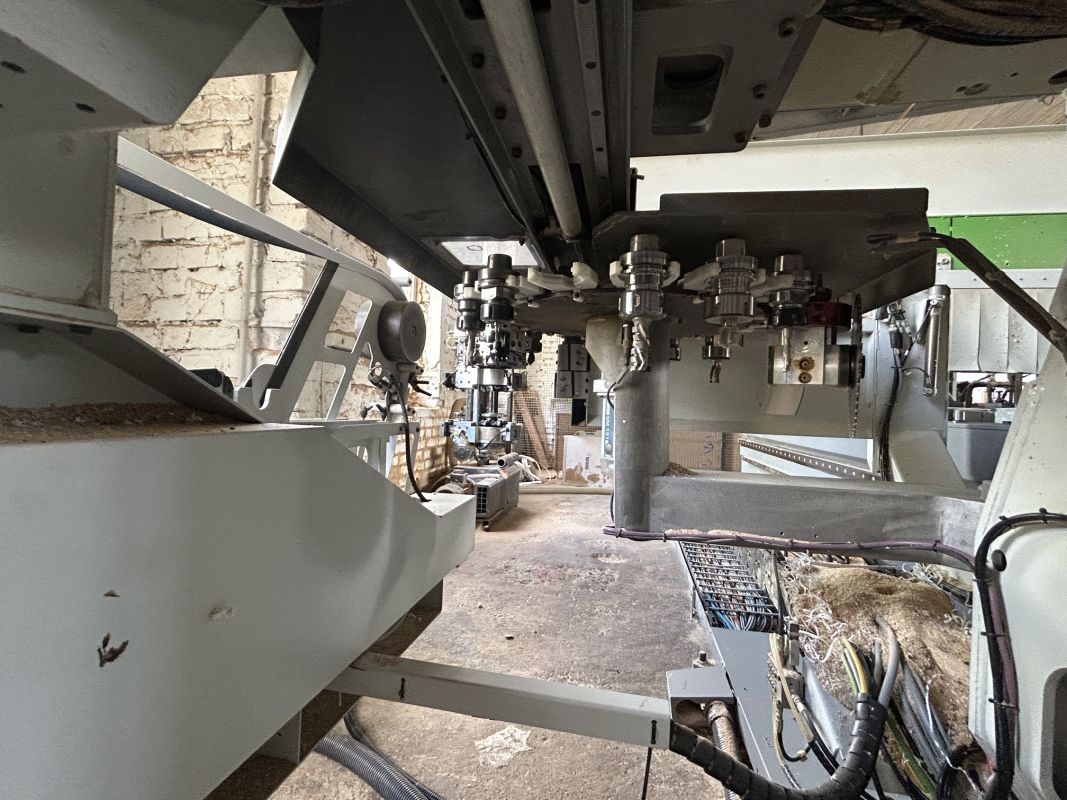

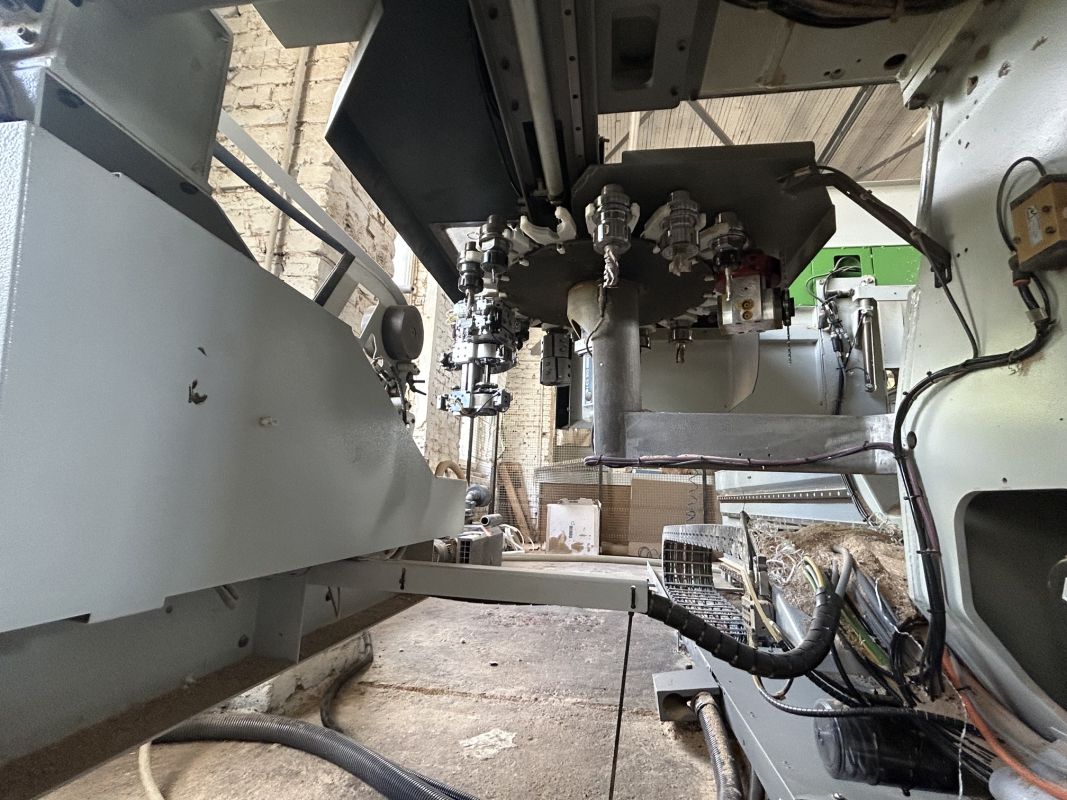

Tool changer 16-position rotary tool magazine Mounted on the X-axis carriage

For tools and aggregates Maximum tool/aggregate weight: 7.5 kg Total maximum magazine load: 55 kg

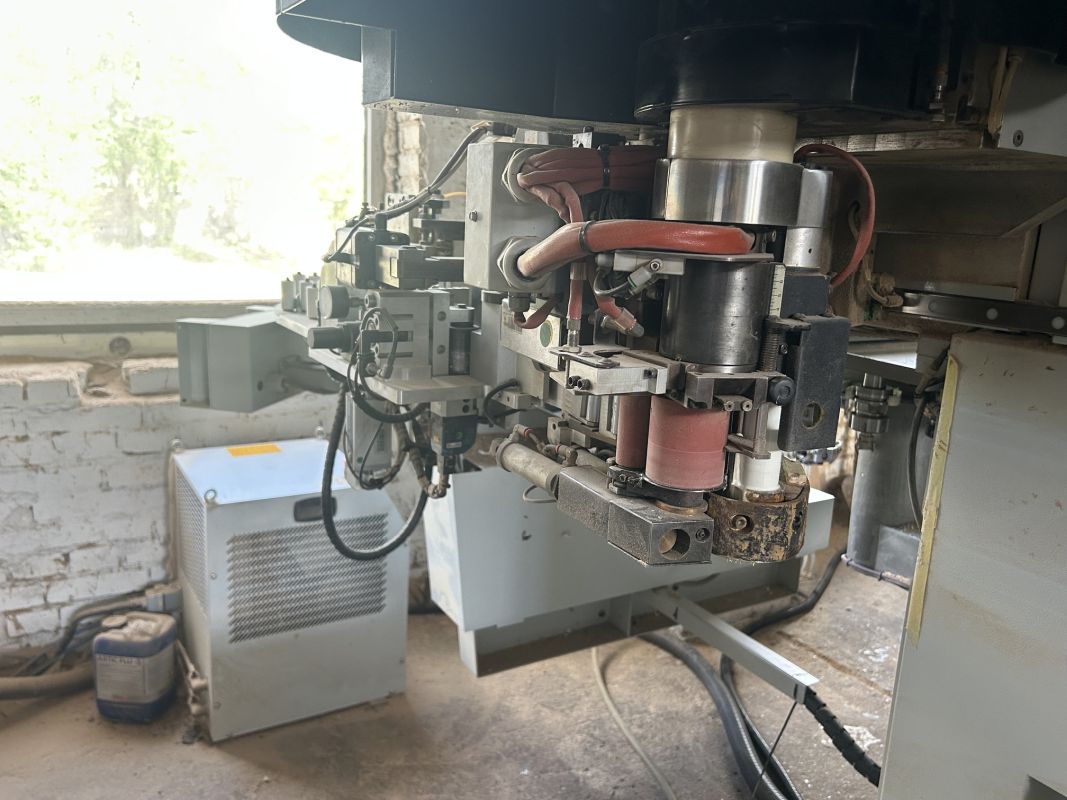

Edge banding unit GU60A edge banding unit

For panels up to 60 mm thick

Edge banding speed up to 20 m/min

Double pressure roller system

Glue tank with hot-melt glue system

Edge heating lamp, 600 W

NC-controlled edge feeding system

Automatic edge cutting

Sensor for closed geometric shapes

Edge banding accessories 2-roll edge magazine mounted on the X carriage

Maximum roll diameter: 800 mm

Maximum edge height: 65 mm

Corner rounding tool Ø85 mm,

HSK F63 Saw aggregate

HSK F63 for cuts and grooves, max blade Ø215 mm Maximum saw speed: 8,400 rpm Maximum cutting depth with Ø215 mm blade: 68 mm

Edge trimming units

Combined glue scraping / edge scraping units

Tool sets for different edge thicknesses



Software bSolid basic module 2D CAD environment DXF, CIX and BPP import 3D machine simulation Tool management 5-axis machining management by positioning

Wizard-based program creation

Safety CE compliant

Safety mats Safety barriers

Safety sensors

Modified safety system allowing loading in Y up to 2,100 mm Summary



This is a well-equipped BIESSE ROVER A 1643 EDGE CNC machining center with 5-axis machining head and edge banding package. The documents show B and C continuous rotation, 5-axis programming, 5-axis collision control, and a dedicated aggregate flange for the 5-axis unit, so based on these documents it should be treated as a 5-axis machine.






Note:
The technical data and descriptions are copies of the original order confirmation. This information is provided for informational purposes only and is not binding.
