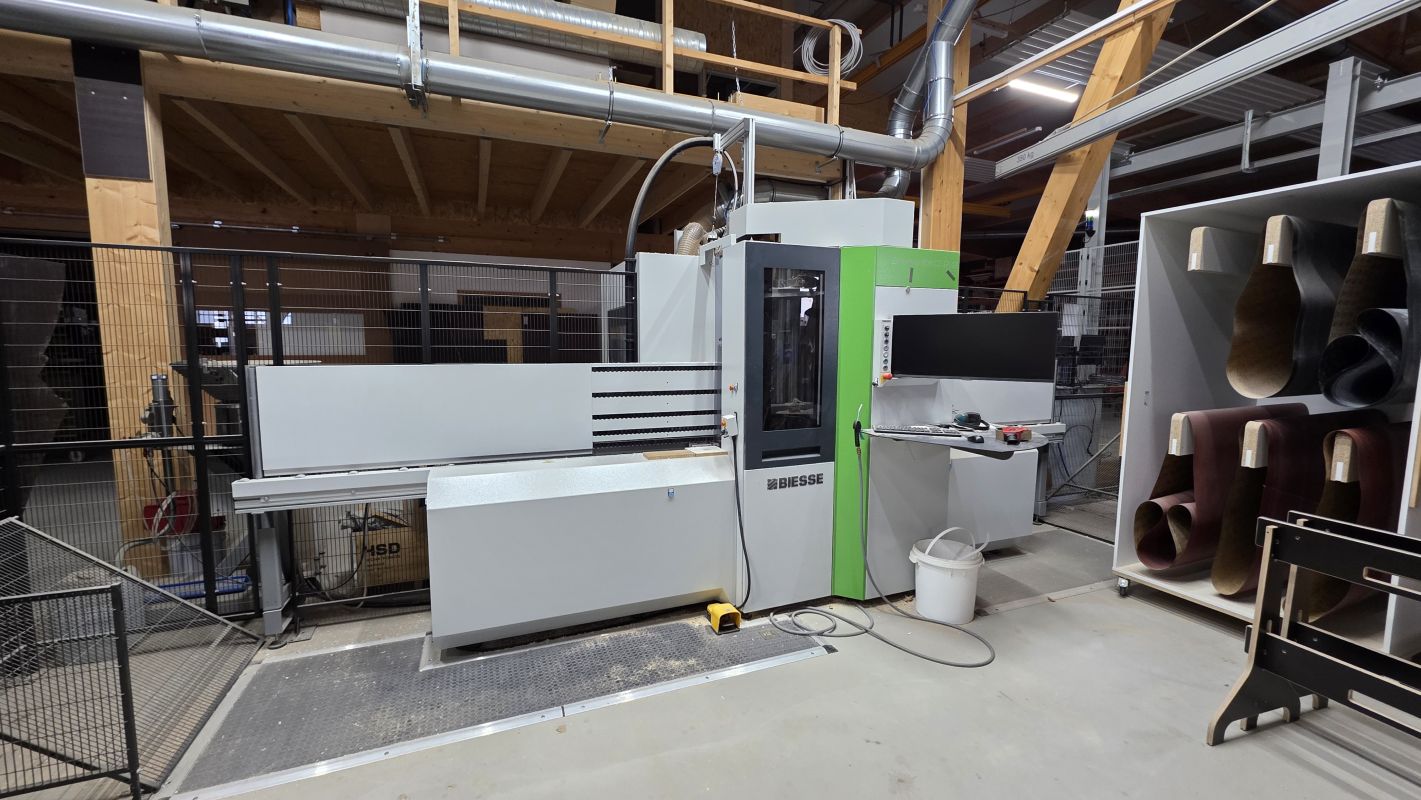

Vertical CNC Machining Center

Vertical CNC Machining Center
Brand: Biesse
Type: Brema EKO 2.2
Year of manufacture: 2022


Technical data
Working Area
X = 3,200 mm
Y = 1,250 mm

Workpiece Dimensions
Length (X): 200-3,200 mm
Width (Y): 35-1,250 mm
Thickness (Z): 8-60 mm
Maximum workpiece weight: 50 kg

Workpiece Reference System
The workpiece is pre-positioned in the longitudinal direction (X-axis) in the loading area on the left-hand side of the machine by means of a fixed reference stop mounted on the machine table.

Workpiece Positioning Unit
Workpiece positioning in the X-axis is carried out by two clamping grippers, which securely hold the workpiece during the machining process. Movement is performed by two independently driven servo motors.

Workpiece Support Surface

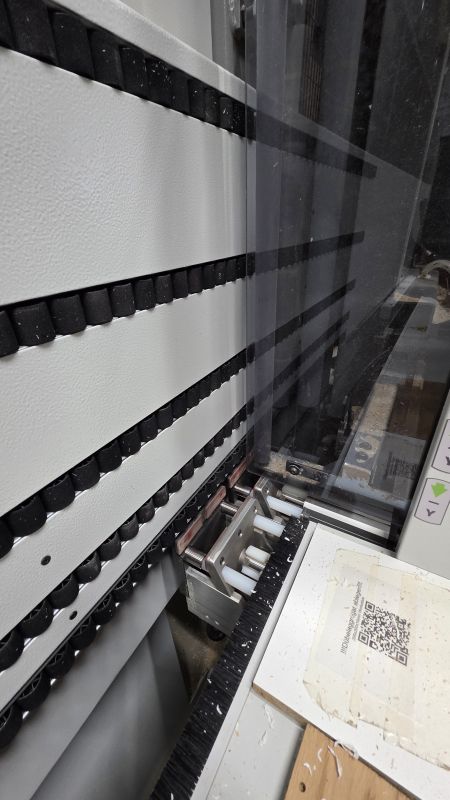

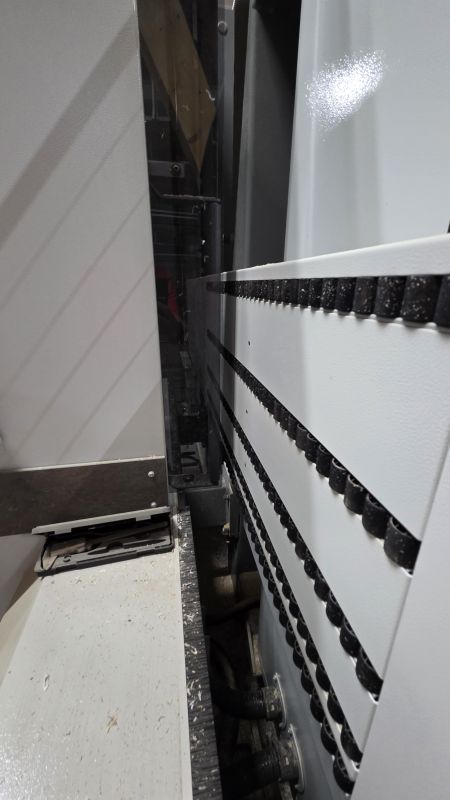

The workpiece support surface, where the machining units are located, consists of a series of rubber-coated rollers that establish the workpiece reference in the Z-axis.
On the opposite side of the machining units, a pressure system ensures optimum workpiece holding throughout the machining process.

Transformer and electrical connection for supply voltages of 380-415 V (±10%), 50/60 Hz

Air conditioning unit for the electrical control cabinet

bSolid control system

HP Kit for High-Speed Movement of the Workpiece Clamping Grippers
The combined system, consisting of servo motors and precision planetary gearboxes, enables positioning speeds of up to 110 m/min with rapid acceleration ramps.

Foot Pedal for Opening / Closing the Clamping Grippers

BH28 Drilling Head with Individually Selectable Spindles
- 17 vertical spindles (7 in X-axis, 10 in Y-axis)
- 5 horizontal spindles (3 in X-axis, 2 in Y-axis)
- 1 grooving saw unit with fixed cutting direction in the X-axis

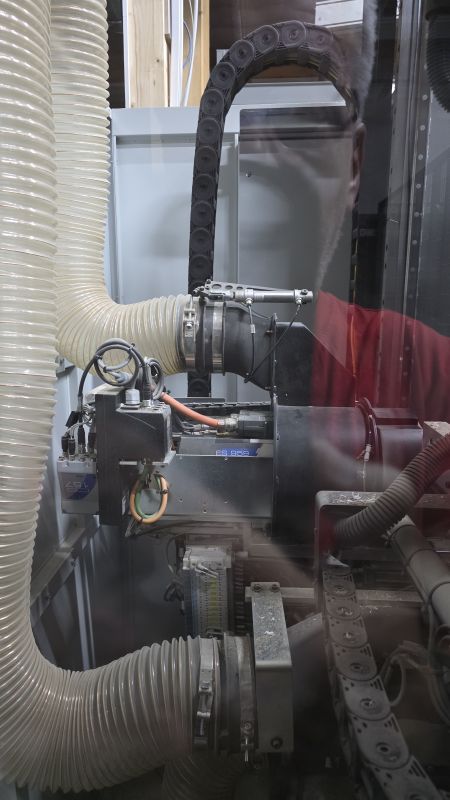

11 kW Electrospindle with HSK-F Tool Interface and C-Axis Torque
- 11 kW, 24,000 rpm (S1 continuous-duty operation)
- 6,000-24,000 rpm, programmable via NC

HSK-F63 Angular Saw Unit
- Maximum speed: 8,400 rpm

Drilling and Milling Unit for Top and Bottom Edges / End Drilling and Milling Unit
- Maximum speed: 9,000 rpm
- ER20 collet tool holder

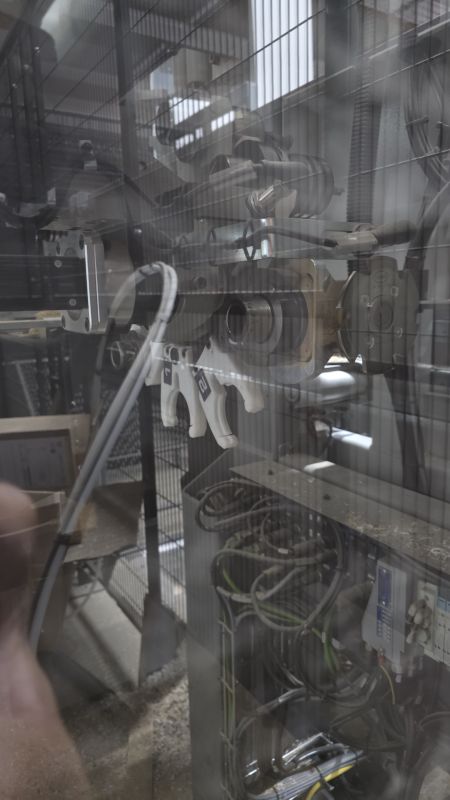

8-Position Tool Changer - Disc-Type Tool Magazine

"Sensitive Surfaces" Kit for Workpiece Transport

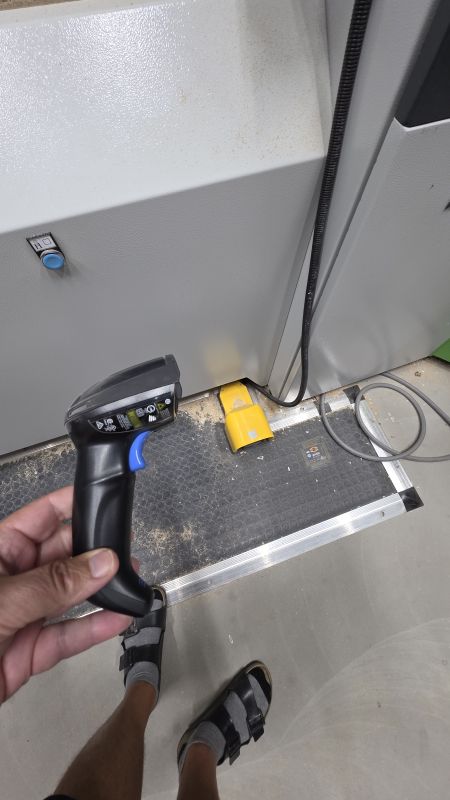

Laser Device for Manual QR Code Reading

SOPHIA - IoT Connection

Dowel Insertion Unit for Ø8 × 40 mm Dowels with Glue Injection

Barcode2HOPS with Variables

MultiPost Upgrade

POST Element Splitter

NC-HOPS 7.0



Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
