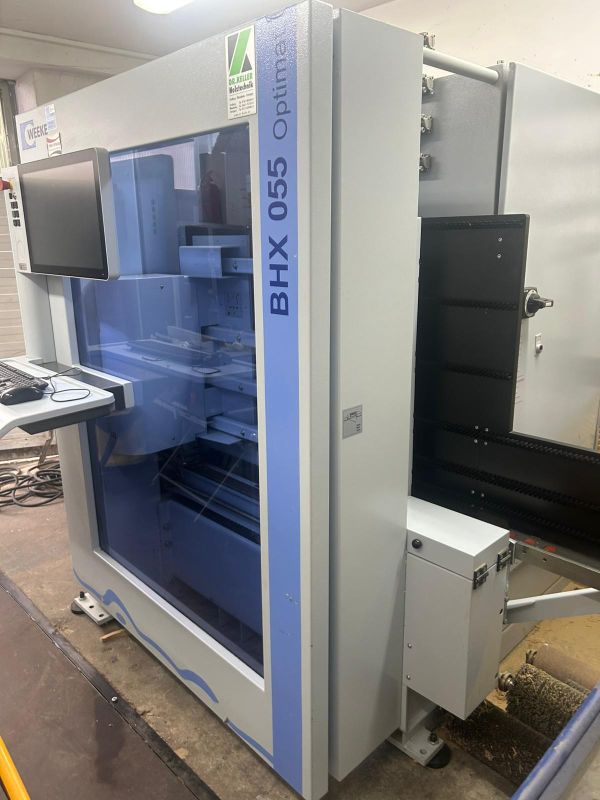

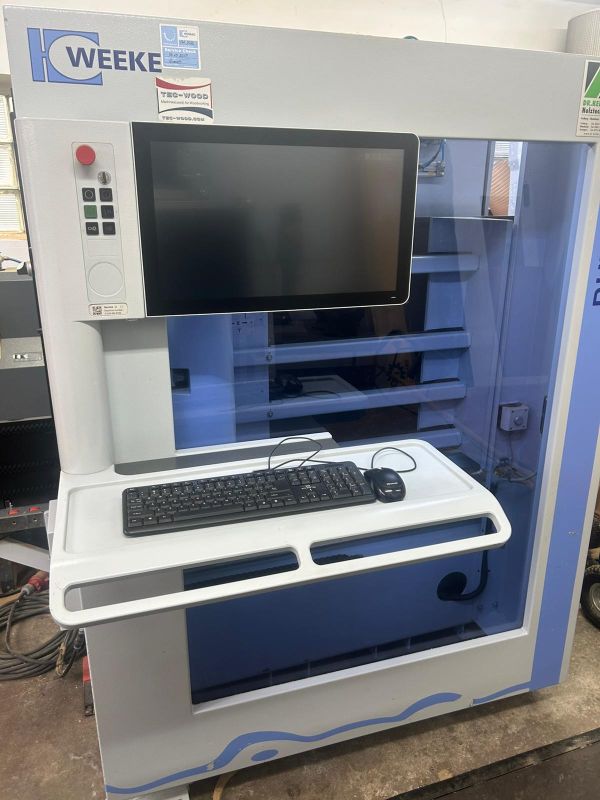

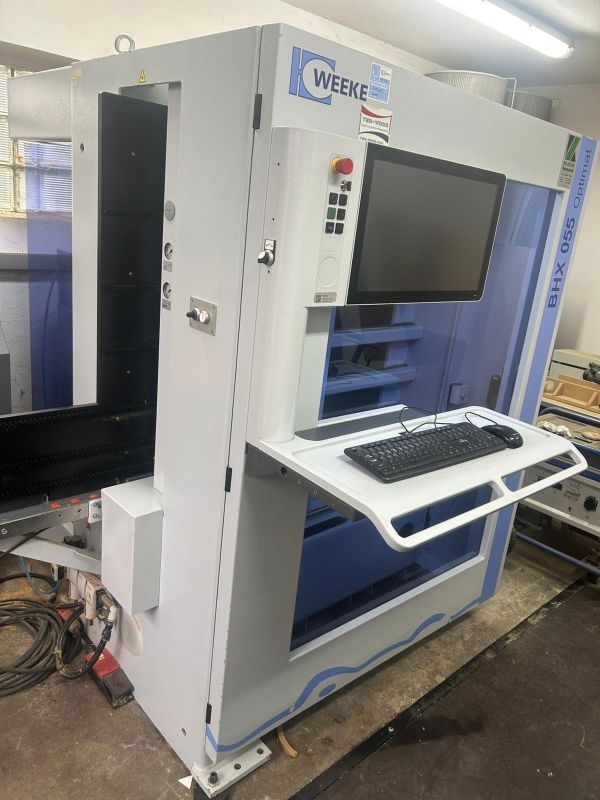

Vertical CNC Drilling and Machining Center

Vertical CNC Drilling and Machining Center
Brand: Weeke
Type: Optimat BHX
Year of manufacture: 2016

Technical data
- X-axis working range: max. 3,050 mm
- Y-axis working range: 70 – 850 mm
- Workpiece thickness (Z-axis): 12 – 60 mm
- Workpiece weight: max. approx. 35 kg
- Number of axes: 3
- Milling spindle: 5 kW
- Milling spindle speed: max. 18,000 rpm
- Tool holder: HSK-F63 or ETP 25, depending on the model
- Tool change: automatic tool magazine
- Tool stations: 4
- Vertical drilling spindles: 13
- Horizontal drilling spindles (X-axis): 4
- Horizontal drilling spindles (Y-axis): 2
- Drilling unit: V13 High Speed
- Drilling unit power: 2.3 kW
- Drilling speed: 1,500 – 7,500 rpm
- Max. drilling depth: approx. 38 mm
- Drill diameter: max. approx. 35 mm
- Spindle spacing: 32 mm
- Groove saw: in the X direction
- Groove saw blade: Ø approx. 100 mm
- Workpiece transport: Continuous feed system / transport chain
- Workpiece clamping: Collet gripper, vacuum-free clamping system

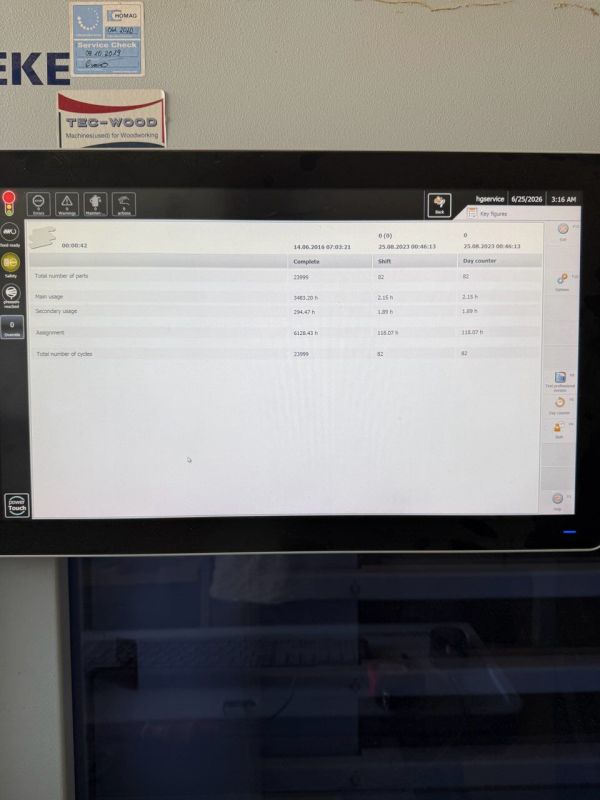

- Control system: HOMAG powerControl / powerTouch
- Software: HOMAG woodWOP
- Total connected load: approx. 11.5 kW
- Exhaust connection: approx. Ø 160 mm
- Exhaust air requirement: approx. 2,170 m³/h
- Weight: approx. 1,500 kg
- CE



Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
