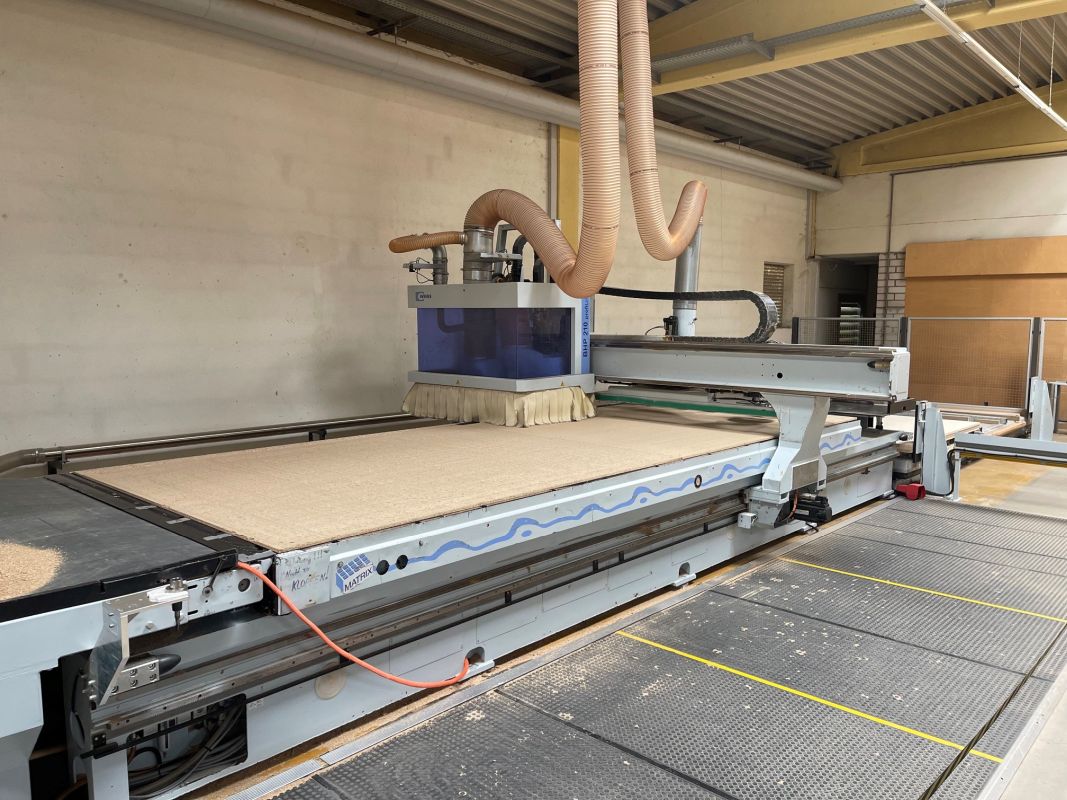

CNC Machining Center

CNC Machining Center
Brand: Weeke
Type: PROFI BHP 210/56/22/R
Year of manufacture: 2012

Technical data
- Worktable length: 5600 mm
- Worktable width: 2250 mm
- Max. workpiece thickness: 135 mm

Vector Speed
- X/Y: 105 m/min
- Z: 20 m/min

Special Vacuum Field Layout
- 5600x2250
- 3000x1525
- 2500x1250
- 1525x1525

2x central vacuum frames for up to 3 pumps

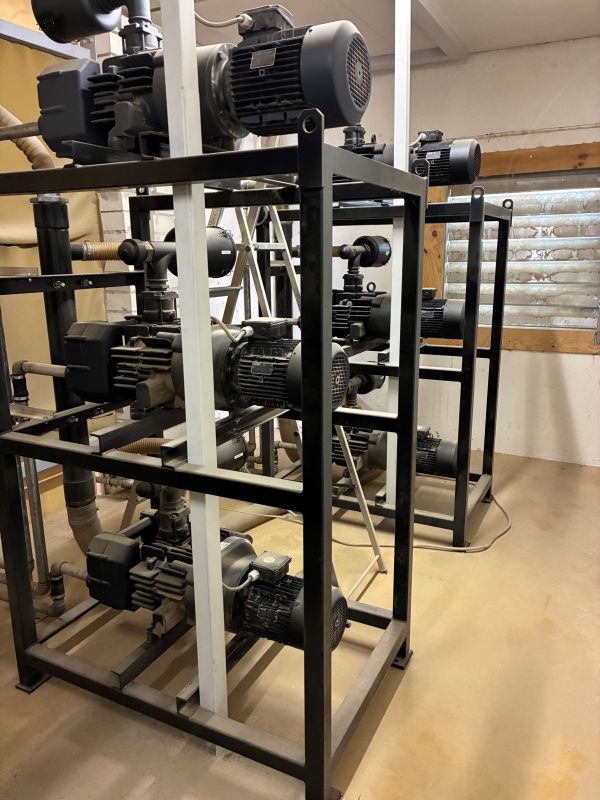

6 vacuum pumps, 300/360 m³/h, 50/60 Hz

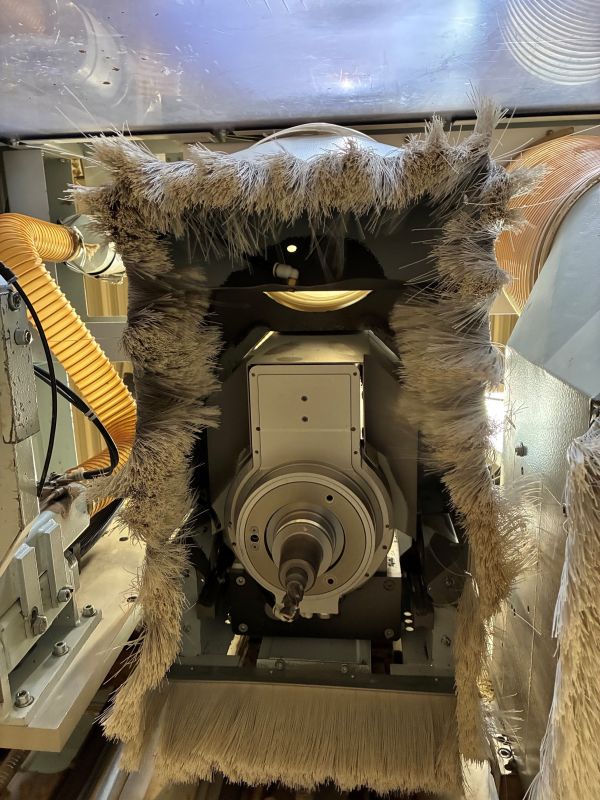

Automatic tool-changing spindle
- Tool holder: HSK63
- Tool loading: automatic
- Rotation direction: clockwise/counterclockwise
- Speed: 1,250 – 24,000 1/min, continuously adjustable
- Drive: frequency-controlled three-phase motor
- Max. power at the tool: 7.5 – 12 kW (S1/S6 50%)
- Spindle lubrication: permanently grease-lubricated
- Cooling: circulating liquid cooling
- Bearings: hybrid bearings (ceramic)

Unit interface for main spindle, C-axis

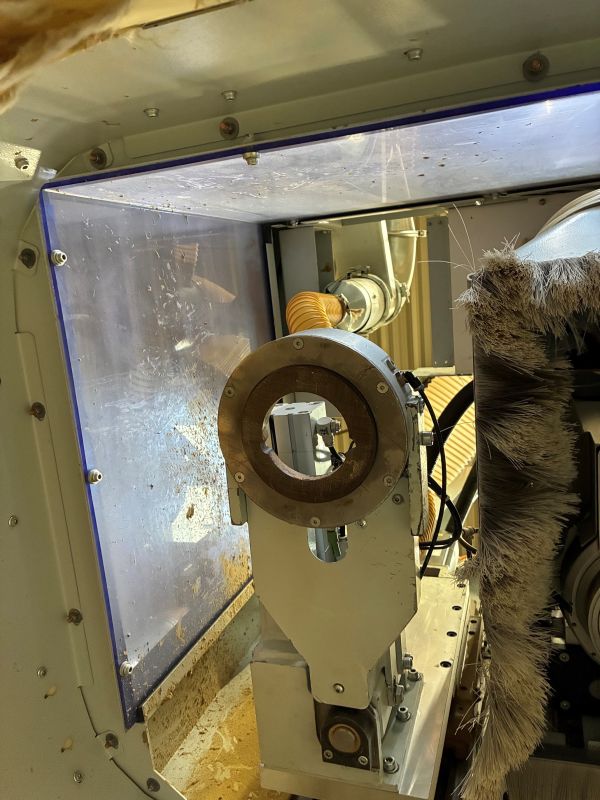

NC-controlled pressure ring

Sawing/drilling/milling unit
- Spindle outlet: 2-sided
- Saw blade mounting: Mounting flange D=40 mm, pitch circle 52 mm
- Saw blade diameter: max. 240 mm
- Cutting depth: max. 85 mm
- Drill and router bit holder: up to 16 mm shank diameter
- Tool overhang: max. 85 mm
- Speed: max. 14,400 rpm

Tool Length Control

Power Pack incl. CE safety system
High-speed element for the X-axis gantry drive
Travel speed of both X-axis drives: 100 m/min
Note: Pendulum configuration not applicable.

Automatic tool changer with 14 stations
- Travels with the support in the X direction
- Tool holder: HSK63
- Tool weight: max. 6 kg total weight, including HSK holder
- Tool diameter: max. 130 mm when fully loaded
Max. 260 mm for smaller tool diameters or when there is free space in adjacent slots
- Tool change time: approx. 12–18 sec.

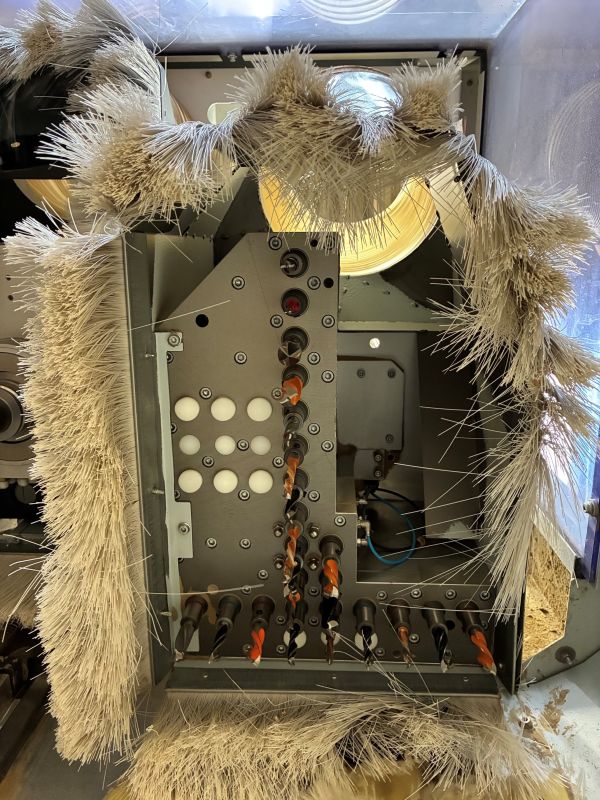

Vertical drilling unit with 21 drilling spindles
- Feed stroke in the Z-direction: 60 mm
- Drilling depth: max. 38 mm (up to 55 mm with special drill bits)
- Rotation direction: clockwise/counterclockwise
- Speed: 1,500–7,500 rpm, frequency-controlled
- Drive: 2.3 kW
- Drill bit holder: d = 10 mm
- Total drill bit length: 70 mm
- Drill bit diameter: max. 35 mm
- Spindle spacing: 32 mm

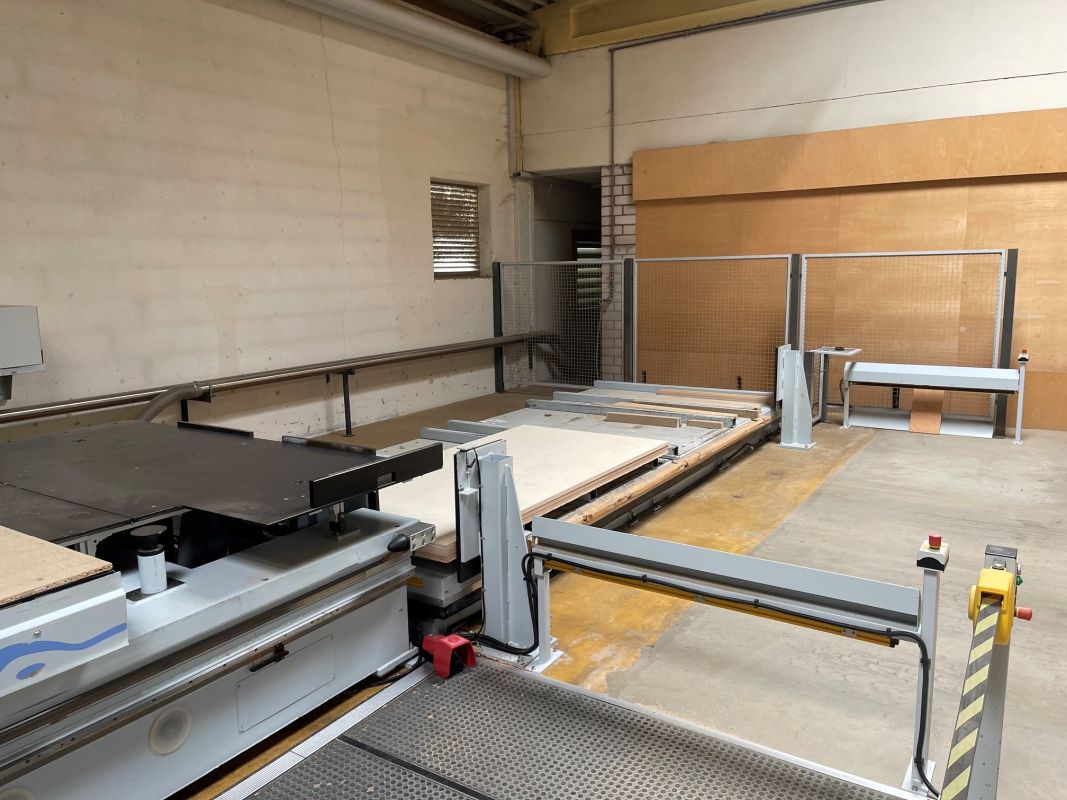

System lifting table 4000 x 2100 mm
- Load capacity: 3500 kg
- Overall height: 440 mm
- Useful stroke: 600 mm
- Stacking height: 480 mm
- Motor: 2.2 kW, 3 x 400 volts, 50 Hz
- Pump: 8 l/min
- Valve voltage: 24 volts
- Lifting speed: approx. 31 mm/sec.
- Lowering speed: approx. 31 mm/sec.

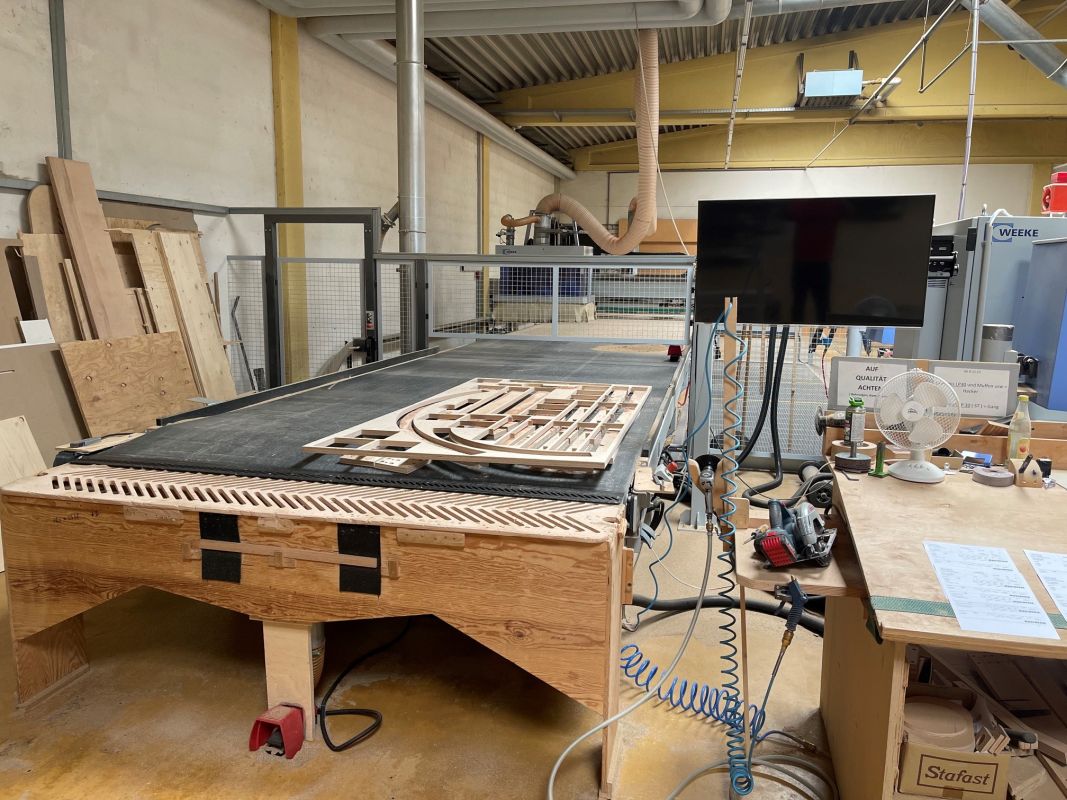

Belt conveyor 6000 x 2250 mm

Package handling
Special feature: 3 sheets of raw plywood 5600 x 2250 x 15 (3 x 18 mm)
Feeding and ejection; the base protection plate—machine table is taken into account here

Mobile Operator Terminal

Power Control PC85 Control System

Software package with graphical user interface programs

Woodnest Complete
Consisting of:
Mobile Label Terminal
Software for an external PC

PICA - Label Printer

Air conditioning system for cooling the control cabinet



Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
