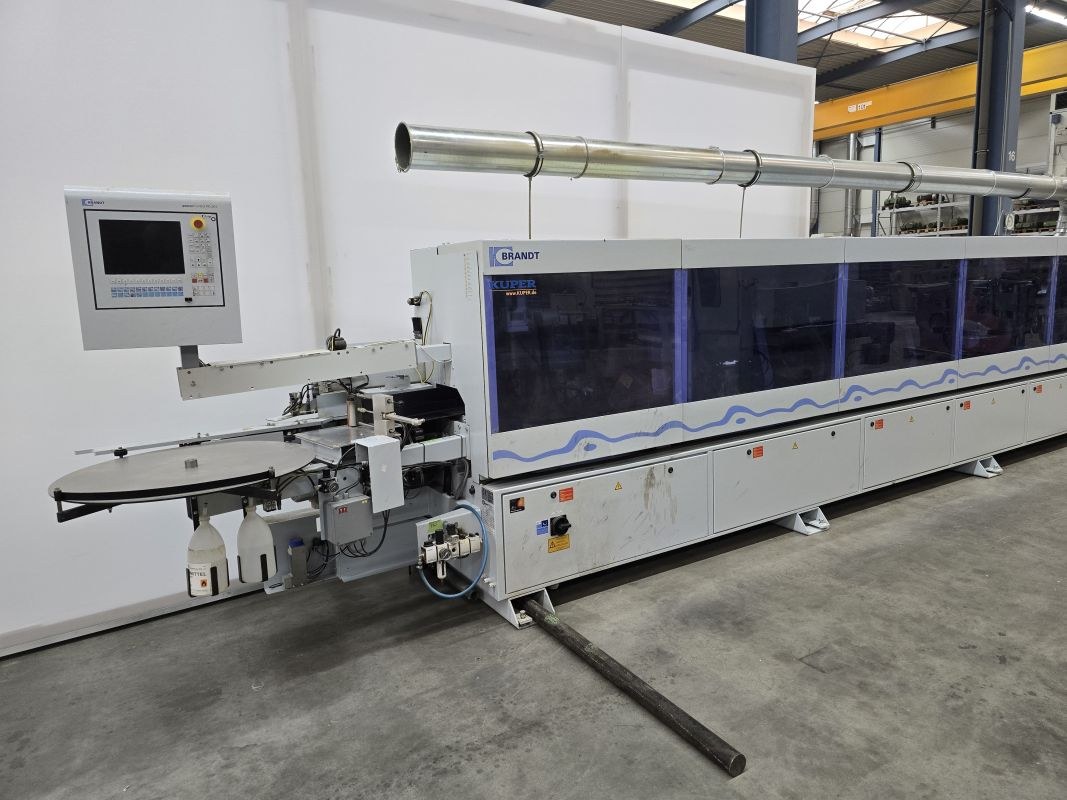

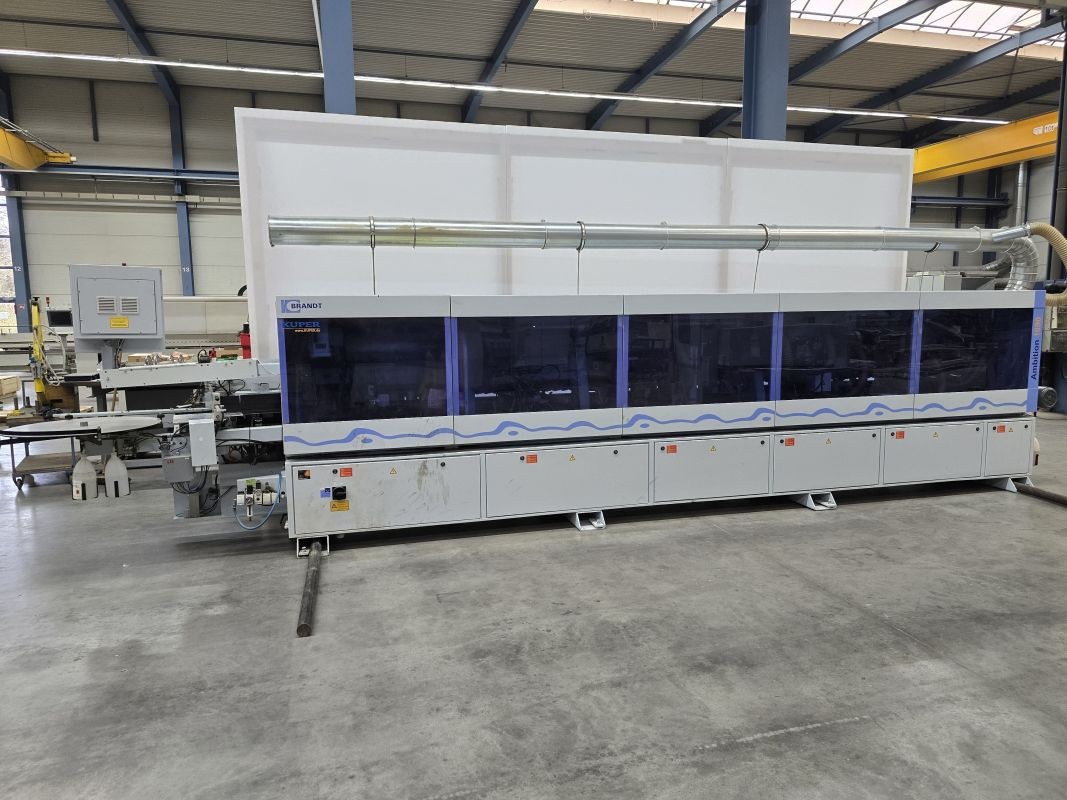

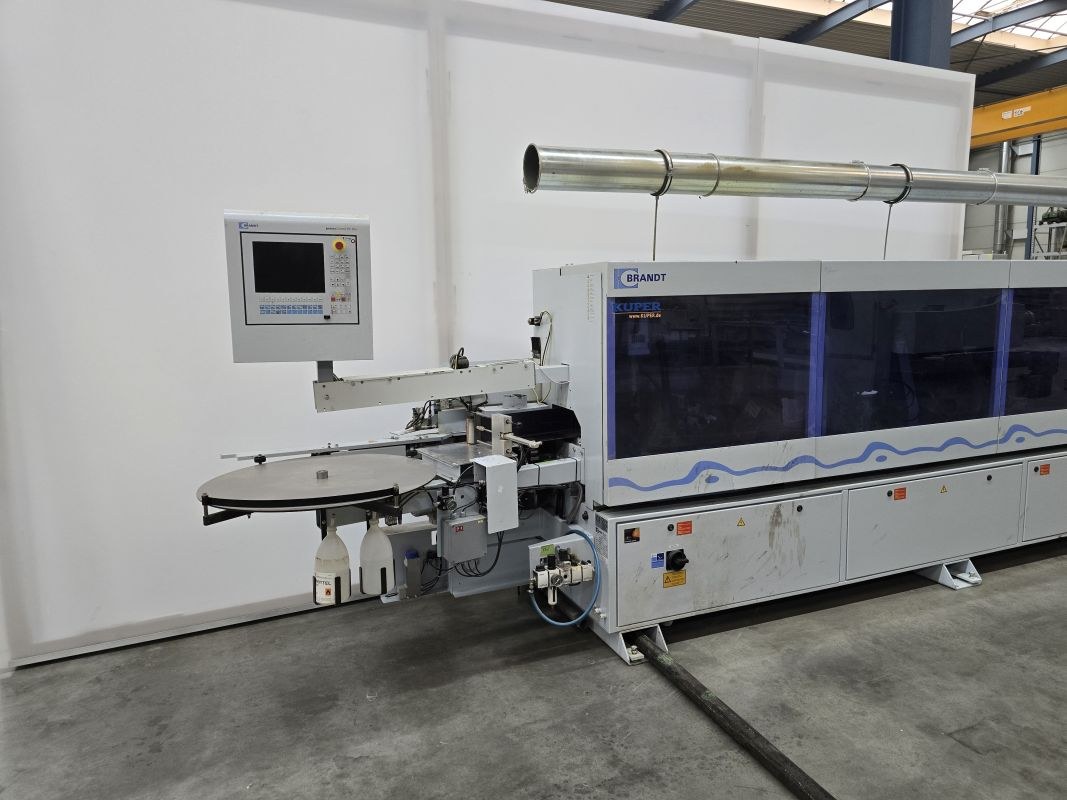

single-sided edge banding machine

single-sided edge banding machine
Brand: Brandt
Type: KDF 890 2CU
year of construction 2011

Technical data
- Feed rate: 8 - 20 m/min
- Max. feed rate with form milling cutter: 20 m/min
- Working height: 950 mm

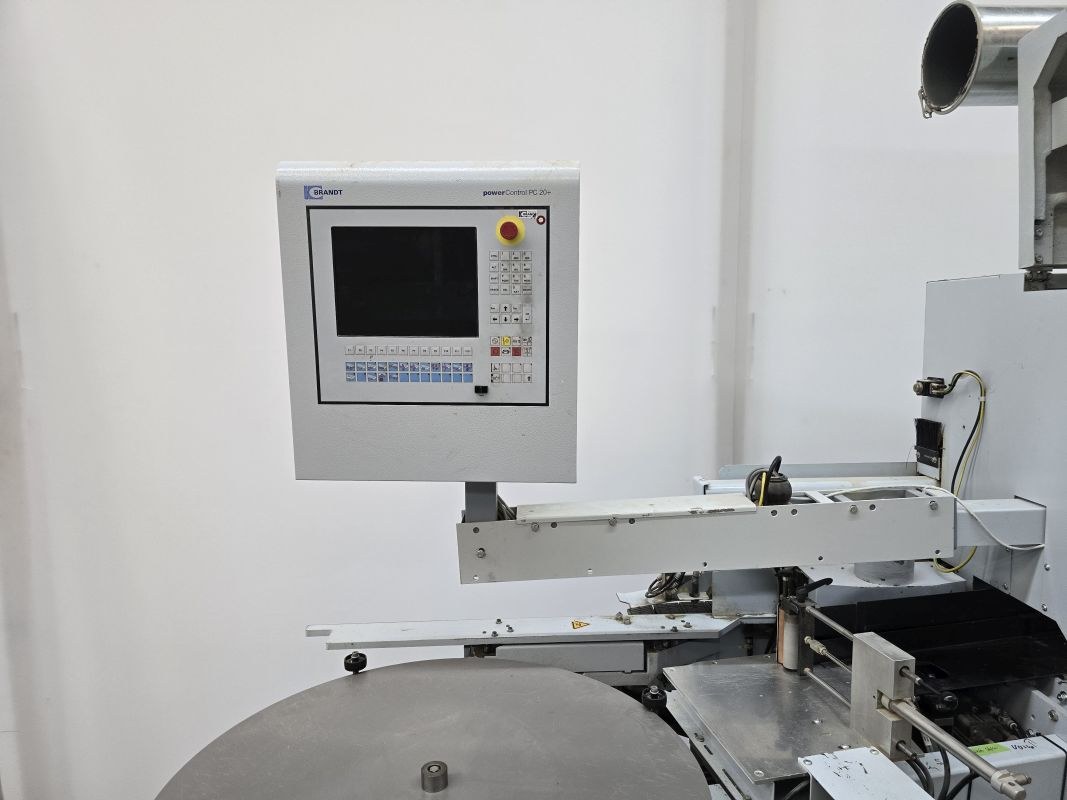

- Power Control PC 20+ electronic control system

Workpiece dimensions
- Min. workpiece width:
For workpiece thicknesses of 8 - 22 mm: 70 mm*
For workpiece thickness 23 - 40 mm: 120 mm*
For workpiece thickness 41 - 60 mm: 150 mm*
*Depending on workpiece length

- Workpiece overhang: 38 mm
- Workpiece thickness: 8 - 60 mm
- Workpiece length min.: 120 mm
- Edge height max. = workpiece height: +6 mm
- Edge material roll: 0.4 - 3 mm

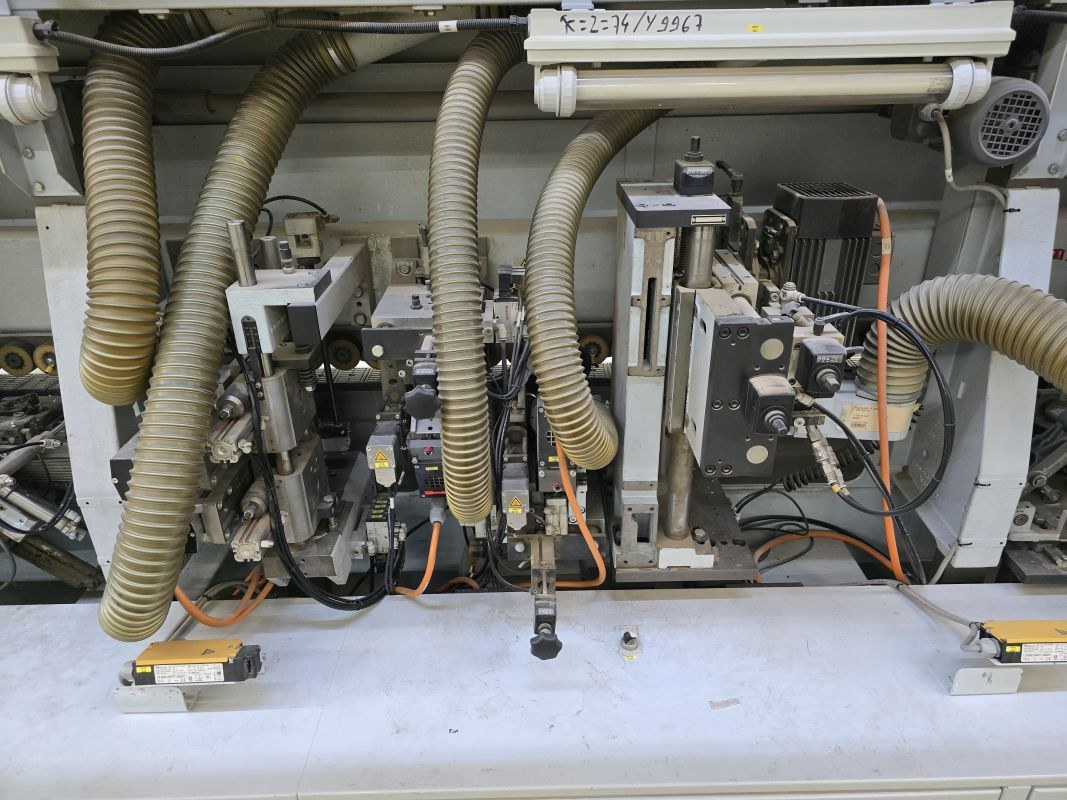

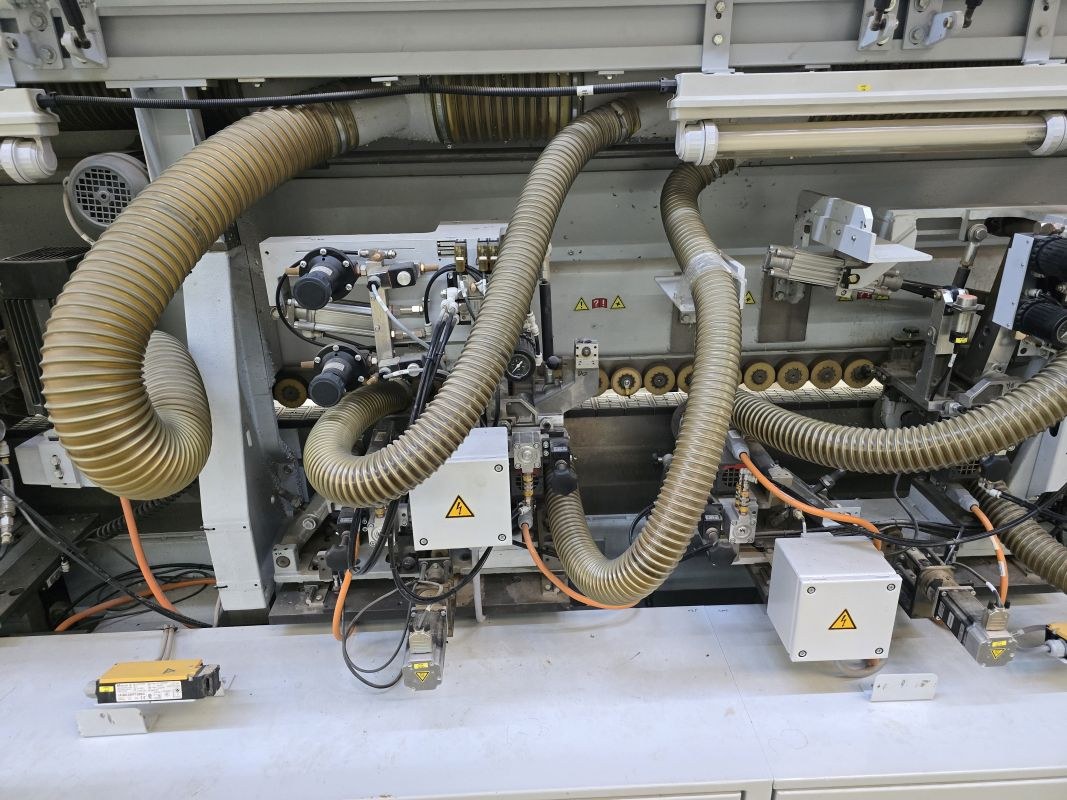

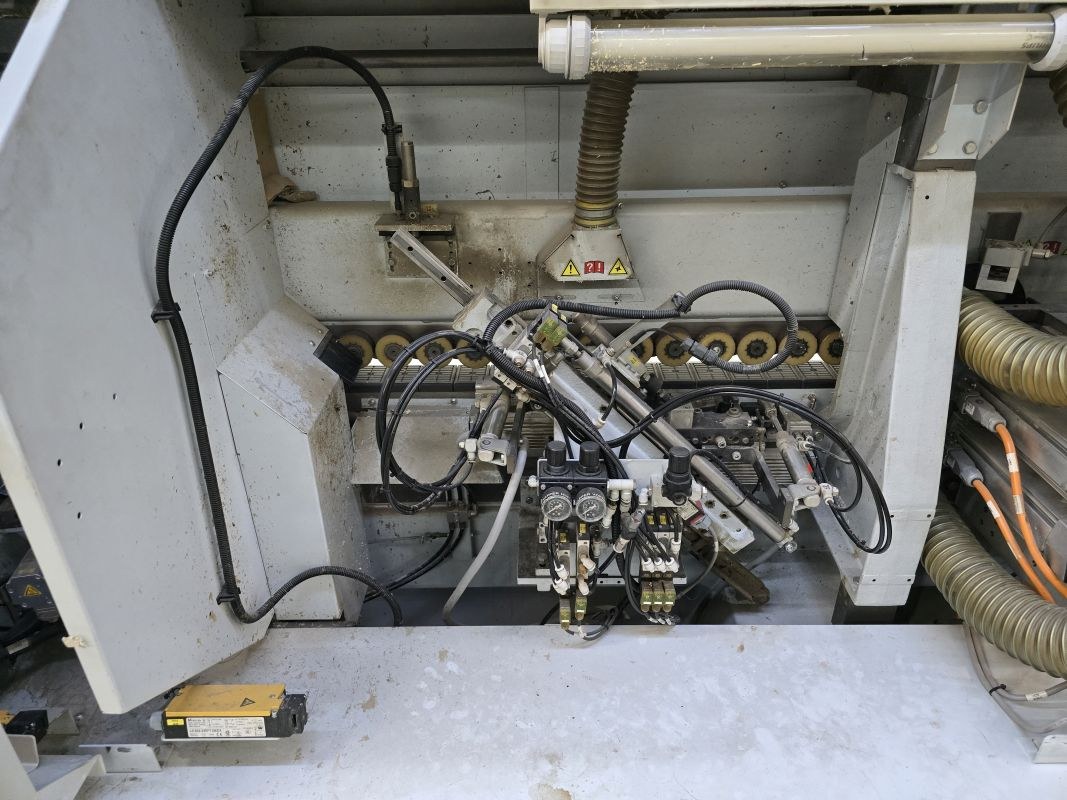

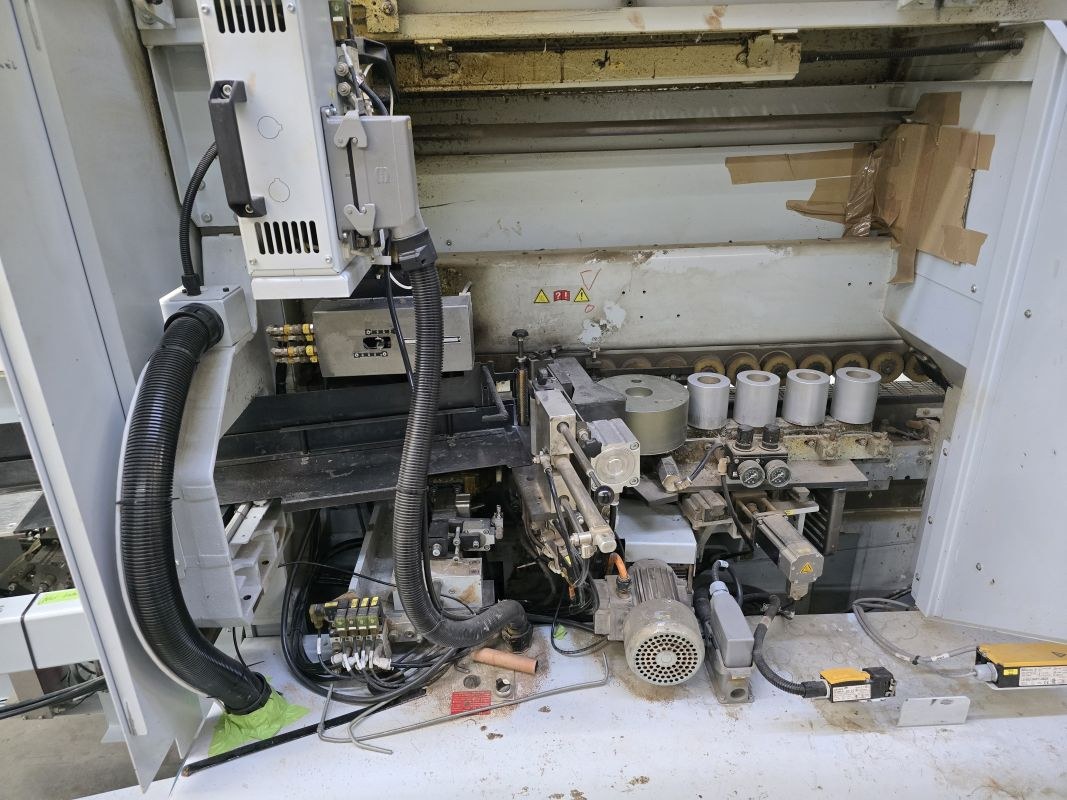

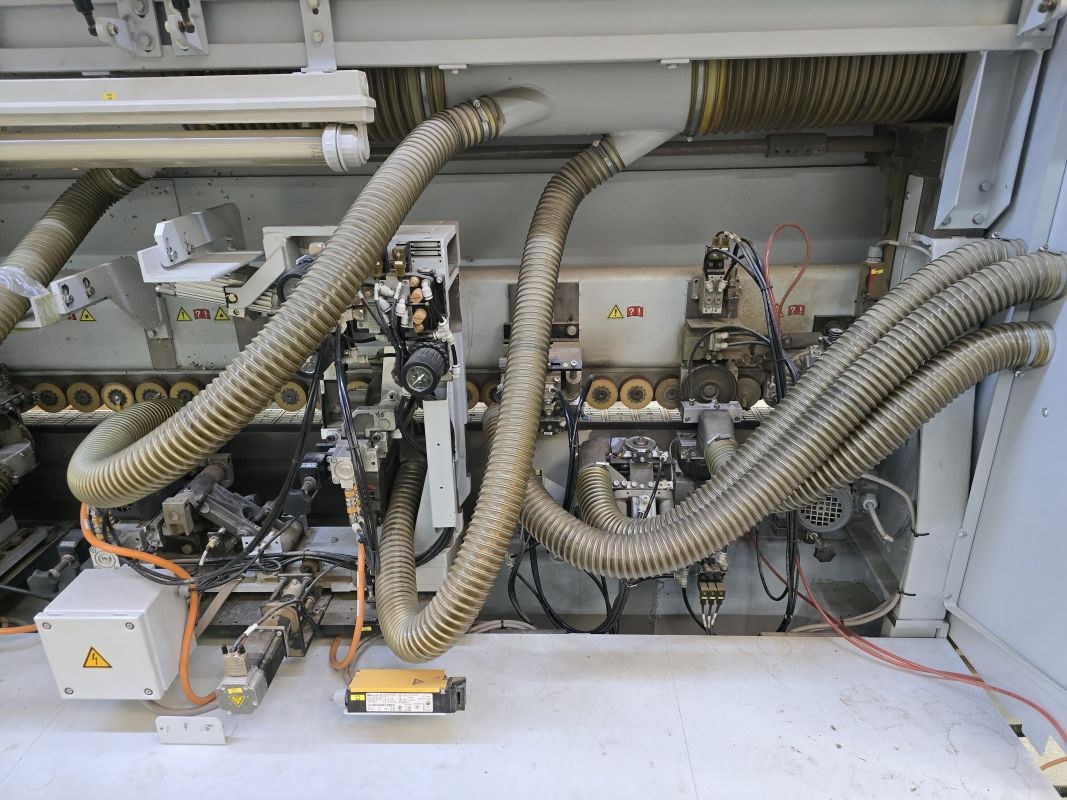

Aggregate configuration
- Joining milling aggregate 2 x 2.2 kW, 200 Hz

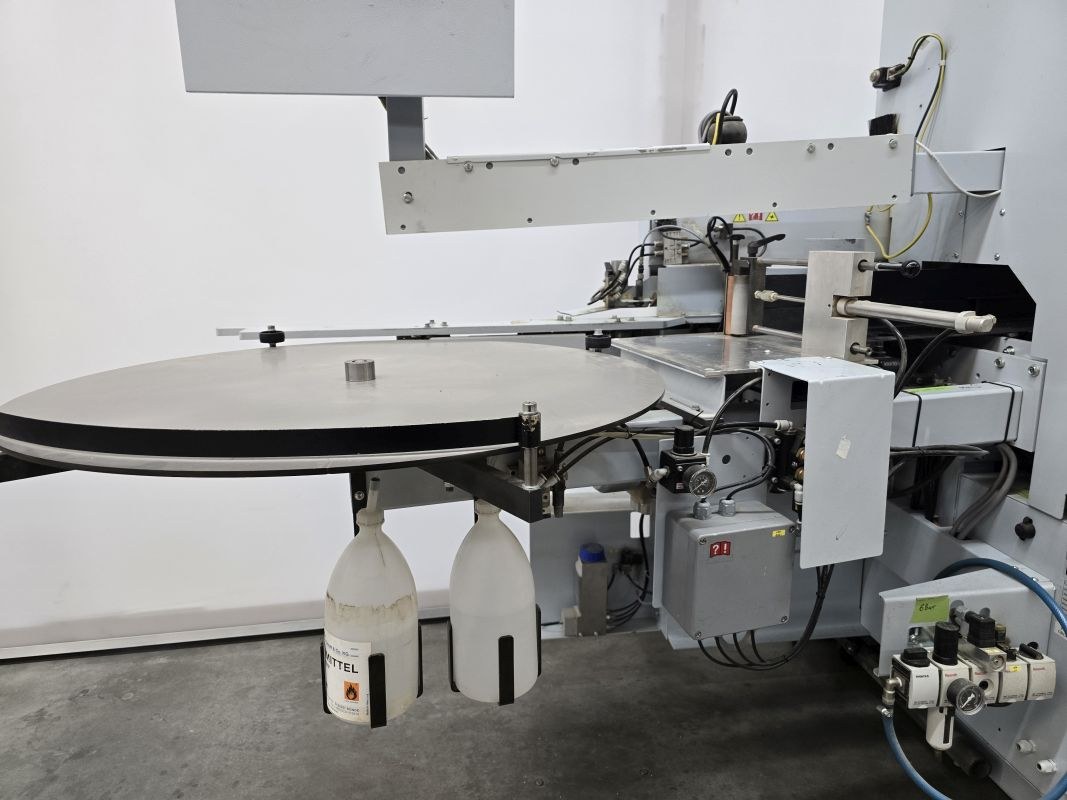

- Gluing aggregate A15
- Cutting unit chamfer/straight 2 x 0.35 kW, 200 Hz, 12000 rpm
- Pre-milling unit 2 x 0.55 kW straight, 200 Hz, 12000 rpm
- Milling unit 2 x 0.55 kW synchronous, 200 Hz, 12,000 rpm
- Universal milling unit 1 x 4.0 kW, 150 Hz 9,000 rpm, 0° - 90° swivel
- Form milling unit 4 x 0.3 kW WD60, 200 Hz, 12,000 rpm
- Profile scraper blade with quick-change heads
- Free space glue joint scraper blade
- Buffing unit 2 motors, each 0.18 kW


Note:
The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.
