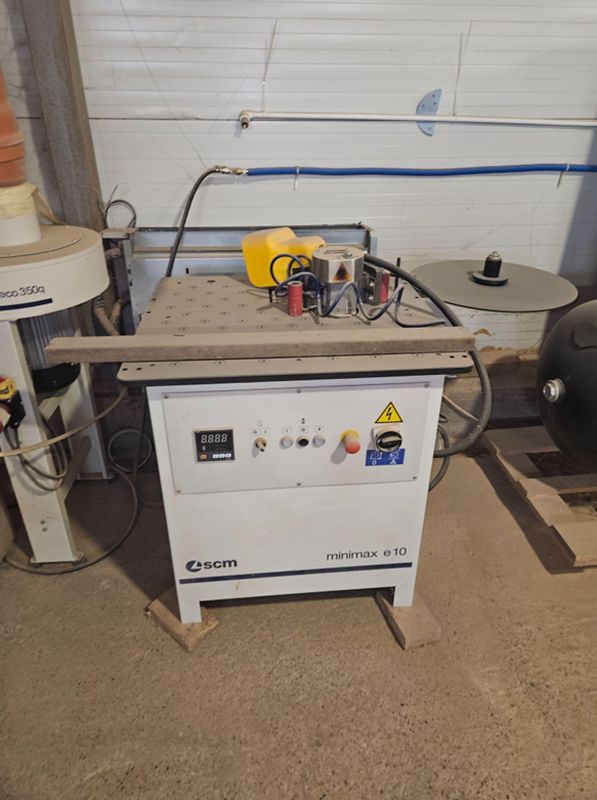

edge banding machine

edge banding machine
Brand: SCM
Type: Minimax E10
Year of manufacture: 2019


Technical data
Edge thickness (strip material): 0.4-3.0 mm
Edge thickness with shear at 80 mm edge height: 0.4 - 1.5 mm
Edge thickness with shear at 50 mm edge height: 0.4 - 2.5 mm
Edge thickness with shear at 45 mm edge height: 0.4 - 3.0 mm
Edge height: 10 - 84 mm
Workpiece thickness: 8 - 80 mm
Minimum workpiece width: 50 mm
Minimum edge length: 210 mm
Minimum inner radius (concave) for a 0.4 mm edge: 25 mm
Minimum outer radius (convex) for a 0.4 mm edge: 5 mm
Feed speed: 4 / 8 m/min
Processing temperature: 140 - 220 °C

Edge feeding
Integrated guillotine shear for cutting edge material to length from the roll.
Roll holder for holding roll stock.
Suitable for ABS edging, melamine edging, veneer edging, and other pre-cut edging strips.

Glue System
Teflon-coated glue tray located beneath the table top.
Continuous glue circulation to prevent glue buildup.
Fast heat-up time of approx. 7 minutes.
Standby function with timer.
Glue tank capacity: 1.5 liters.

Pressure System
Motor-driven glue application roller.
One free-running pressure roller.
Foot pedal for starting and stopping the work cycle.



Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
