drilling rig

drilling rig
Brand: Hüttenhölscher
Year of manufacture: 2012

Technical data

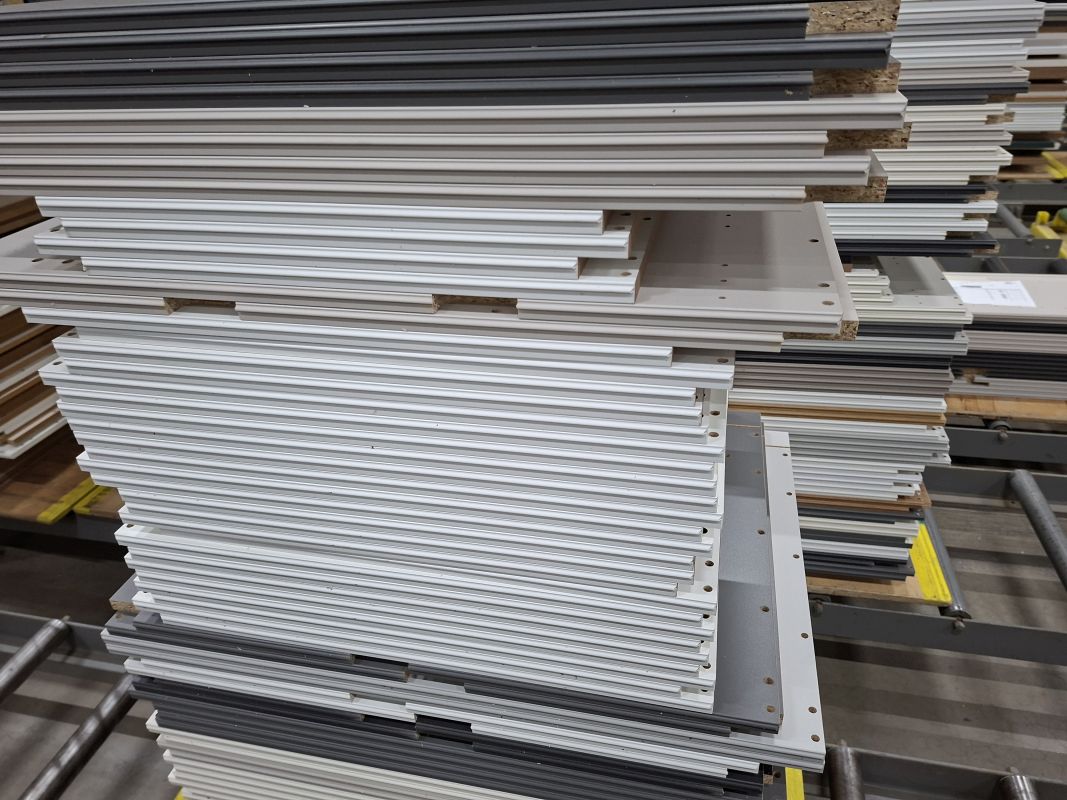

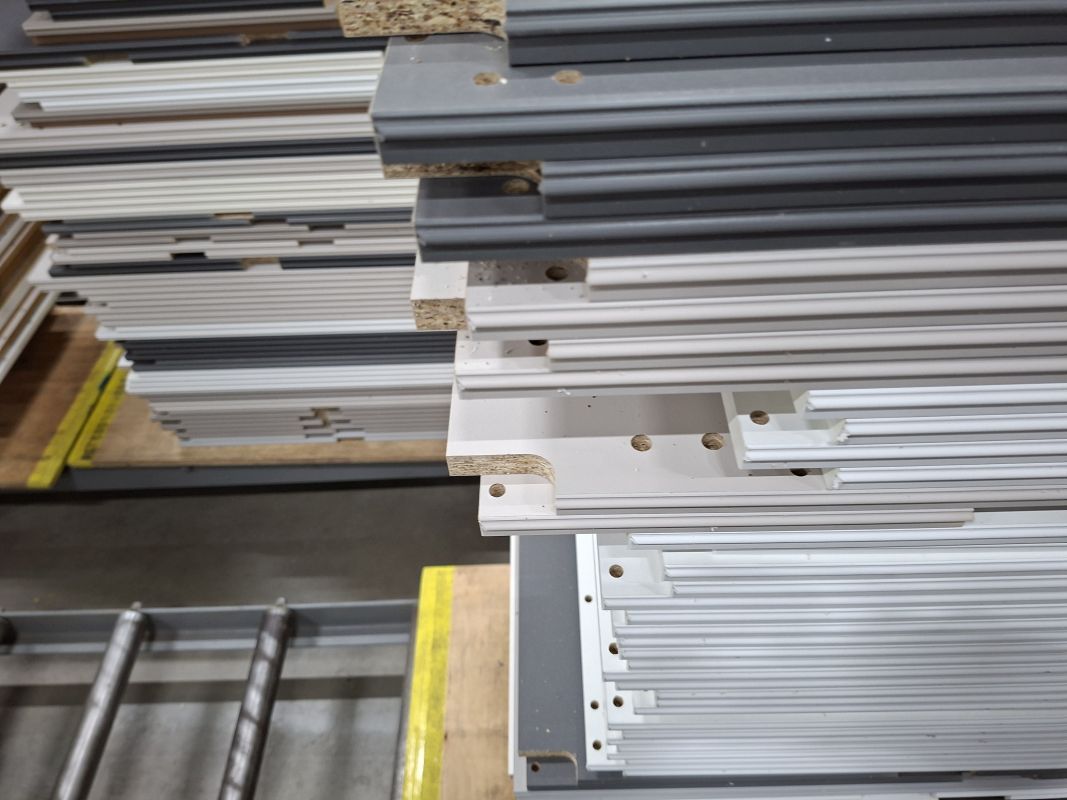

Part dimensions
Length: 300 - 2250 mm
Width: 350 - 710 mm
Thickness: 16 - 25 mm

Side feed range
Stack height: max. 1000 mm (60 parts) incl. protective plate
Protective plate:
1380 mm long x 780 mm wide
1220 mm long x 720 mm wide
1120 mm long x 620 mm wide
2290 mm long x 620 mm wide
Thickness: 25 mm
Thickness: max. 28 kg

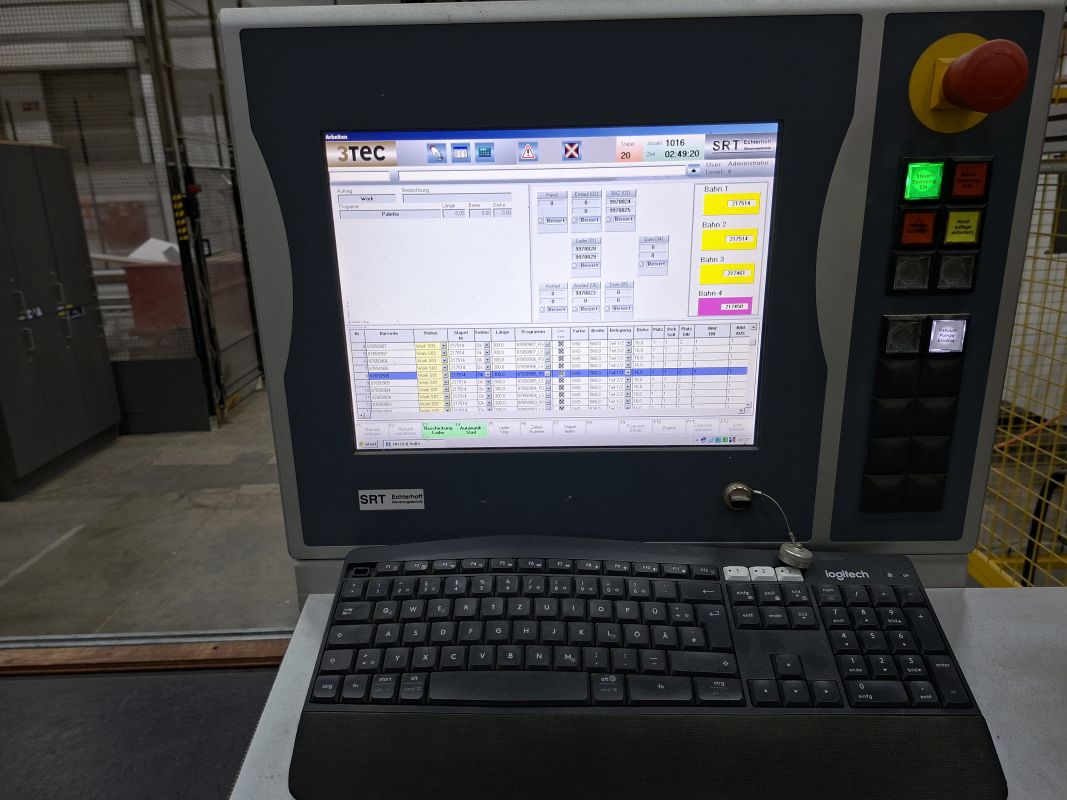

Control
PC-controlled function sequence under Windows 7, TwinCAT

Used drilling system consisting of:
6-station loading gantry
2-axis gantry robot
Y/Z axes with servo motors
Travel distances: Y-axis 8500 mm, Z-axis 1500 mm
Suction crossbeam with four-circuit vacuum supply
Vacuum generation by means of ejector
Double part detection
Portal supports
4 stacking stations
1 hand rest station / automatic - manual feeding
1 removal station / automatic - manual removal

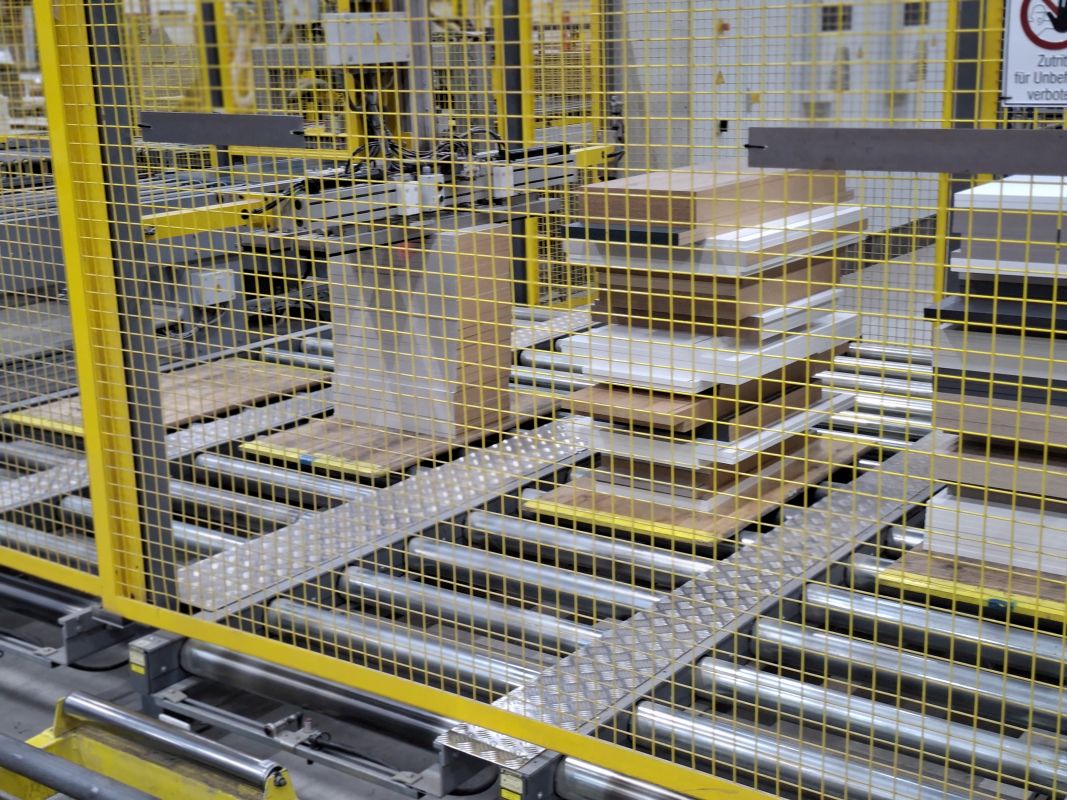

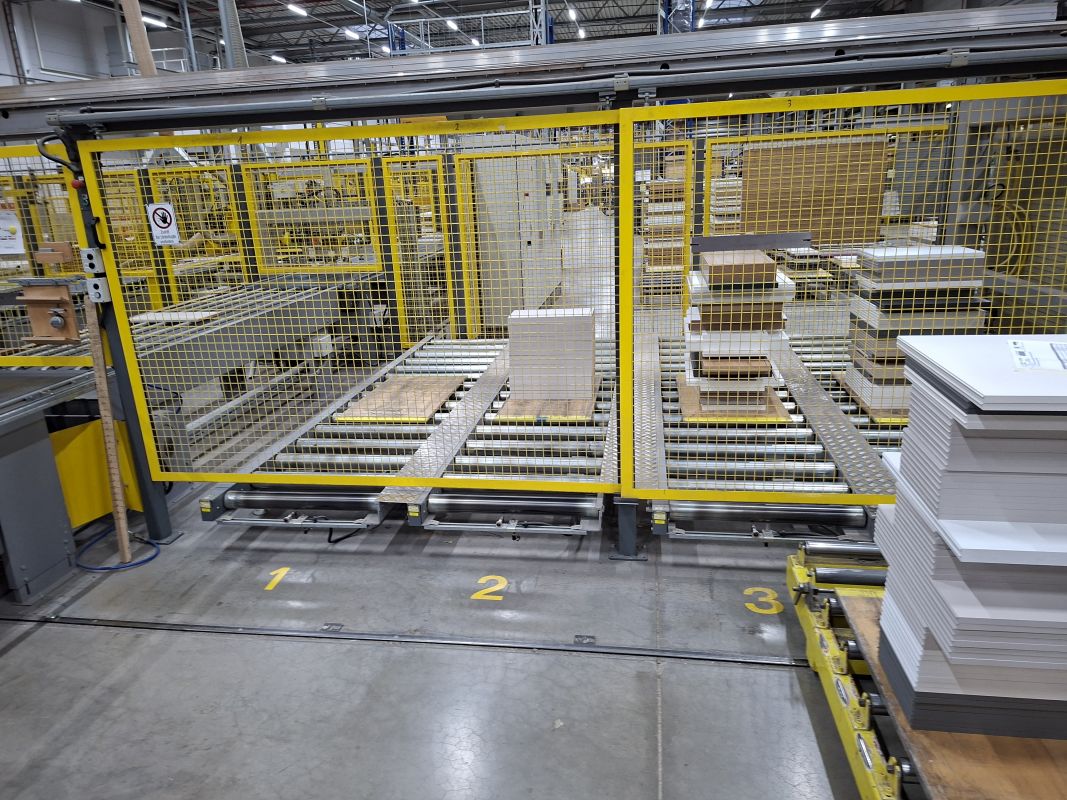

Floor roller conveyor / stack feed
4 roller conveyor lines
930 mm wide x 3600 mm long
AH 300 mm
Feeding / removal: manual cross transfer carriage

Support stations / automatic feeding
Transport section 950 mm wide x 4100 mm long
Integrated side stop

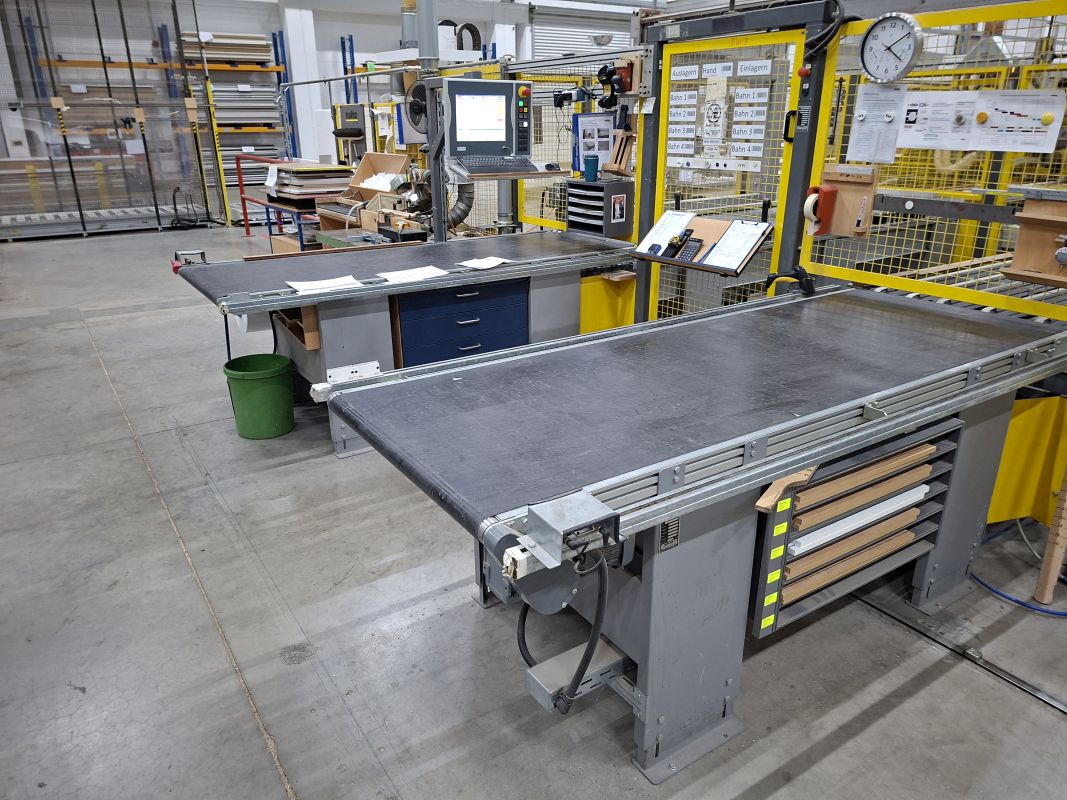

Manual feeding
Toothed belt section 900 mm wide x 2500 mm long

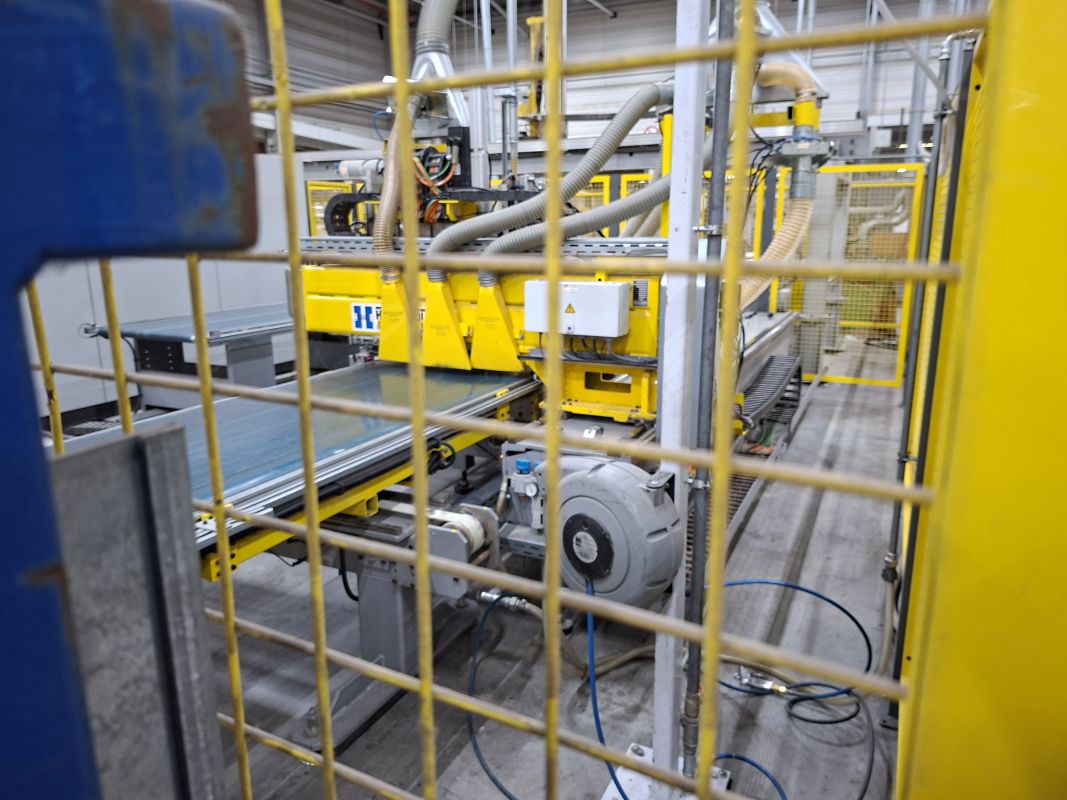

2-station drilling station for cabinet parts in longitudinal passage
Base frame as welded construction with machined screw-on surfaces
2x toothed belt conveyors V=1.5 m/sec
2x pneumatic lift for toothed belt conveyors
2x stoppers for cabinet parts, dampened by shock absorbers
2x pneumatic double clamping cylinders, controlled by ball screw and servo motor, moved to side height (measuring the side height)
2x pneumatic cross alignment ruler (plausibility check)
2x vacuum clamping units in the drilling machine table
2x 0-line controllable

Support
Support can be moved in the X direction by means of a servomotor

2x drilling gear (support 1)
Support equipped with 2 units (machining from above)
Individually movable in Y direction by means of servomotor
Individually movable in Z direction by means of servomotor
Drilling gear a=32 mm, adjustable with frequency converter, drill chuck Ø 10h7 with grub screw
Callable spindles, 8000 rpm
Drilling gear: two 16-spindle drilling gears

Groove saw (support 1)
Sawing units for cutting special rear wall grooves
Sawing unit with tool holder, speed control via frequency converter
Pneumatically pilot-controlled working position

2x milling spindles right/left at the front edge (support 1)
Pneumatically pilot-controlled working position

Transfer shuttle
Toothed belt section 900 mm wide x 2500 mm long
Horizontal stroke approx. 2500 mm by means of three-phase motor

Return
Transport section 950 mm wide x 4000 mm long
Pneumatic stopper

90° rotary unit
Vacuum suction cup
Pneumatic stroke
Rotation by three-phase motor by +/- 90°

Discharge stations / automatic removal
Transport 950 mm wide x 3000 mm long
Positioning of cabinet parts by encoder

Manual removal
Toothed belt section 900 mm wide x 3000 mm long

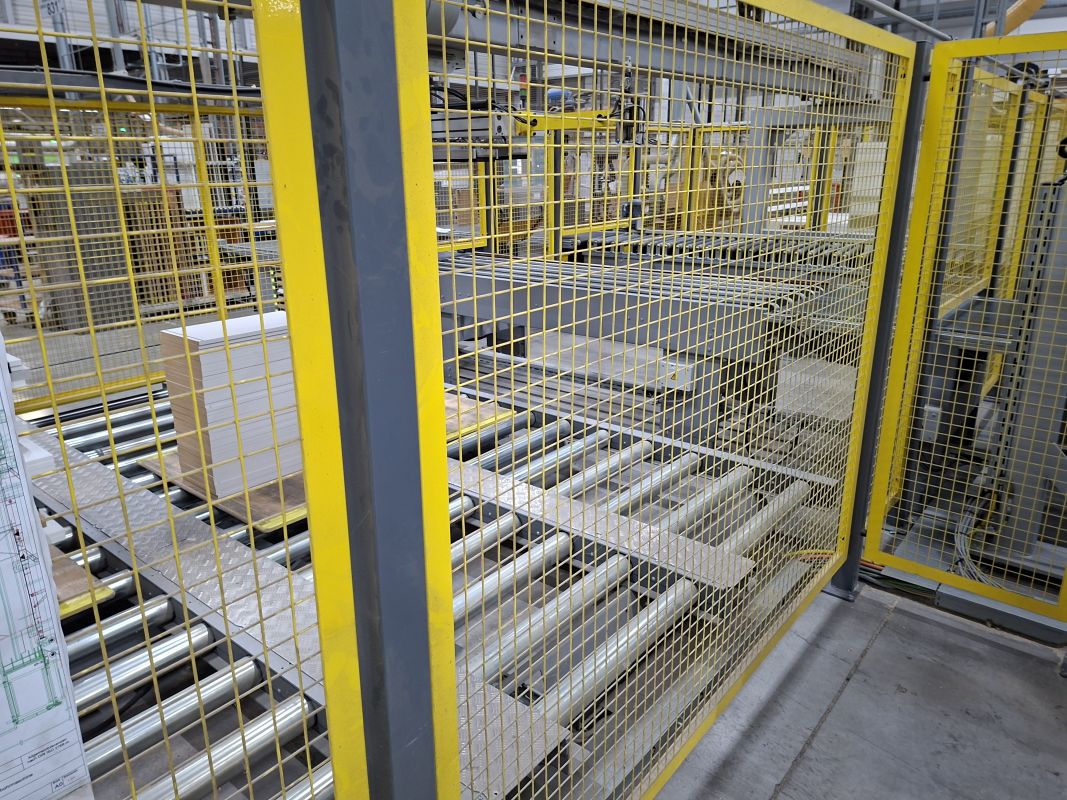

Protective system for feeding
45 m protective fence with 3 access doors
2 sliding doors for feeding the floor roller conveyors
Input, request, and release by acknowledgment



Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
