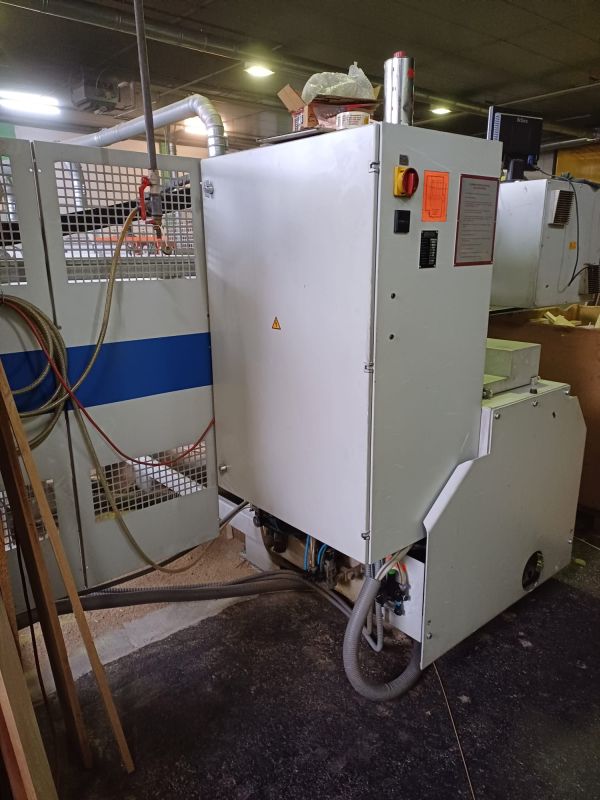

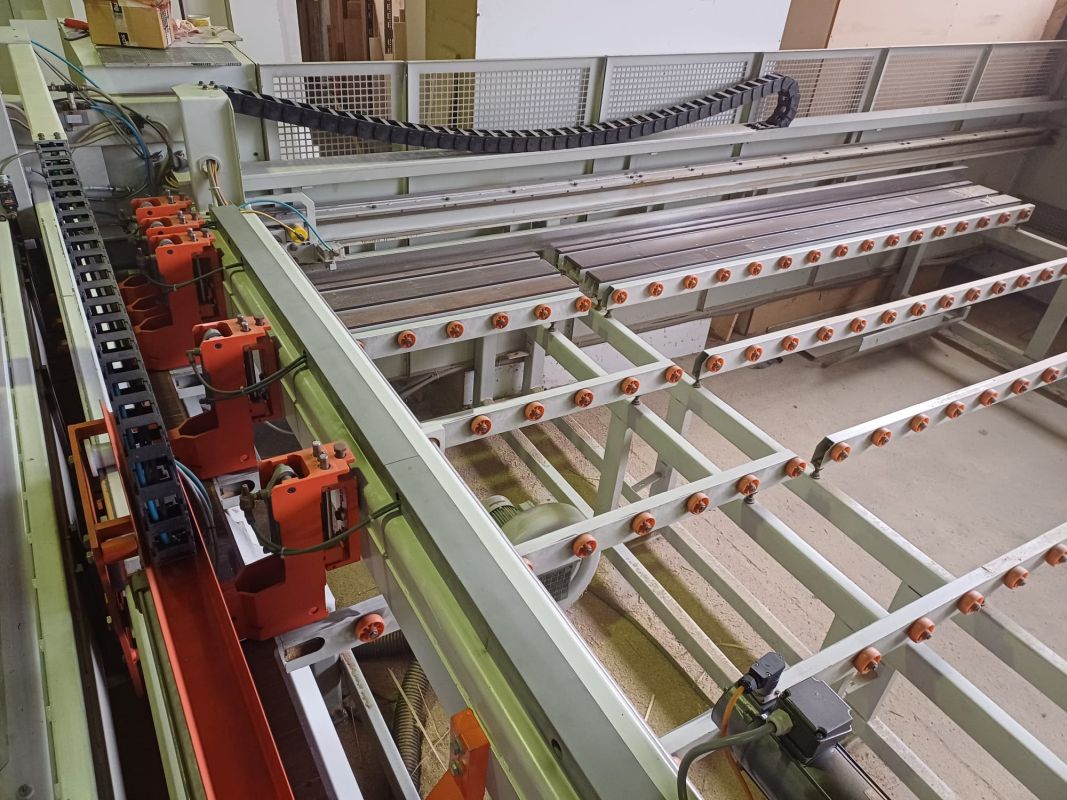

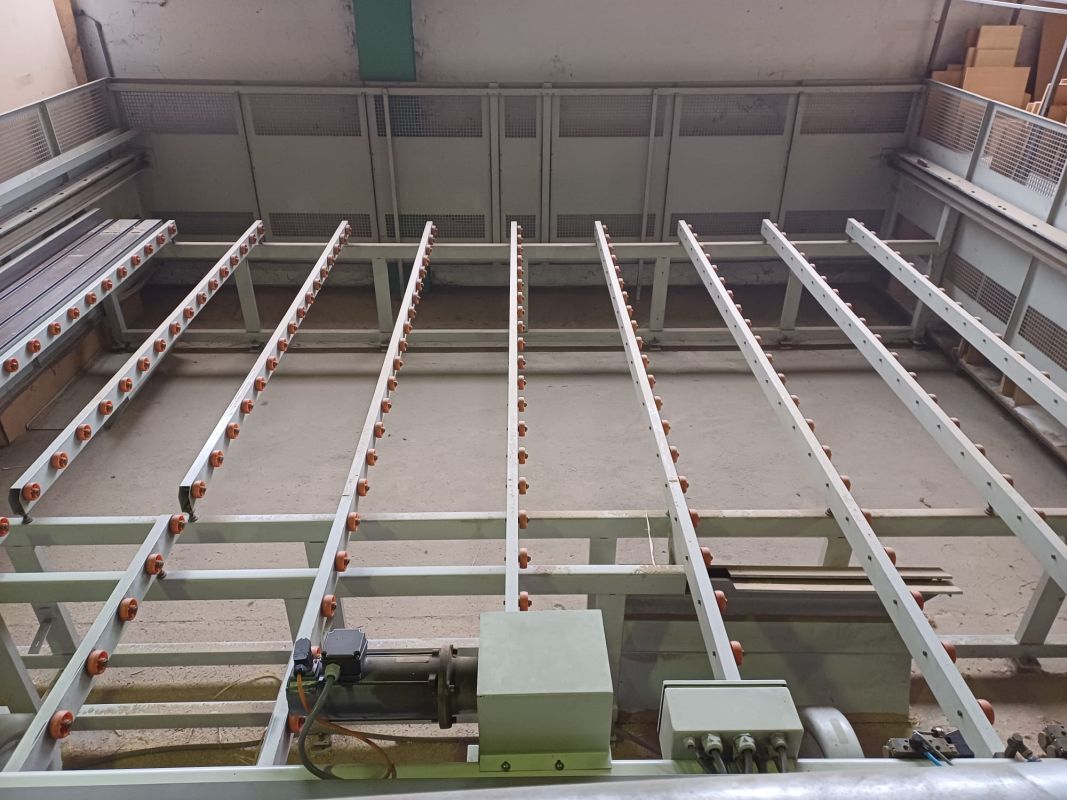

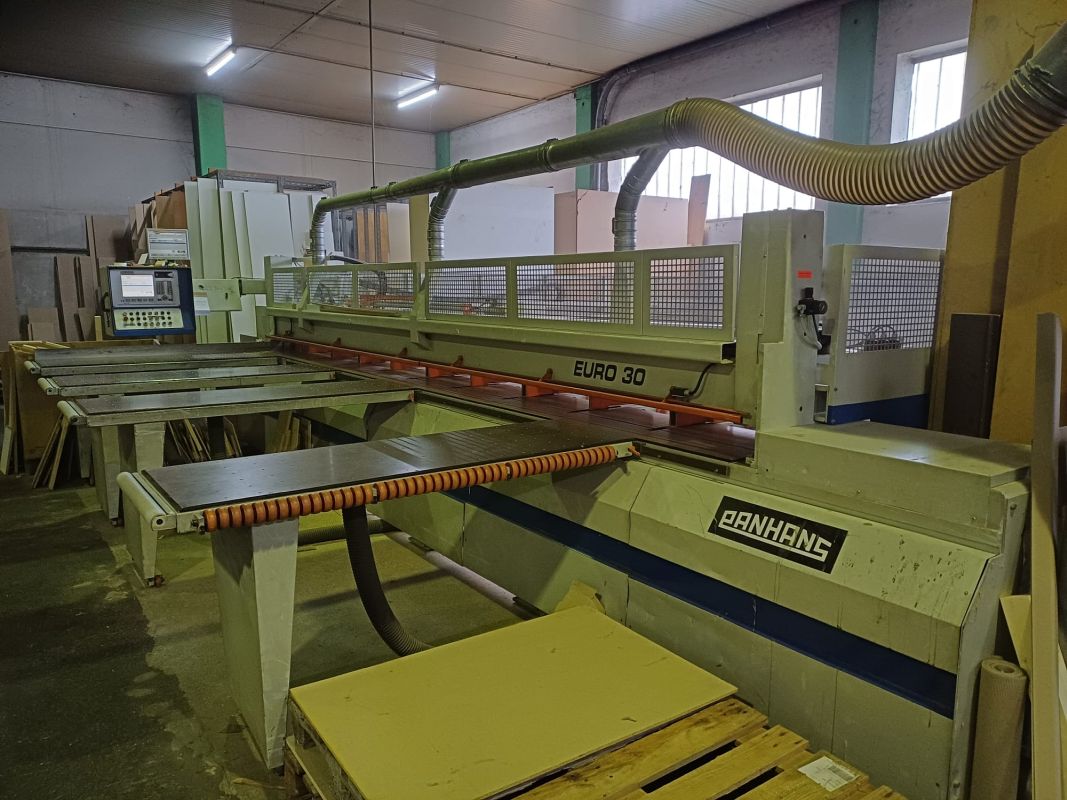

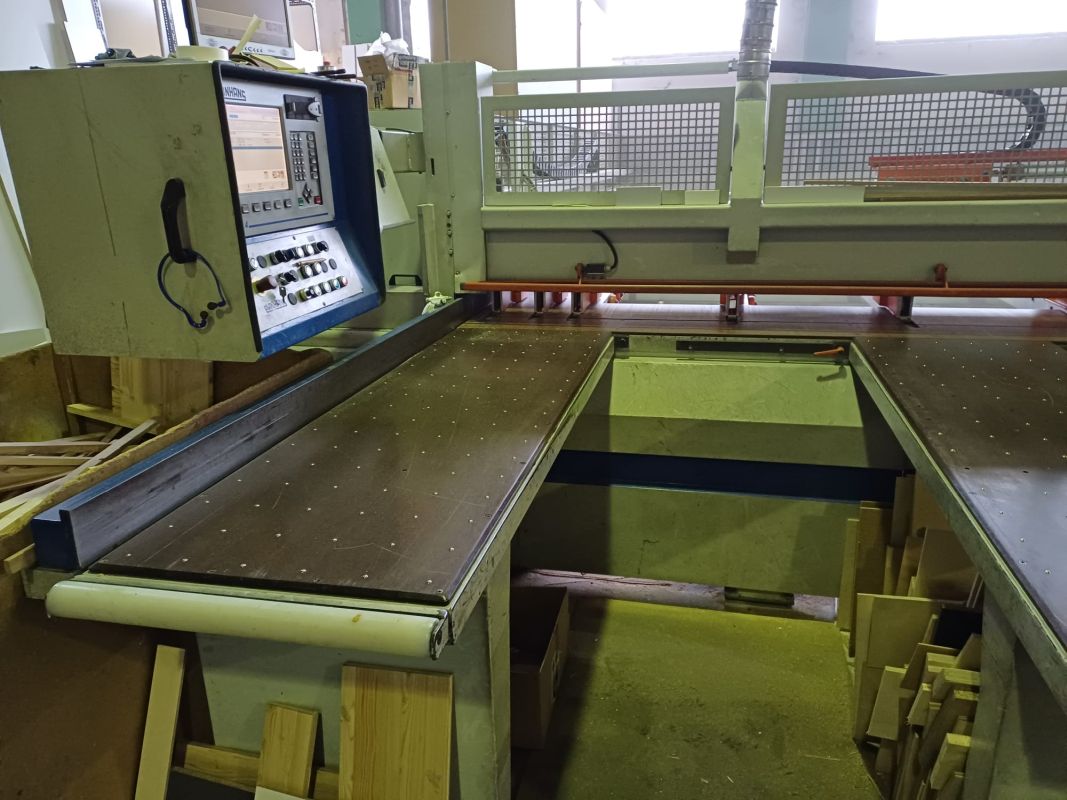

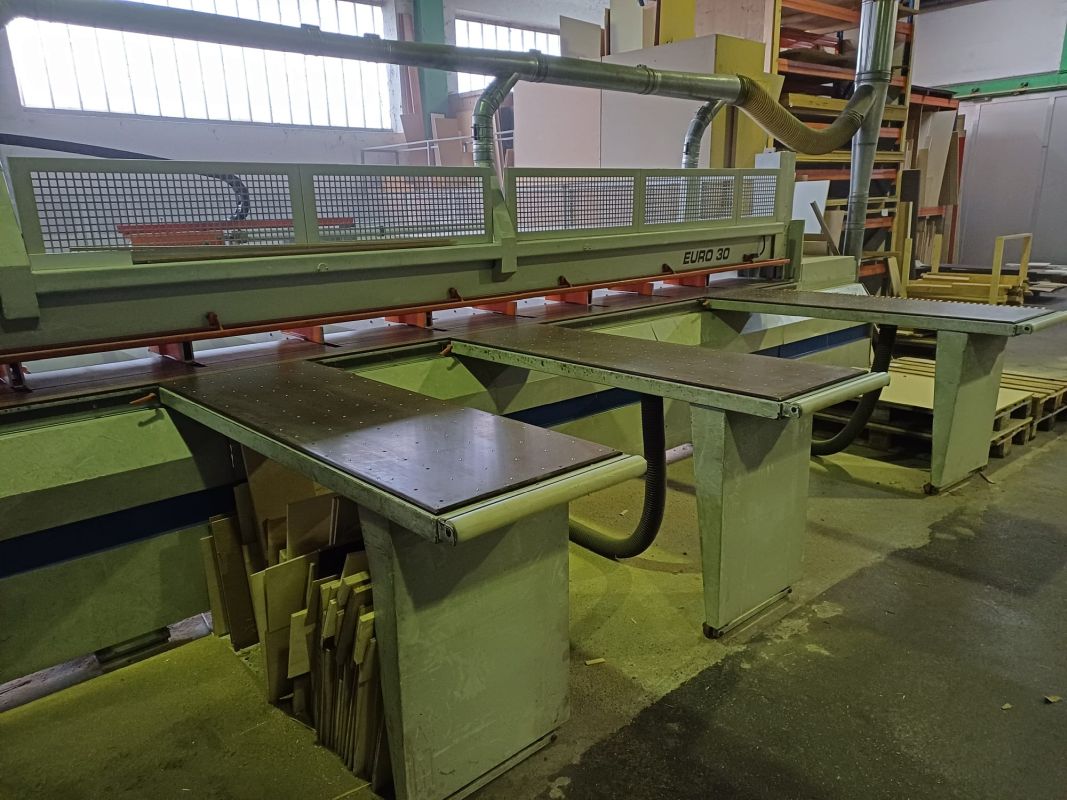

panel saw

panel saw
Brand: Panhans
Type: 693 / EURO 30
Year of manufacture: 1994


Technical data:
- Cutting length: 5800 mm
- Cutting width: 5150 mm
- Rear support table (split): 1 pc. 370 x 4910
- Rear support beams (with rollers): 9 pcs. 40 x 4910 mm
- Front support table, sliding (with 3 guide rollers at the front): 3 pcs. 600 x 1800
- Mitre table: movable
- Air cushion mitre table: movable
- Angle table: left
- Air cushion table left: up to 2020 mm
- Collets: 7 pcs. floating
Cutting jaws: 4 pcs.

Special accessories: Color screen, graphics, online I

Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding
