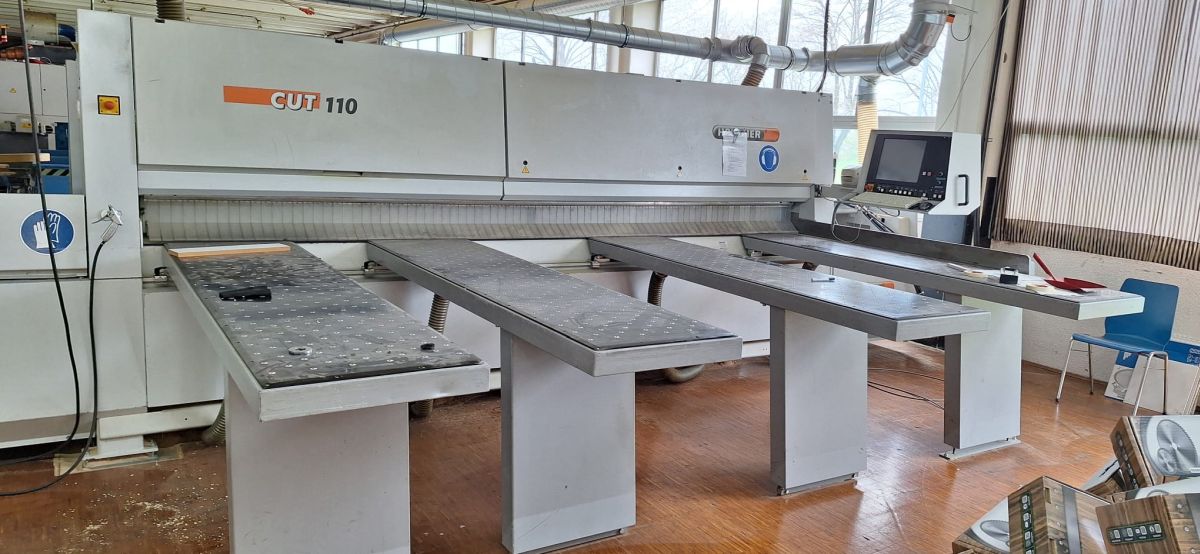

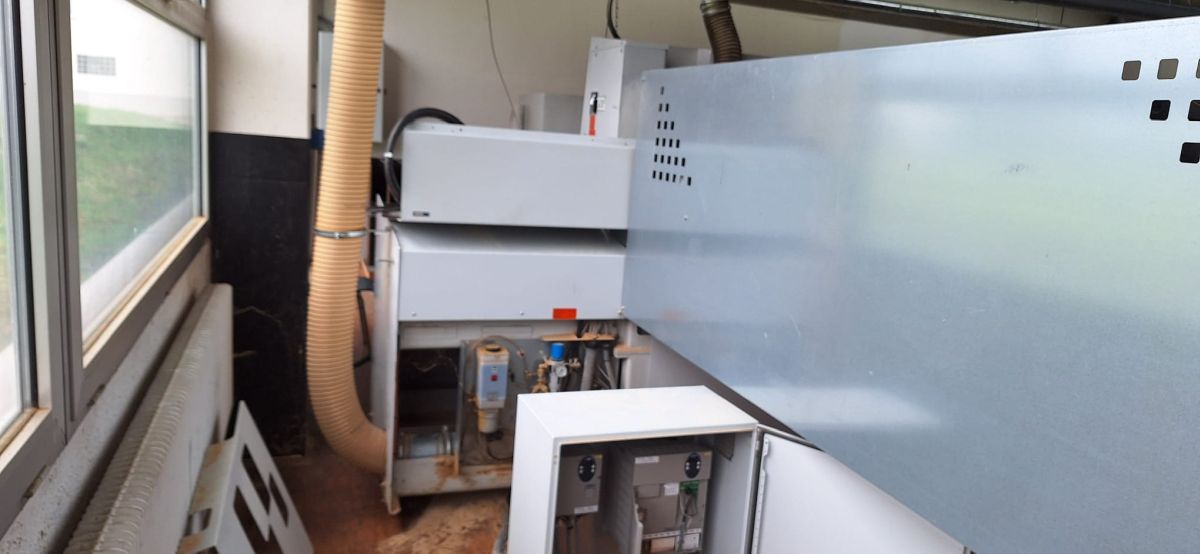

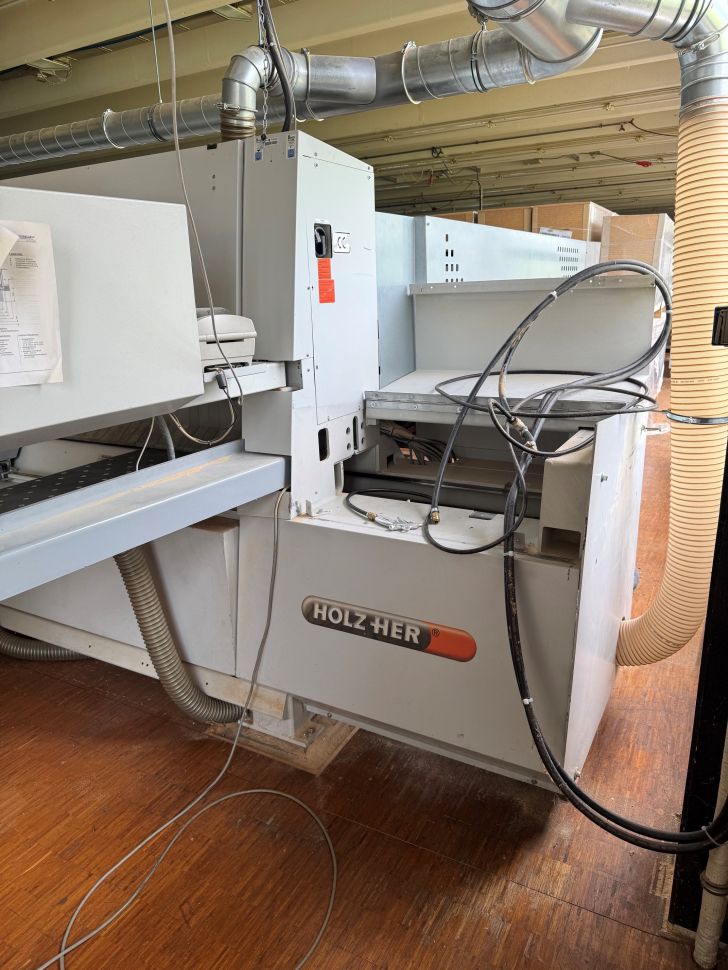

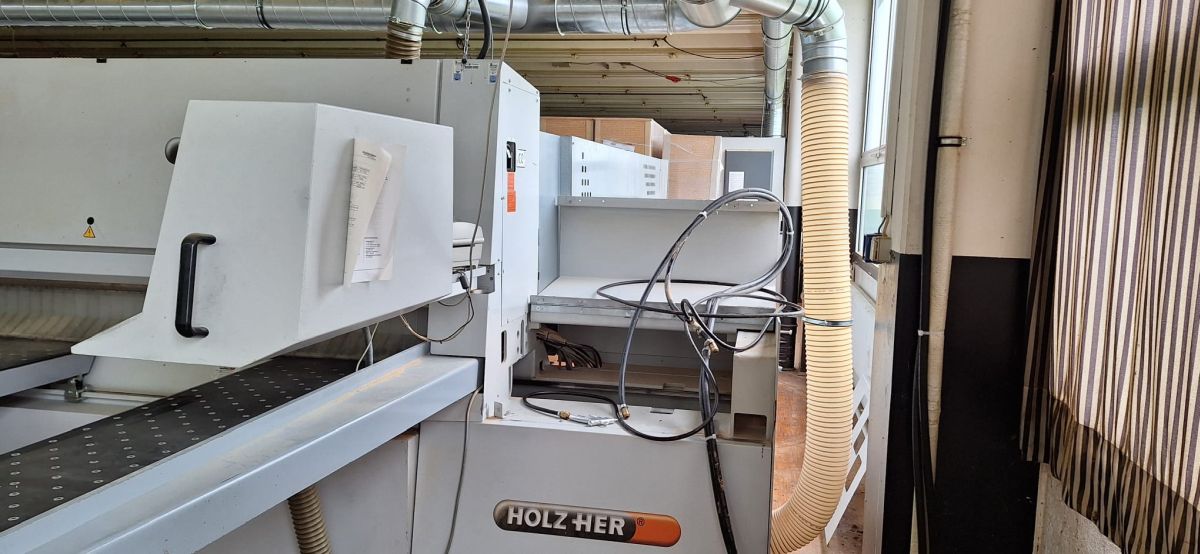

panel saw

panel saw
Brand: HolzHer
Type: 6310 CUT 110
Year of manufacture: 2007


Technical data
- Cutting length: 4250 mm
- Cutting width: 5250 mm / shortened by 2550 mm to 2700 mm
- Screen on the right

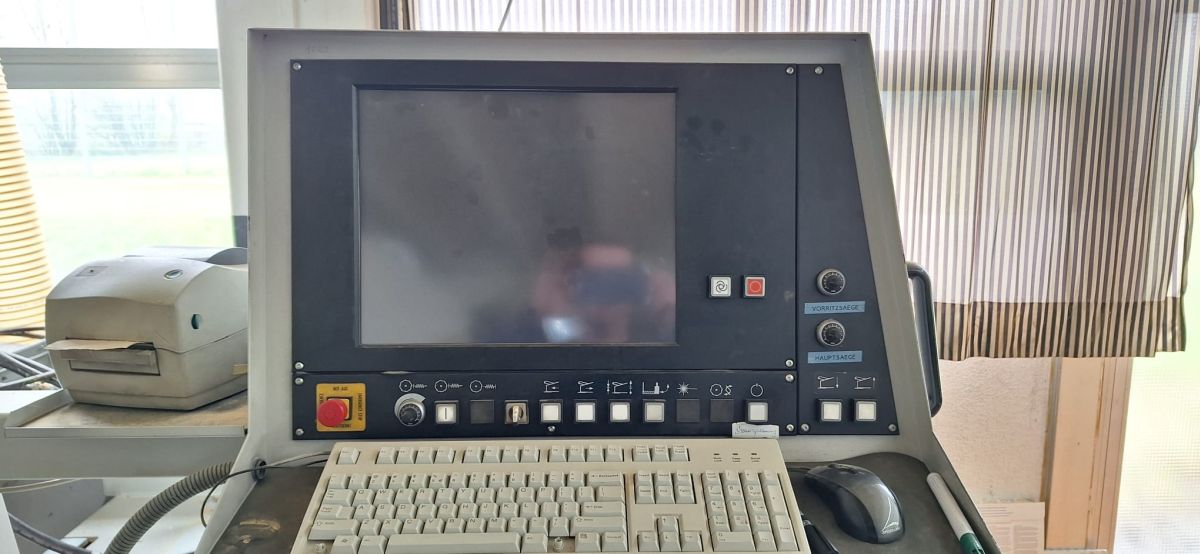

- Cut Control system with touchscreen operation
- Angle clamping device on the right
- Saw carriage with main / scoring saw controlled
- Power: 18.5 kW / 2.2 kW
- Manual scoring saw adjustment in width and height
- Grooving unit with 2 groove height settings (groove depth adjustable 2-12 mm, up to max. 9-19 mm)

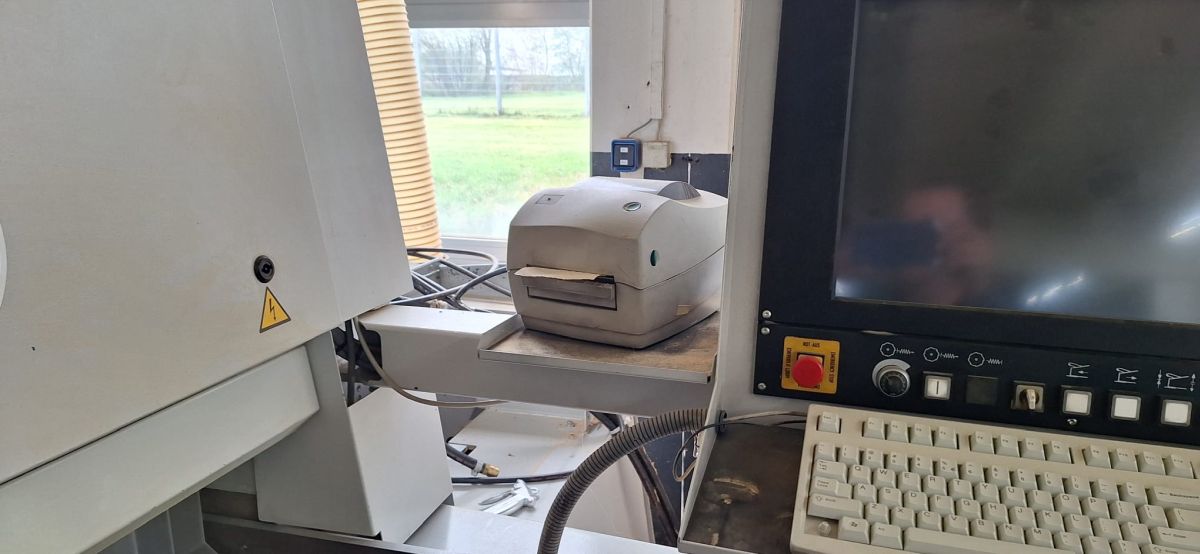

- Label printer TLP2742
- Cutting-out unit
- Additional blow-off unit traveling with the saw carriage
- 3 additional support tables 2400 mm with travel mechanism

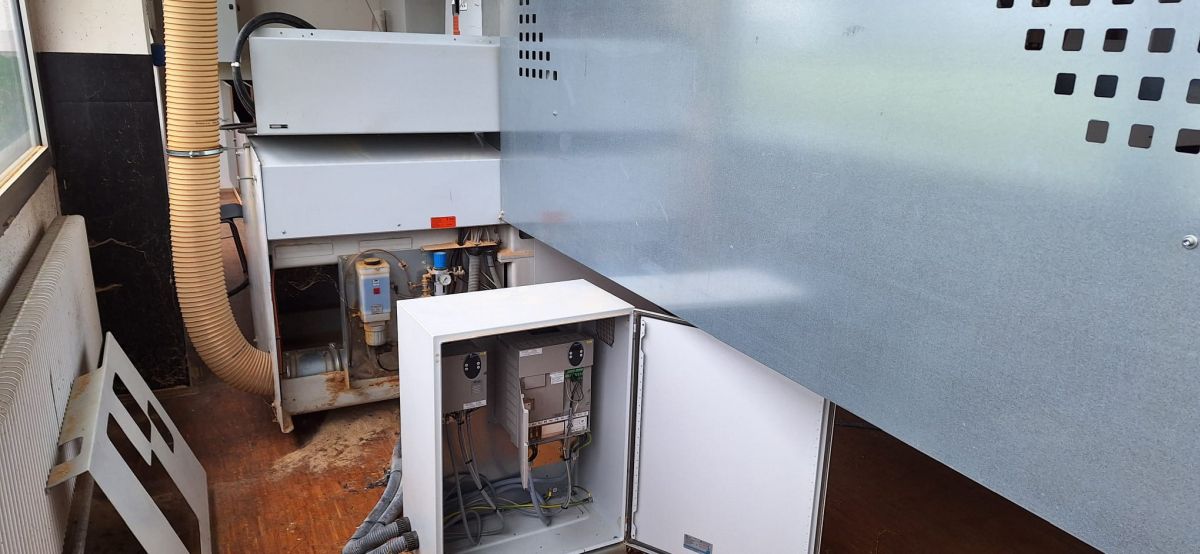

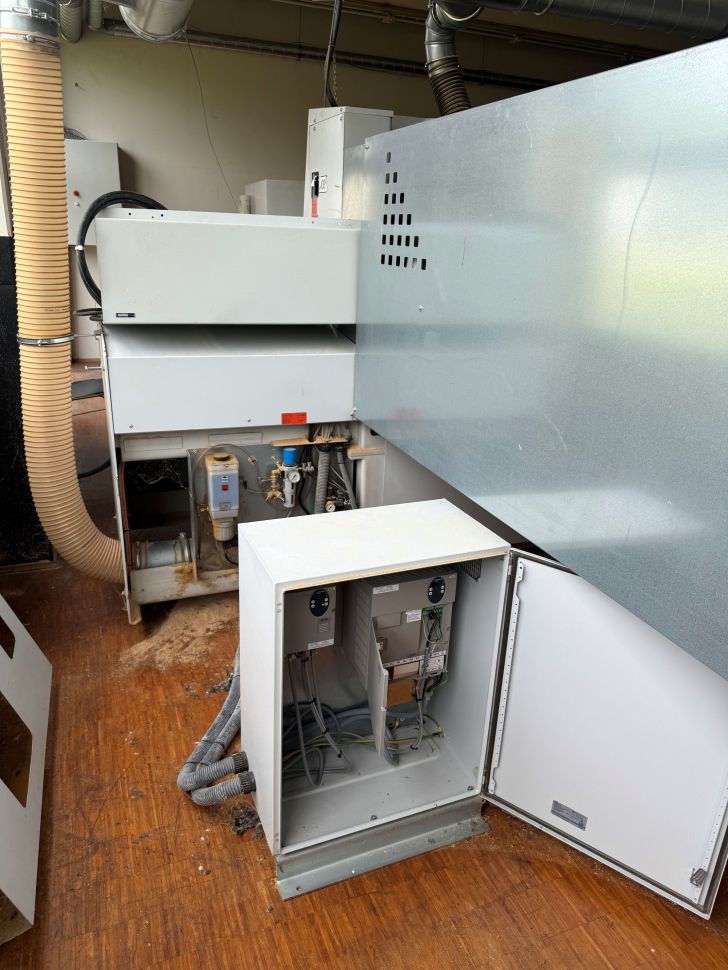

- Control cabinet on the machine side, incl. speed monitoring with safety shut-off
- Postforming unit, incl. scoring unit
- Automatic central lubrication
- Enclosed pressure beam
- Film cutting device


Optional at extra charge:

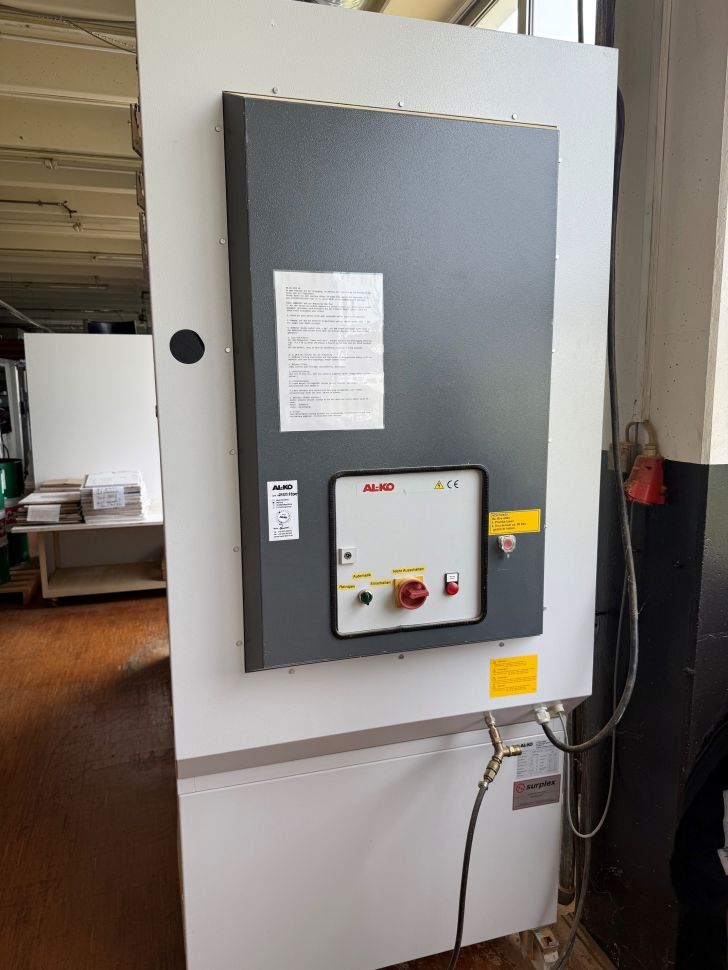

Dust extraction system
Brand: AL-KO
Type: POWER UNIT 300P
Year of manufacture: 2011

Technical data
- V=5089 m³/h
- Vacuum 2050 pA
- Motor power: 7.5 kW
- Suction inlet 300 mm
- 3 collection tanks, 250 l each
- Integrated automatic shut-off



Note:
The technical specifications and descriptions are copies of the original order confirmation. This information is provided for informational purposes only and is not binding.
