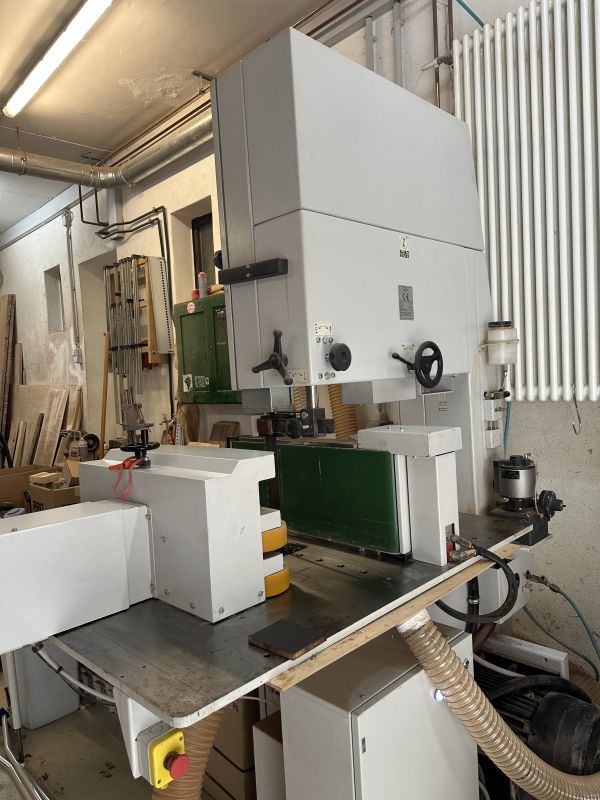

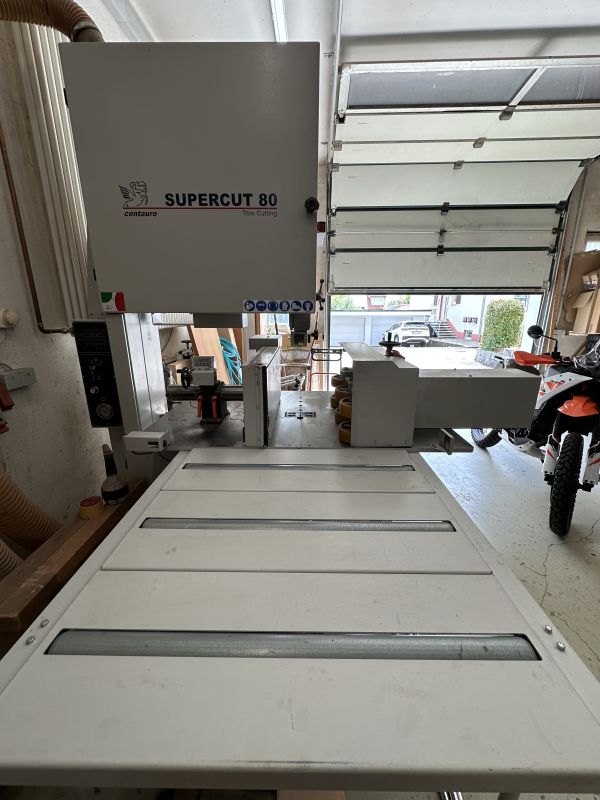

CENTAURO SUPERCUT 80
BAND SAWS FOR THIN CUTTING WITH MAXIMUM PRECISION

The great advantages of a compact and versatile machine for all thin cutting solutions:
high finishing, high precision and minimum kerf:
– Thin layer from 2 mm thickness
– Maximum cutting accuracy up to ± 0.15 mm
– Minimal kerf, cutting thickness from 1.3 mm
– Ideal for the cutting of dried and wet wood or alternative materials
– Surface of the thin layer ready for gluing without need of further processing steps

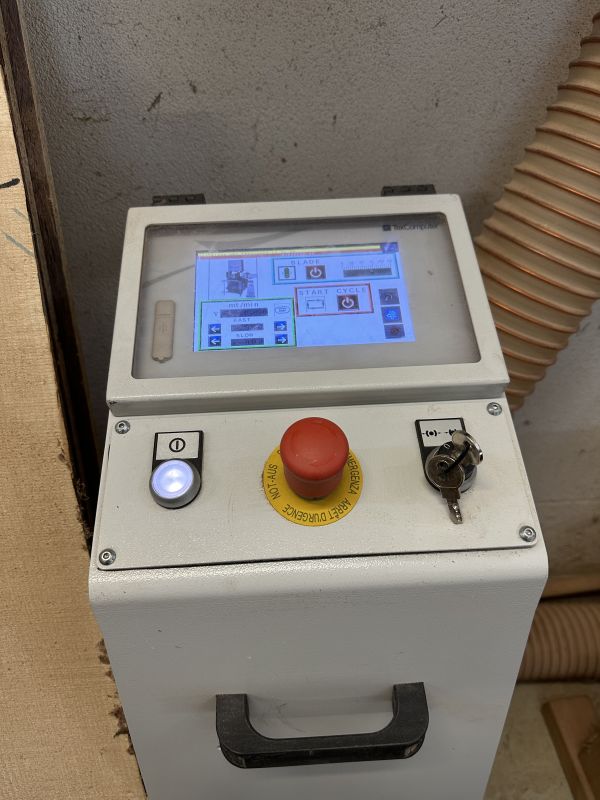

– Friendly user electronic control
– Two programmable speeds of the carpet (0-30 m/min) for the best cutting quality and to safeguard the blade life
– Optical sensor to start cutting cycle and speed change
– Ground table
– “Flexam” belt feeding for the best performance
– 6 rubber idler rollers adjustable in height, for opening/closing to ensure the best pneumatic pressure on the workpiece during feeding and cutting

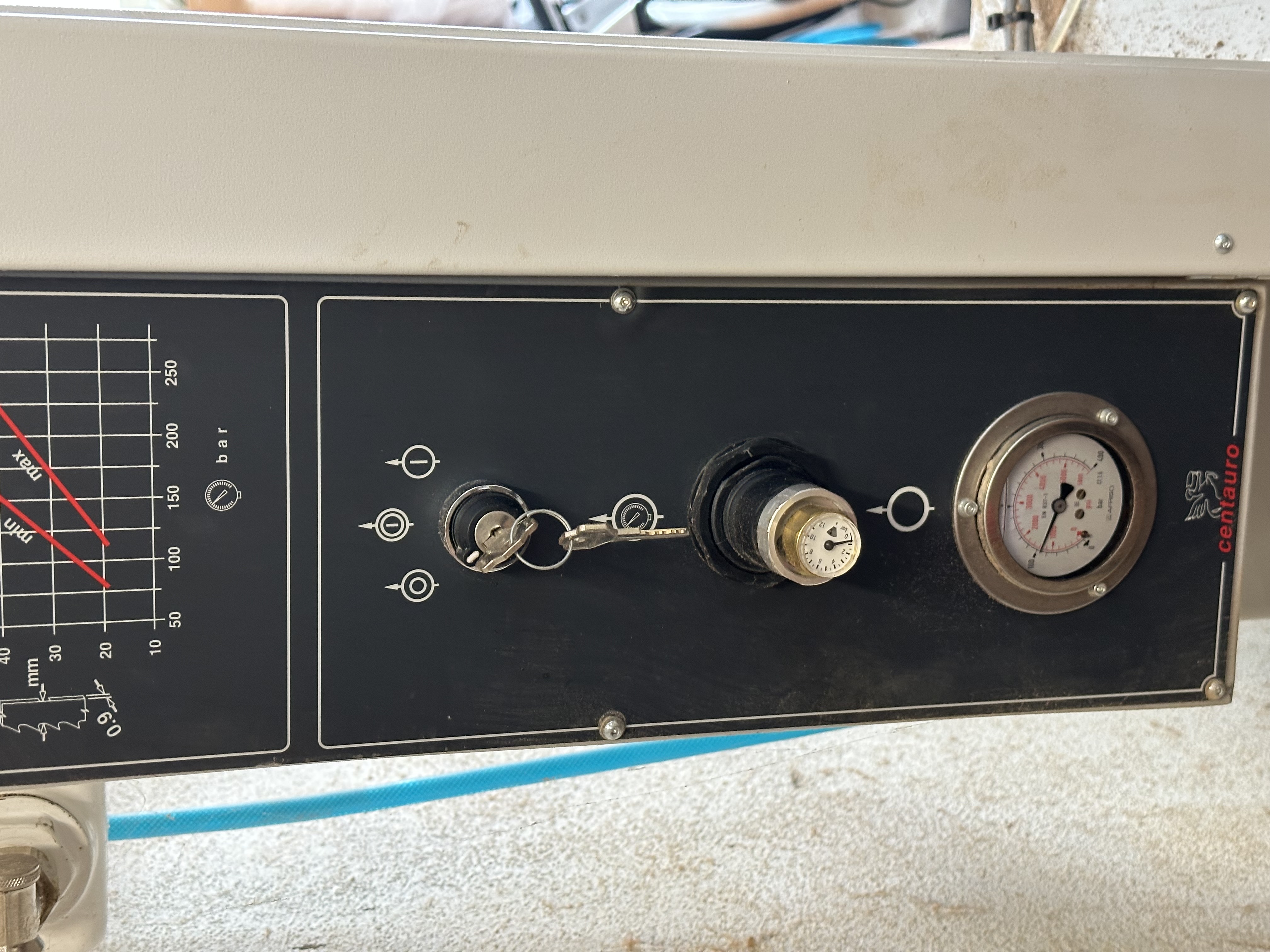

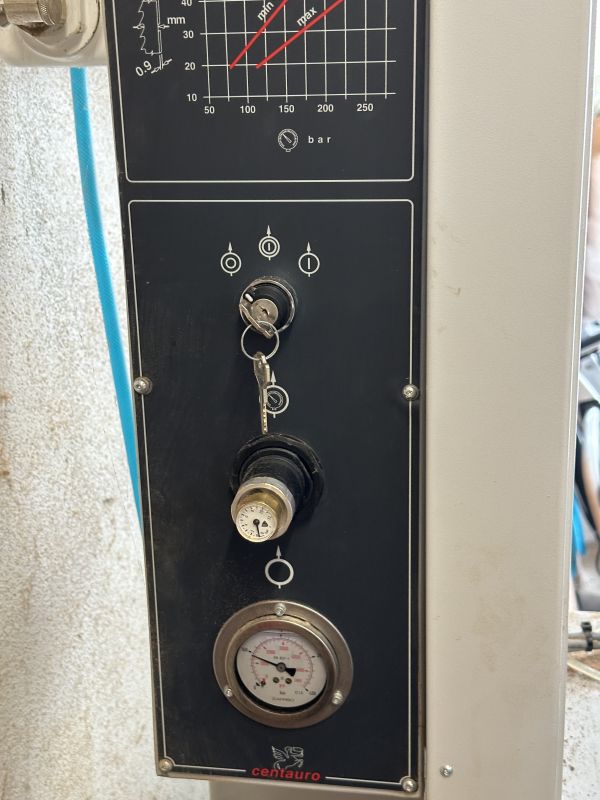

– Oleo-pneumatic tensioning of the blade for better cutting performance
– Top and bottom ‘’Chaco’’ blade-guides which guarantee the best stability blade during cutting
– Internal/external lubrication of the blade to remove residues of resins and chips
– 4 dust extraction to optimize the suction of dust and chips
– Cutting height of 400 mm (500 mm optional)
– Cutting width up to 400 mm
– High quality powerful motor kW 15 (HP 20)
– Ethernet connection for on line service
– Carbide or stellite blades for best cutting performance
– Easy maintenance
