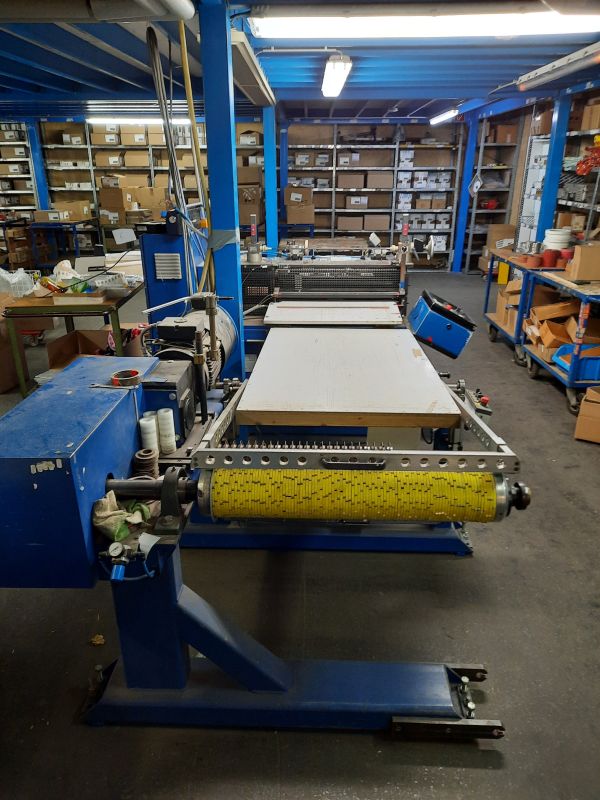

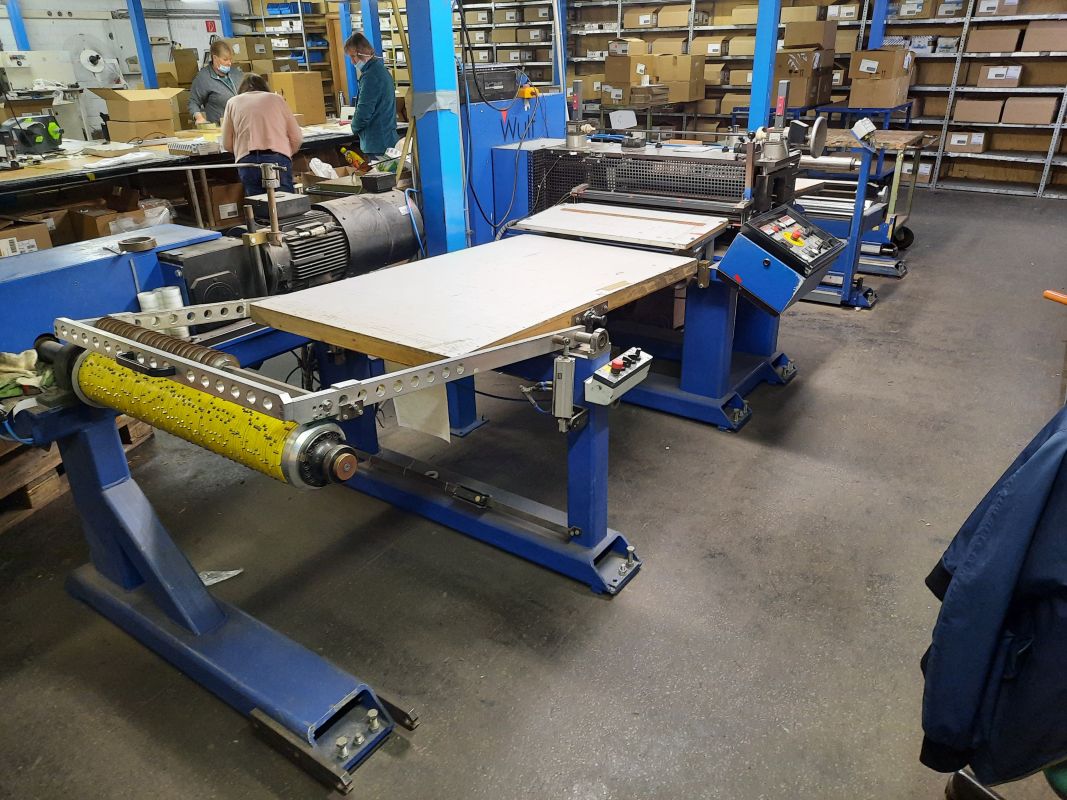

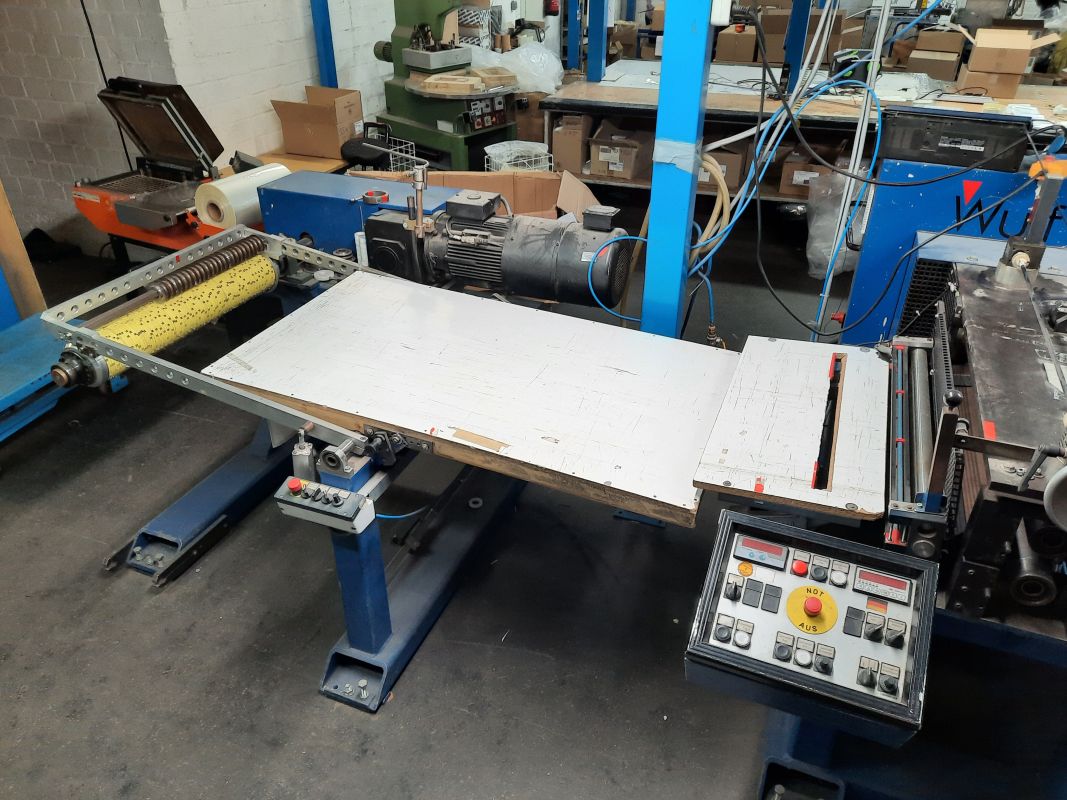

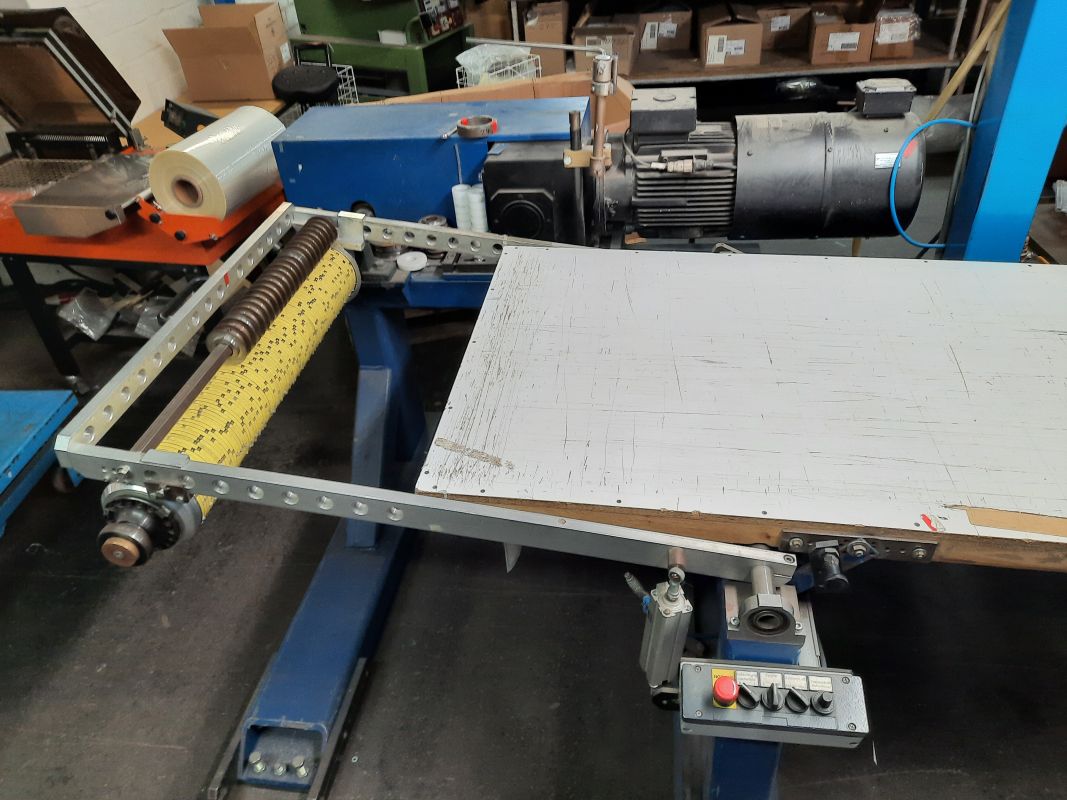

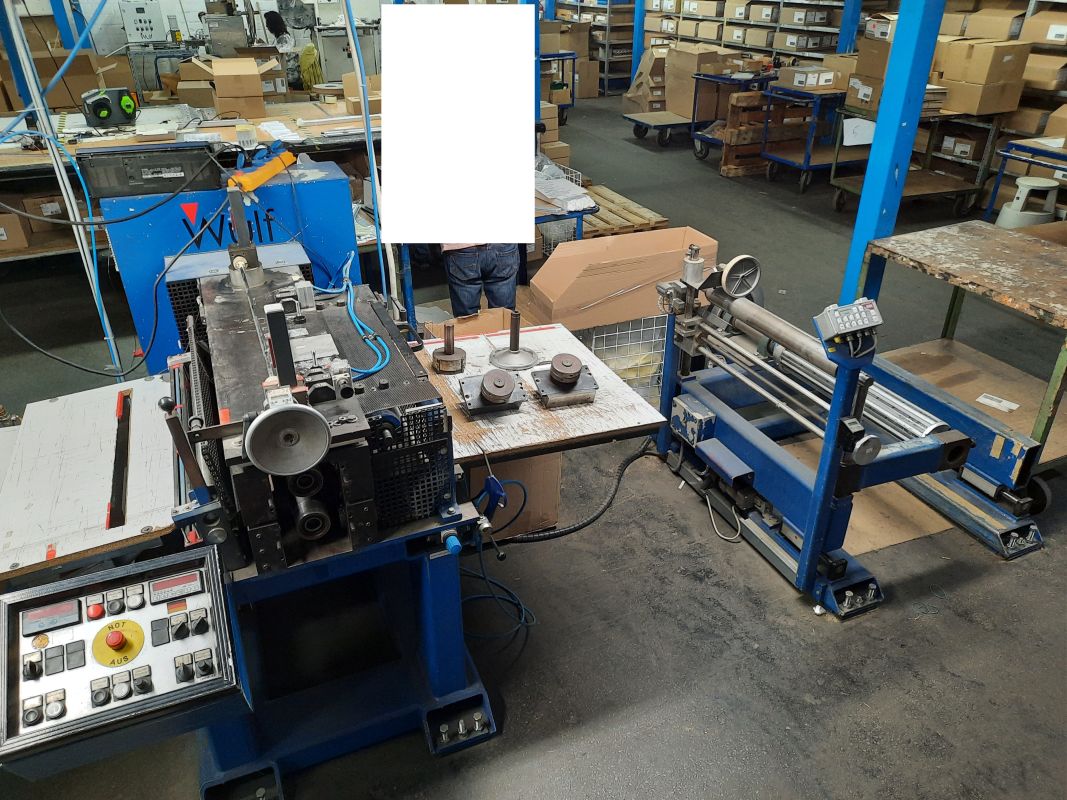

Film Cutter

Film Cutter

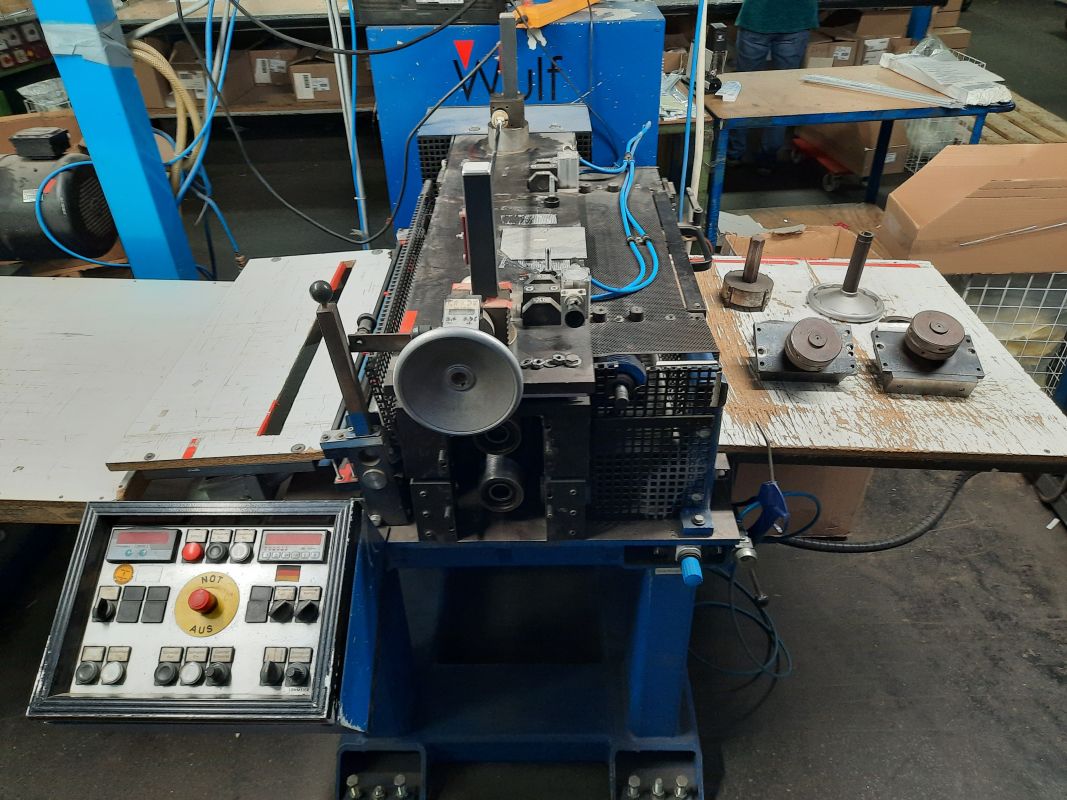

Brand: Wulf Maschinenbau
Type: WSH 700
Year of manufacture: 2005

Technical data
Roll width: 50 – 700 mm
Unwinding roll diameter: max. 800 mm
Roll diameter (rewind): max. 800 mm
Unwinding shaft diameter: 6"
Rewinding shaft diameter: 6"
Blade system: Block blade
Strip width: 15 – 700 mm
Cutting speed: 10 – 100 m/min
Material thickness: max. approx. 2 mm (depending on the material)
Material options: PVC, PE, PP, paper
Web tension: max. 5 N/cm

Dimensions

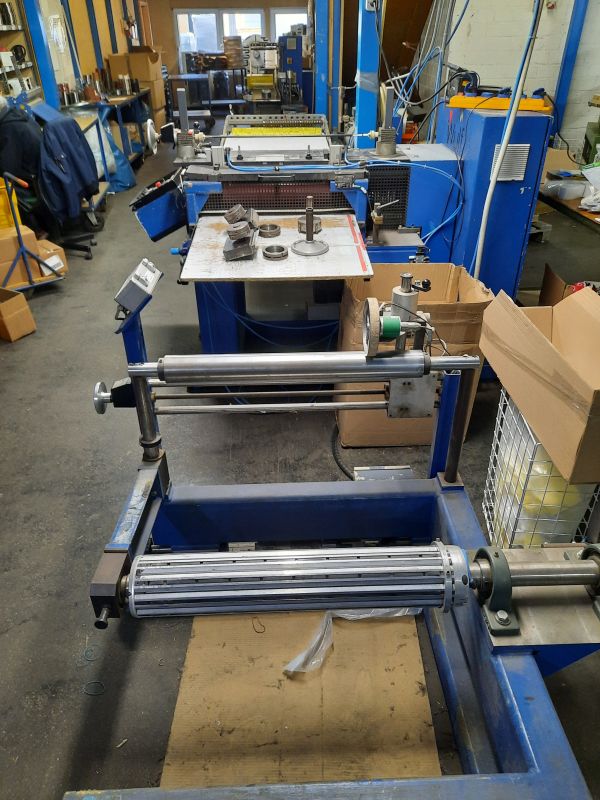

Unwinding
Length: approx. 1300 mm
Width: approx. 1600 mm
Height: approx. 1200 mm
Weight: approx. 500 kg

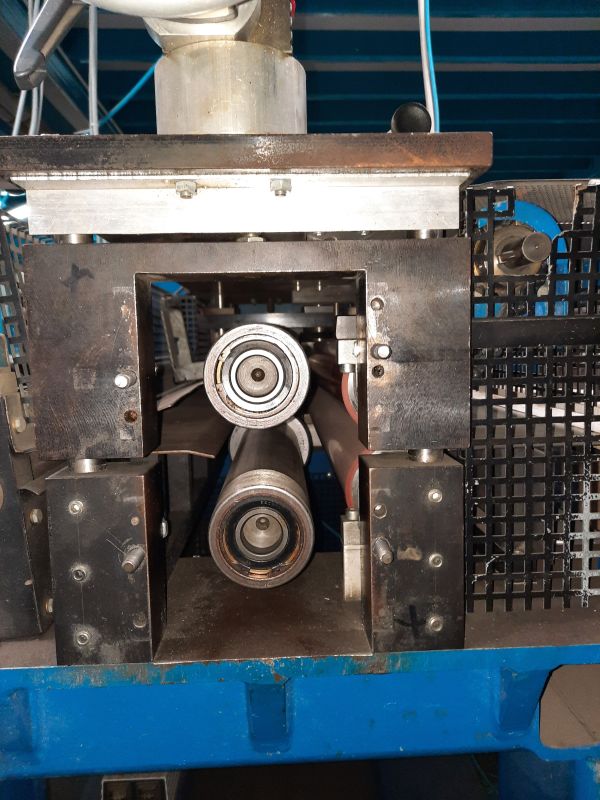

Cutting unit
Length: approx. 1,100 mm
Width: approx. 2,200 mm
Height: approx. 1,500 mm
Weight: approx. 1,300 kg

Winding unit
Length: approx. 1,600 mm
Width: approx. 1,700 mm
Height: approx. 1,200 mm
Weight: approx. 700 kg

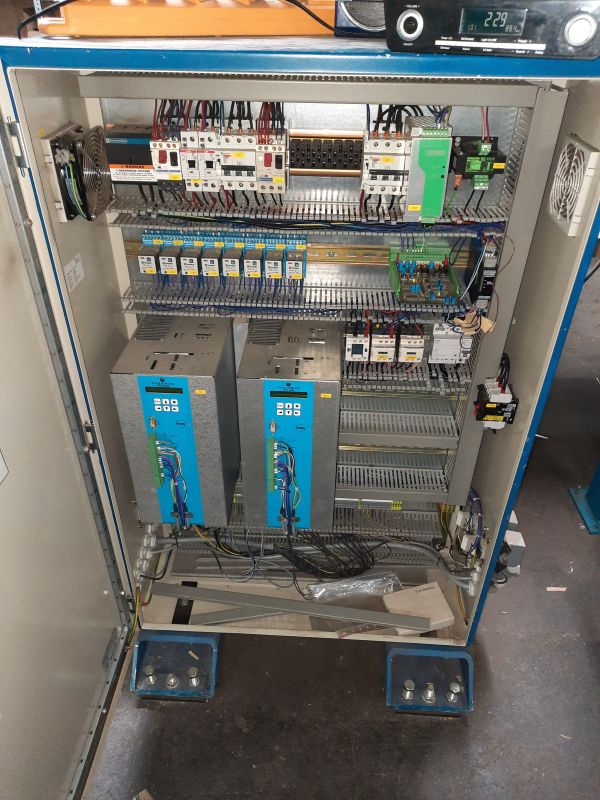

Connection Specifications
Connected load: 25 kW
Frequency: 50–60 Hz



Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
