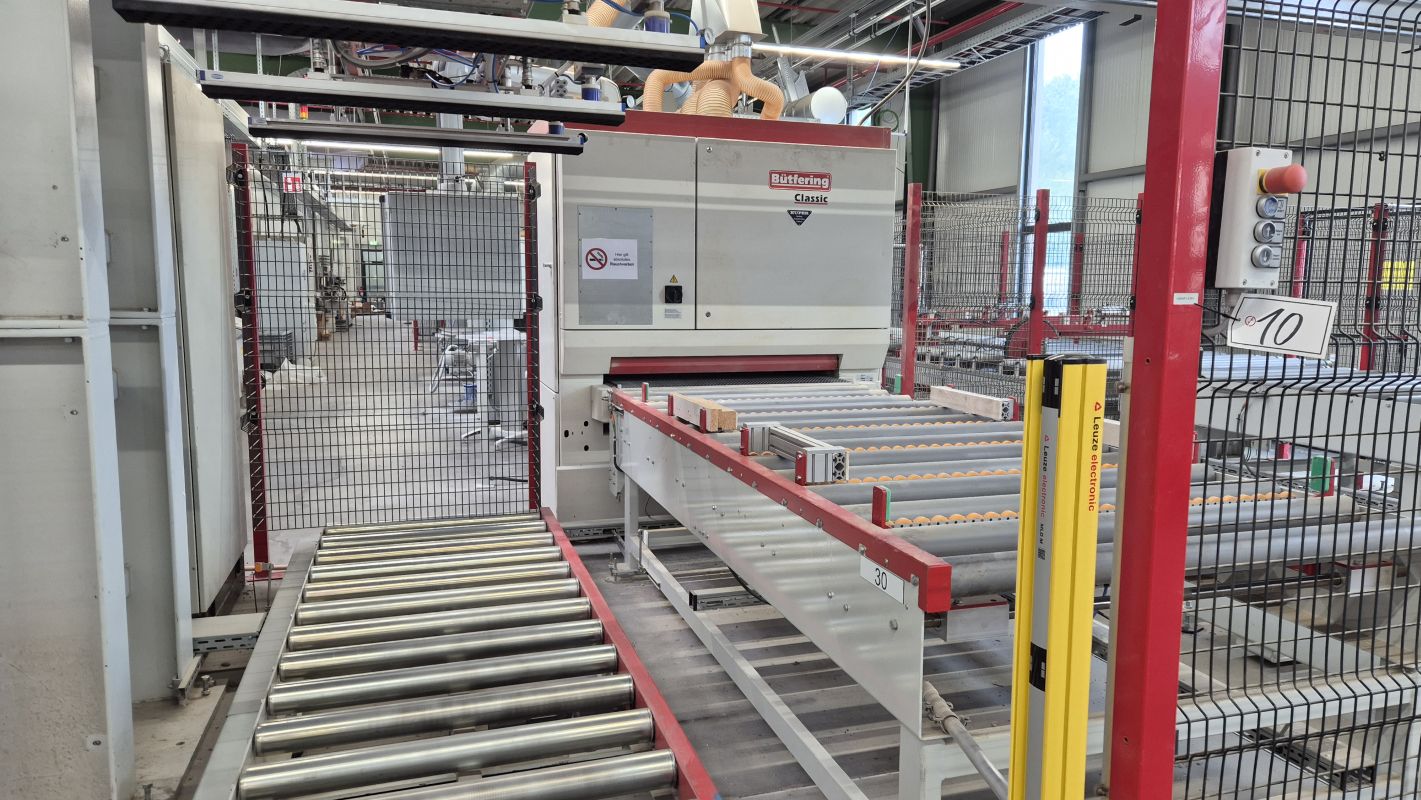

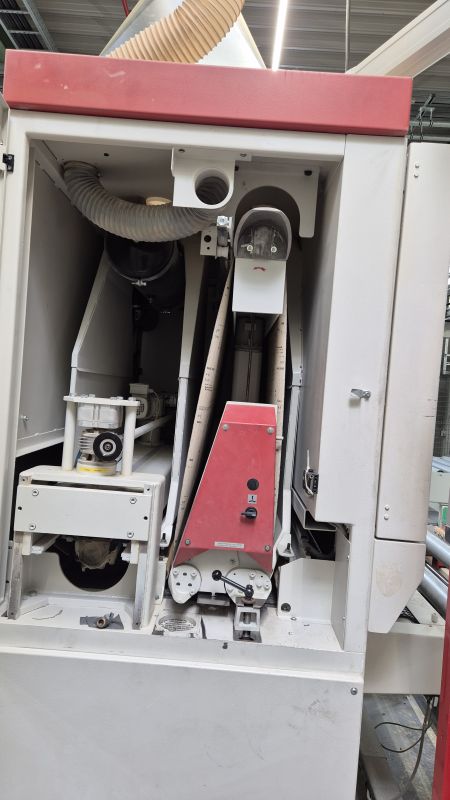

Wide-belt sander

Wide-belt sander
Brand: Bütfering
Type: Classic 213 EB
Year of manufacture: 2000

Technical data
The machine underwent a technical inspection in 2016.
Working width: 1350 mm
Sanding belt width: 1370 mm
Sanding belt length: 2620 mm

Unit 1
Sanding shoe unit
Electronically controlled articulated pressure beam in a compact design, element width 25 mm
Infinitely variable pressure at the workpiece edges
Drive motor: 15 kW
Infinitely variable sanding belt speed, 1.5–12 m/s via frequency converter

Unit 2
1 brush unit
With motor-driven oscillating brushes
Infinitely variable brush speed, 1.5–8 m/s via frequency converter

Rotating cleaning brush on the machine’s discharge side with a separate 0.55 kW drive motor

Unit drive with maintenance-free, wear-free electric braking system

Program-controlled adjustment of the sanding pressure for individual segments

Optical, non-contact sanding control

Pneumatic sanding belt tensioning device



Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
