door panel postforming line

door panel postforming line

Note: The system began series production in 2022; at that time, all machines were technically coordinated and overhauled as needed.

door panel postforming line consisting of:

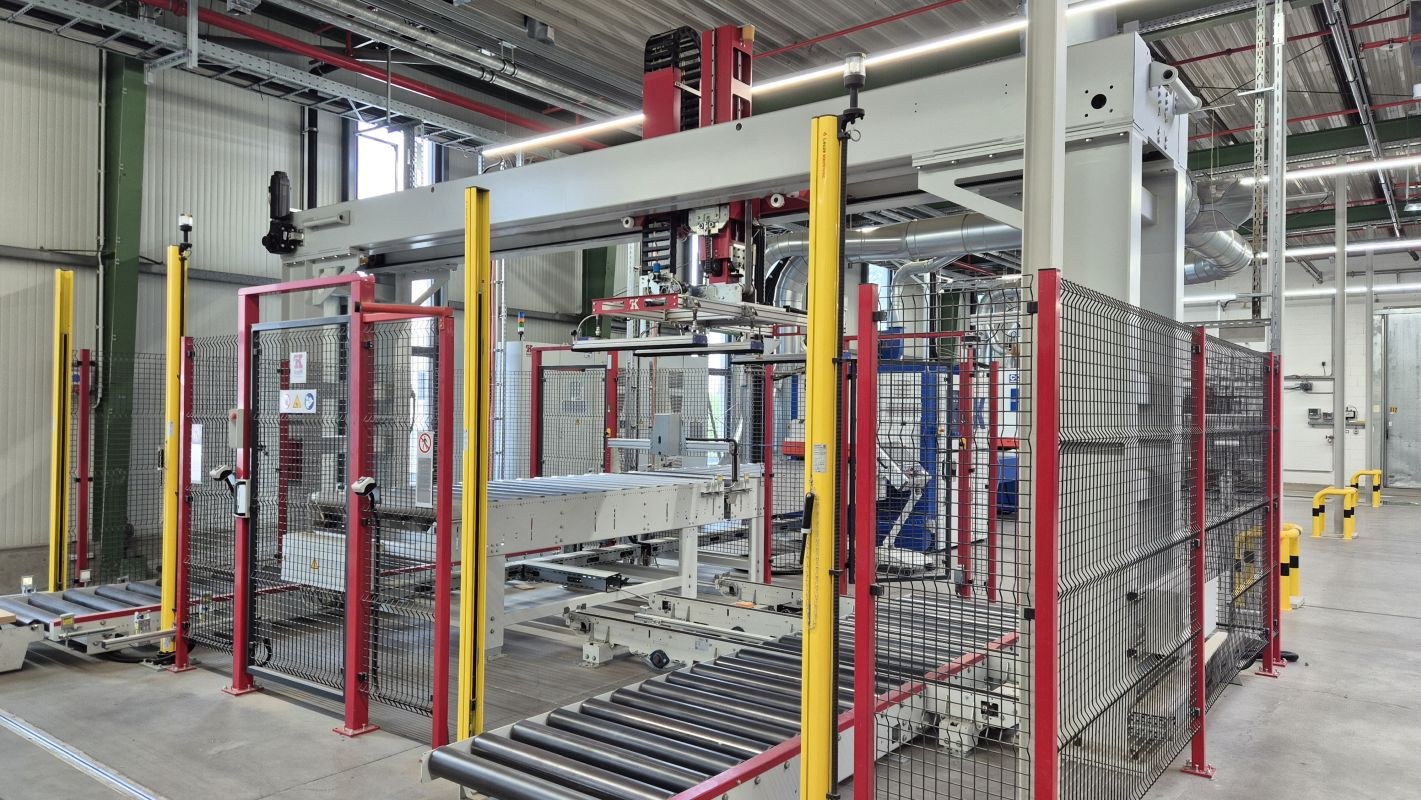

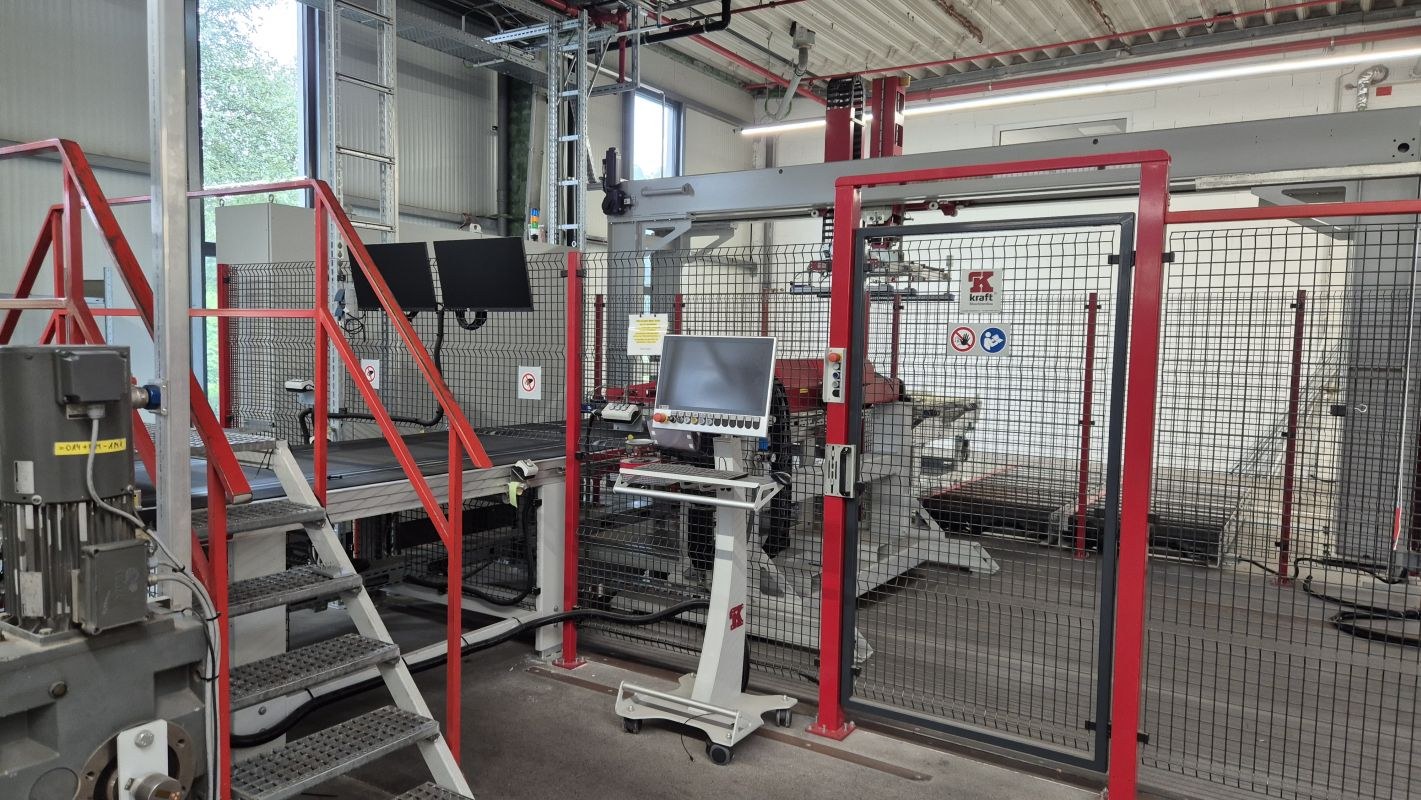

Gantry feeder
Brand: Kraft
Year of manufacture: 2019

Technical specifications
- With vacuum lift
- 2 feed roller conveyors
- One transport roller conveyor for onward transport

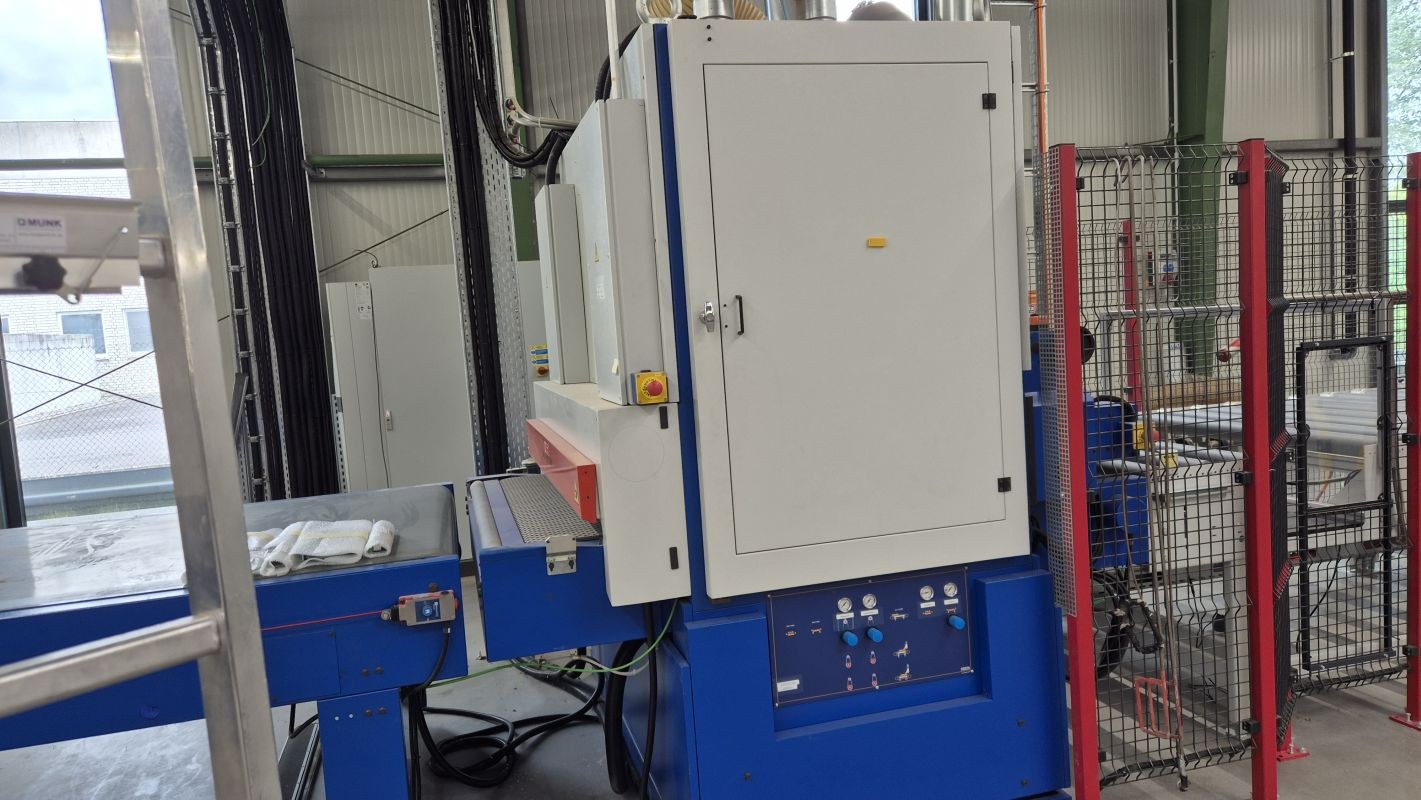

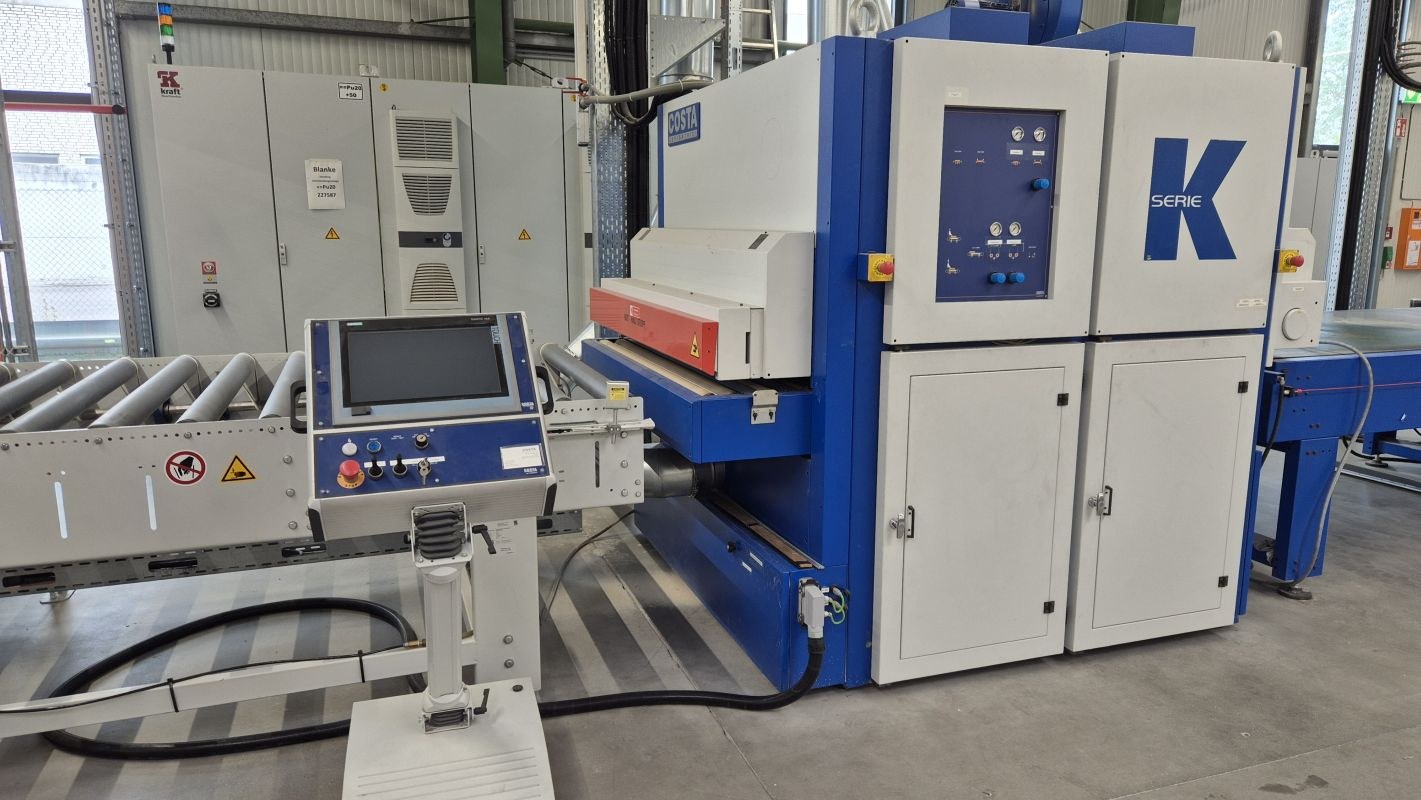

Wide-belt sanding machine
Brand: Costa
Type: KK7 CT CT 1350
Year of manufacture: 2018

Consisting of:
Wide belt sander (sanding from below)
Technical specifications
- Contact roller
- Electronic shoe sanding unit
- Cleaning brush

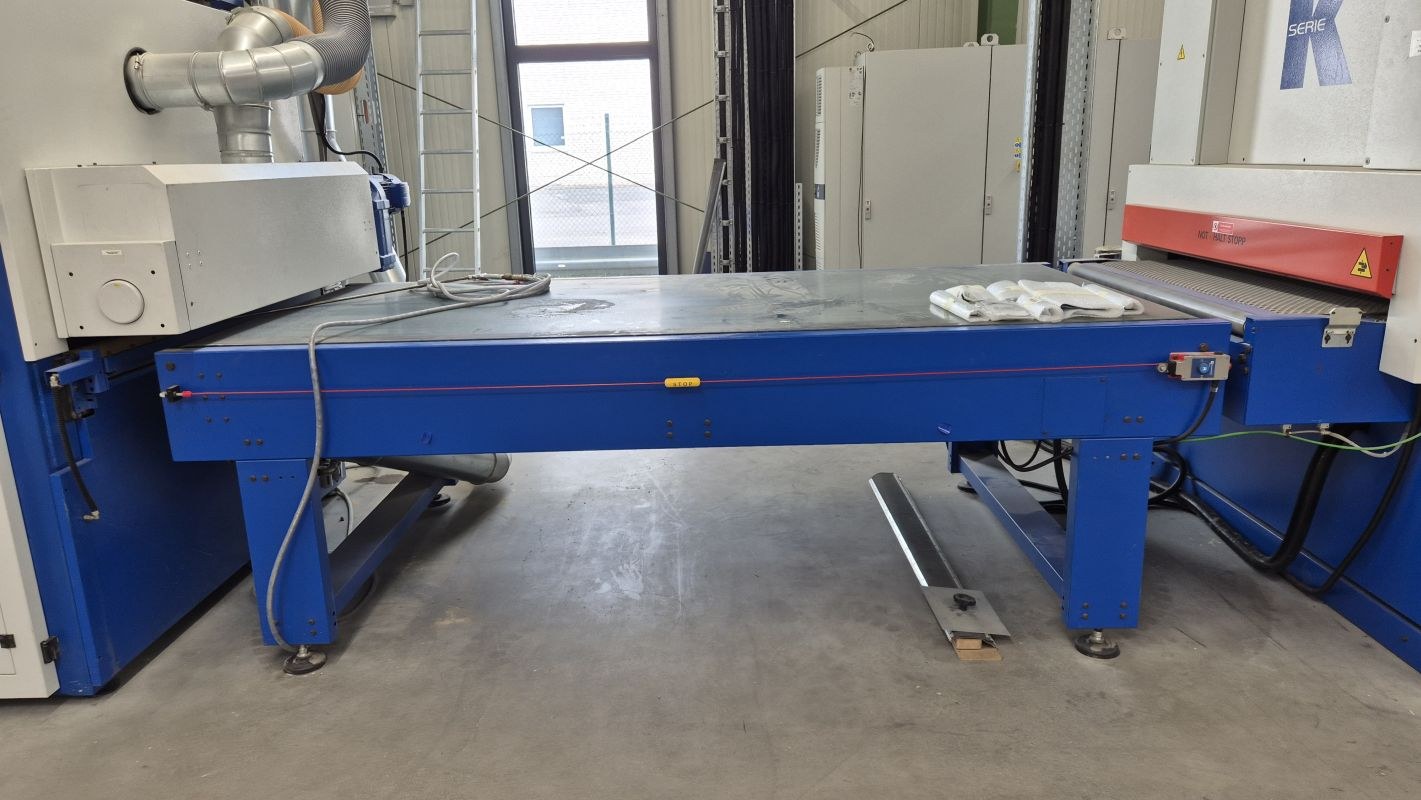

- Intermediate conveyor belt, length approx. 3000 mm

Wide-belt sander (sanding from above)
Technical specifications
- Identical equipment

Complete formatting, laminating, and postforming line
Consisting of:

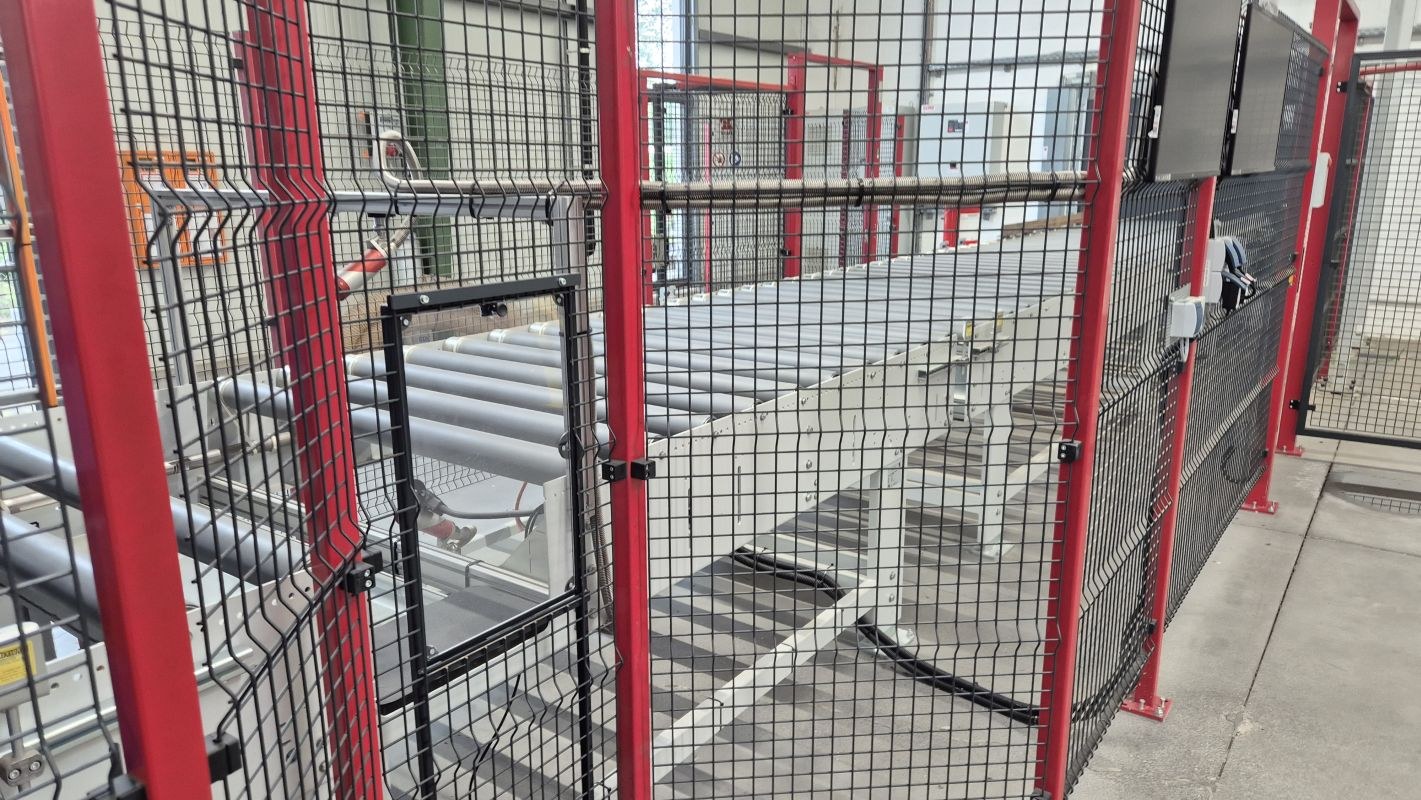

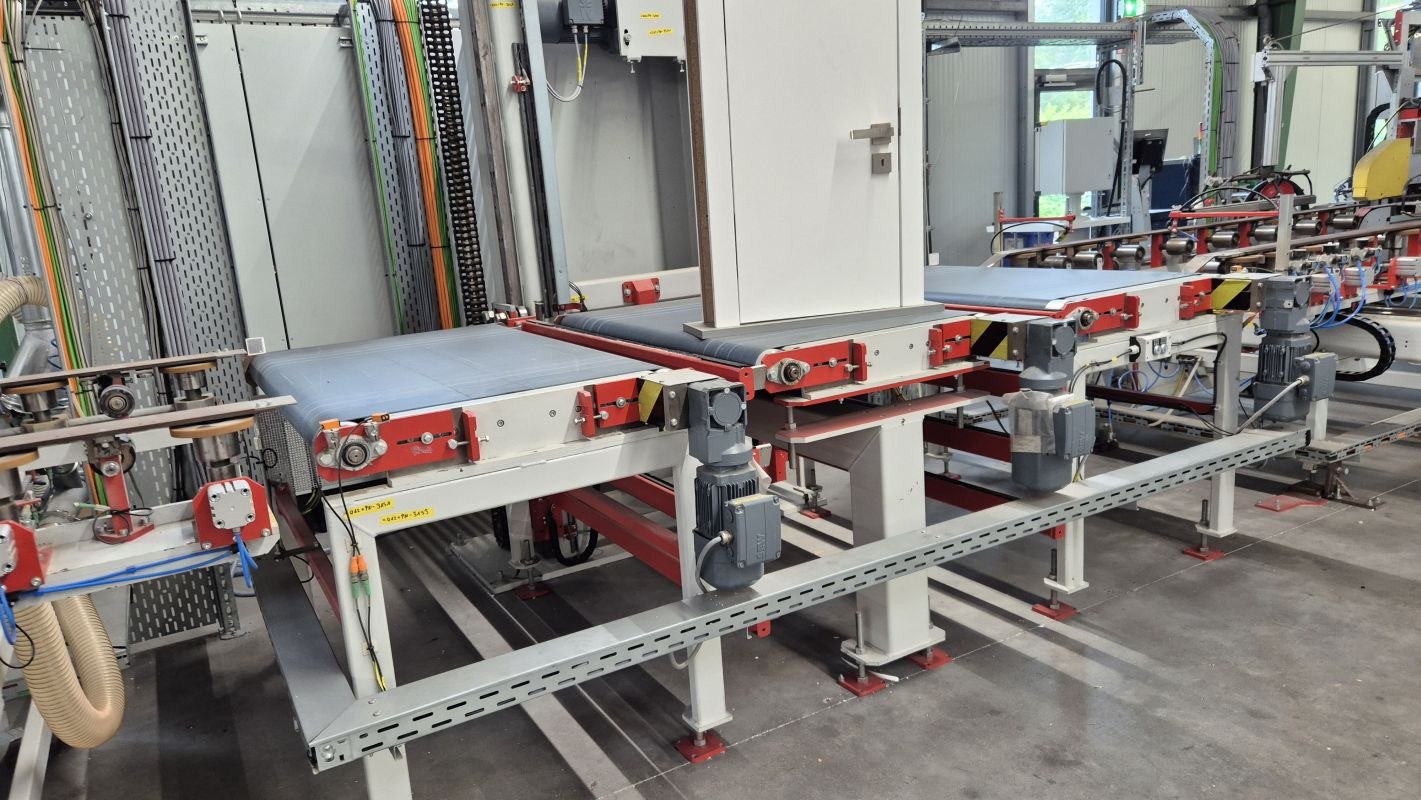

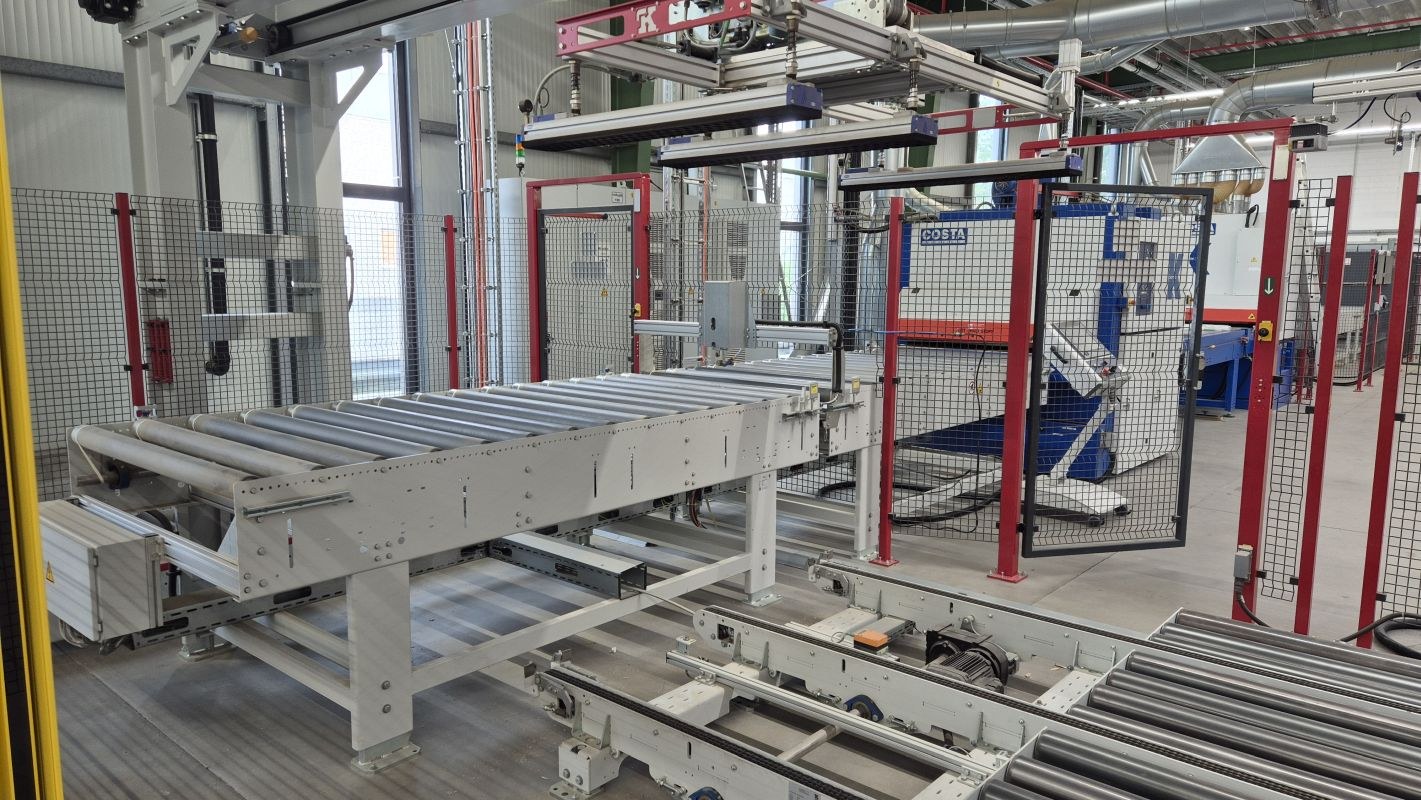

Roller conveyor system
Brand: Kraft
Year of manufacture: 2019

Technical specifications
- 3 individual elements
- Centering station

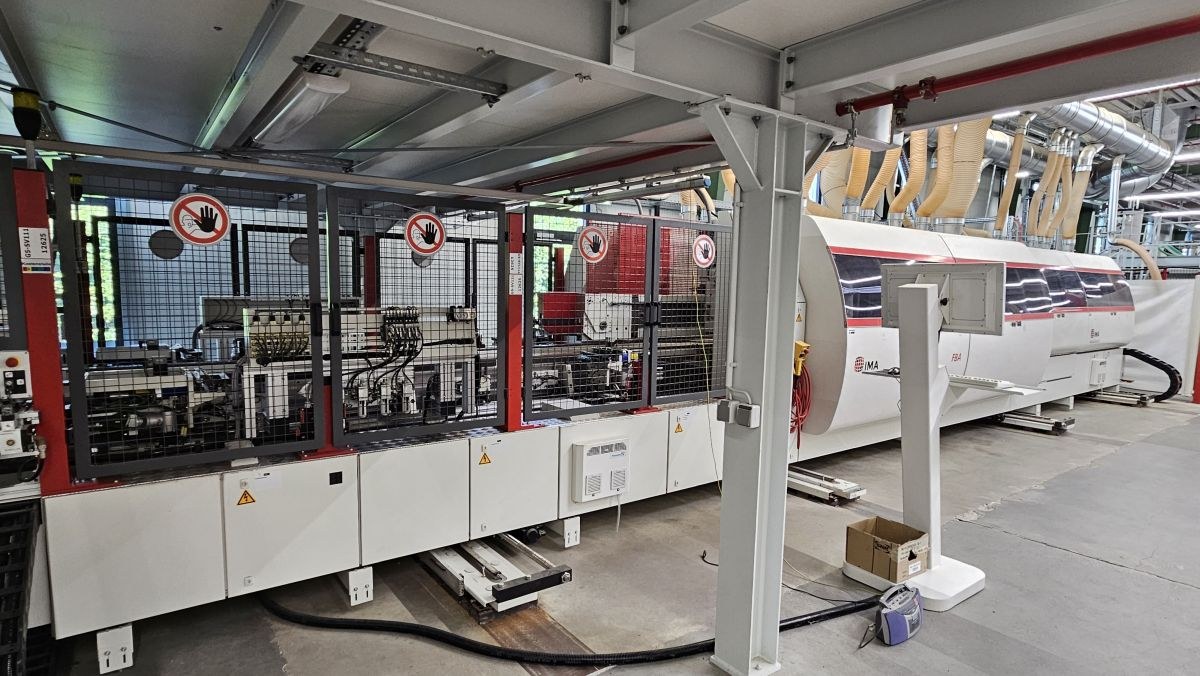

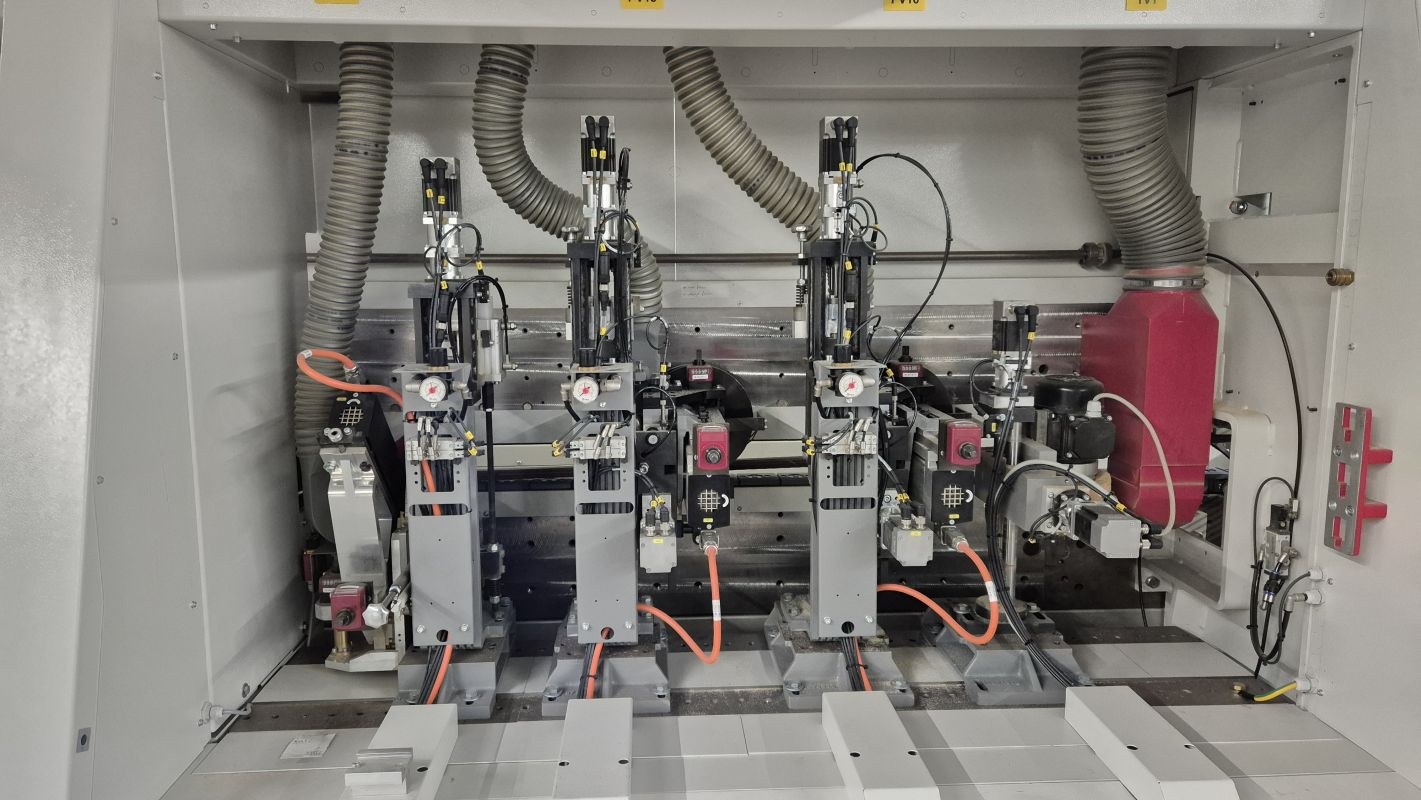

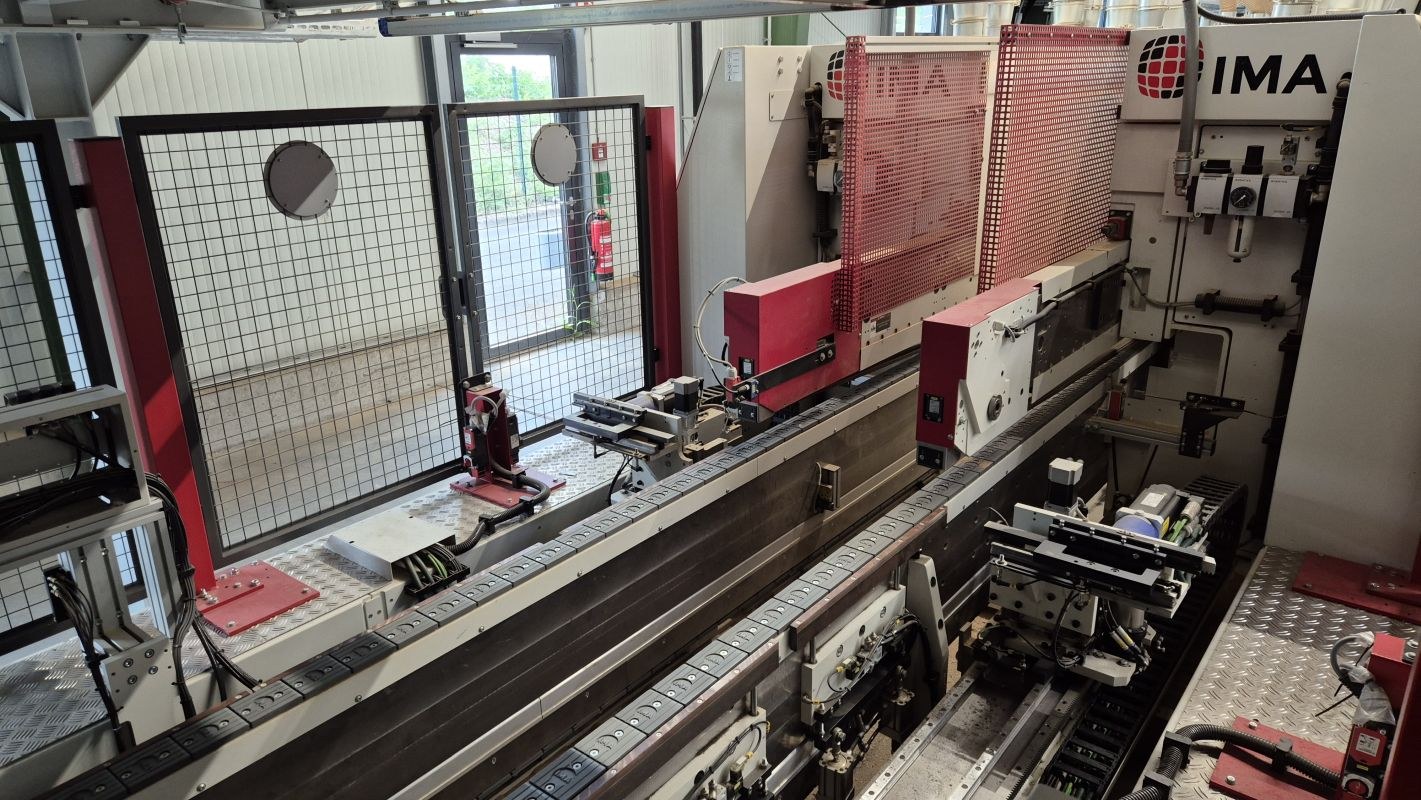

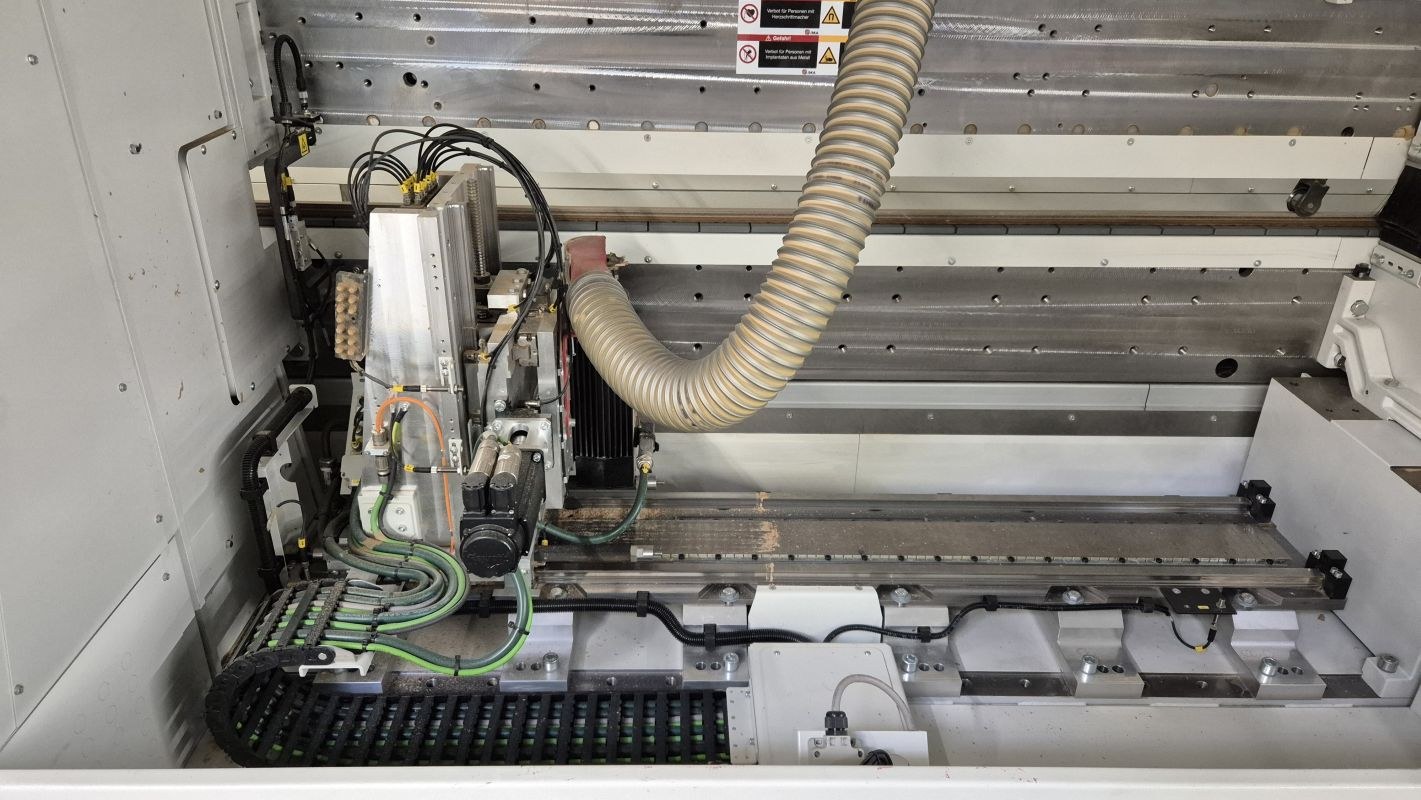

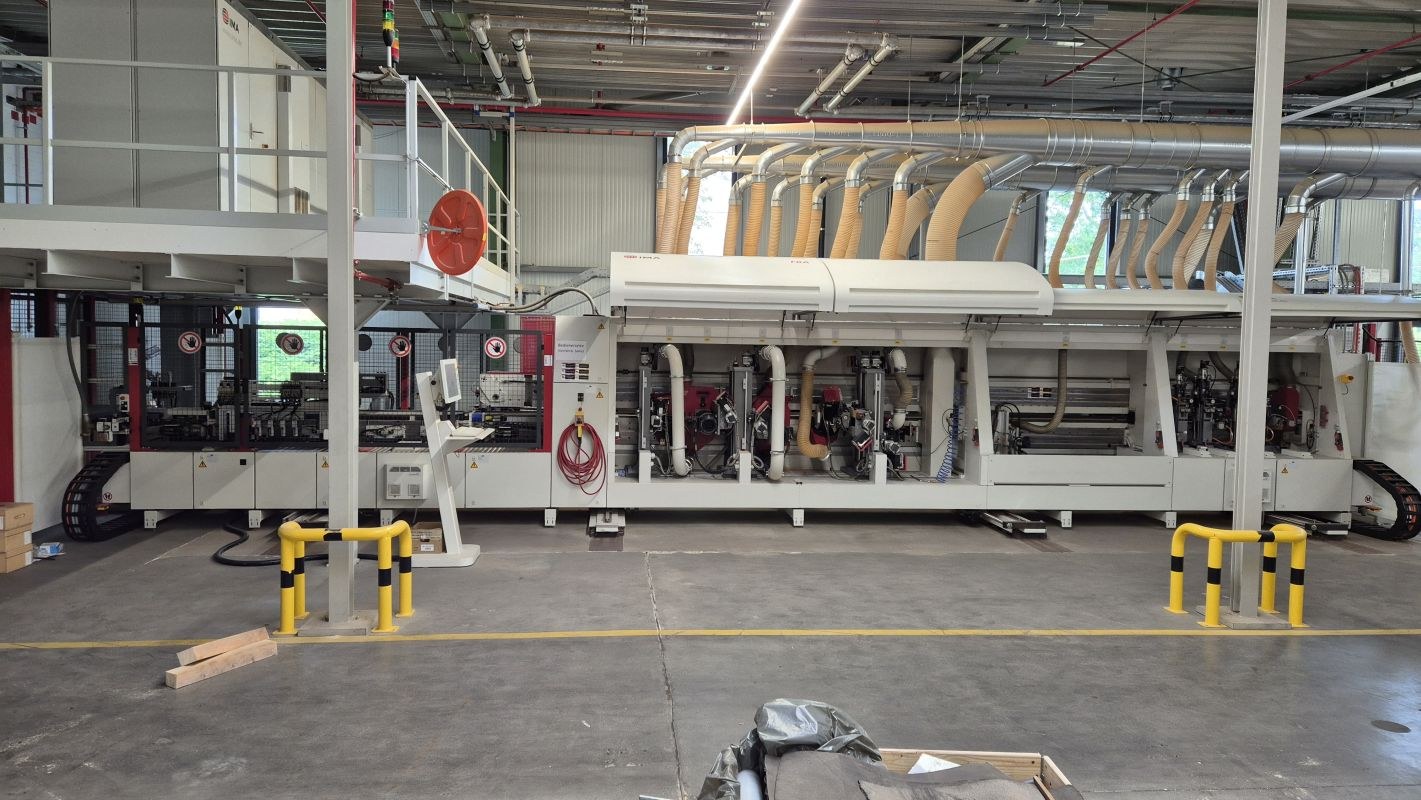

Double-end profiler
Brand: IMA
Type: FBA/II/740/A
Year of manufacture: 2018

Technical specifications
- Equipped with feed conveyor and alignment station
- Scoring saw at the bottom
- Splitter
- Flazer
- Prism cutter
- Joining cutter
- Cross-edge milling unit
- 3 profiling milling units
- Brushes

Laminating system
consisting of:
Feed conveyor belt
Brand: Kraft
Year of manufacture: 2019

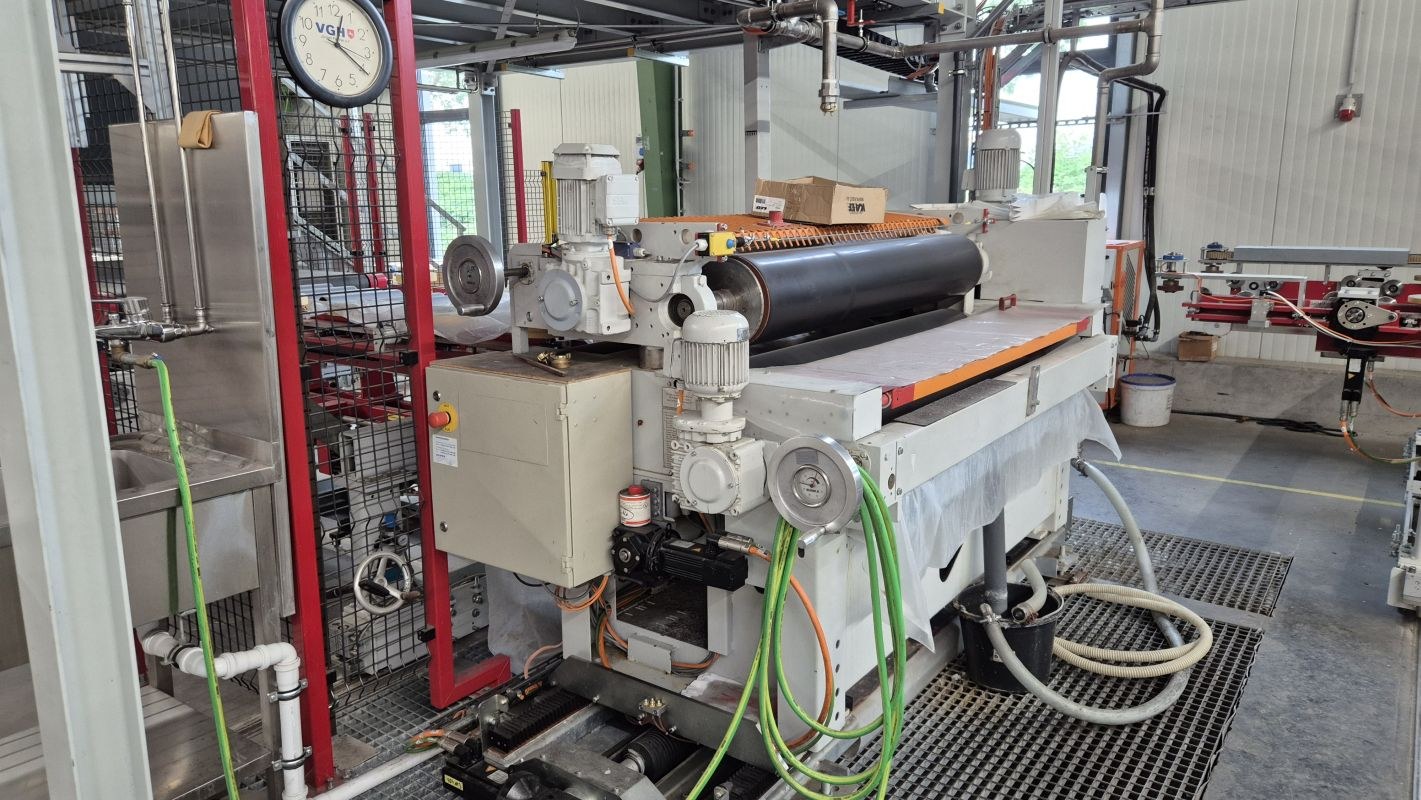

Glue applicator
Brand: Bürkle
Type: DAK1300
Year of manufacture: 1992

Technical specifications
- Mechanically overhauled in 2018
- Control system completely overhauled in 2022
- With infeed table, manufacturer: Kraft
- Steel platform with stairs and various pumps
- Glue melting unit GWK Eco 03A

Infeed Table for Laminating Machine
Brand: Kraft
Year of manufacture: 2019

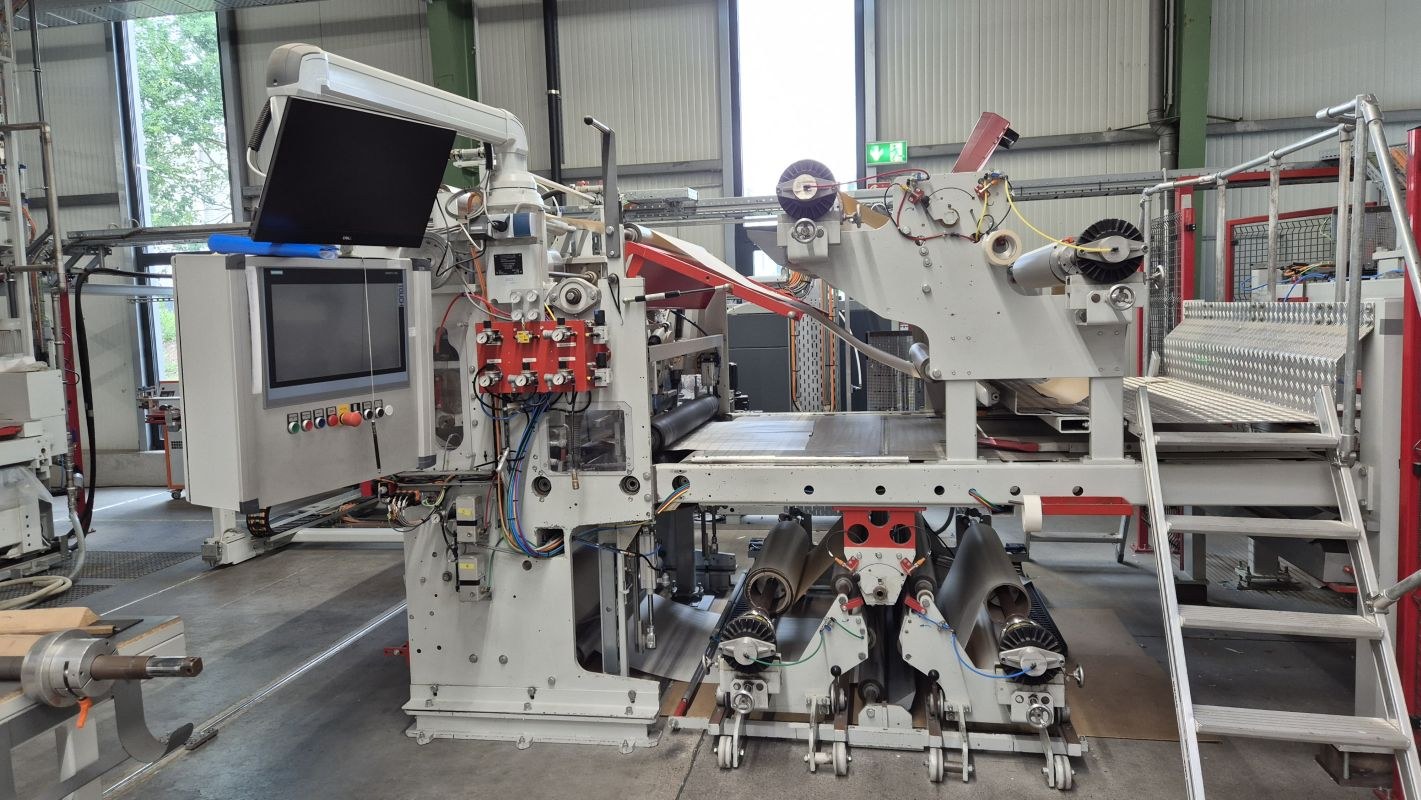

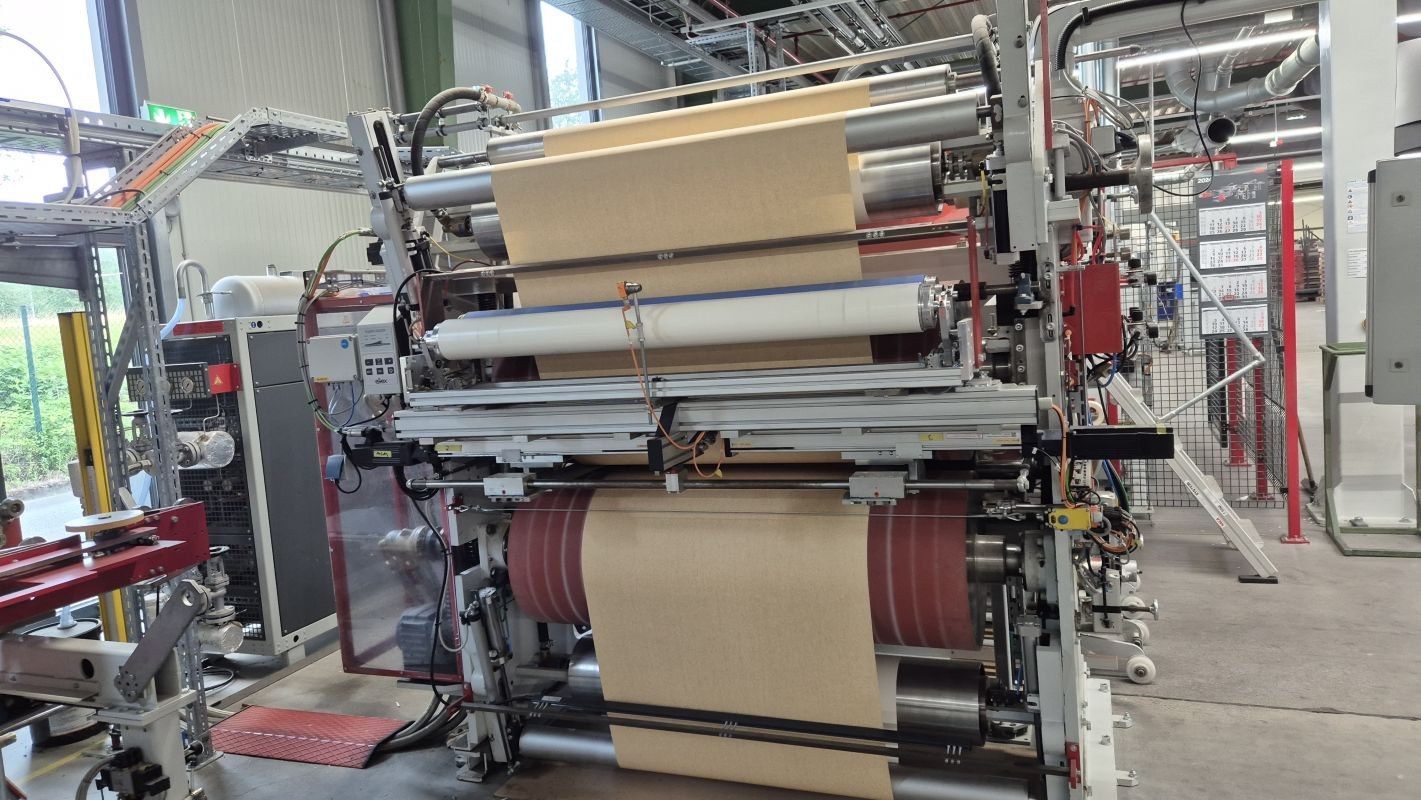

Laminating Machine
Brand: Bürkle
Type: EKMH 1300
Year of manufacture: 1998

Technical Specifications
- New Siemens Simatik KMG Touch control system
- Bürkle GLK calender
- Includes film holder and saw for trimming excess material
- Working width 1300 mm
- 2 GWK temperature control units
- Column-mounted swivel crane for loading paper rolls
- Unloading conveyor belt

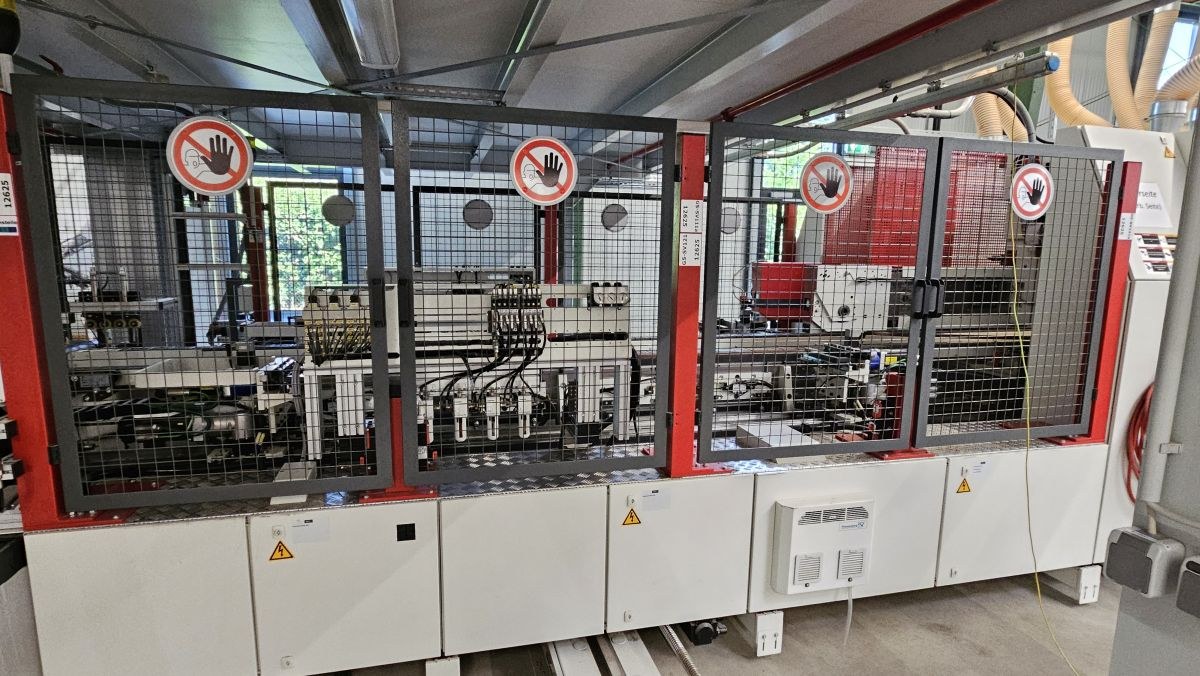

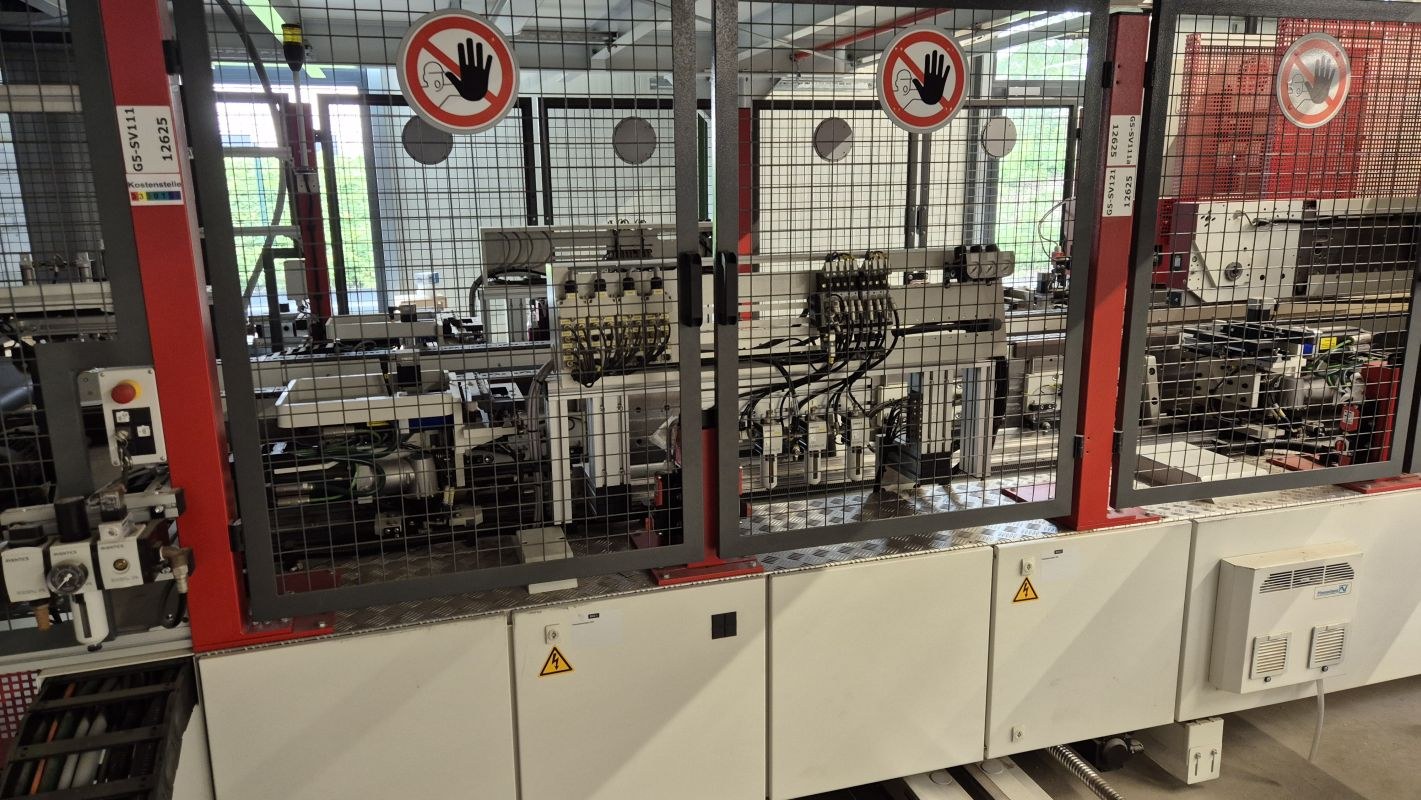

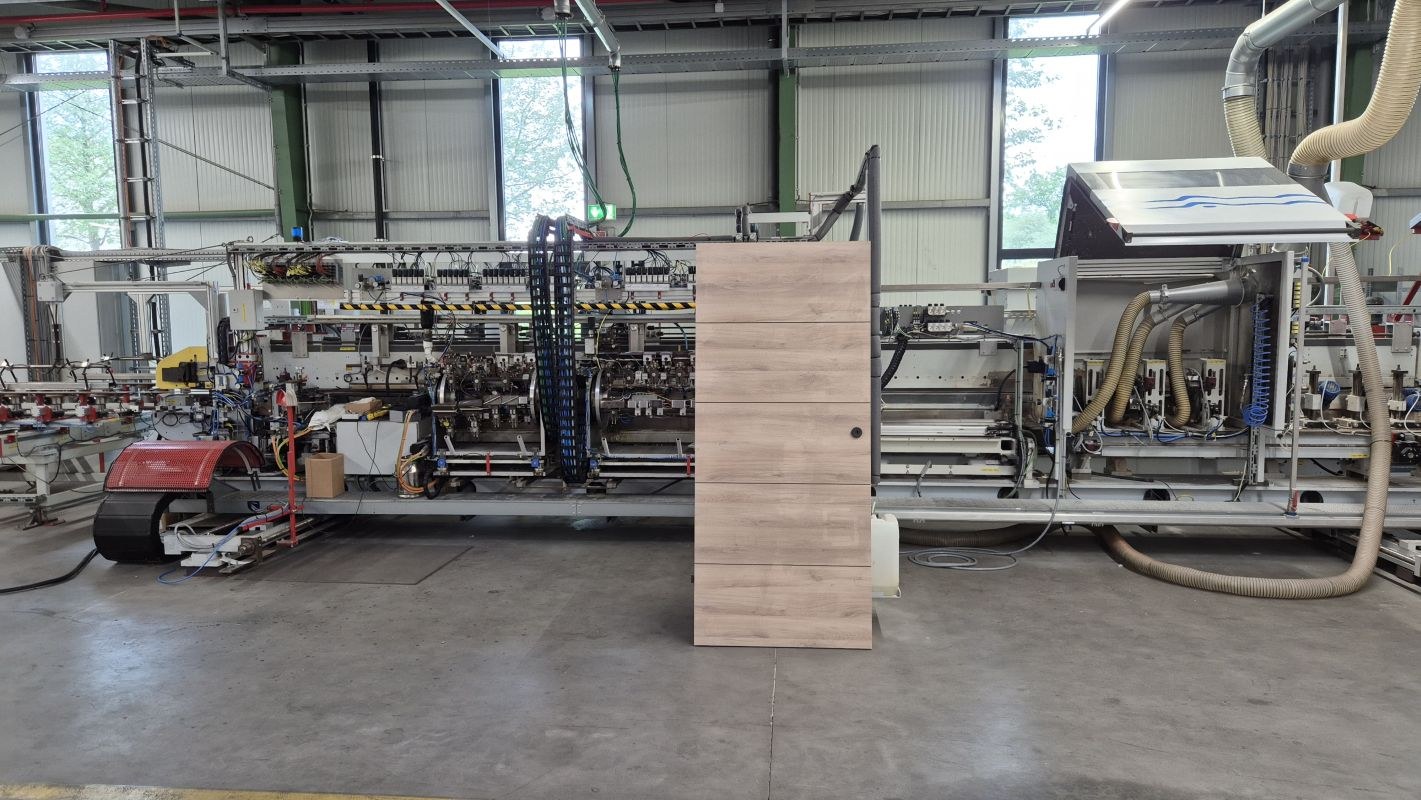

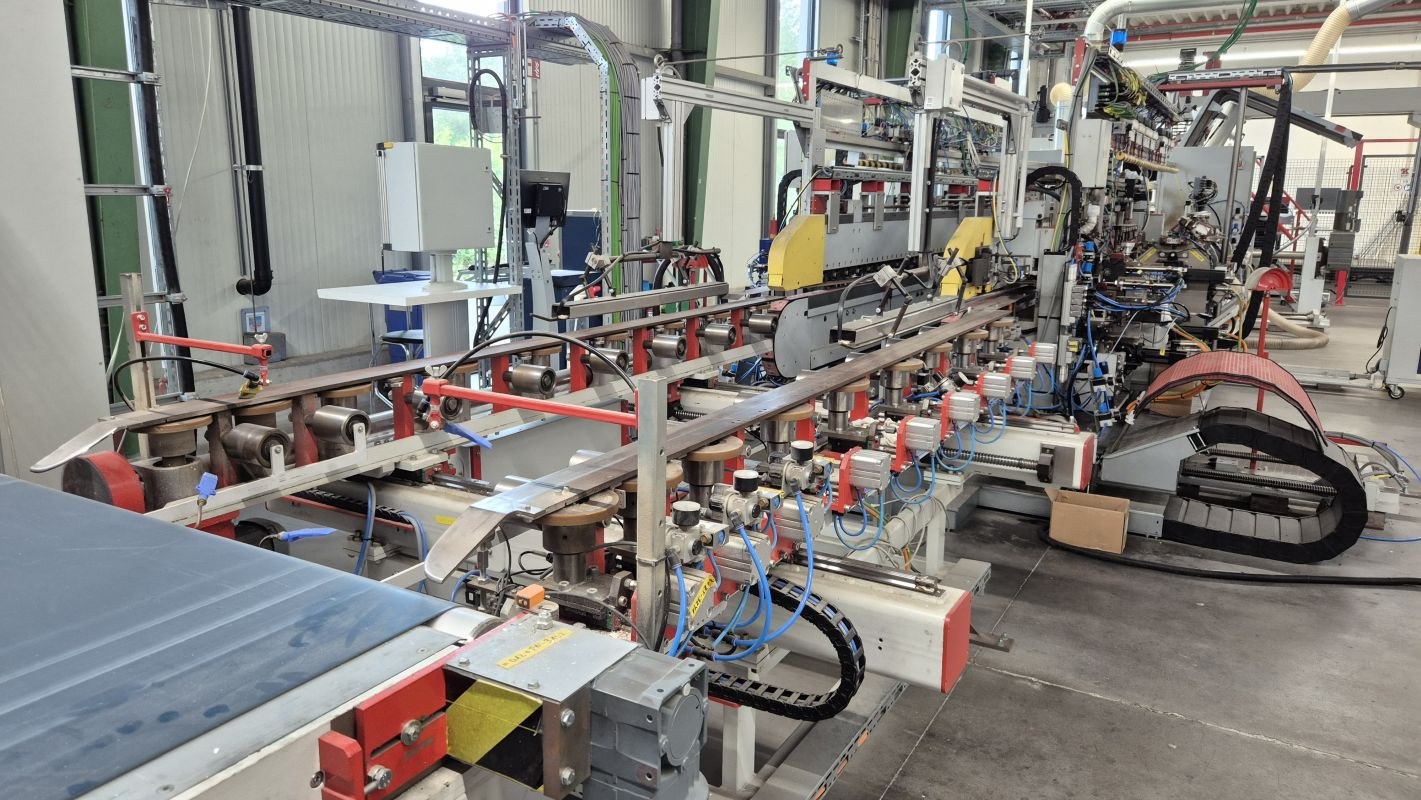

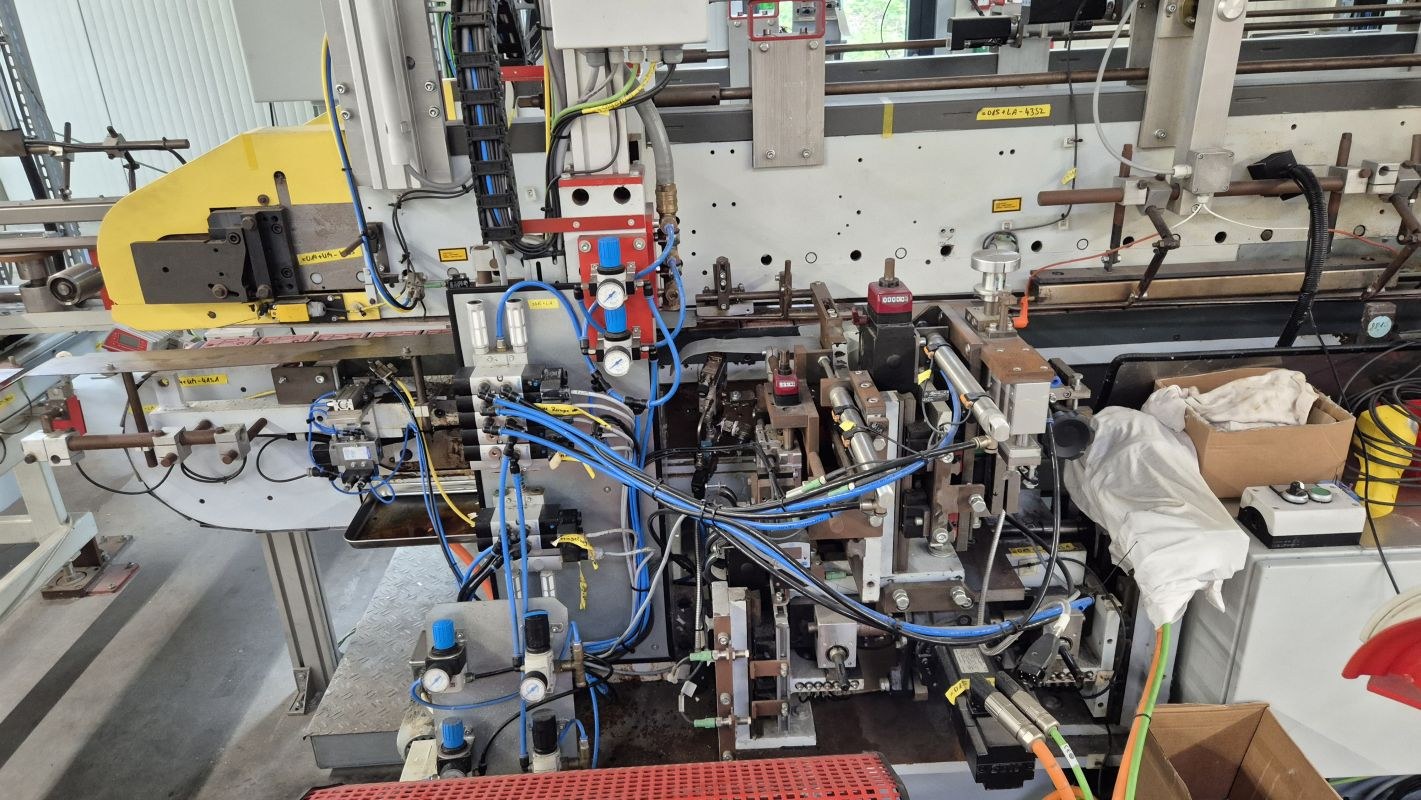

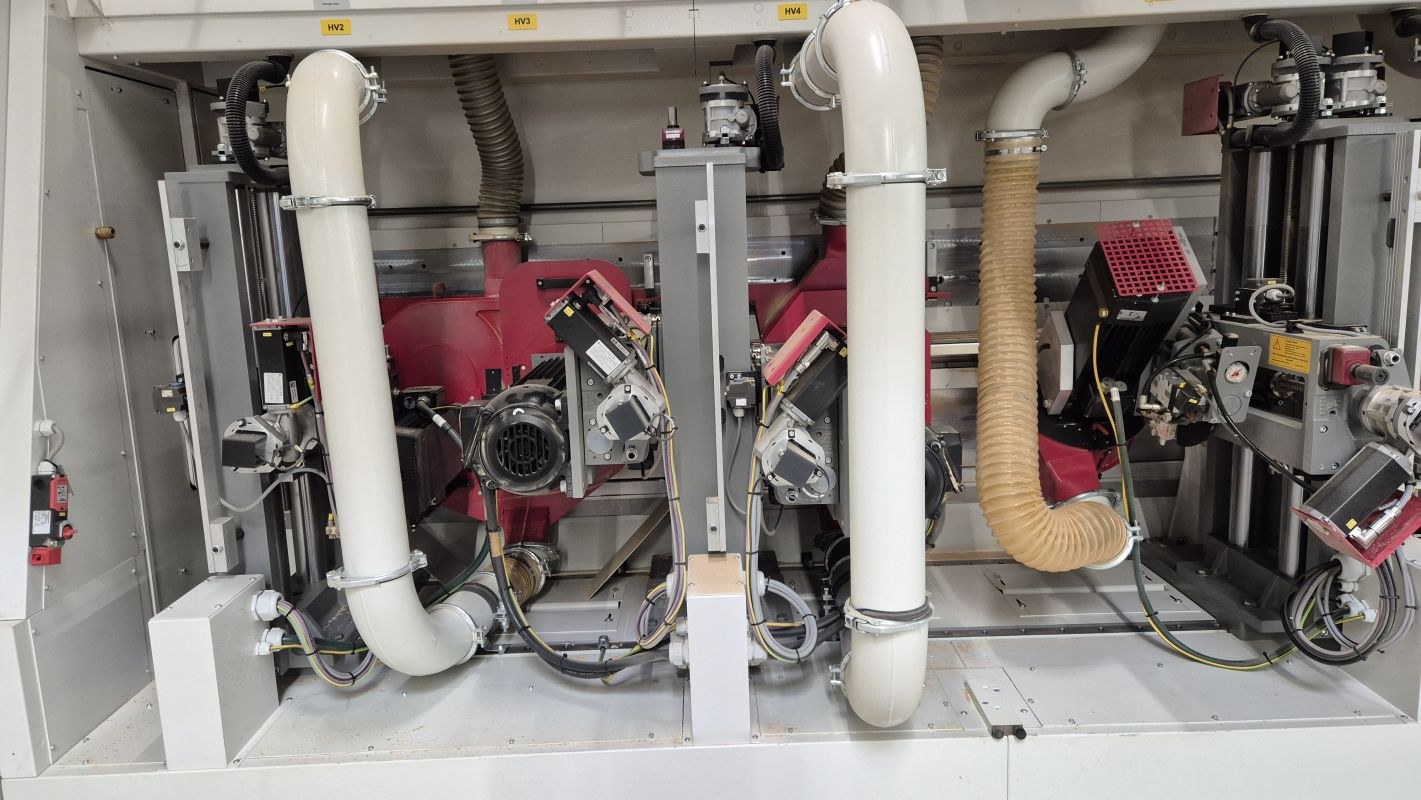

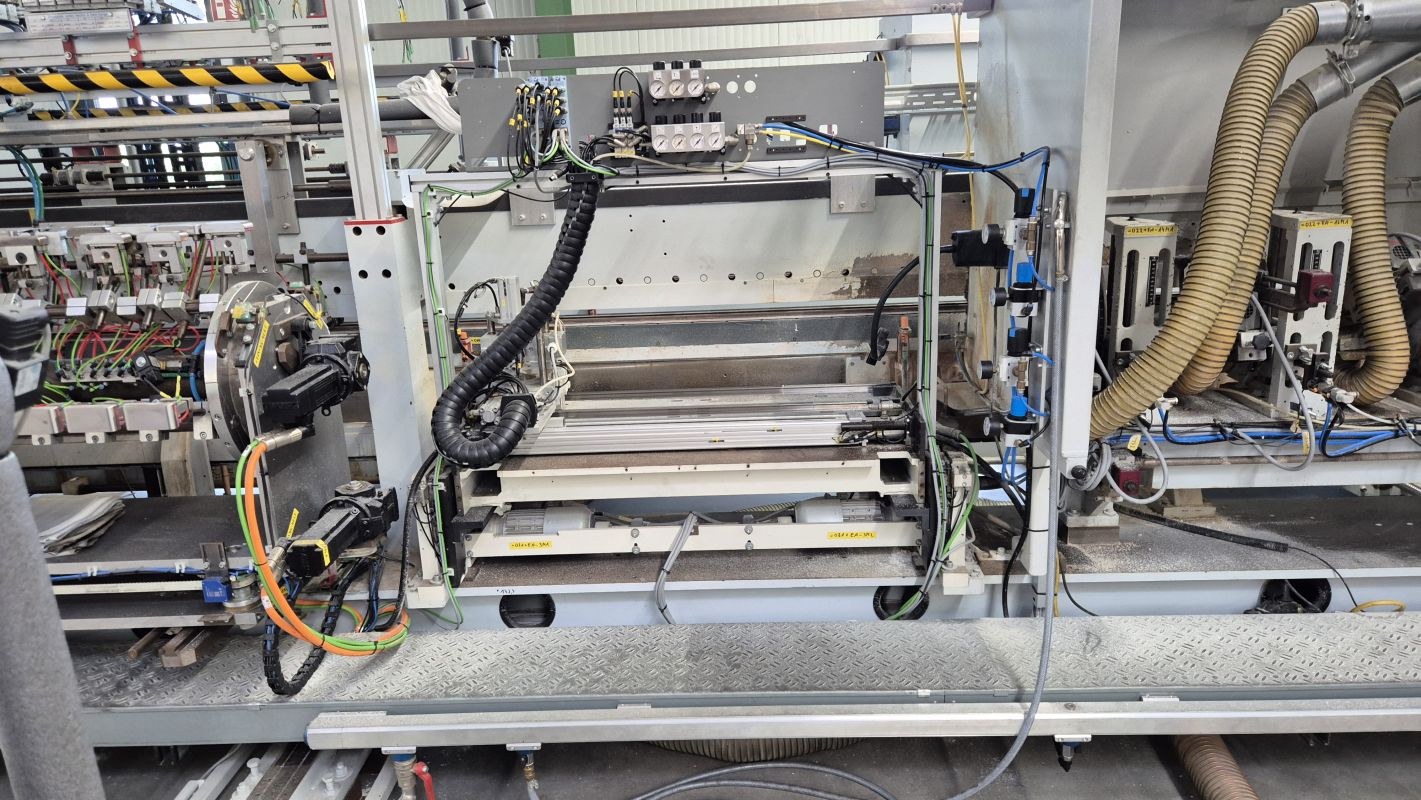

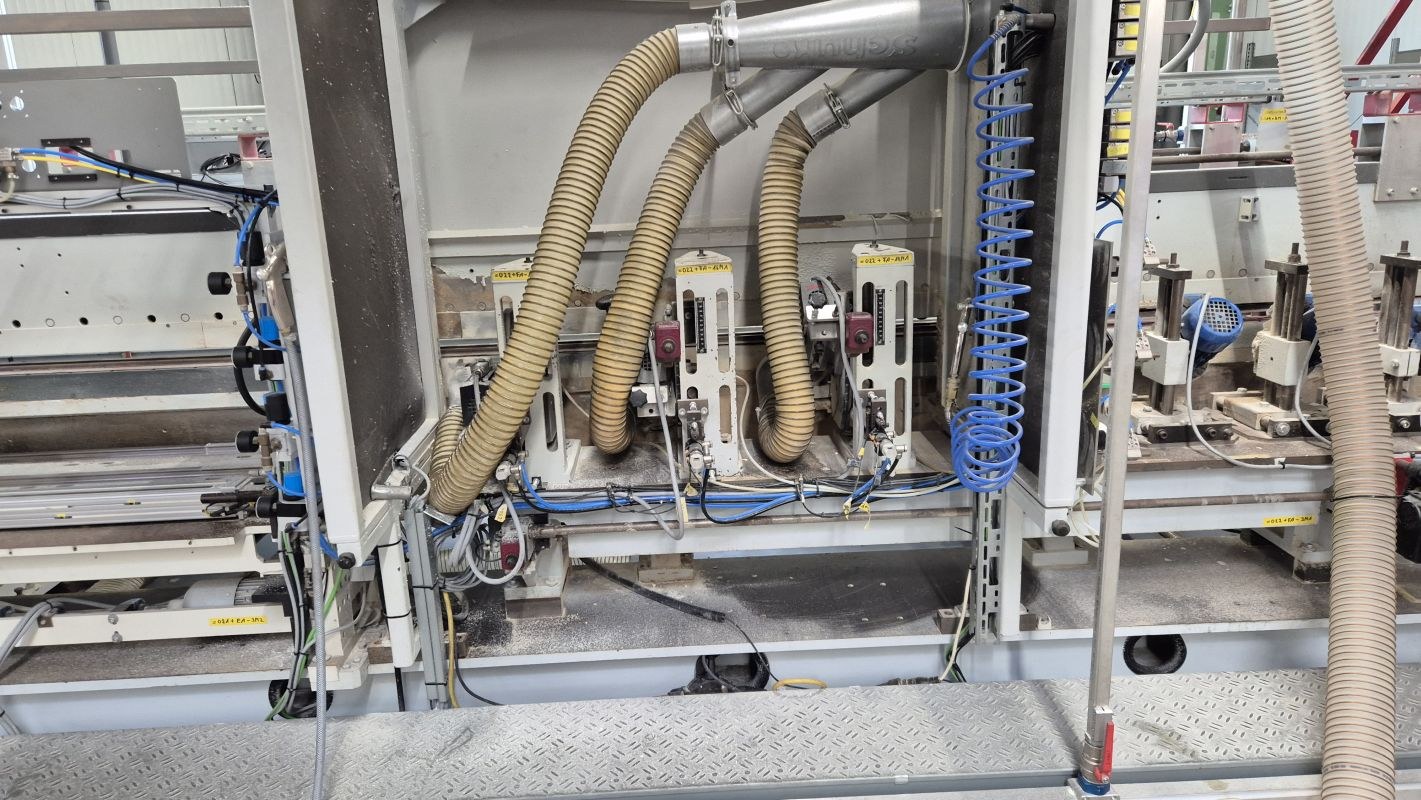

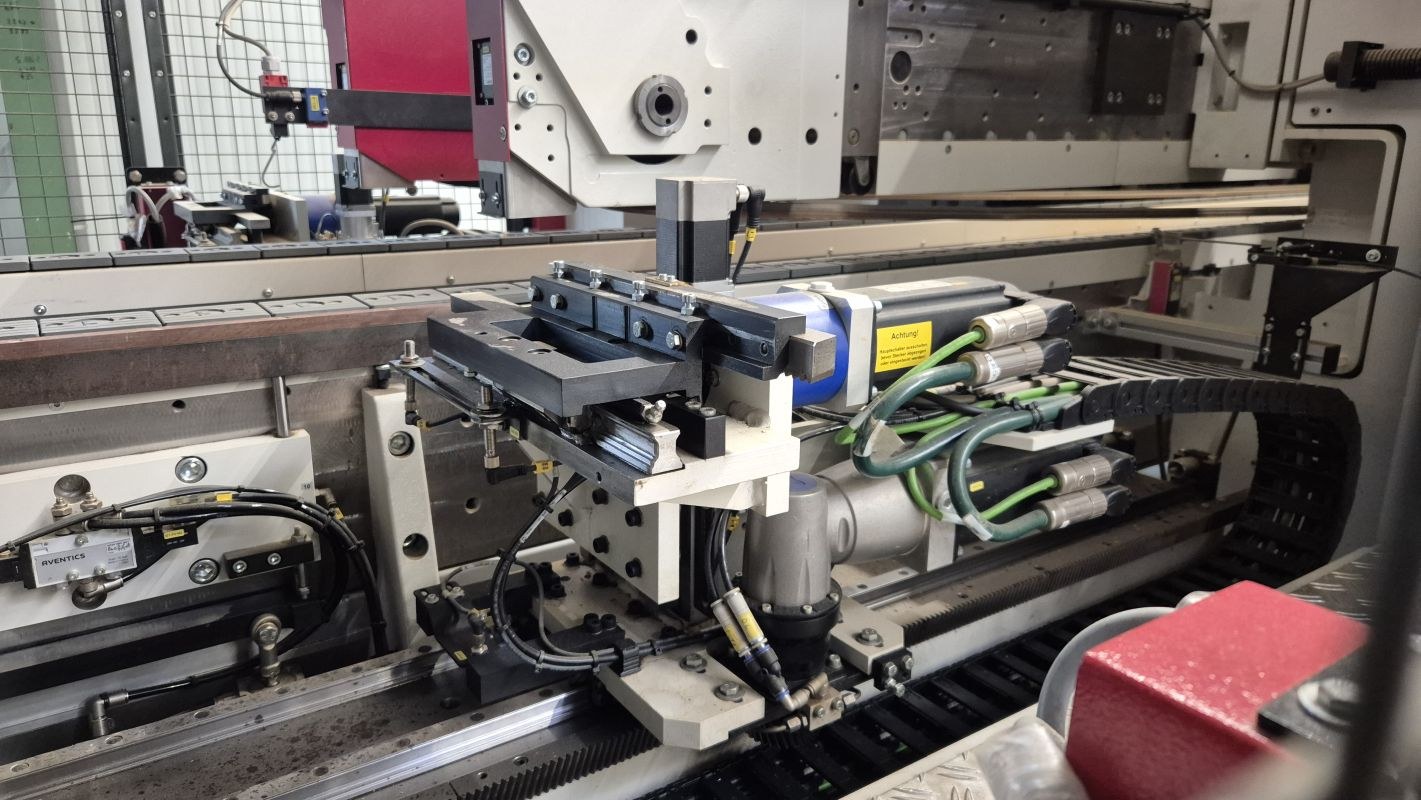

Postforming machine
Brand: Homag

Technical specifications
- Infeed table
- With 2 saw units (horizontal and vertical)
- Intermediate buffer with 4 levels
- Infeed to the postforming machine
- 2 identically configured processing sides with gluing
- PU pre-melting unit Nordson / VersaBlue, built in 2020 and 2004

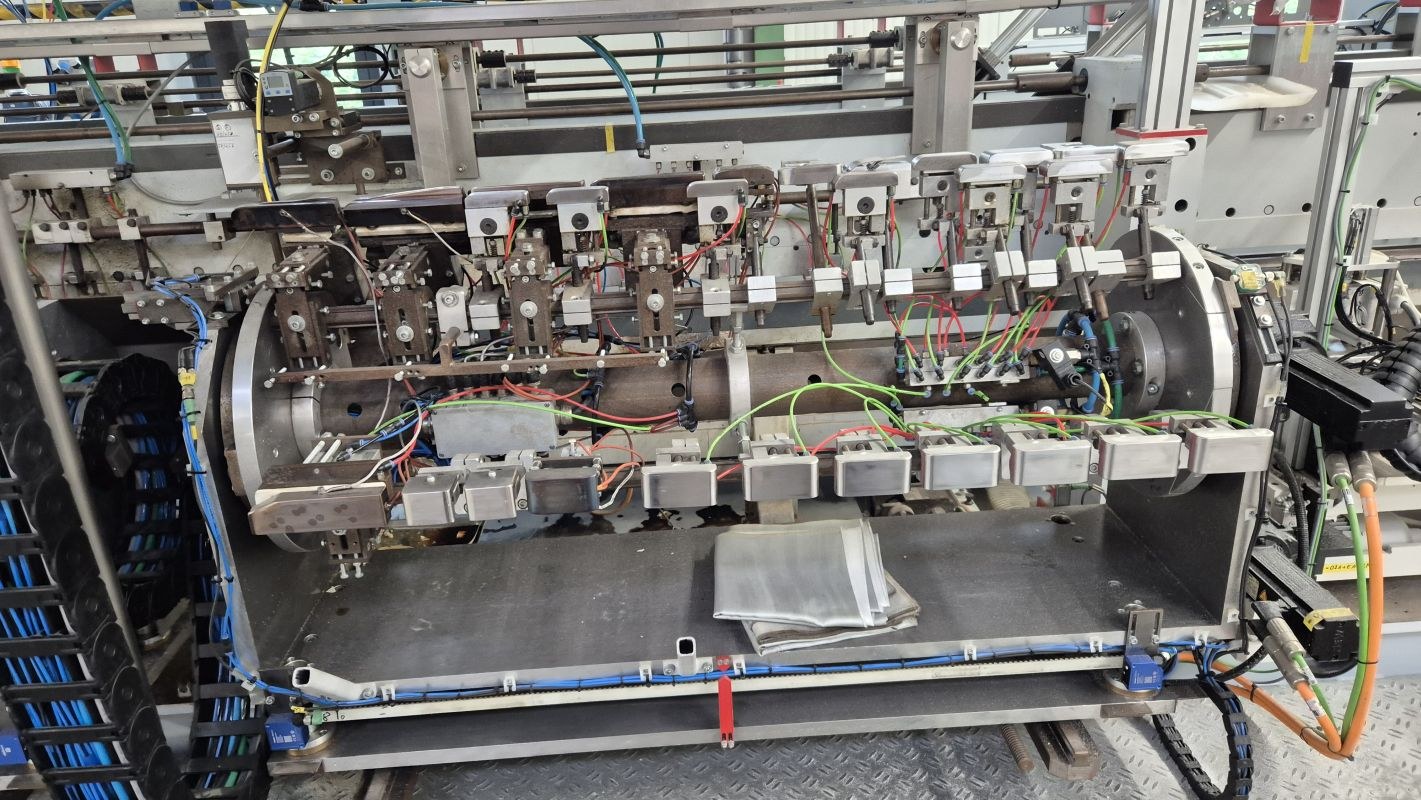

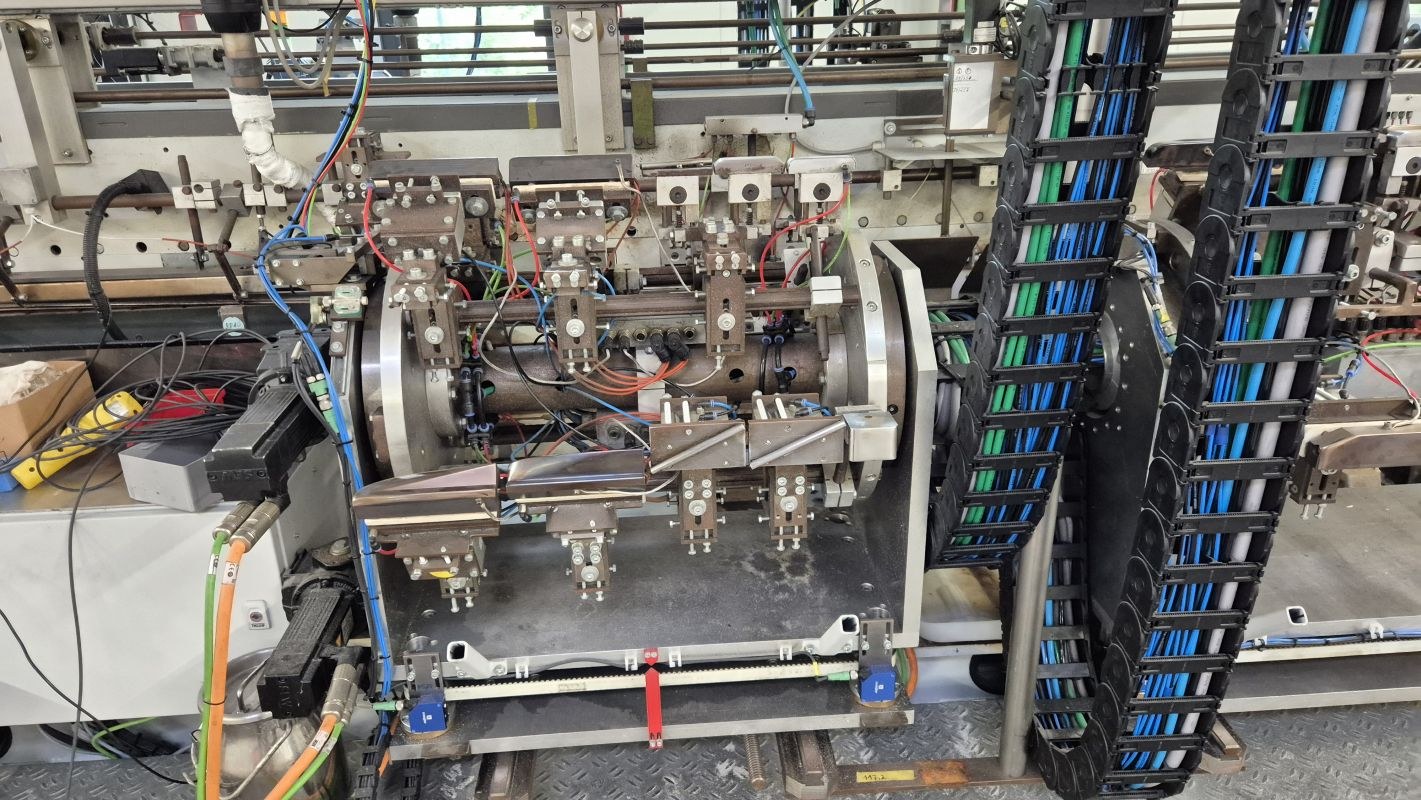

- Pressure zone with turret magazine for various profiles
- Various milling units and buffing brushes
- 2 cooling units BEKO Bekoblizz LC, built in 2020

Conveyor belt with inspection system
- Swivel arm with vacuum suction cup
- Inspection station for visual inspection of the workpiece

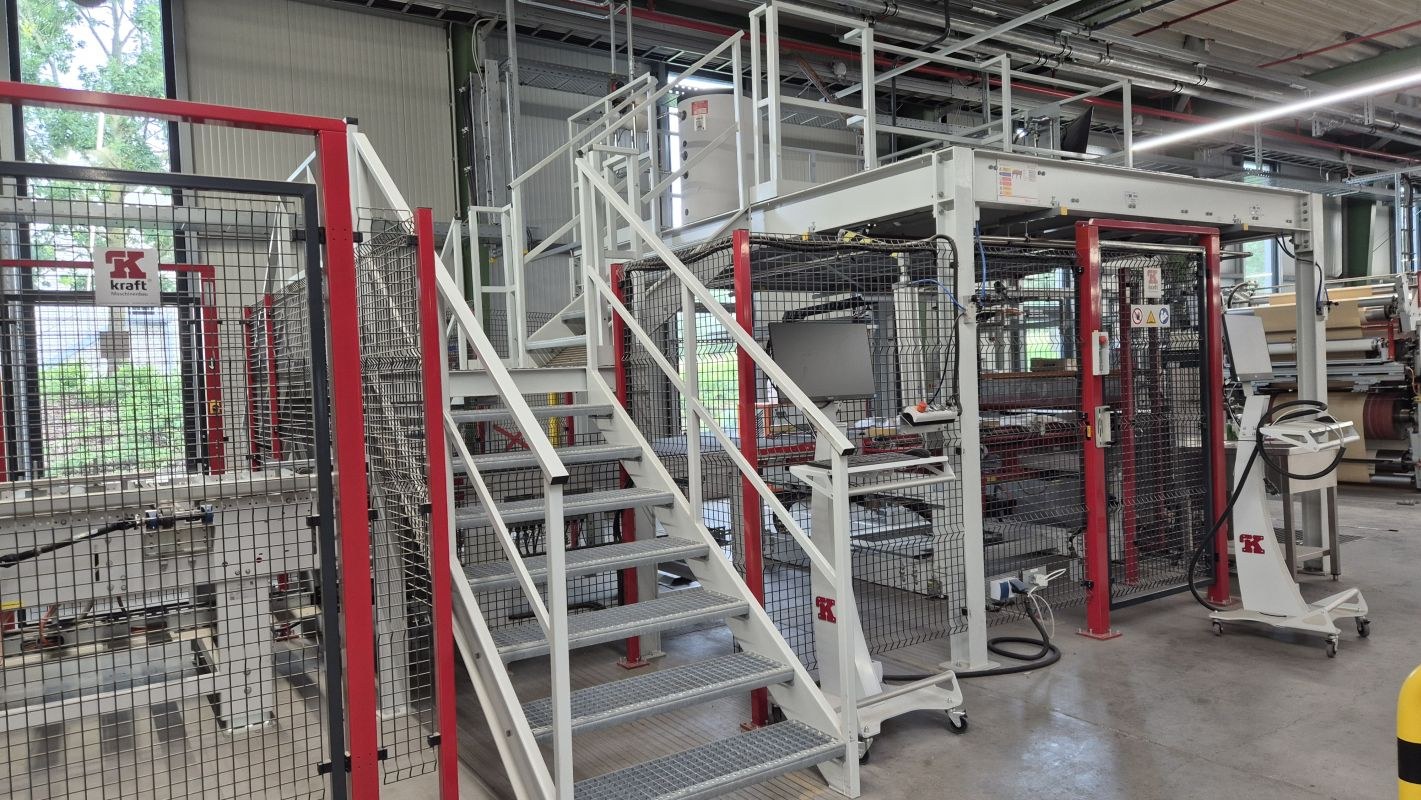

Portal destacking
Brand: Kraft

Technical data
- With vacuum portal and 3 destacking stations

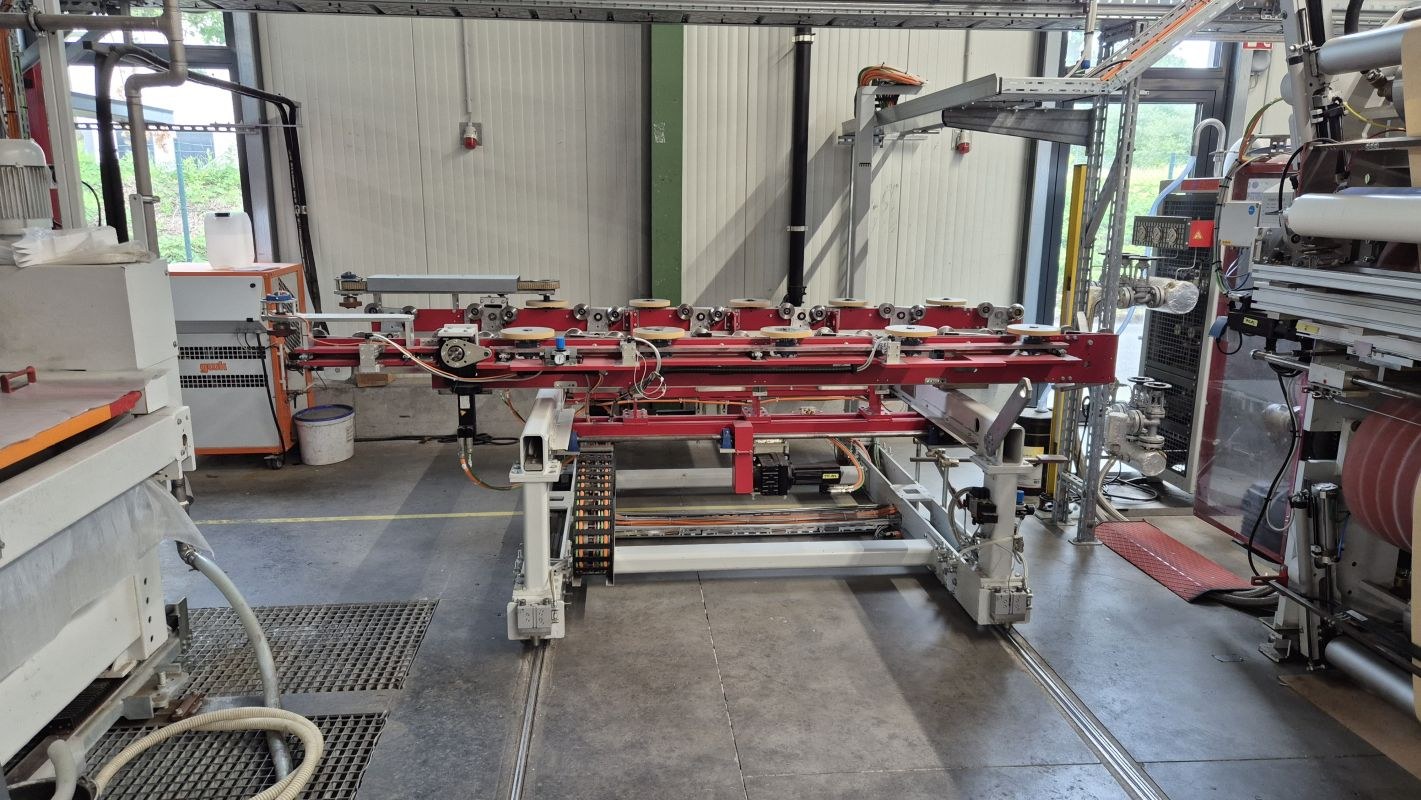

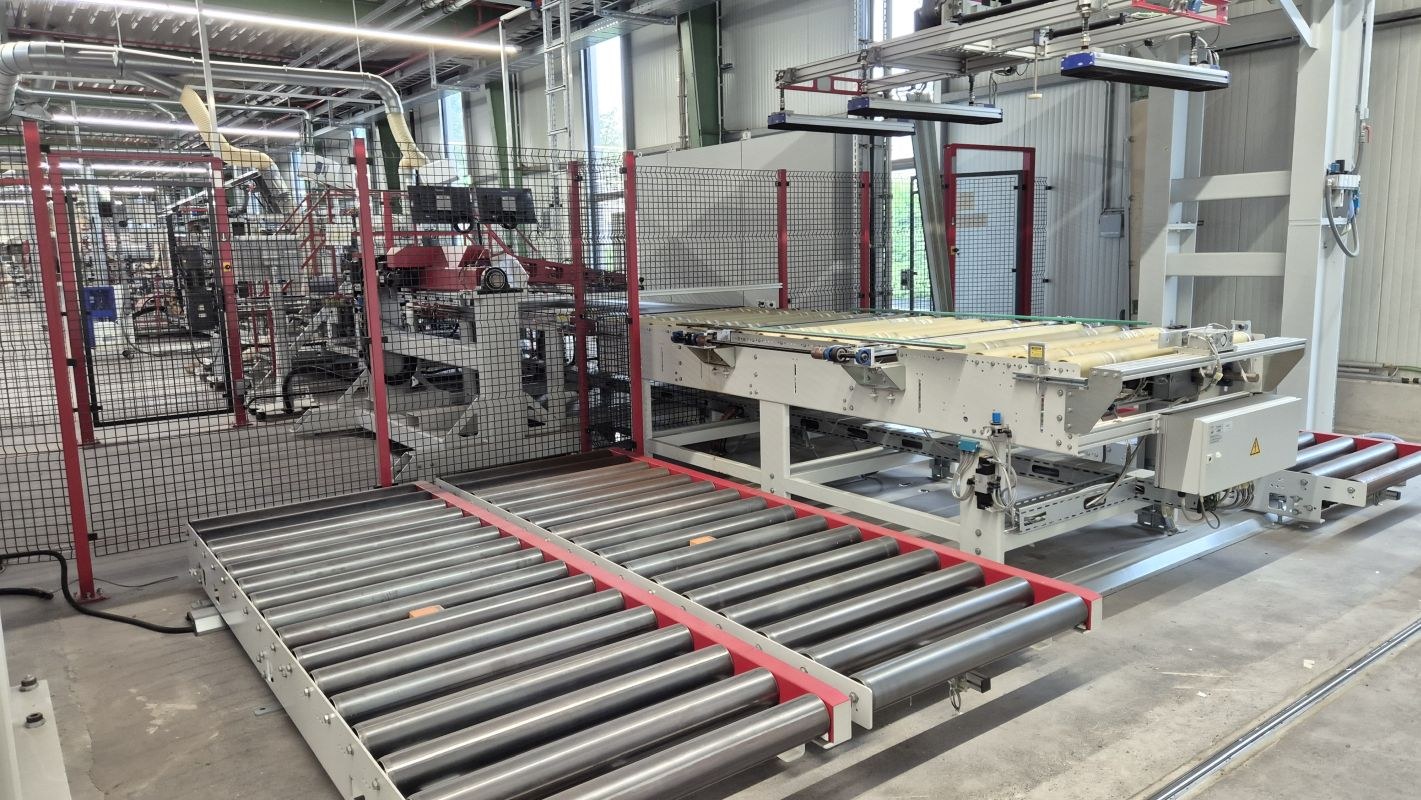

Automatic cross-transport cart
Brand: Kraft
Year of manufacture: 2018

Technical specifications
- Roll width: approx. 1400 mm
- Roll length: approx. 2800 mm



Note:
The technical specifications and descriptions are copies of the original order confirmation. This information is provided for informational purposes only and is not binding.
