Dust extraction and filtration system

Dust extraction and filtration system
Brand: Nawara
Type: RUBIN 2030
Year of manufacture: 2018


Technical data
Application:
- Designed for extraction of dry dust and wood chips
- Suitable for woodworking and industrial dust collection

Performance:
- Capacity: approx. 30,000 m³/h

System features:
- Stationary modular filter system
- Warm air recovery system (summer/winter mode with adjustable flap)
- Designed for continuous operation

Compliance:
- Complies with EU Machinery Directive 2006/42/EC
- Complies with ATEX Directive 2014/34/EU (for potentially explosive atmospheres)
- Meets relevant Polish regulations for machinery safety

Airlock / Discharge System:
- Type: SL 1400 EX
- Length: 1400 mm
- Height: 360 mm
- Connection frame (top/bottom): 1490 × 420 mm
- Drive type: direct drive with elastic coupling (Rotex 38)
- Gear motor: SEW R47 DRN80MK4 (option: DRN90S4)
- Speed: 15 rpm (option: 29 rpm)

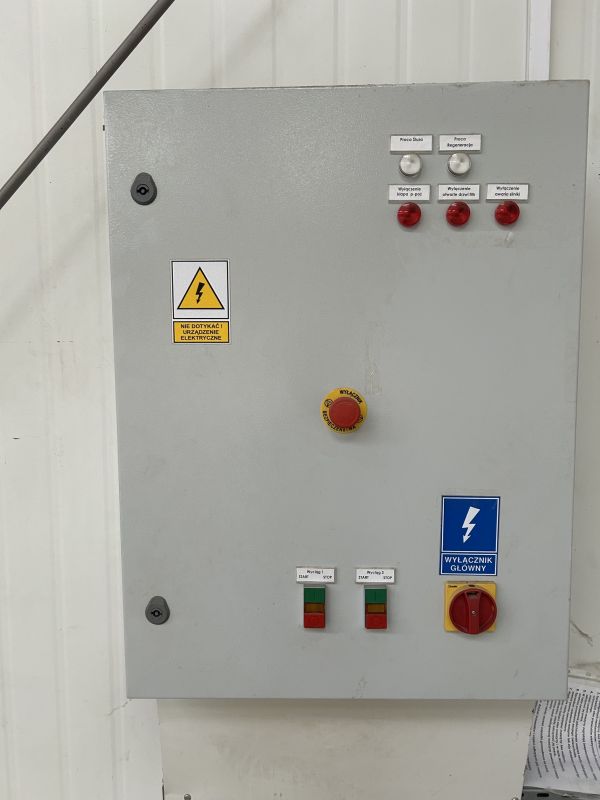

Electrical data:
- Power supply: 380 V / 50 Hz

Dimensions (airlock unit):
- L × W × H: 2000 × 420 × 360 mm

Installation:

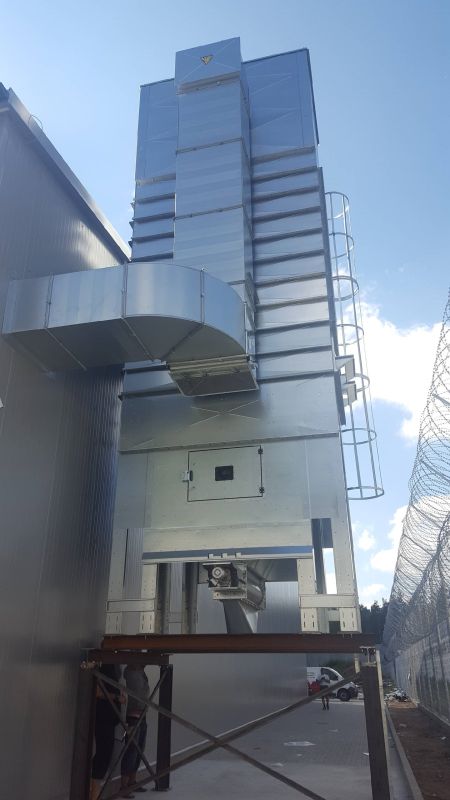

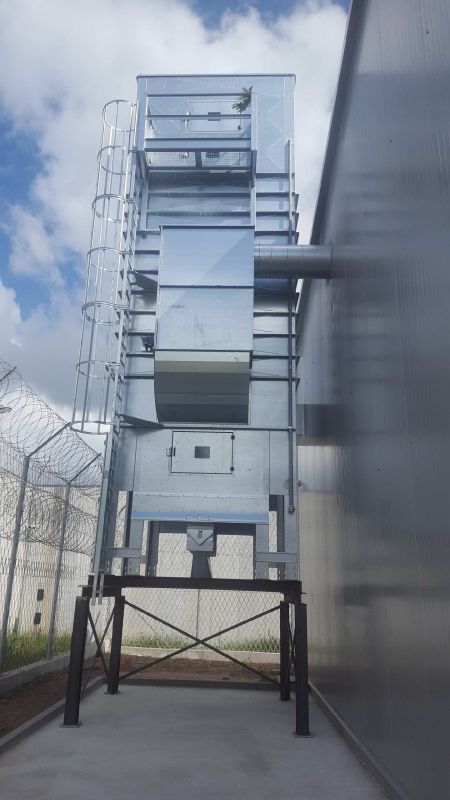

- Complete external filter system included

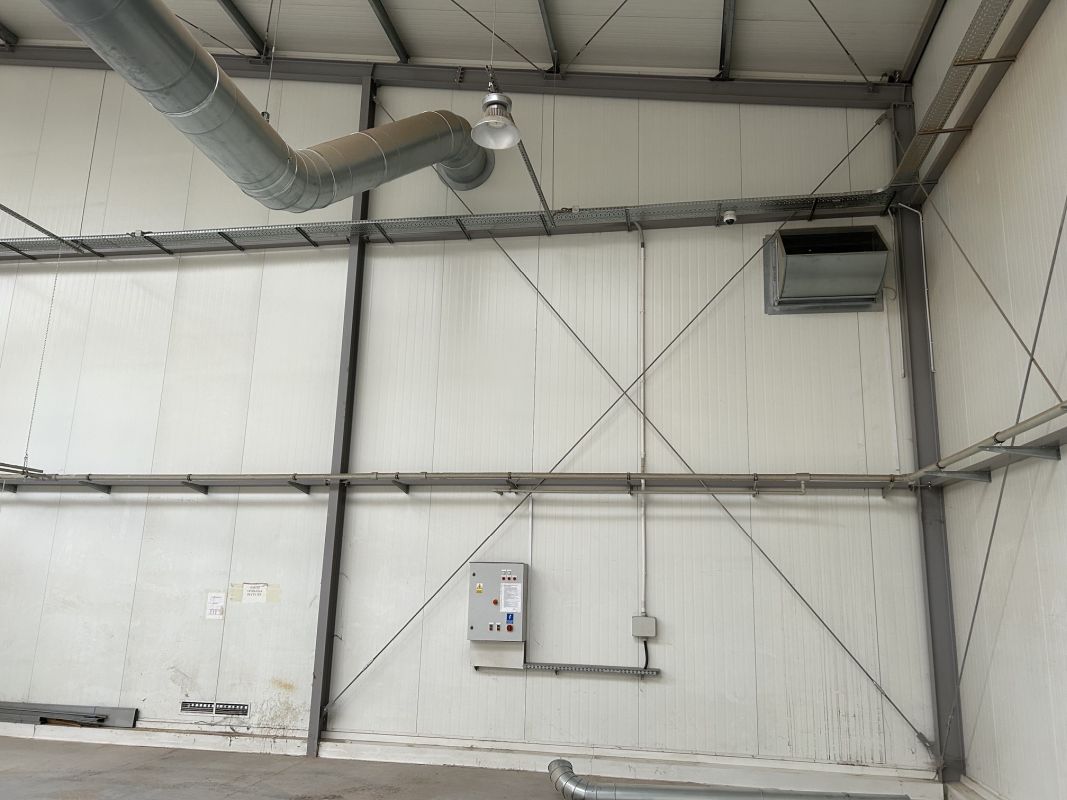

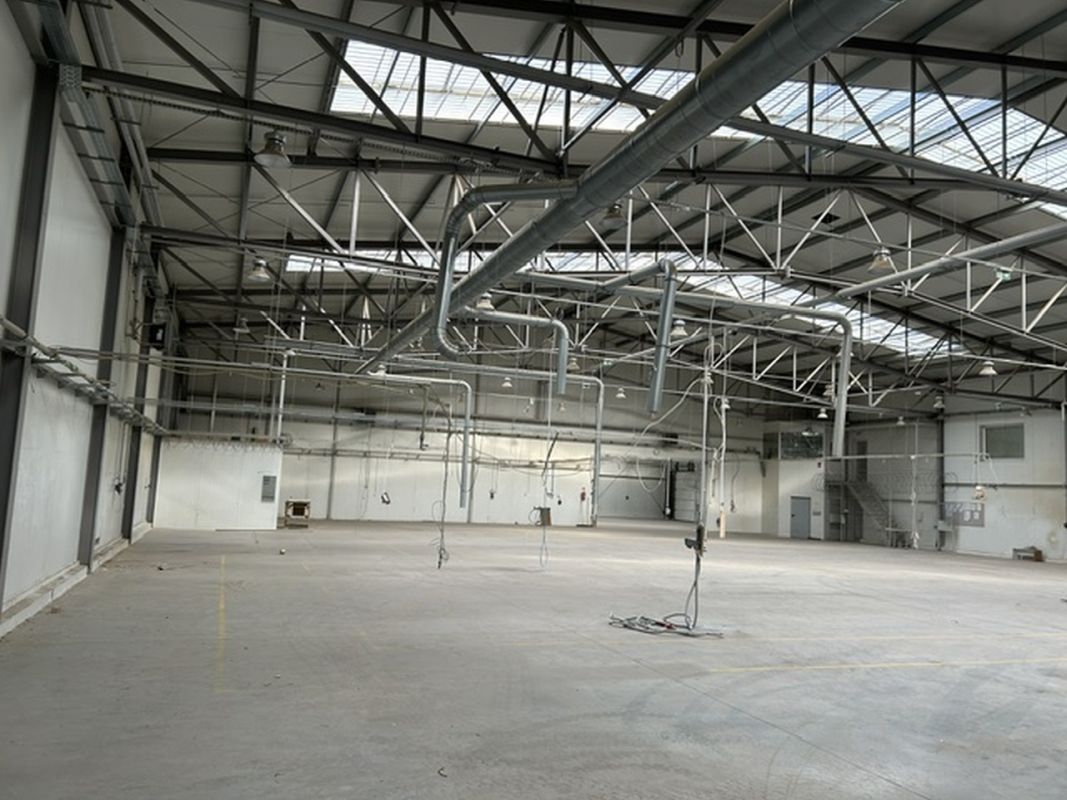

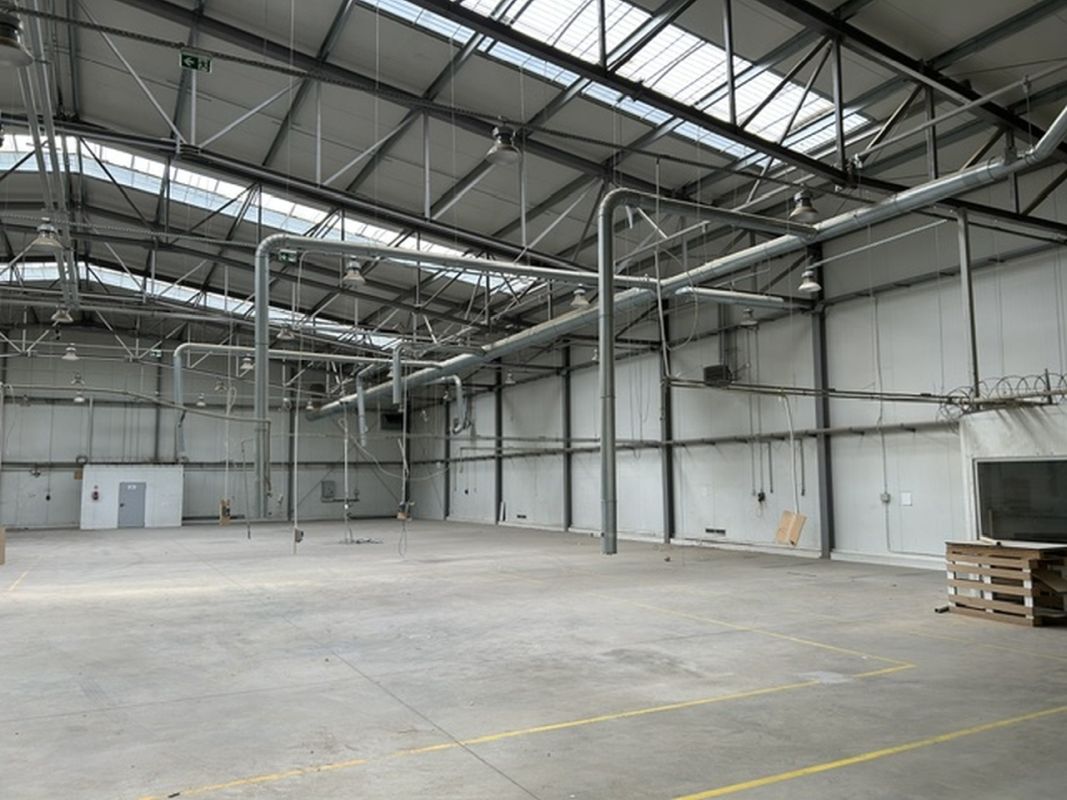

- Internal piping inside the factory included but subject to separate negotiation



Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
