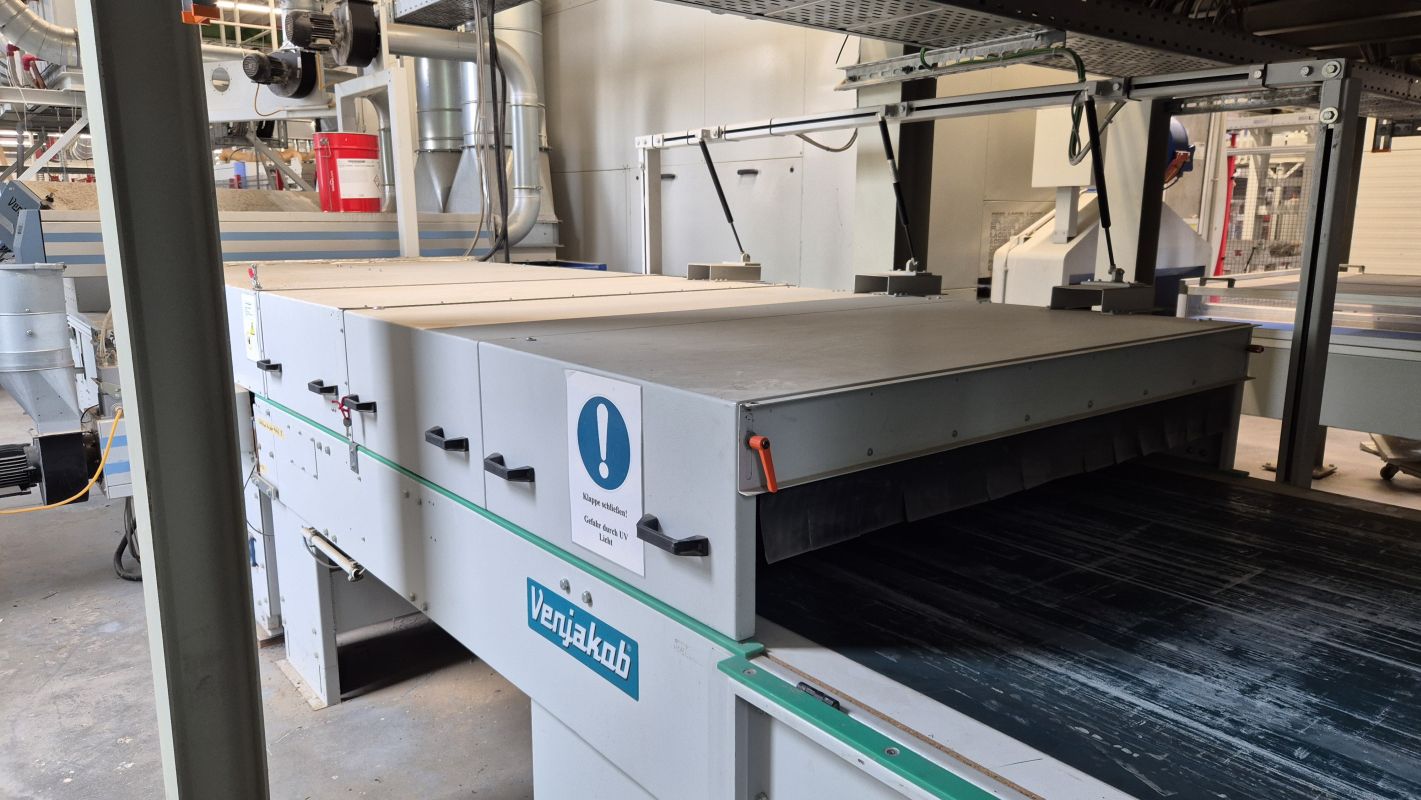

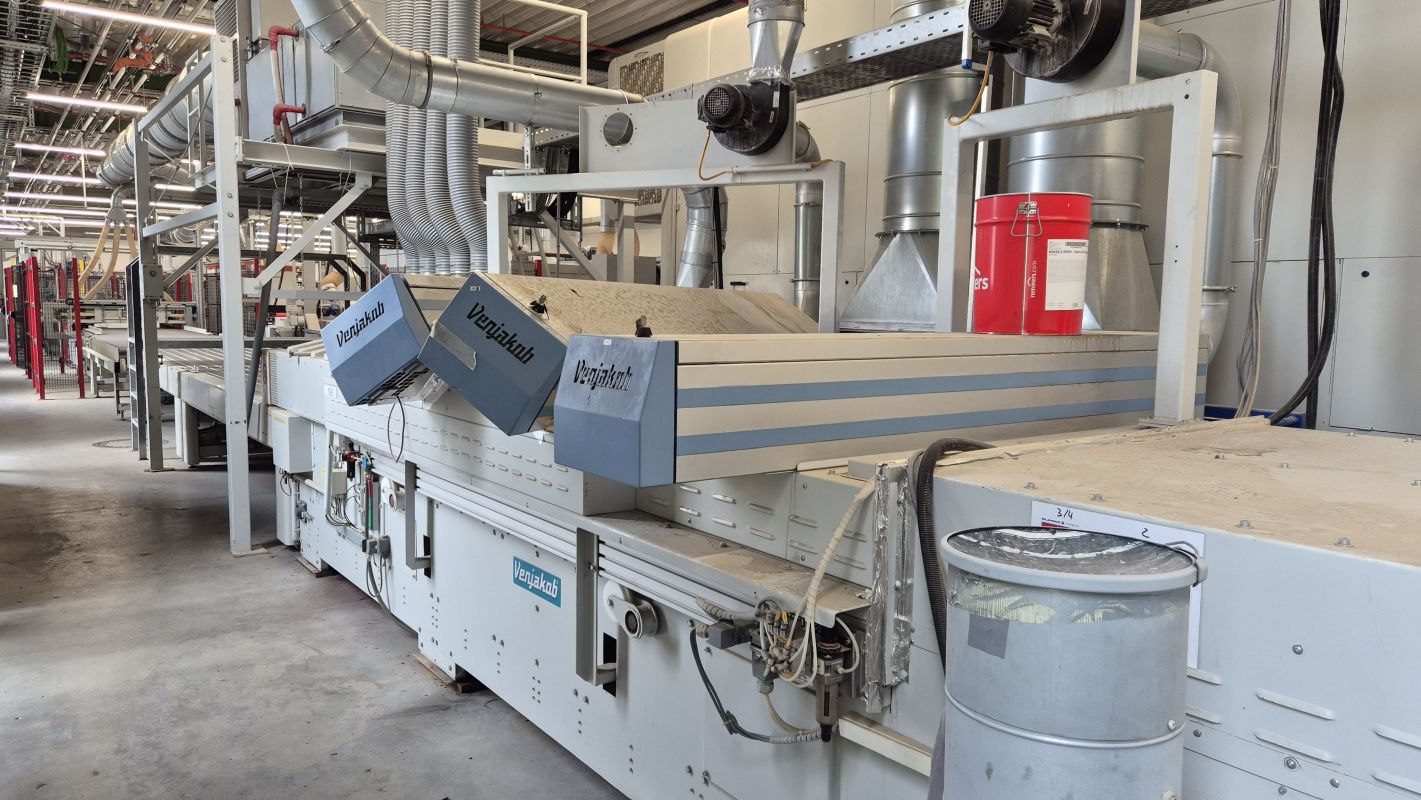

UV Drying Tunnel

UV Drying Tunnel
Brand: Venjakob
Year of manufacture: 2008

Technical data
- Working width: 1300 mm
- Feed speed: 5 m/min
- Adjustable range: 2 – 10 m/min
- Working height: 920+20 mm
- Special passage height during UV operation: 150 mm
- Passage height without UV operation: 200 mm
- Workpiece dimensions: 300 x 50 x 10 – 2600 x 1300 x 150 mm
- Coating media: water-based and solvent-based, clear and pigmented UV coatings
- Infeed conveyor belt

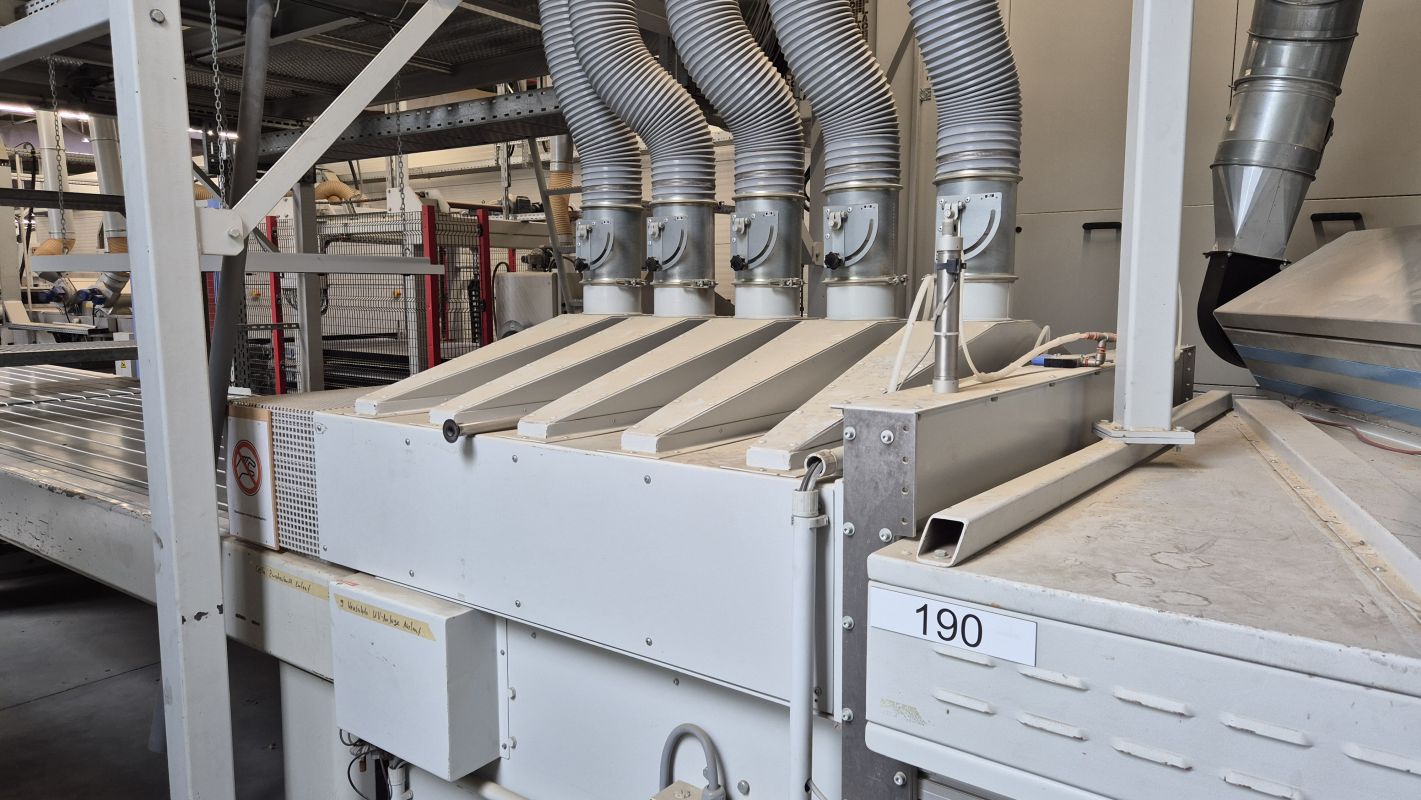

- 4 UV curing lamps (1 at the bottom, 3 at the top)
- Mounted on 2 Venjakob belt conveyors



Note:
The technical data and descriptions are copies of the original order confirmation. This information is provided for informational purposes only and is not binding.
