with milling and gluing unit for butt joint gluing

Tischabmessungen:
- Breite 1.260 mm + 430 mm Verlängerung
- Tiefe 770 mm + Verlängerung 400 mm

The workpiece return enables one-man operation
on edge banding machines.

for right machine

Extended workpiece support left- / right side each 840 mm

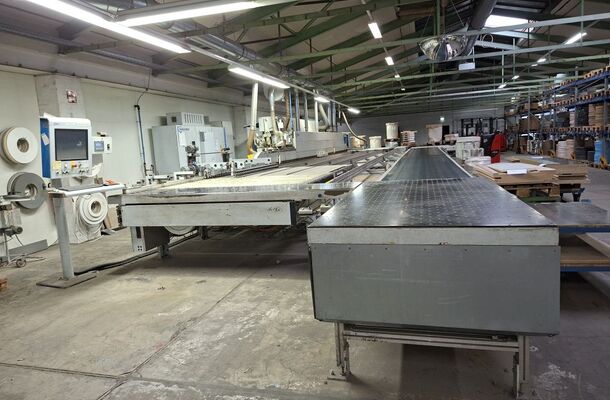

Edge processing line consisting of:
- Optimat TBL 100/10/16
- HOMAG Optimat KAL 330
- LIGMATECH ZHR30 - Boomerang

- Cutting length: 5800 mm
- Cutting width: 5150 mm
- Main saw power: 11 kW
- Scoring saw power: 1.5 kW

- Cutting length: 5800 mm
- Cutting width: 2x2200 mm
- Max. cutting height: 100 mm

Equipment - Processing Units:
- Jointing unit 2x 2.2 kW
- Combi-melt gluing unit
- Automatic edge magazine
- Trimming unit 2x 0.8 kW
- Flush trimming unit 2x 0.7 kW
- Fine planing unit 2x 0.3 kW
- 2 quick-change sets for fine planer
- Automated copy planer unit 2x 0.37 kW
- 2 scrapers
- 2 surface scrapers
- 5-station spray system
- Fine buffing unit with cloth disc 2x 0.2 kW

New machine (was only stay in a school for demonstration purposes)
Number of Axes: 4
X-axis Travel: 4000 mm
Y-axis Travel: 1670 mm
Z-axis Travel: 500 mm
Spindle Power: 12 kW, 24000 RPM

- Saw motor: up to 19 kW at 2930 rpm, 50 Hz
- Scoring motor: 1.5 kW at 2830 rpm, 50 Hz

- Cutting length: 4300 mm
- Cutting width: 4300 mm
- Main motor: 9 kW

Working area
X= 5540 mm
Y= 1570 mm
Z= 350 mm

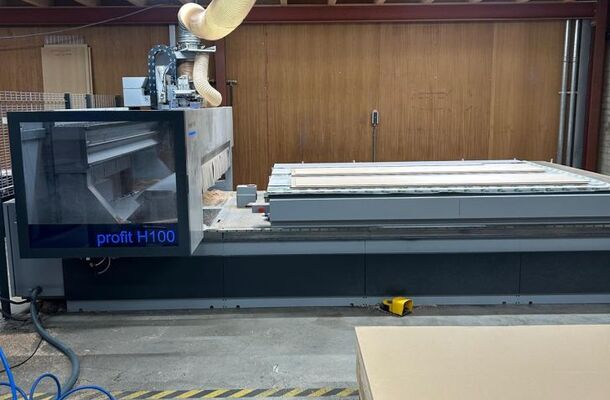

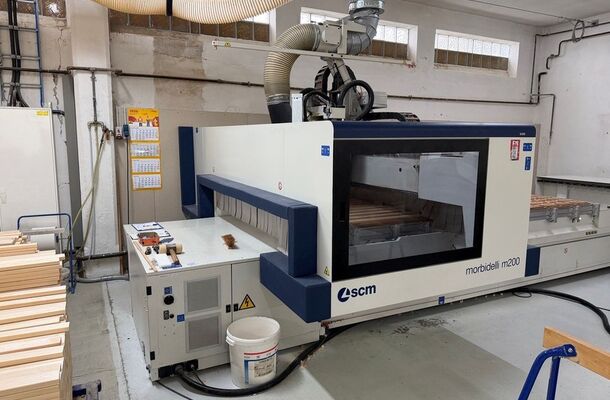

5-axis main spindle
12 vertical drilling spindles
6 horizontal drilling spindles

- Max. working width: 1100 mm
- 3 sanding units

- Joining milling
- Gluing unit for EVA hot melt adhesive
- Pressure zone
- Cutting unit
- Copy milling
- Scrapers
- Buffing unit

- Working width: 1300 mm
- In 2024, the infeed conveyor with 4 brushes and radiant heaters was replaced
