door panel production

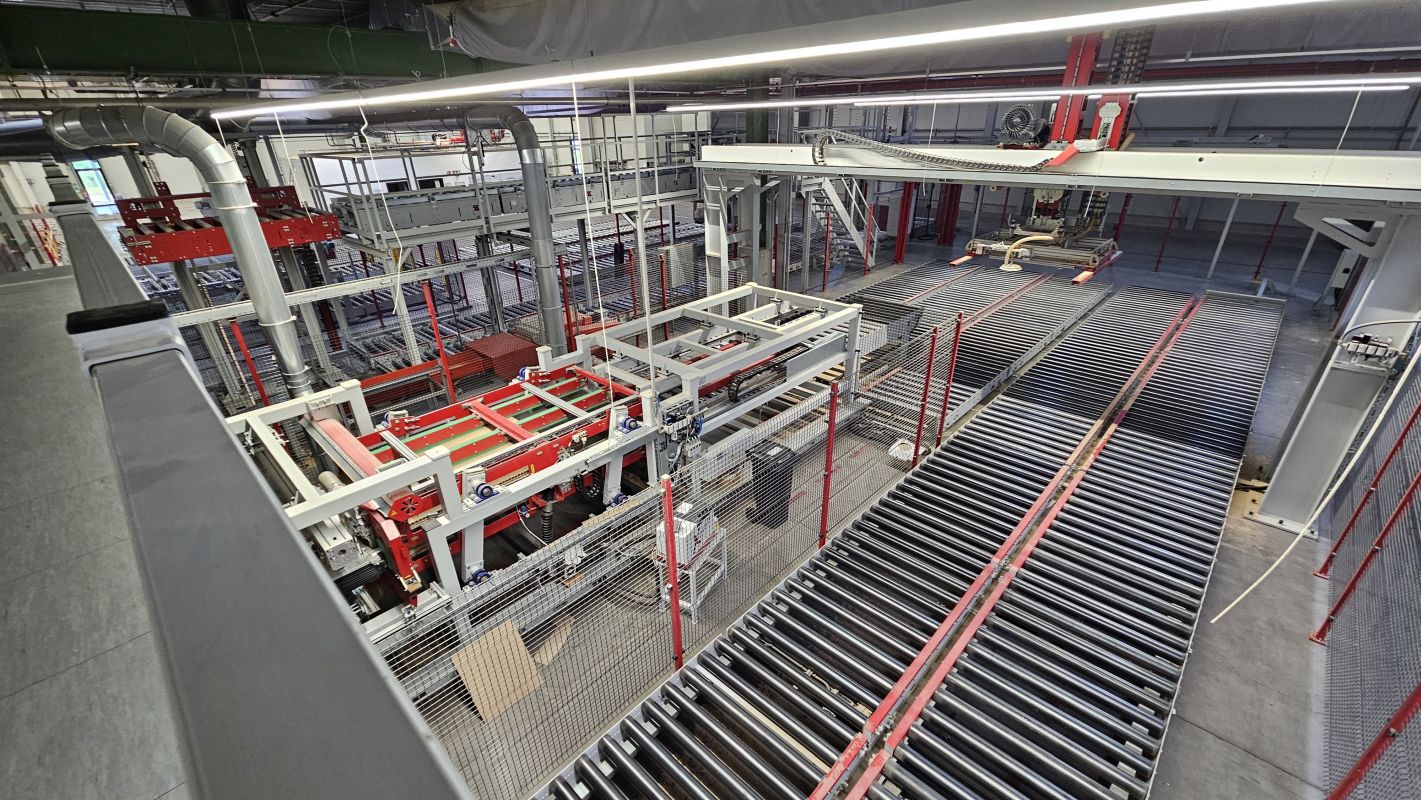

door panel production line


Note: The system began series production in 2023, at that time, all machines were coordinated and refurbished as needed.

Used door panel production line consisting of:
Double-end profiler
Brand: Kraft

Technical specifications
- 2 scissor lift tables
- 2 vacuum grippers
- Feed roller conveyor with belt conveyor
- New Siemens touch control

13 roller conveyor elements
Brand: Kraft

Technical specifications
- Driven, approx. 3000 mm each

Continuous inlay line

Special inlay line

HPL - Gantry feeding
Brand: Kraft
Year of manufacture: 2023

Technical data
- For separating, aligning, and placing HPL

Glue applicator
Brand: Bürkle
Year of manufacture: 1990

Glue applicator
Brand: Kuper
Year of manufacture: 2018

Placing table

Technical data
- Pneumatic clamping (centered on the central axis)
- Device for automatic bar placement
- Fixed stop in the direction of travel to the left of the toothed belt conveyor
- Positioning of the bars at the end stop for transfer to the suction system
- Servo-motor driven and movable on the Y and Z axes
- Pickup of the bars via suction bar
- Vacuum generation via ejector

Stapling Station

Technical Specifications
- Servo-motor-driven width adjustment of the stapling units, centered on the central axis
from: min. 430 mm - max. 1,300 mm
- 4 support brackets for mounting the stapling components and guide units
- 4 pneumatic guide units to hold the stapling units
and control the feed movement / hold-down on the Z-axis.
- 4 feed carriages with pneumatic pressure to secure the slats during stapling
- 4 BEA brand stapling units
- 2 pneumatic end stops

Scoring Saw

Technical Data
- 2 units: Upper saw units (right/left)
- For cutting the ventilation slots.
- Mounted on a linear axis system for manual centering to the cutting width.
- Pneumatic feed of the saw units, sensing the center position of the upper edge.

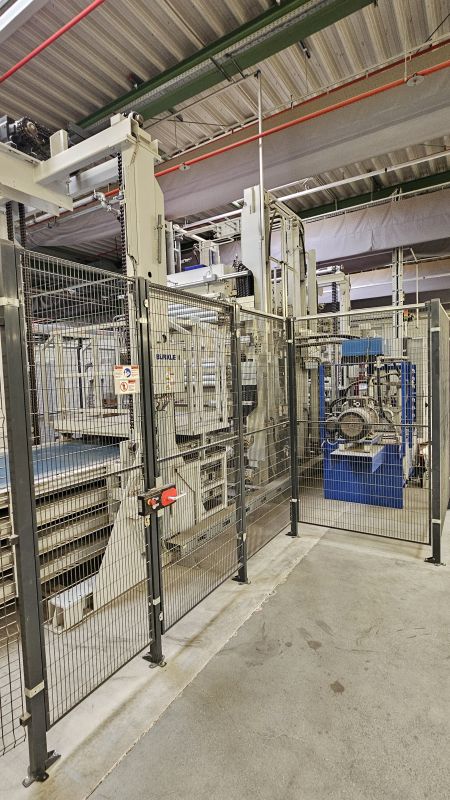

Continuous-feed press
Brand: Bürkle
Type: Optima 1428/50
Year of manufacture: 2017

Technical specifications
- Start of series production: 2023
- 2 x 4 decks with a pressing area of 1400 x 2800 mm
- With automatic feeder, manufacturer: Bürkle
- Unloading device, Bürkle

Trimming station

Technical specifications
- For trimming excess material on the top and bottom edges of doors

Distribution station

Hedgehog buffer

Technical specifications
- For temporary buffering of semi-finished door panels
- Total length approx. 14,000 mm
- Solid steel construction
- Approx. 200 individual compartments

Label printer

Technical data
- Automatic label printer for continuous labeling

Storage and transport system
Brand: Kraft

Technical Specifications
- Powered storage and conveyor roller track
- Roller width: 1000 mm
- Total length: approx. 120 running meters

Horizontal Shredder
Brand: Reinboldt




Note:
The technical specifications and descriptions are copies of the original order confirmation. This information is provided for informational purposes only and is not binding.
