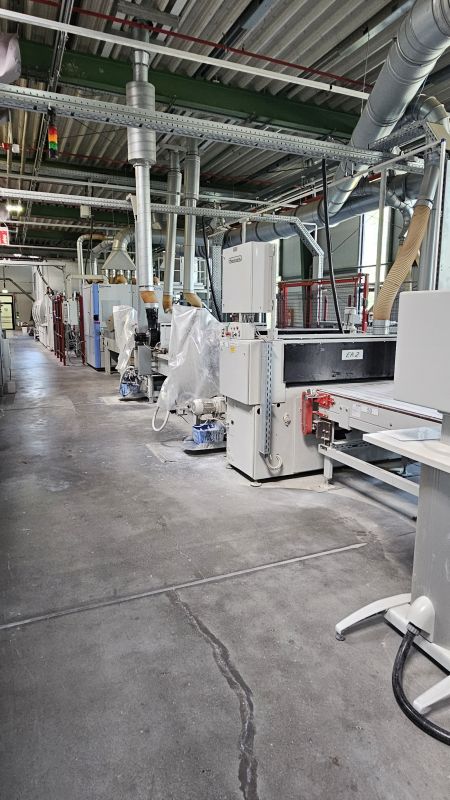

Paint line consisting of:
Vacuum feeding system

Technical specifications
- 2-lane
- Roller width: approx. 1000 mm

Wide-belt sander
Brand: Büftering
Type: Classic 213EB
Year of manufacture: 2000

Technical specifications
- Working width: max. 1350 mm
- Vacuum feed belt
- Electronic sanding shoe

Belt conveyor system
Brand: Belting
Year of manufacture: 2019

Technical specifications
- Dimensions: 6100 x 1000 mm

Dust extraction system
Brand: Heesemann
Type: EA2
Year of manufacture: 1990

Coating machine
Brand: Bürkle
Type: DAL1-1300
Year of manufacture: 1993

Continuous drying tunnel
Brand: Bürkle

Technical specifications
- With UV lamp

Coating machine
Brand: Bürkle
Type: DAL1-1300
Year of manufacture: 1993

UV drying tunnel
Brand: Elmag
Type: Ti166-35+2iVM1-65

Technical specifications
- Equipped with 2 UV lamps

Wide-belt sander
Brand: Büftering
Type: Optimat SCO 313QHQ
Year of manufacture: 2007

Technical Specifications
- Working width: approx. 1350 mm
- Machine equipped with 3 sanding units (cross-longitudinal-cross)

4-deck intermediate buffer

Technical Specifications
- Deck size: 3000 x 1350 mm

Dust extraction system
Brand: Cefla
Type: TN3500/TT
Year of manufacture: 2004

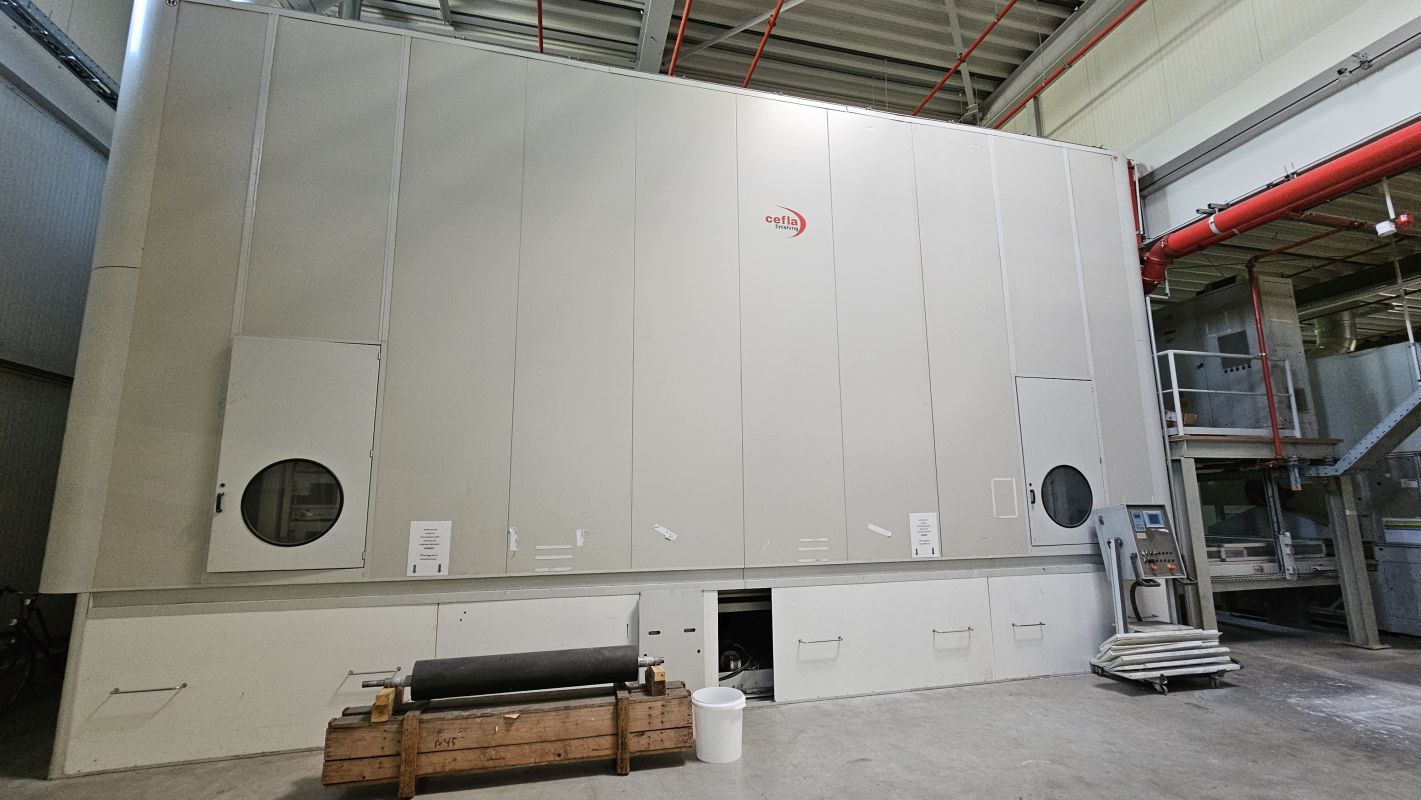

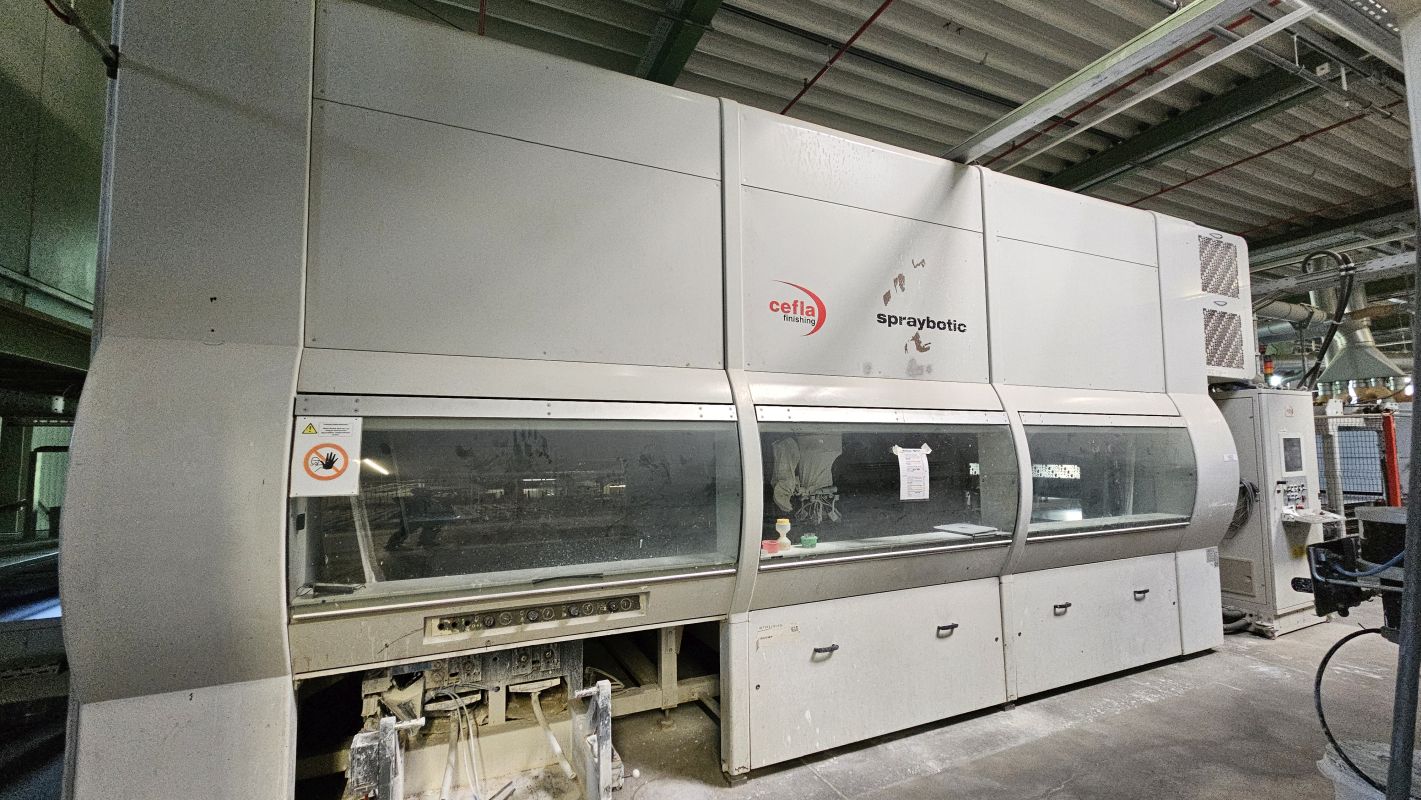

Coating robot
Brand: Cefla
Type: Spraybotic MD
Year of manufacture: 2004

Technical specifications
- Passage width: approx. 1350 mm
- Automatic spray arm with 4 spray heads
- Pump station with 5 Graco coating pumps

Intermediate conveyor
Brand: Cefla
Type: TN3591/TT
Year of manufacture: 2004

Continuous-flow oven
Brand: Cefla
Type: VN 2000/3/7500/300-24
Year of manufacture: 2004

UV Drying Tunnel
Brand: Venjakob
Year of manufacture: 2008

Technical Specifications
- Infeed conveyor belt
- 4 UV drying lamps (1 at the bottom, 3 at the top)
- Mounted on 2 Venjakob belt conveyors

Belt Conveyor
Brand: Cefla
Type: TN3500/E
Year of manufacture: 2004

Technical data
- Conveyor length approx. 3500 mm

Belt conveyor
Brand: Cefla
Type: TT/1V/3750
Year of manufacture: 2004

Technical data
- Conveyor length approx. 3750 mm

Roller conveyor

Technical data
- Roller width: 1700 mm
- Conveyor length: 3750 mm

Edge sanding and brushing machine

Technical specifications
- With alignment table
- 3 sanding units for crosswise and lengthwise processing of door leaf edges

Belt conveyor
Brand: Belting

Technical specifications
- Conveyor length: approx. 4000 mm
- Belt width: approx. 1170 mm

Door leaf turning system
Brand: Kraft
Year of manufacture: 2018


Individual components of the system can be purchased separately as follows.
Vacuum Loading System 10,000.00 €
Bütfering Classic 213EB Wide-Band Sander 12,000.00 €
Belting Belt Conveyor 3,500.00 €
Heesemann EA2 Dust Extraction System 2,500.00 €
Bürkle DAL1-1300 Coating Machine No. 1 7,500.00 €
Bürkle Continuous Drying Tunnel 9,000.00 €
Bürkle DAL1-1300 Coating Machine No. 2 7,500.00 €
Elmag UV drying tunnel 13,000.00 €
Bütfering Optimat SCO 313QHQ 15,000.00 €
4-tier intermediate buffer 10,000.00 €
Cefla TN3500/TT dust collector 4,000.00 €
Cefla Spraybotic MD incl. pump station 50,000.00 €
Cefla TN3591/TT intermediate conveyor 4,000.00 €
Cefla VN 2000/3/7500/300-24 tiered dryer 20,000.00 €
Venjakob UV drying tunnel 13,000.00 €
Cefla conveyor belt TN3500/E 2,500.00 €
Cefla conveyor belt TT/1V/3750 2,500.00 €
Roller conveyor 2,000.00 €
Edge sanding and brushing machine 5,500.00 €
Belting conveyor belt 2,000.00 €
Kraft turning system for door panels (2018) 20,000.00 €
