coating line

coating line

Coating line consisting of:
Gantry feeder
Brand: Kraft
Year of manufacture: 2019

Technical specifications
- With vacuum lift
- 2 feed roller conveyors
- One transport roller conveyor for onward transport

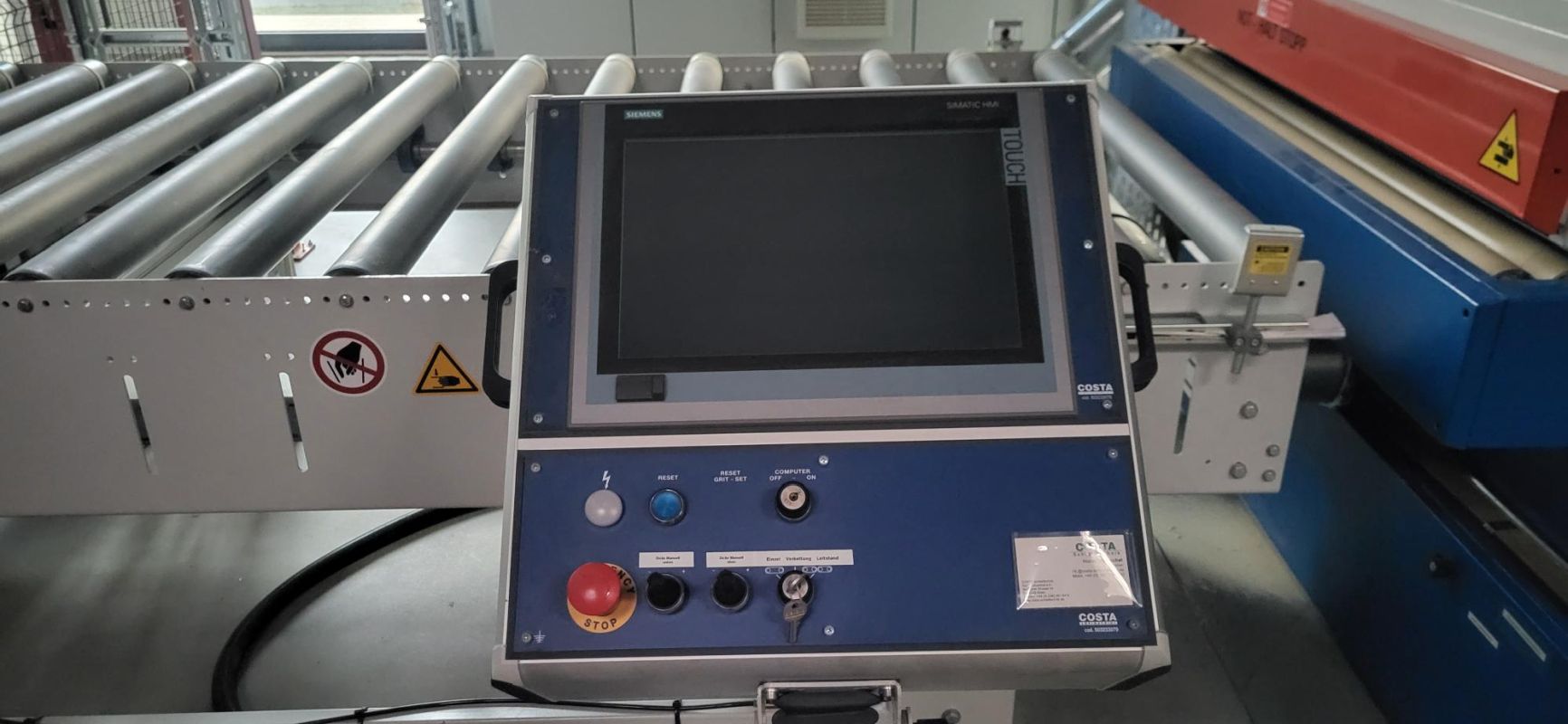

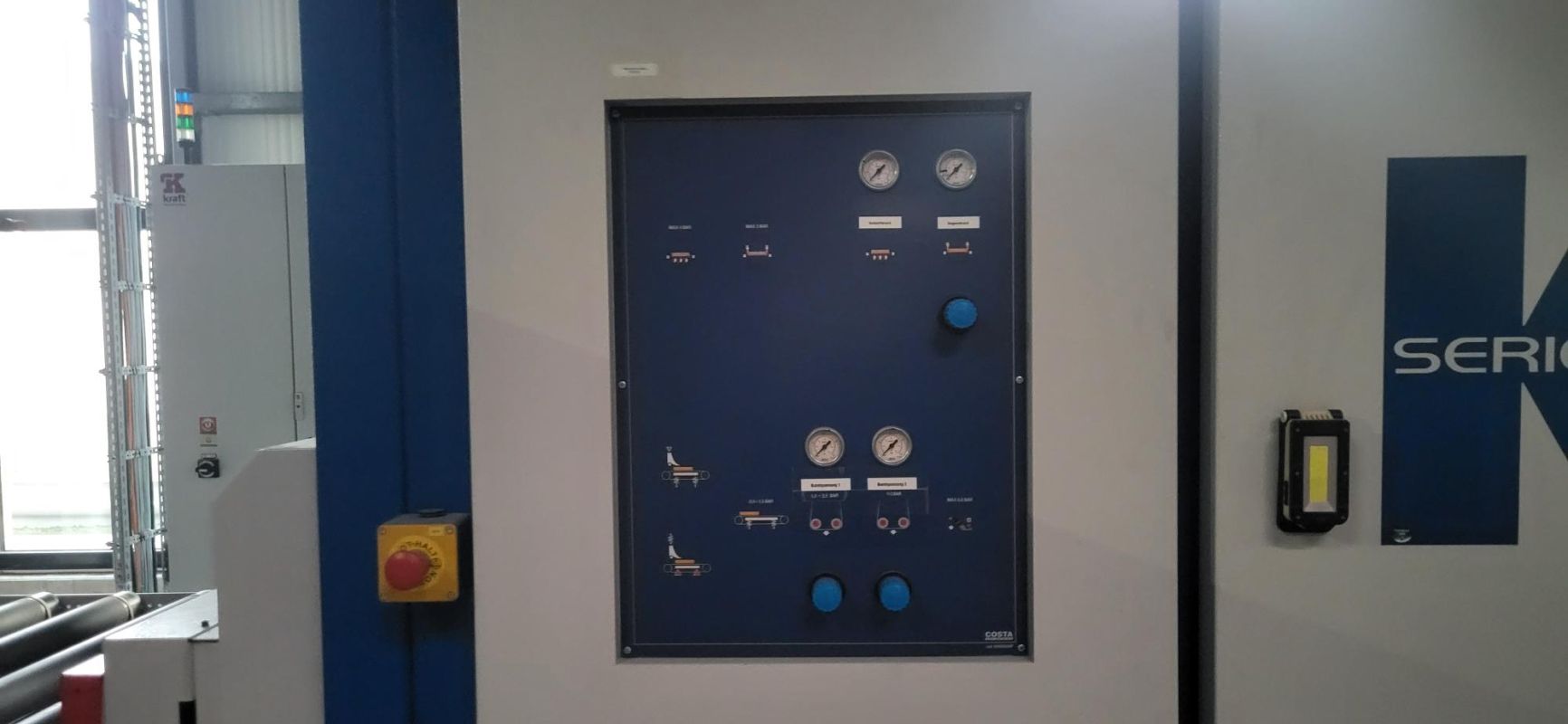

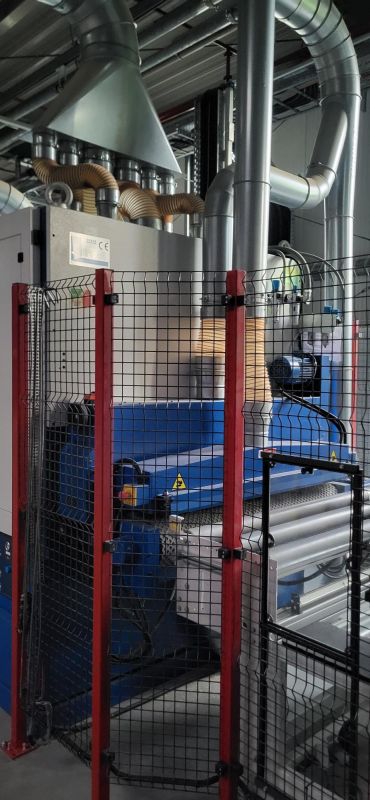

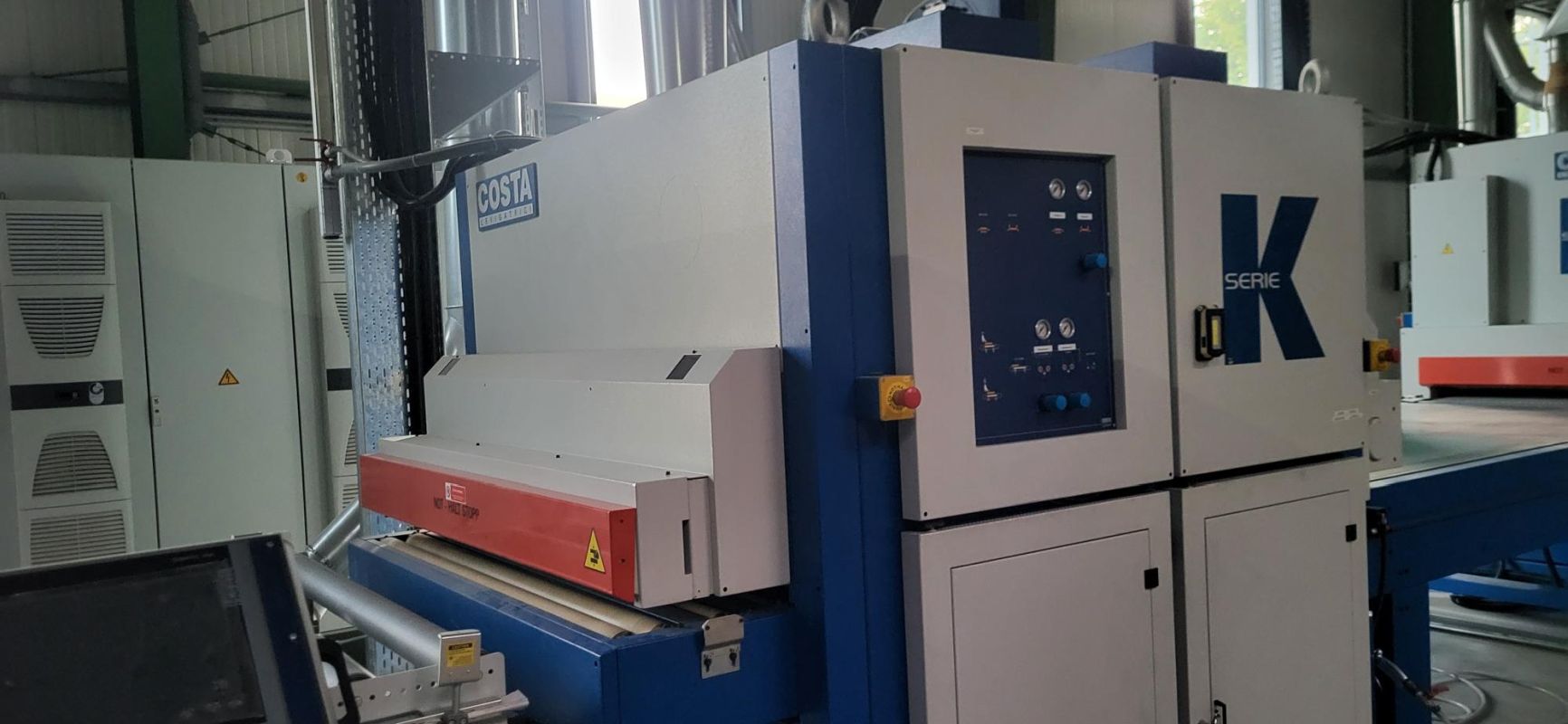

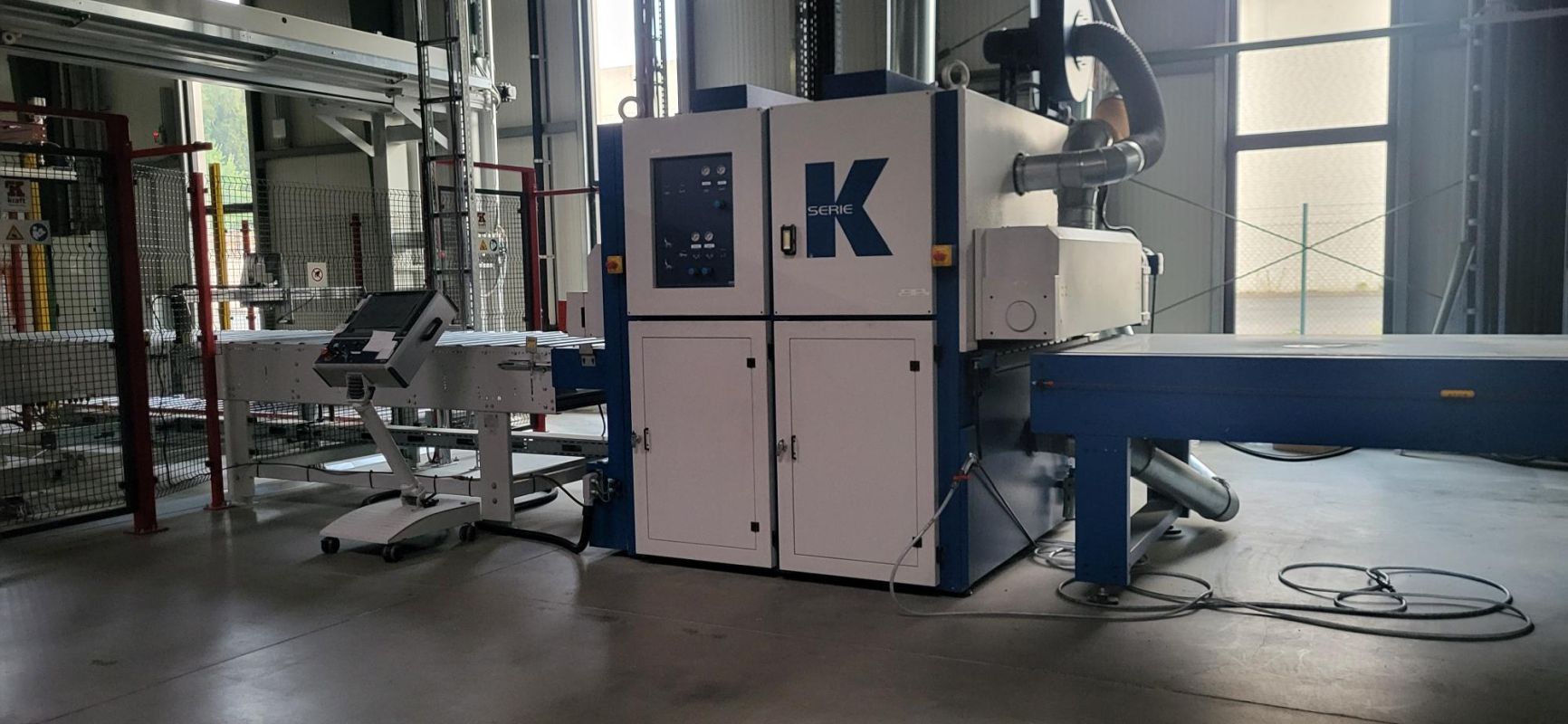

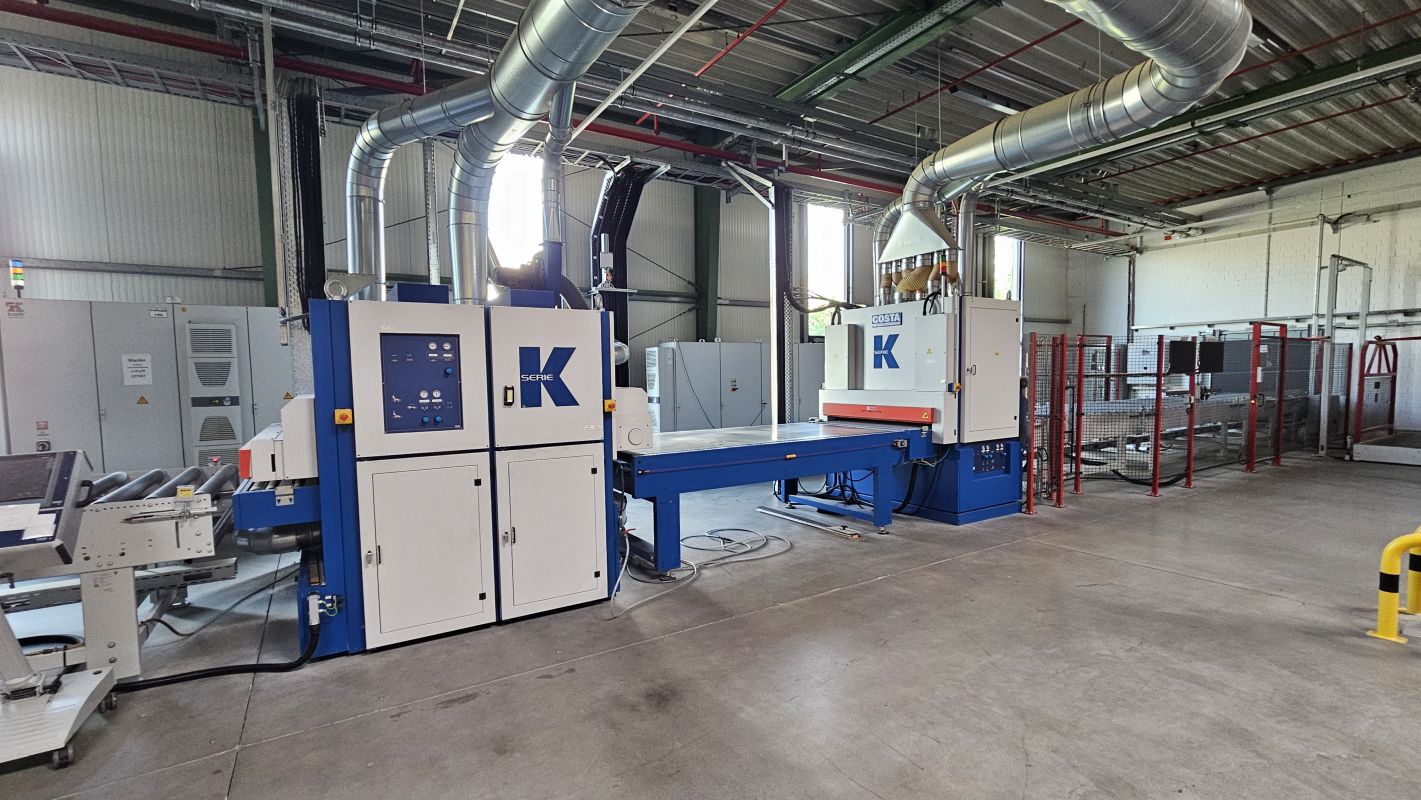

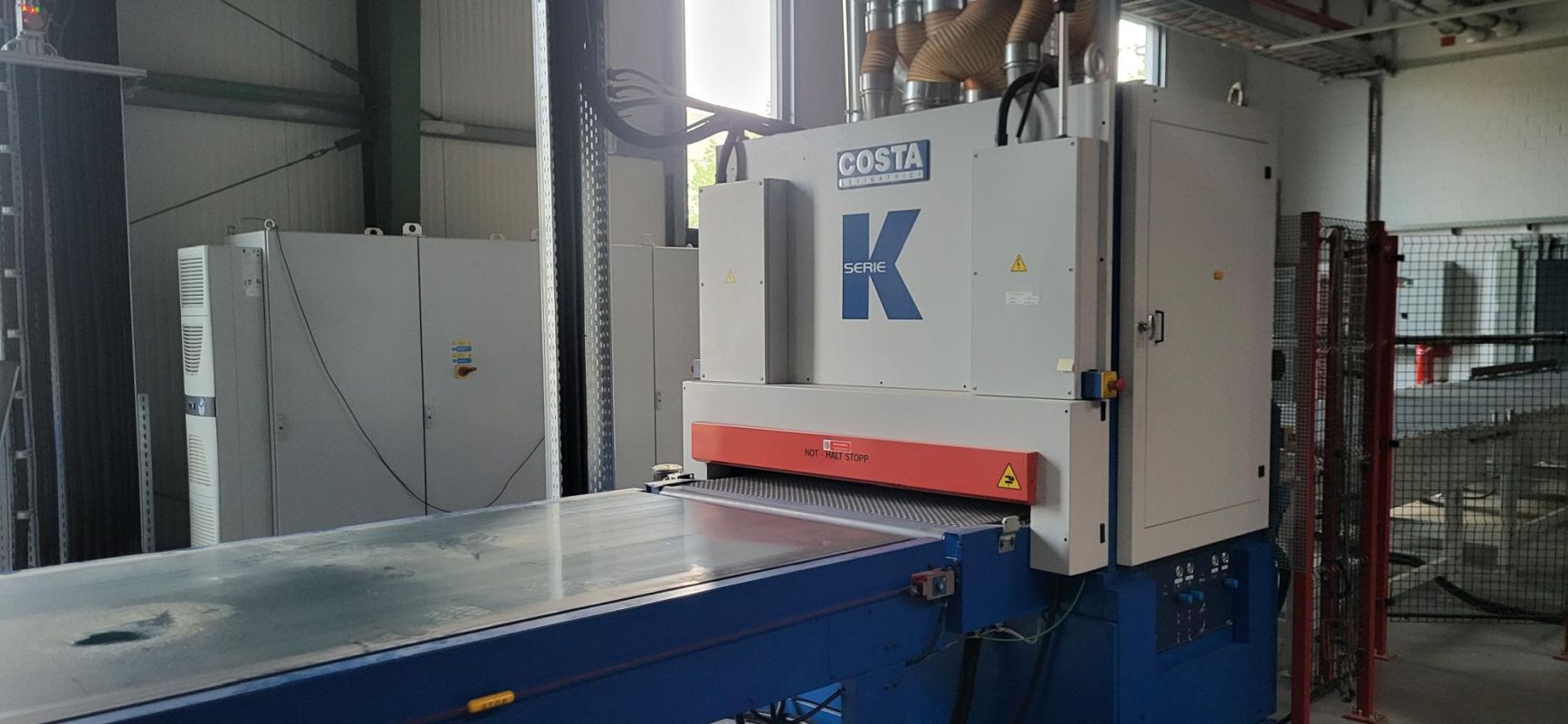

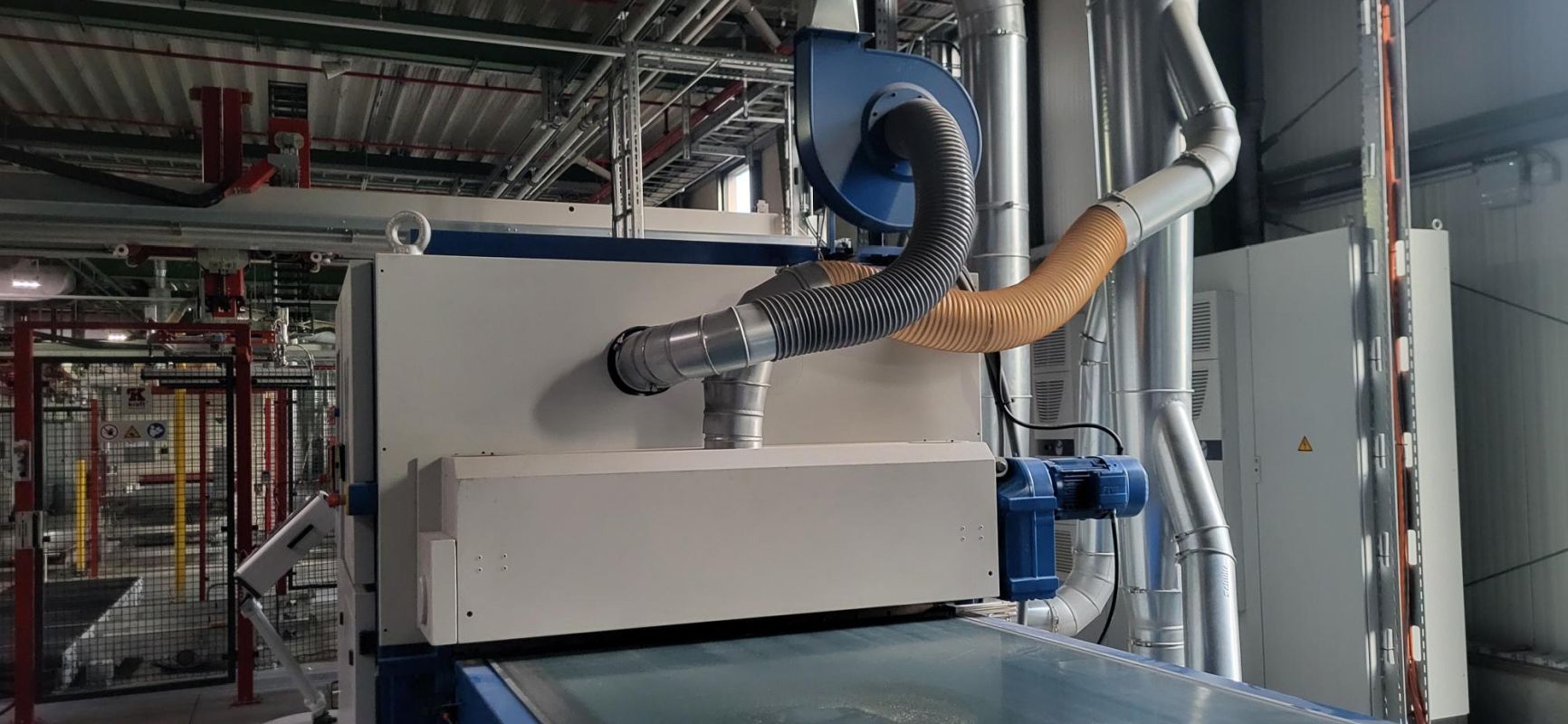

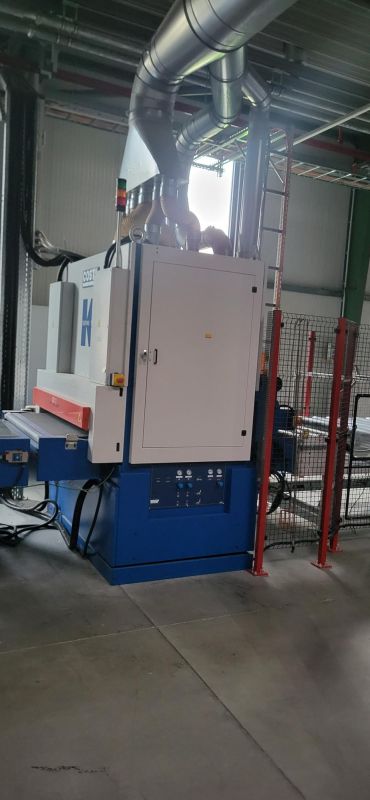

Wide-belt sanding machine
Brand: Costa
Type: KK7 CT CT 1350
Year of manufacture: 2018

Consisting of:

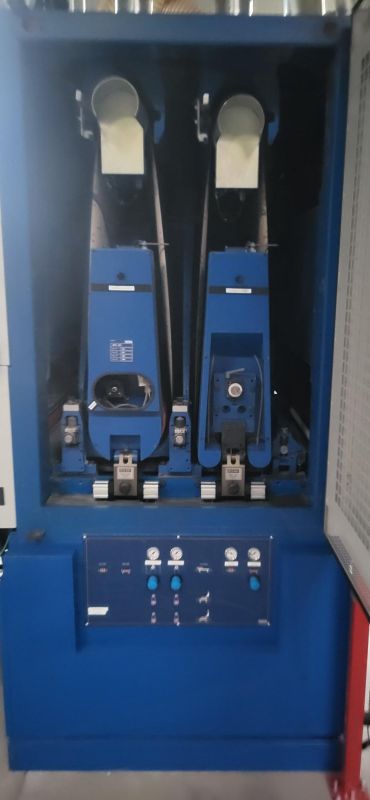

Wide belt sander (sanding from below)
Technical specifications
- Contact roller

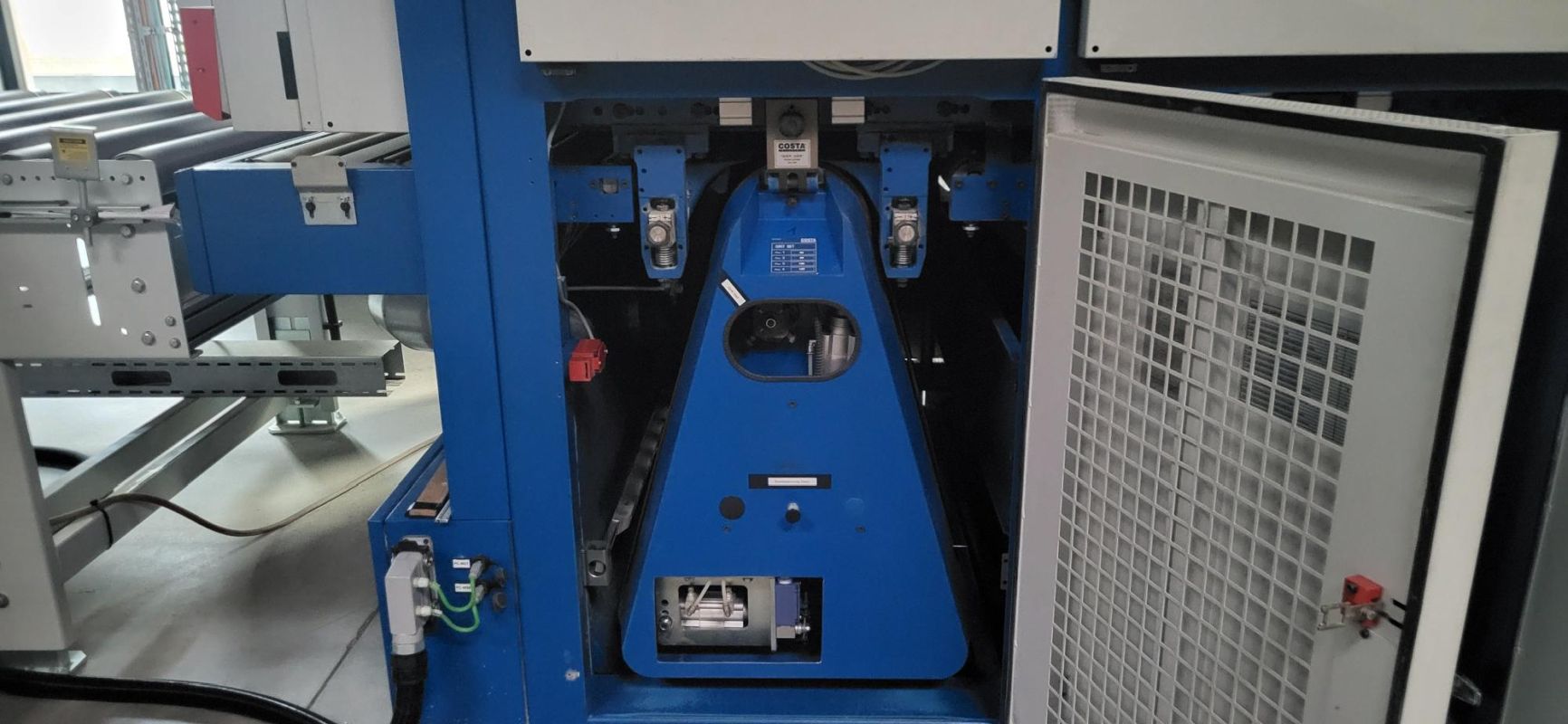

- Electronic shoe sanding unit
- Cleaning brush
- Intermediate conveyor belt, length approx. 3000 mm

Wide-belt sander (sanding from above)
Technical specifications
- Identical equipment

Complete formatting, laminating, and postforming line
Consisting of:
Roller conveyor system
Brand: Kraft
Year of manufacture: 2019

Technical specifications
- 3 individual elements
- Centering station

Double-end profiler
Brand: IMA
Type: FBA/II/740/A
Year of manufacture: 2018

Technical specifications
- Equipped with feed conveyor and alignment station
- Scoring saw at the bottom
- Splitter
- Flazer
- Prism cutter
- Joining cutter
- Cross-edge milling unit
- 3 profiling milling units
- Brushes

Laminating system
consisting of:
Feed conveyor belt
Brand: Kraft
Year of manufacture: 2019

Glue applicator
Brand: Bürkle
Type: DAK1300
Year of manufacture: 1992

Technical specifications
- With infeed table, manufacturer: Kraft
- Steel platform with stairs and various pumps
- Glue melting unit GWK Eco 03A

Infeed Table for Laminating Machine
Brand: Kraft
Year of manufacture: 2019

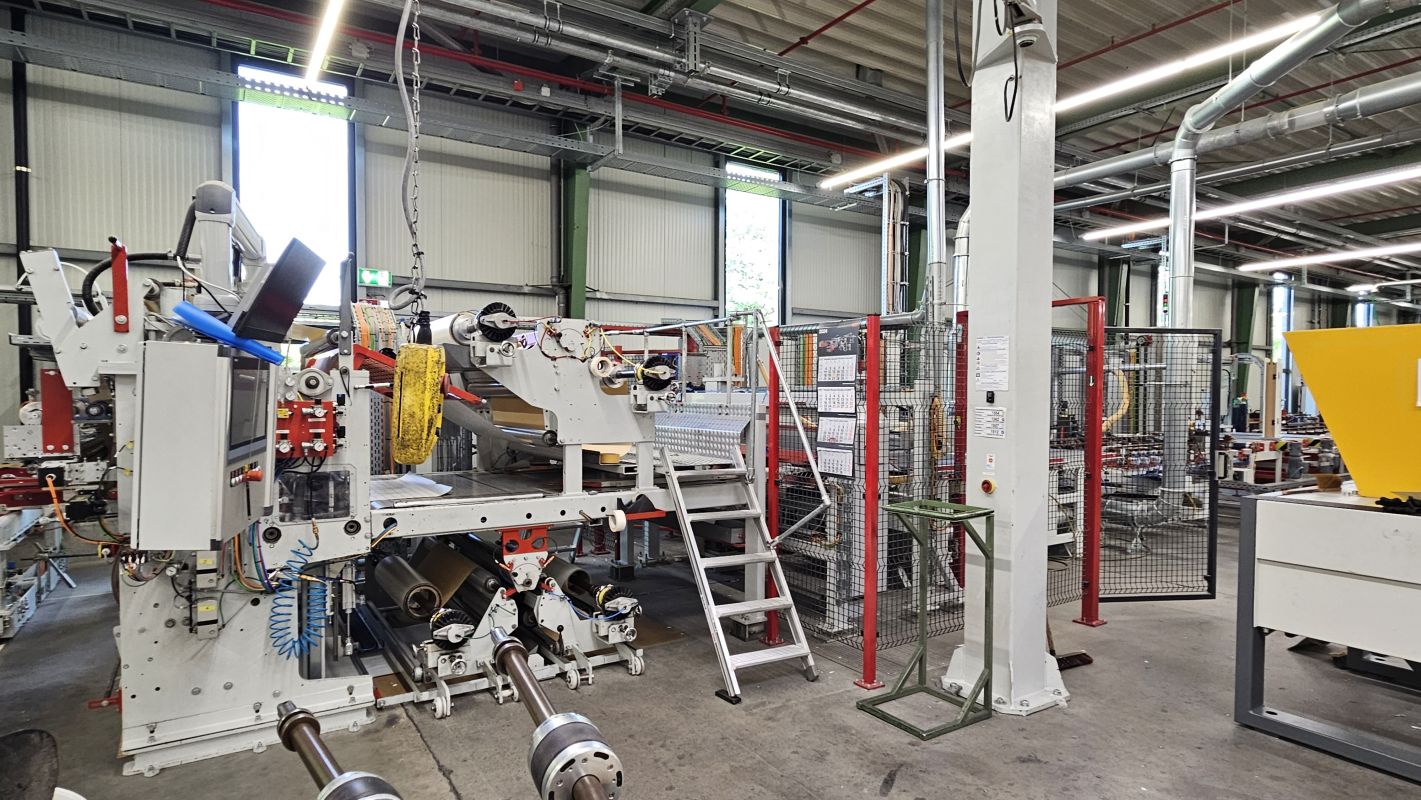

Laminating Machine
Brand: Bürkle
Type: EKMH 1300
Year of manufacture: 1998

Technical Specifications
- New Siemens Simatik KMG Touch control system
- Bürkle GLK calender
- Includes film holder and saw for trimming excess material
- Working width 1300 mm
- 2 GWK temperature control units
- Column-mounted swivel crane for loading paper rolls
- Unloading conveyor belt

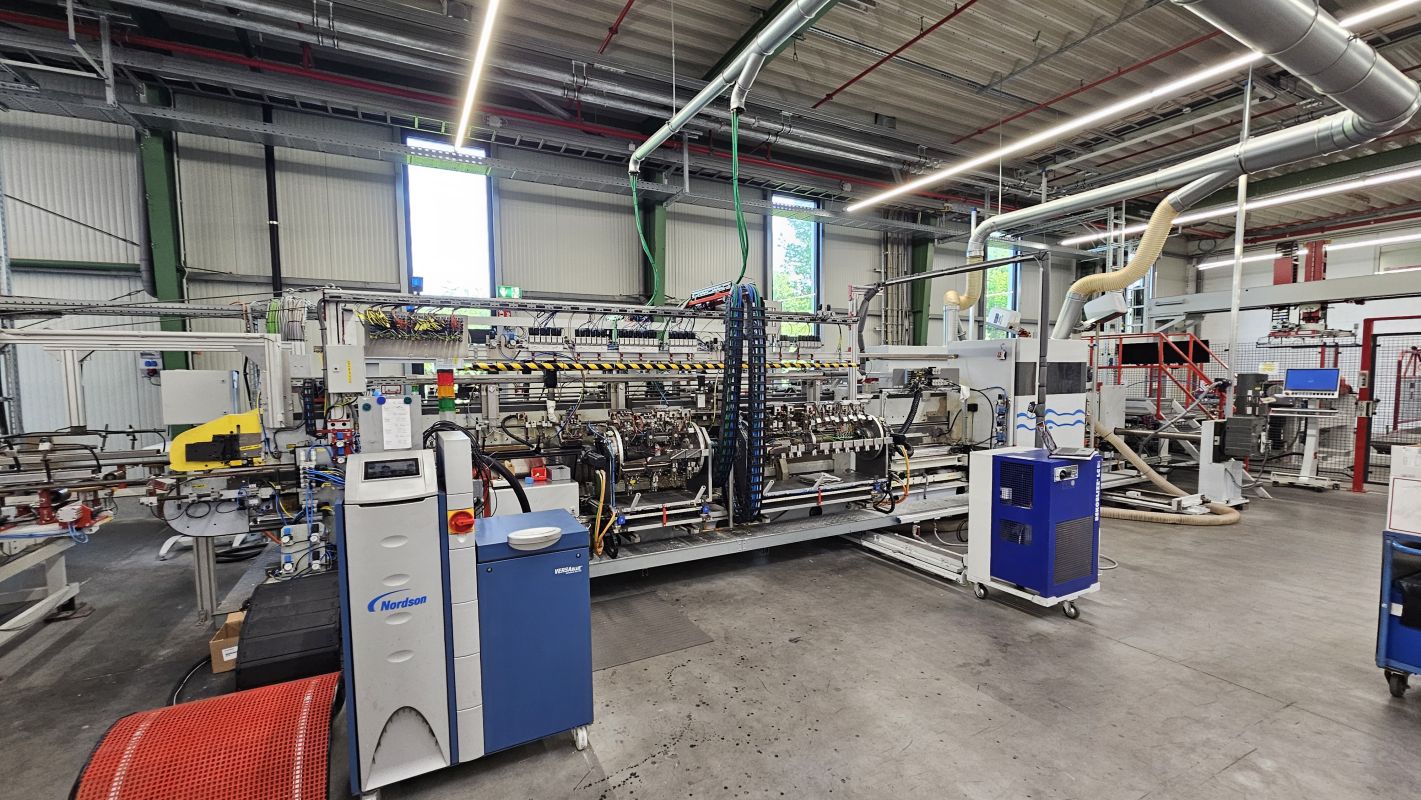

Postforming machine
Brand: Homag

Technical specifications
- Infeed table
- With 2 saw units (horizontal and vertical)
- Intermediate buffer with 4 levels
- Infeed to the postforming machine
- 2 identically configured processing sides with gluing
- PU pre-melting unit Nordson / VersaBlue, built in 2020 and 2004
- Pressure zone with turret magazine for various profiles
- Various milling units and buffing brushes
- 2 cooling units BEKO Bekoblizz LC, built in 2020

Conveyor belt with inspection system
- Swivel arm with vacuum suction cup
- Inspection station for visual inspection of the workpiece

Portal destacking
Brand: Kraft

Technical data
- With vacuum portal and 3 destacking stations

Automatic cross-transport cart
Brand: Kraft
Year of manufacture: 2018

Technical specifications
- Roll width: approx. 1400 mm
- Roll length: approx. 2800 mm

Mobile extraction unit
Brand: Schuko
Type: ObiS3
Year of manufacture: 2015

Technical specifications
- 2.2 kW

FORMAT workshop cart with 6 drawers, 1 hinged door, and vise

4 pallet transport carts
Brand: Premios
Type: Variolift

Technical specifications
- Load capacity: 1200 kg

Tipping skip
Brand: Bauer
Type: WU-R 1500
Year of manufacture: 1993

Technical Specifications
- Capacity: 1.5 m³

Shredder
Brand: Untha
Type: RS30
Year of manufacture: 2021

Technical Specifications
- Power: 22 kW
- Operating hours: 155 h

Industrial vacuum cleaner
Brand: Nilfisk Attix

KF Tools Basiclines workshop cart with 7 drawers

Automatic sizing, edge banding, and processing line
consisting of:
Conveyor and buffer system
Brand: Kraft
Year of manufacture: 2018

Technical Specifications
- Approx. 43 running meters of powered roller conveyor
- Roller width approx. 1000 mm
- 3 automatic cross-feed carriages

Panel processing and edge banding line
Brand: IMA
Type: Combima 17/52/R75/3580:950
Year of manufacture: 2018

Technical data
- Gantry feeding with rotating vacuum gantry
- Equipped with 50 processing units
- Workpiece cleaning at the end
- Gantry system for destacking onto 3 different roller conveyors

Machining center
Brand: Kraft

Technical Data
- Gantry loading with vacuum loader

Automatic hardware insertion machine for doors
Brand: Kraft
Type: CTF91
Year of manufacture: 2006

Automatic drilling machine for door hinges and milling units for lock cases and door handles



Note:
The technical specifications and descriptions are copies of the original order confirmation. This information is provided for informational purposes only and is not binding.
