compressor with refrigerated dryer

compressor with refrigerated dryer
Brand: Atlas Copco

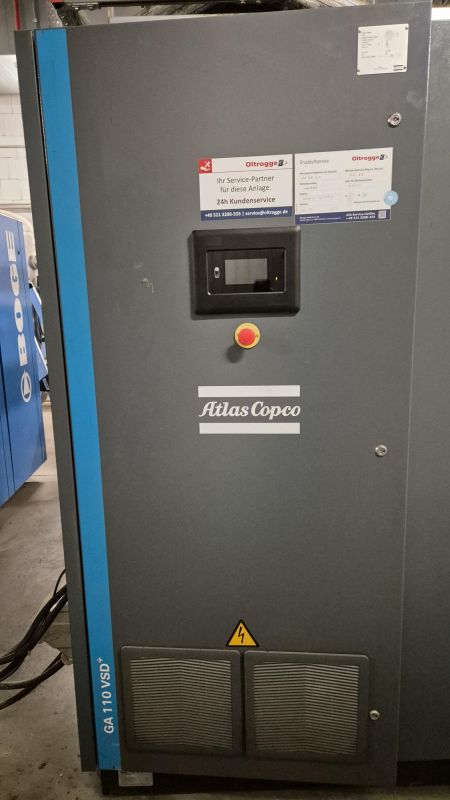

Type: GA 110 VSD+
Year of manufacture: 2021


Technical Specifications
- Power: 114 kW
- Compressed air temperature: 23.1°C
- Sound pressure level: 78 dB(A)
- Oil content: 3 mg/m³
- Cooling air flow - compressor: 5 m³/s
- Cooling air - motor
- Cooling air flow - frequency converter: 0.16 m³/s
- Oil capacity: 106 l
- LxWxH: 2500x1785x2020 mm
- Weight: 2377 kg
- Operating pressure: 6-10 bar
- Maximum installation altitude (above sea level): 1000 m

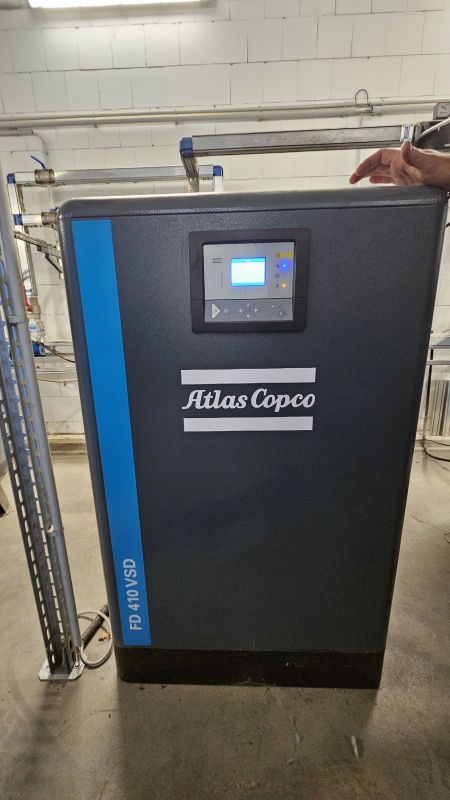

Refrigeration dryer
Manufacturer: Atlas Copco
Model: FD410VSD
Year of manufacture: 2021



Note:
The technical specifications and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
