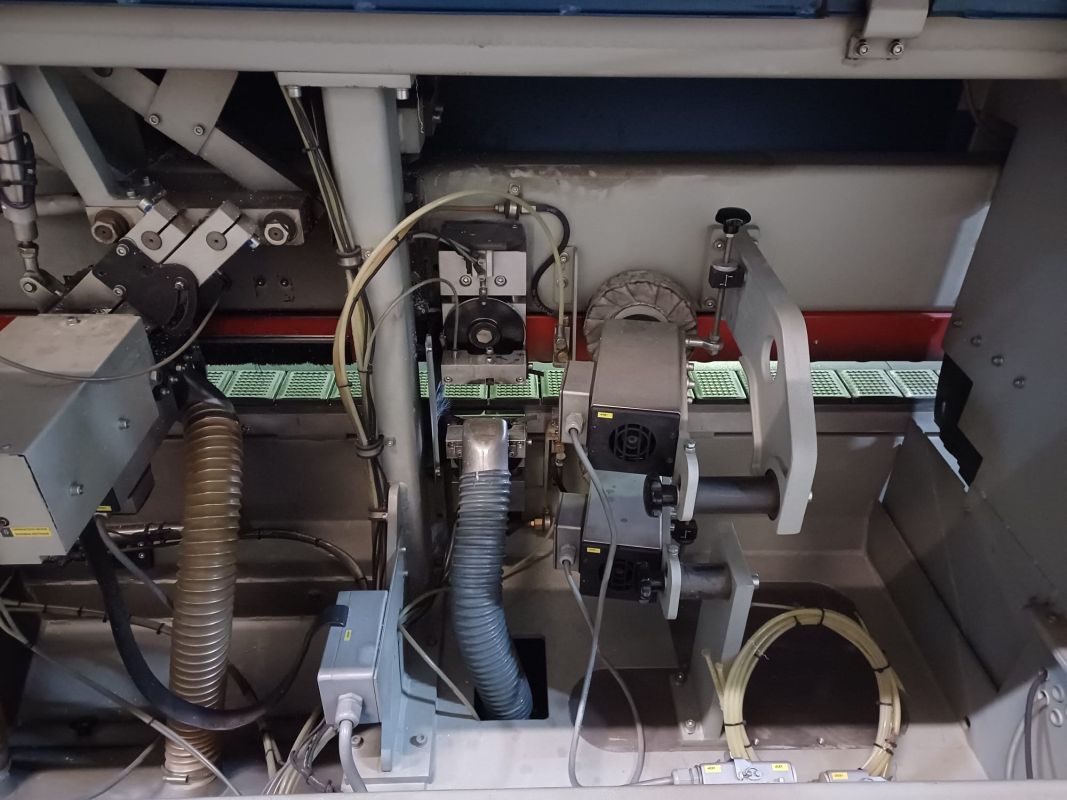

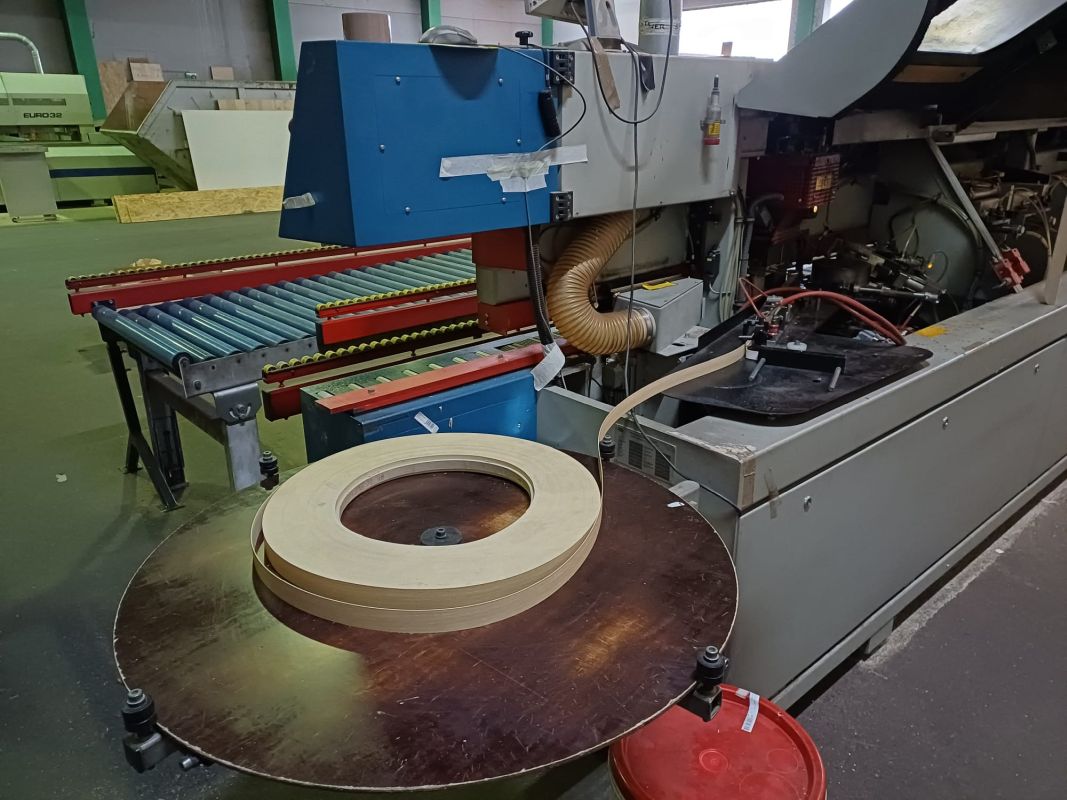

edge banding machine

edge banding machine
Brand: OTT
Type: Twister


Technical data:
Adhesive application: Hot-cold melt adhesive process Application roller with synchronous and counter-rotation
Edge thickness: 0.3-10 mm
Workpiece thickness: 8-60 mm
Workpiece width: 70 mm - minimum
Workpiece length: 150 mm - minimum
Operating pressure: 6 bar
Feed power: 3.0 kW
Feed speed: 14-20 m/min.
Electrical connection: 3x 400V, 50Hz
Extraction: at 20 m/sec. 1x Dm 180 = 35 m³/min.
Air speed: 20 m/sec. - minimum
Compressed air consumption: 300 liters/min. (approximate value)


Equipment - processing units:
Joining:
- 2x2.2 kW, n=14600,250 Hz Two application-controlled working spindles.

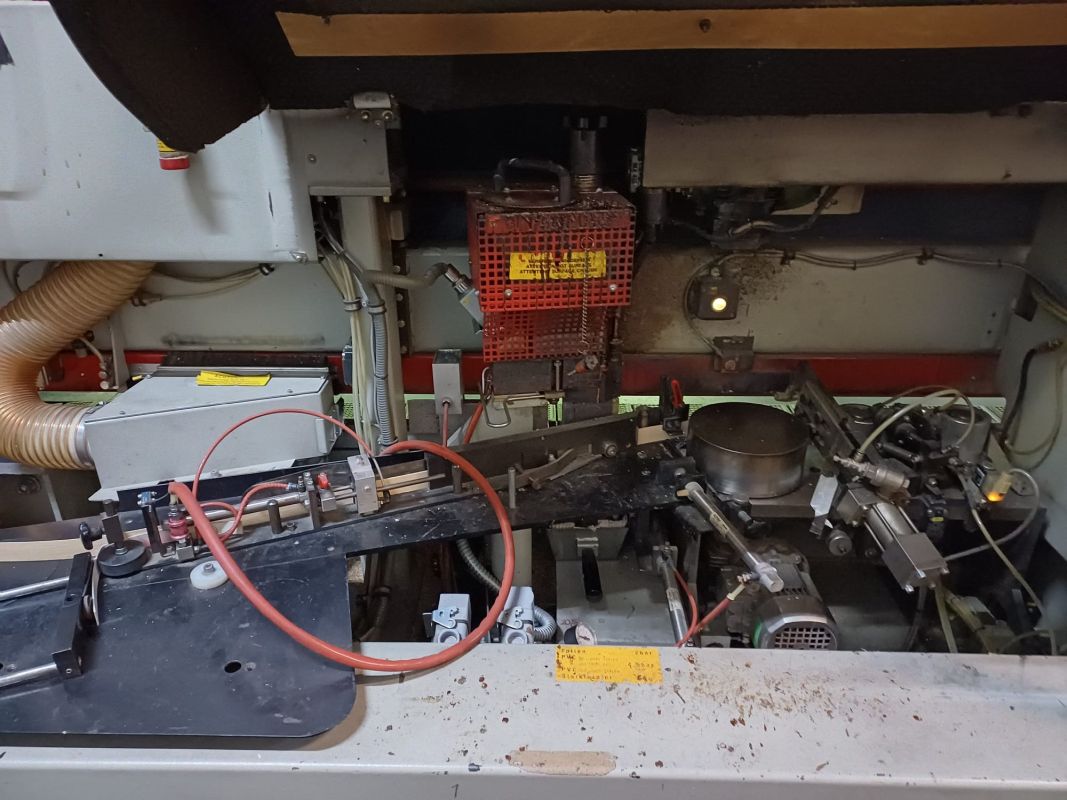

Combi-melt gluing unit:
- Top-mounted gluing unit Changeable hopper
for processing EVA, PUR hot melt adhesive or standard cleaning granulates, hopper volume 2.5 l
Akm:
- Automatic edge magazine with optical monitoring for strip edges in fixed lengths
Capping:
- 2x 0.8 kW, n=12000, 200 Hz, automatic swivel 0°/5° 2 HM saw blades Dm 140x3.2x16, z=34
Flush milling:
- 2x 0.7 kW, n= 12000, 200Hz, single-sided probing, with 2 carbide-tipped indexable knife heads HF70, Dm 70x20x16, z=4
Fine milling machine (bevel 15°/30/45°):
- 2x0.3 kW n= 12000, 200 Hz, double-sided probing, with 2 carbide indexable insert cutter heads HF70, Dm 70x20x16, z=4
AWSR (radius R2-R5):
- 2 quick-change sets for fine milling cutter, 2x 0.3 kW, with 2 carbide indexable insert cutter heads AR73x 16x16, z=3, R2-R5
Akf:
- Automated copy milling with two separate working spindles for machining: End faces and longitudinal radii. Motor power: 2x0.37kW, 12000 rpm Tools: R1 - R3
Scraper blade:
- 2x carbide scrapers, automatic feed
Surface scraper:
-2 carbide scrapers, with fine adjustment device
PU set:
- 5-way spray device, 2x release agent, 1x lubricant, 2x cleaning agent, fine buffing device with cloth disc
Edge cleaning:
- 2x 0.2 kW, n=2800,50Hz, oscillating brushes


Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
