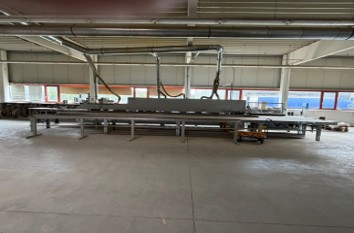

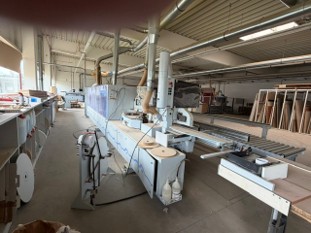

edge banding machine with return feed

edge banding machine with return feed
Brand: Homag
Type: KAL 370
Year of manufacture: 2016


Technical data
- Feed: Continuously adjustable, 18-20 m/min
- Fixed stop on the left
- Workpiece thickness: 8-60 mm
- Workpiece overhang: 30 mm
- Feed lock
- Future Package 5
- Film/high-gloss package (bottom)
- Sliding carriage
- Workpiece alignment at the infeed
- Workpiece support with roller guide
- Infeed stop
- Release agent spray unit (top/bottom)
- Jointing milling unit
- I-System DIA joint milling set Ø60
- Workpiece preheating up to 60 mm workpiece thickness
- Gluing unit
- Application unit QA60, PU60, QA60
- Edge magazine
- Pressure zone
- Lubricant spray unit (top, bottom, side)
- Trimming unit HL81 (bevel/straight) 0.8 kW
- Pneumatic adjustment for flush/overhang trimming
- Pre-milling unit BF10
- Profile milling unit FK11
- Standard planing unit SF21
- Multi-scraper MN21 automatic Ambition
- Glue joint scraper FA20 Basic
- Automatic adjustment of glue joint sensing FA20
- Sanding unit FA06 top/bottom
- Powercontrol PC23 Powertouch
- Software package WoodComander

return feed
Brand: Homag
Type: TFU140/L/20/08/095



Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
