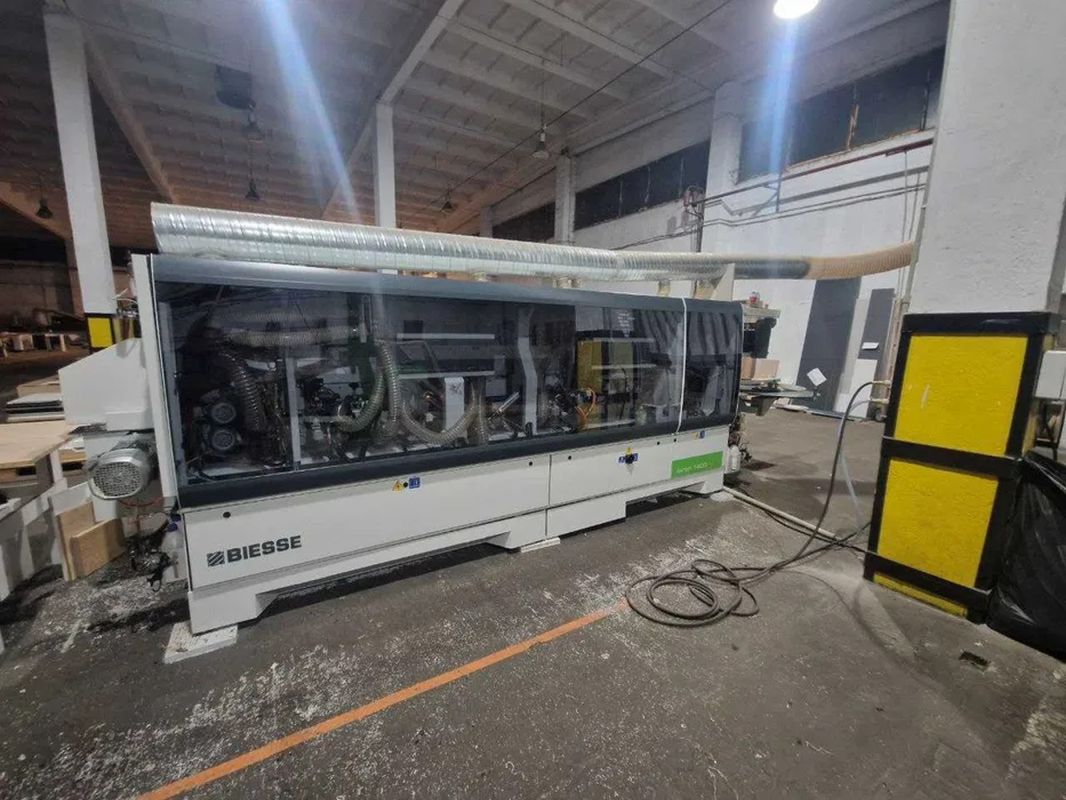

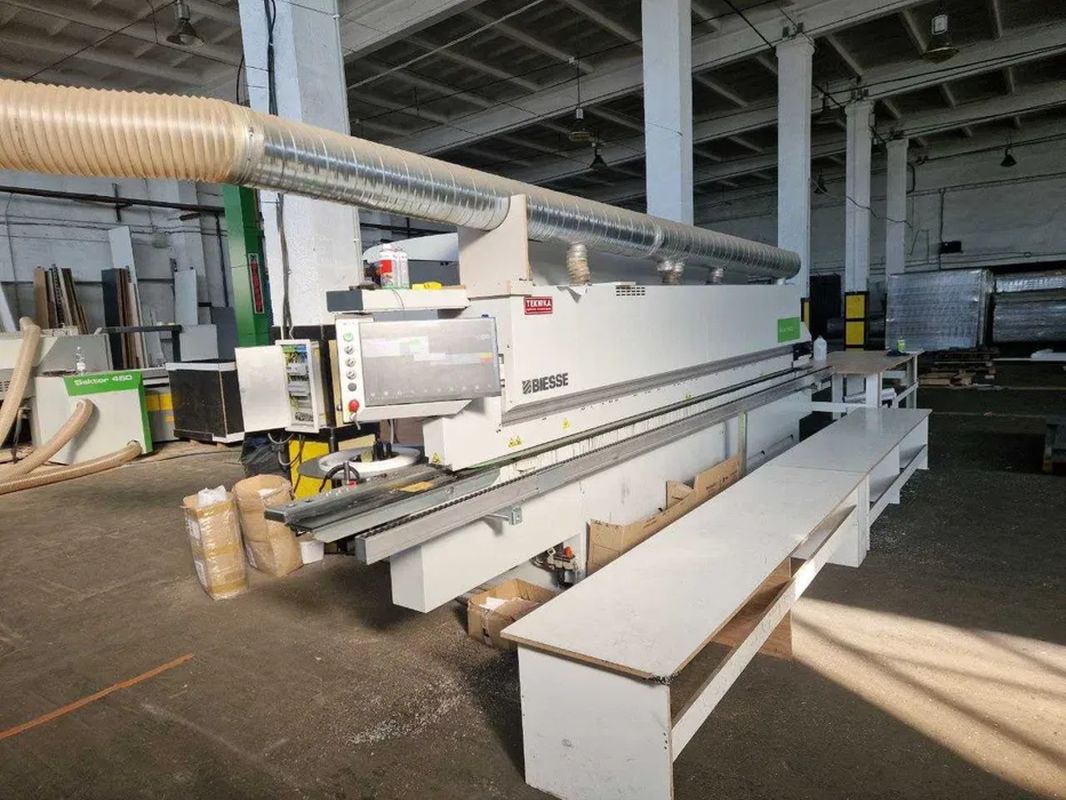

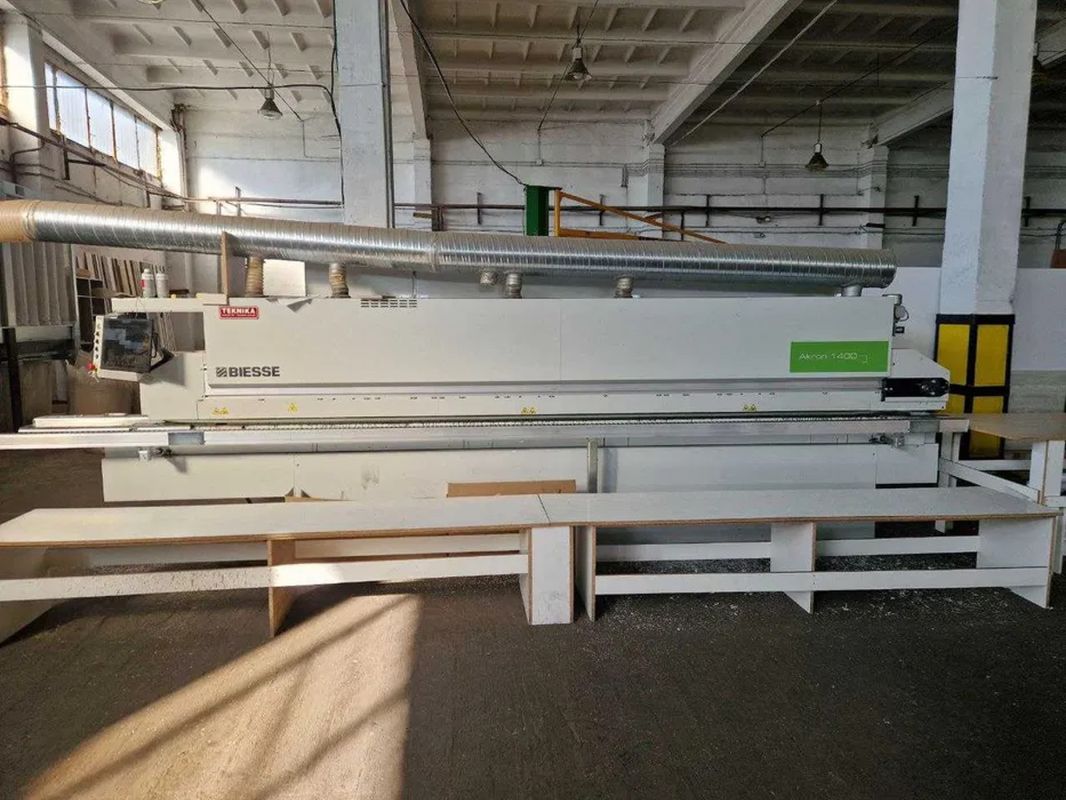

edge banding machine

edge banding machine
Brand: Biesse
Type: Akron 1440 A
year of manufacture: 2023


Technical Data
- Panel height*: 10-60 mm
- Edge height: 14-64 mm
- Roll edge thickness: 0.4-3 mm
- Strip edge thickness**: 0.4-12 mm
- Panel overhang beyond the chain: 25 mm
- Panel length: 140-3200 mm
- Minimum panel width (with a panel length of 140 mm): 85 mm
- Minimum panel width (with a panel length of 250 mm): 50 mm
- Chain feed speed: 12 m/min
- Distance between panels**: 450-650 mm
- NC axis package for automatic machine setup
- Return conveyor installation kit

* Minimum panel height: 8 mm with a maximum edge thickness of 1.5 mm.
** Depending on the selected working units. Maximum permissible feed speed: 12 m/min.

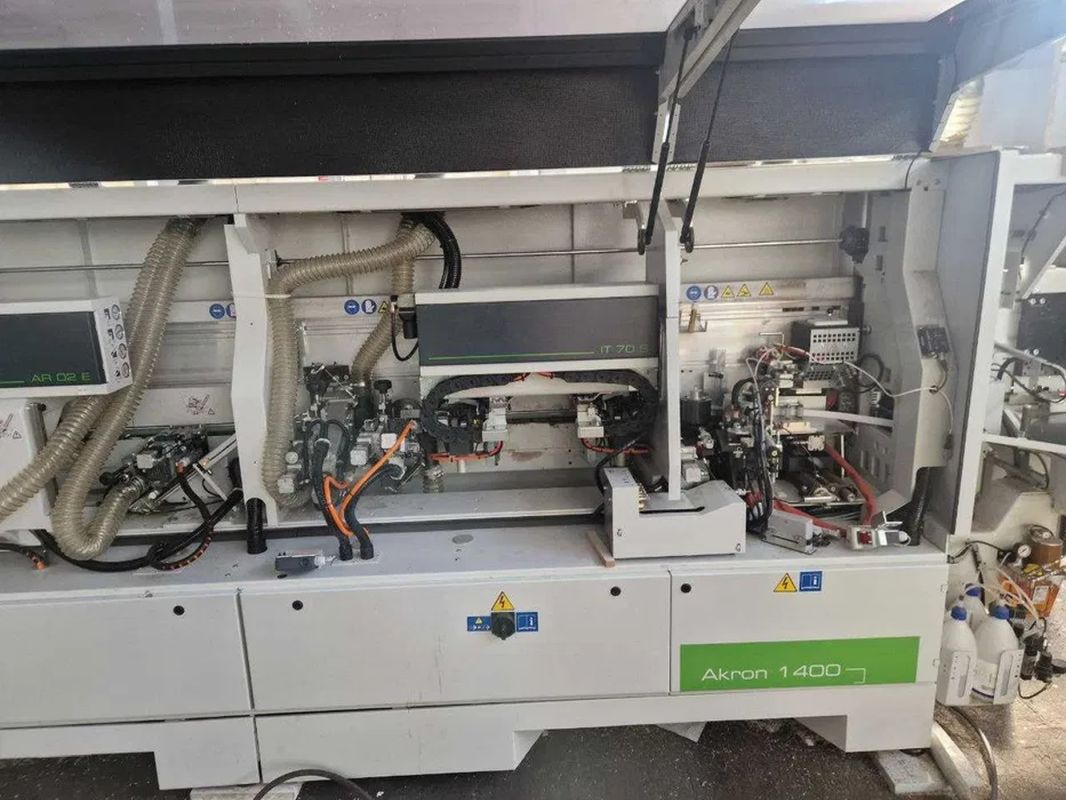

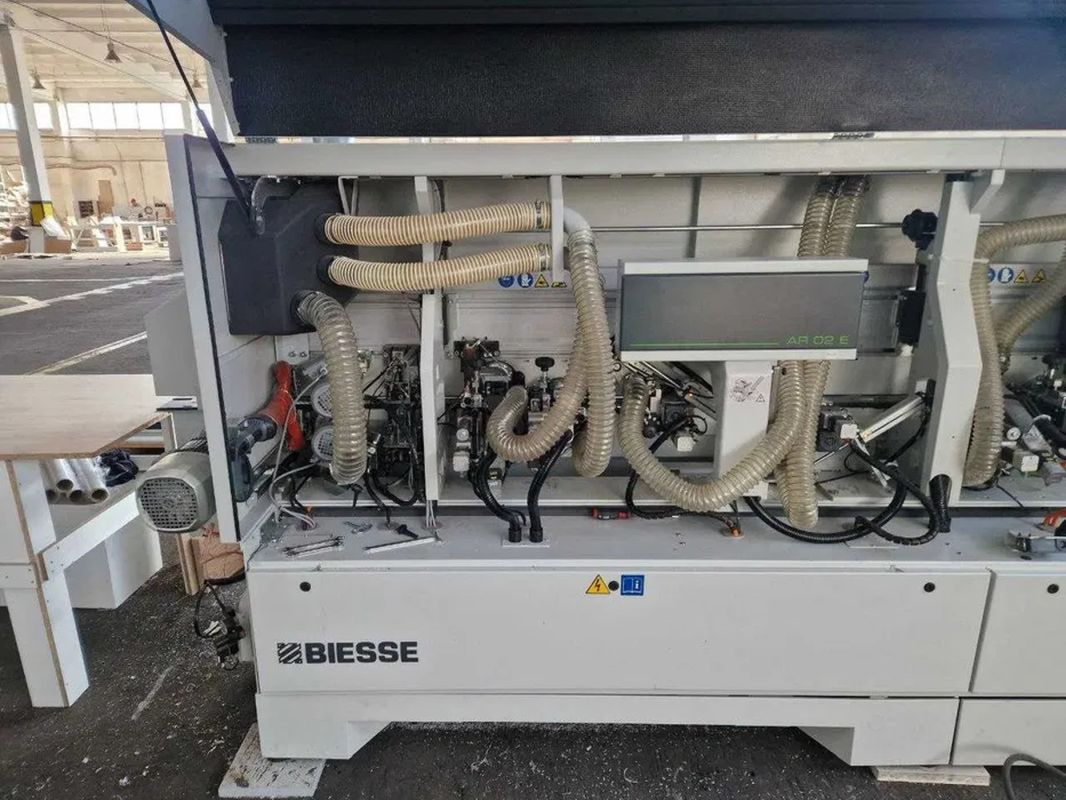

Aggregates
Anti-Adhesive Spraying Unit ADZ02

Pre-Milling Unit RT02
- two high-frequency motors, each 1.8 kW, 12,000 rpm

Gluing Unit VC-511
- Processing of EVA and PUR granulated adhesives
- Adhesive container capacity: 1.5 kg

Pressure Zone
- 1 driven pressure roller, Ø 100 mm, with independently adjustable pressure force.
- 2 and 3 non-driven pressure rollers, Ø 60 mm, with anti-adhesive coating, arranged in an opposing conical configuration and pneumatically adjustable.

End Trimming Unit IT-70-S
- Two high-frequency motors, each 0.8 kW, 12,000 rpm
- Trimming can be performed straight (0°) or inclined, with an adjustable angle range from 0° to 15°.
- Antistatic / cooling liquid spraying unit for the end trimming unit

Fine Milling Unit RF02
- Two high-frequency motors, each 0.65 kW, 12,000 rpm

Corner Rounding Unit
- Two high-frequency motors, each 0.65 kW, 12,000 rpm
- Corner rounding is possible on panels with both straight edge profiles and postforming/softforming profiles on 90° and 180° corners.

Edge Scraping Unit RB02
- Switching between two processing profiles is performed manually.

Glue Joint Scraping Unit RC02

Buffing Unit SZ02
- Two motors, each 0.37 kW, 2,800 rpm

Hot Air Blower Unit PH-501
- Power rating: 2 kW
- Continuously adjustable temperature control



Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
