edge banding machine

edge banding machine

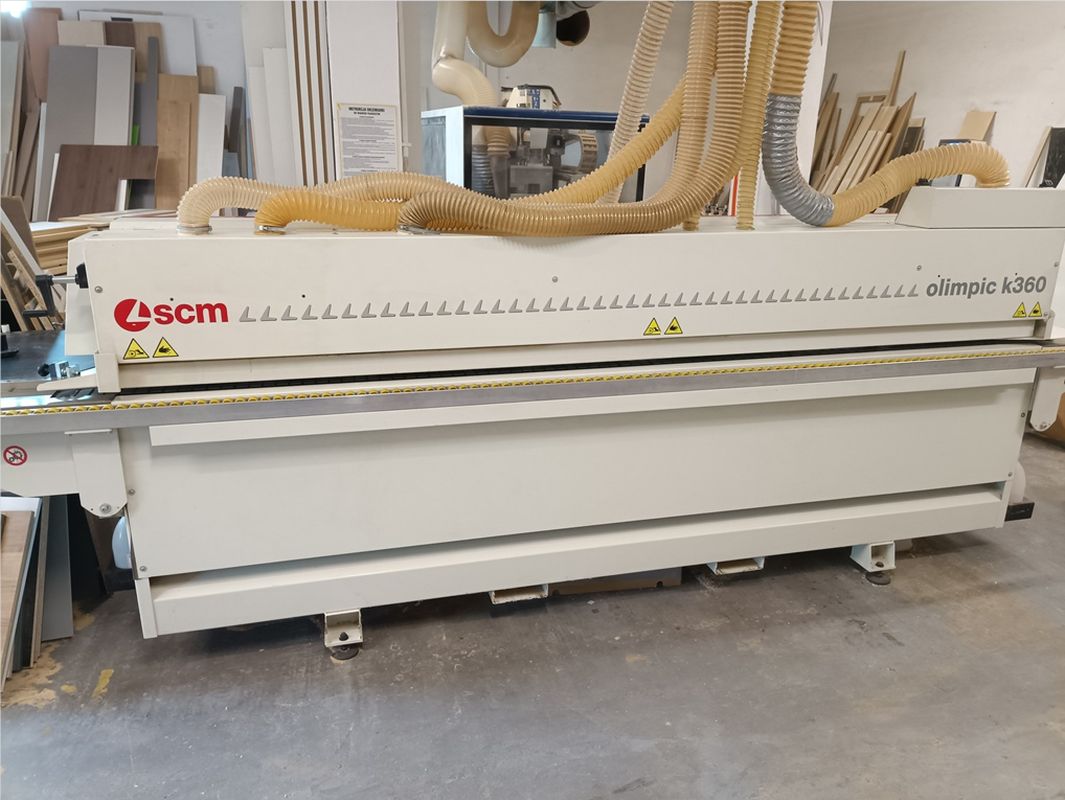

Brand: SCM
Type: Olimpic K360 T-ER1
Year of manufacture: 2017


Technical Data
- Feed speed: 11 m/min
- Edge thickness: 0,4 - 6 mm

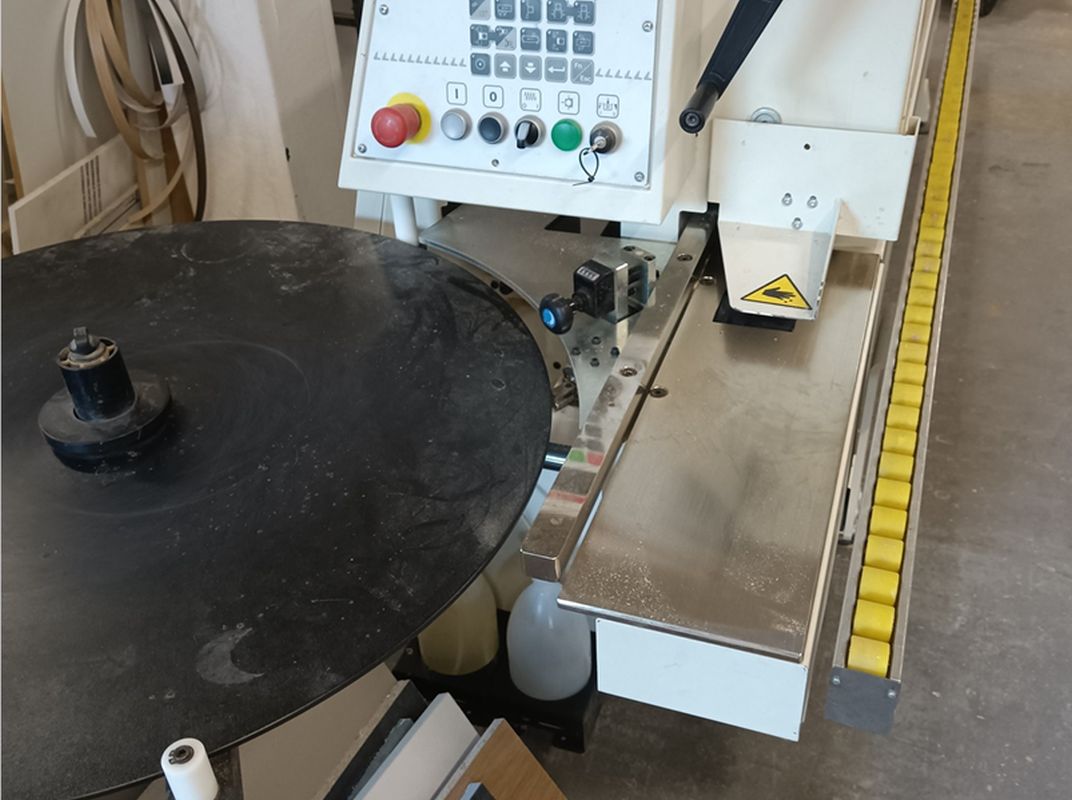

- Control: SCM keypad panel with display
- Panel thickness:  8 - 60 mm
- Power supply: 400 V / 3~ / 50 Hz, 23 A
- Min. Workpiece: 140 × 90 mm

Aggregates

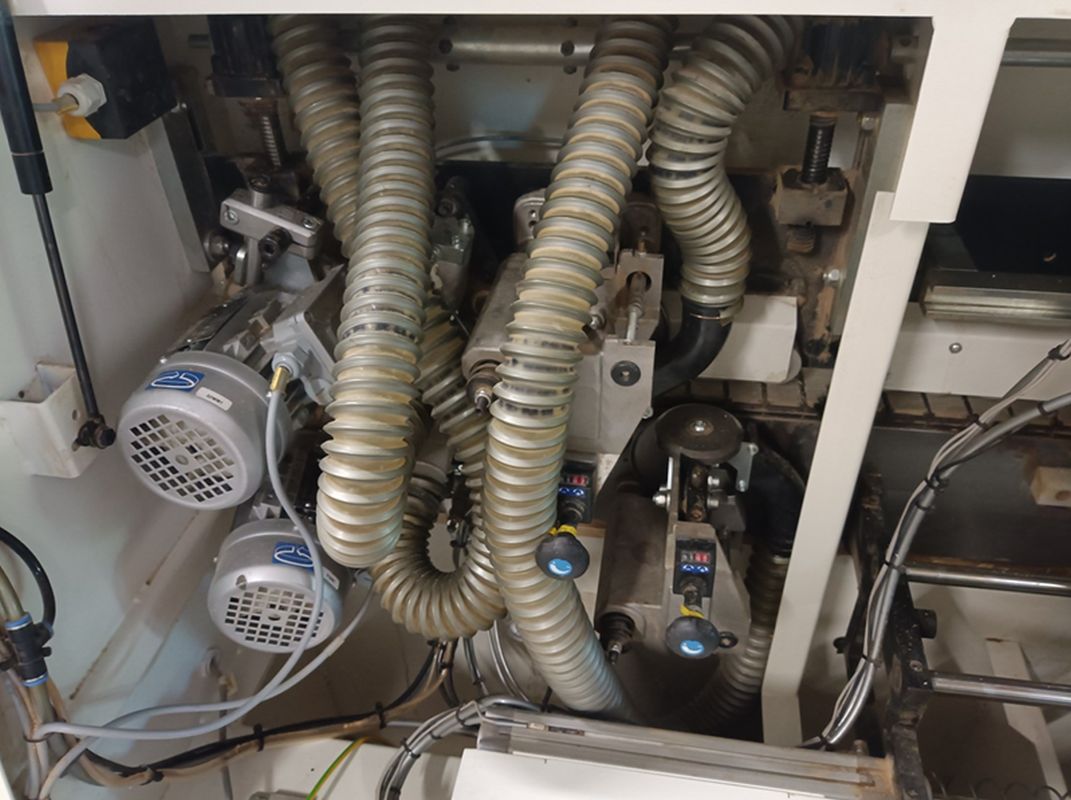

Pre-milling
- 2 counter-rotating diamond heads (up to 3 mm removal)

EVA glue unit

Pressure zone with driven roller + 2 pressure rollers

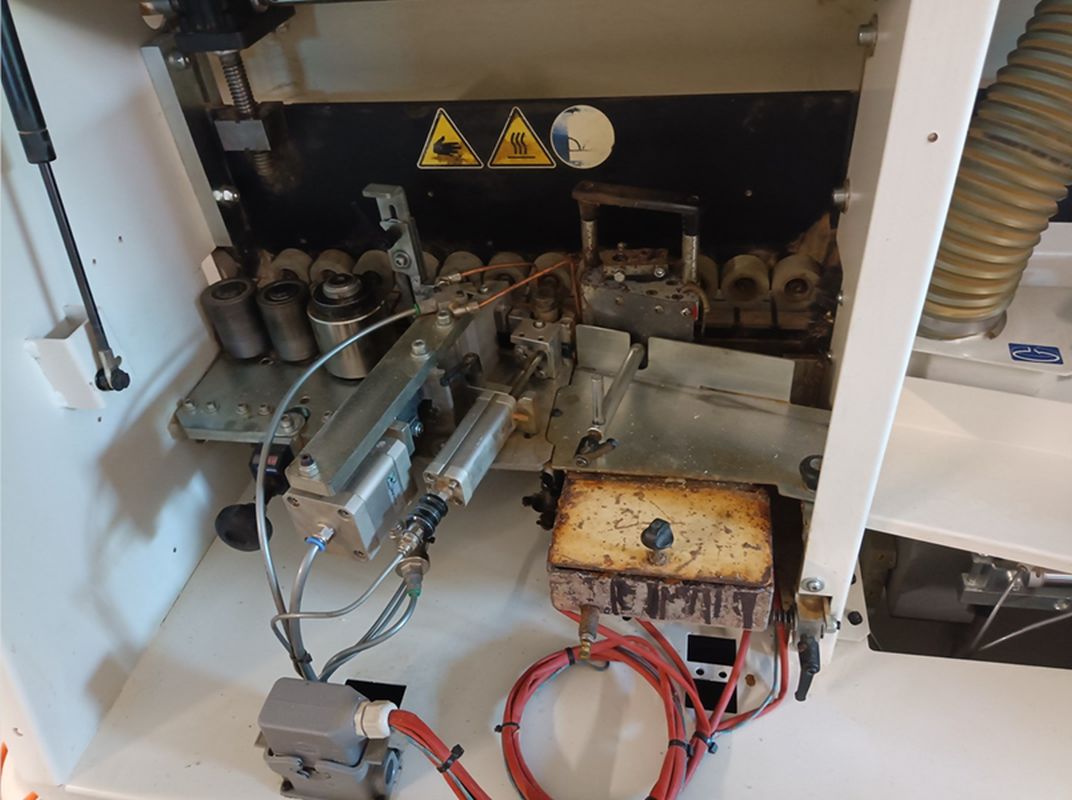

End-cutting unit K-2 (straight / bevel, automatic switching)

Top/bottom trimming
- flush, radius, chamfer

Corner rounding R1/R2

Profile + flat scrapers

Buffing unit

Anti-adhesive fluid system (2 fluids), edge roll feeder



Hinweis:
Die technischen Daten und Beschreibungen sind Kopien der damaligen Auftragsbestätigung. Die Angaben dienen nur zu Informationszwecken und sind unverbindlich.
