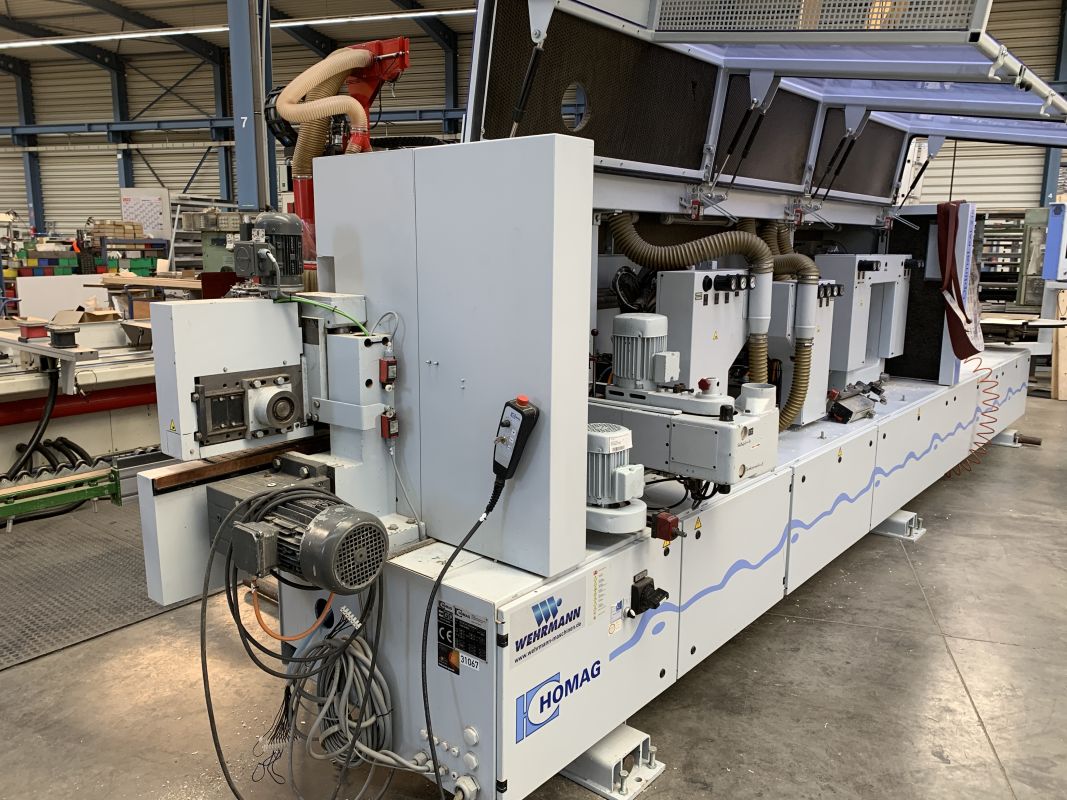

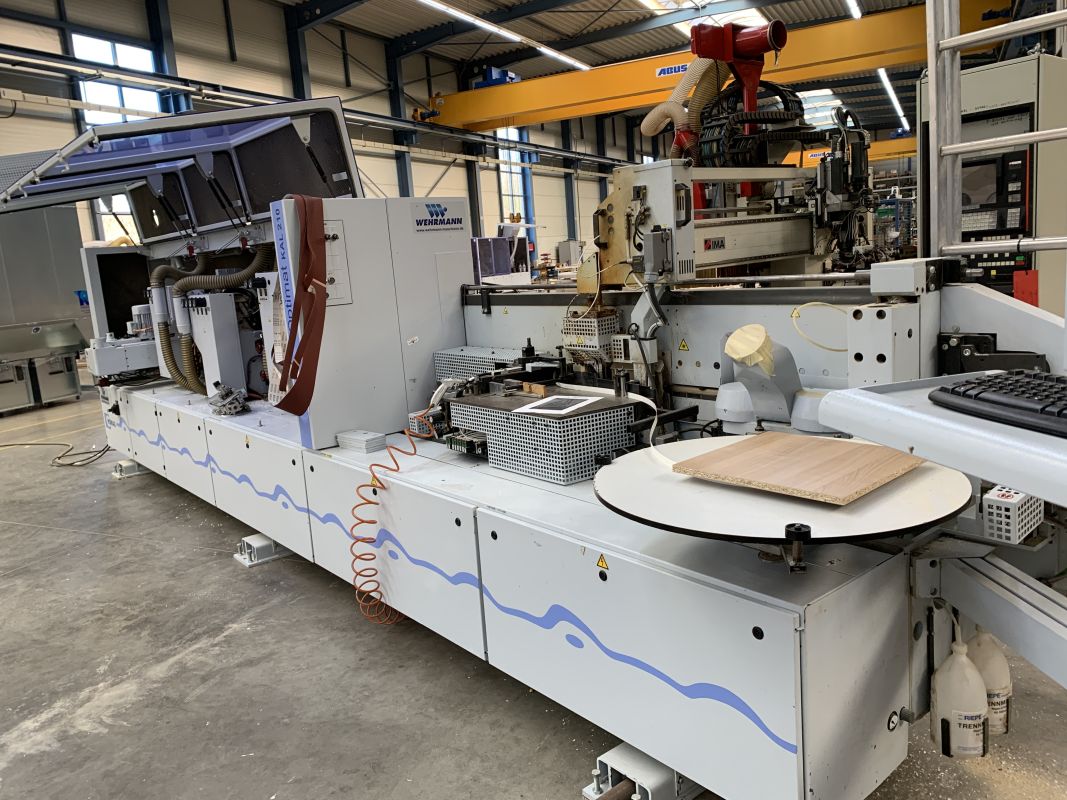

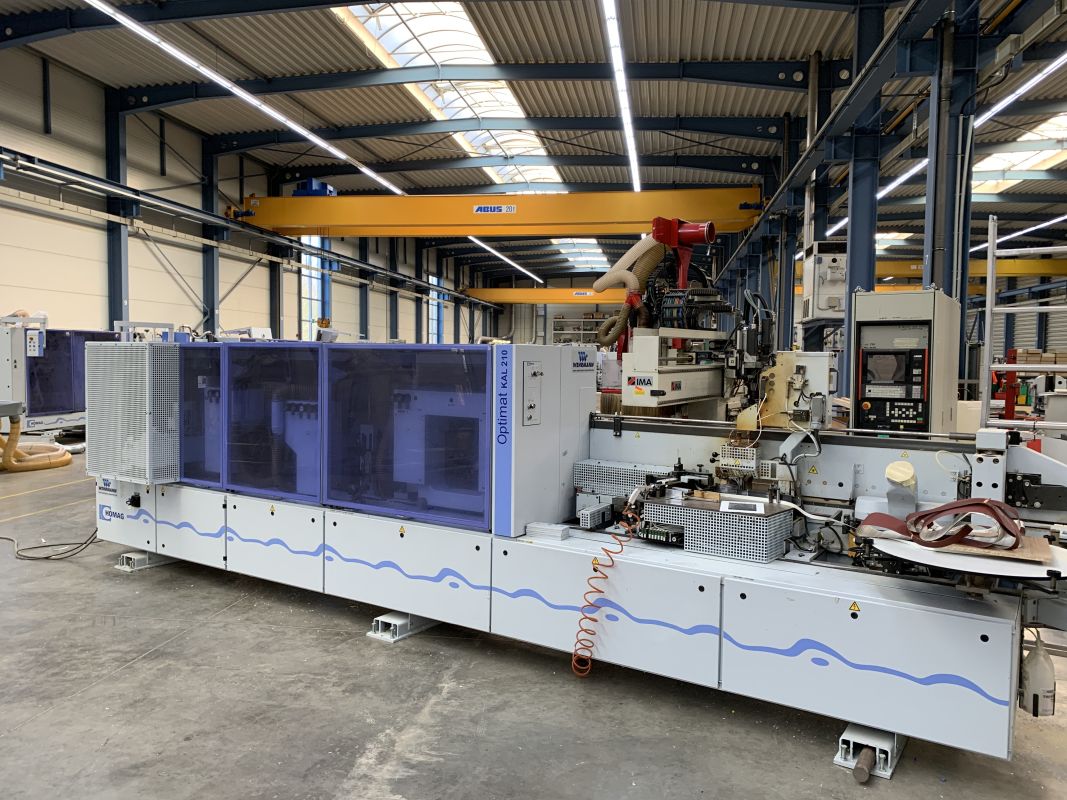

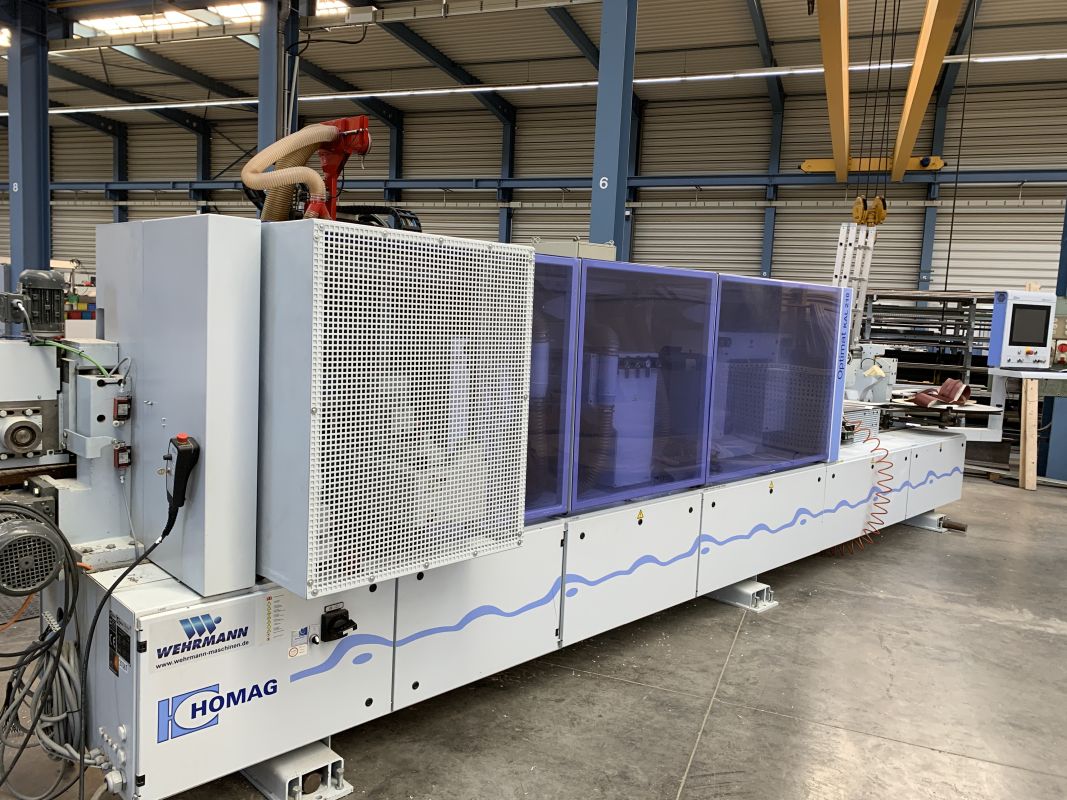

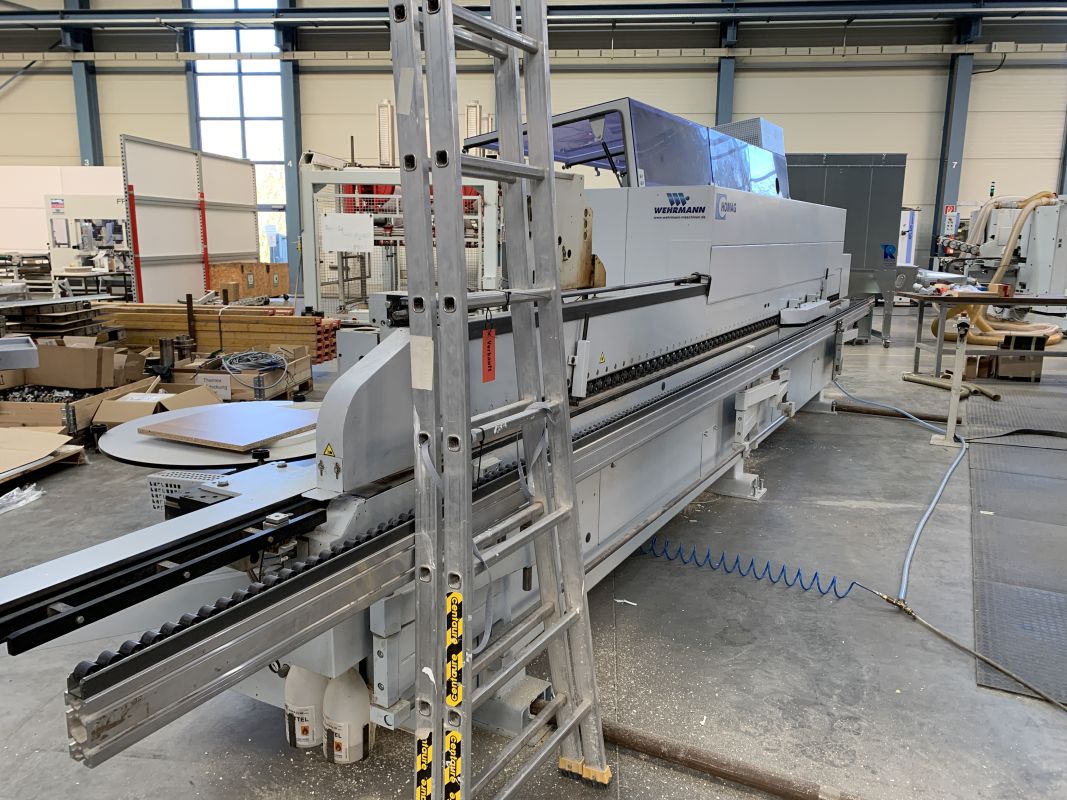

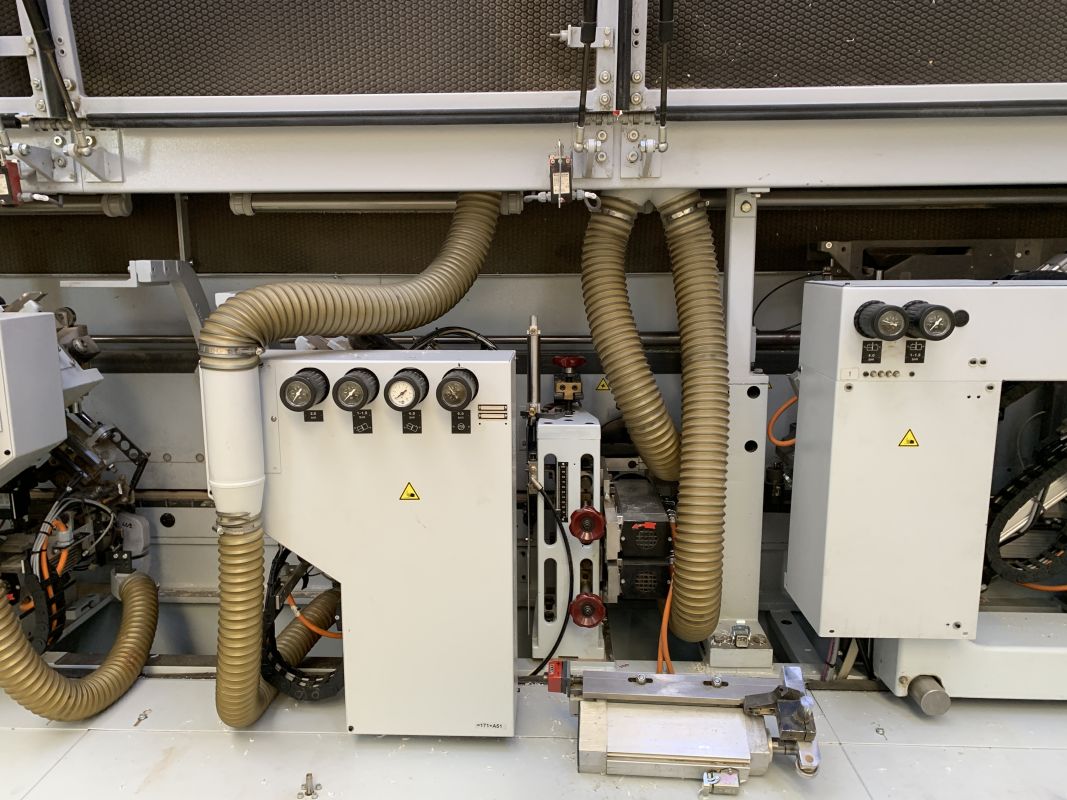

edge banding machine

single sided edge banding machine
Brand: HOMAG
Type: Optimat KAL210/6/A20/S2
Year: 2008


Single-sided machine for jointing
straight workpiece edges, glueing and finishing of various
of various edging materials from the roll or as strips,
up to 20 mm edge thickness, in longitudinal and transverse pass.

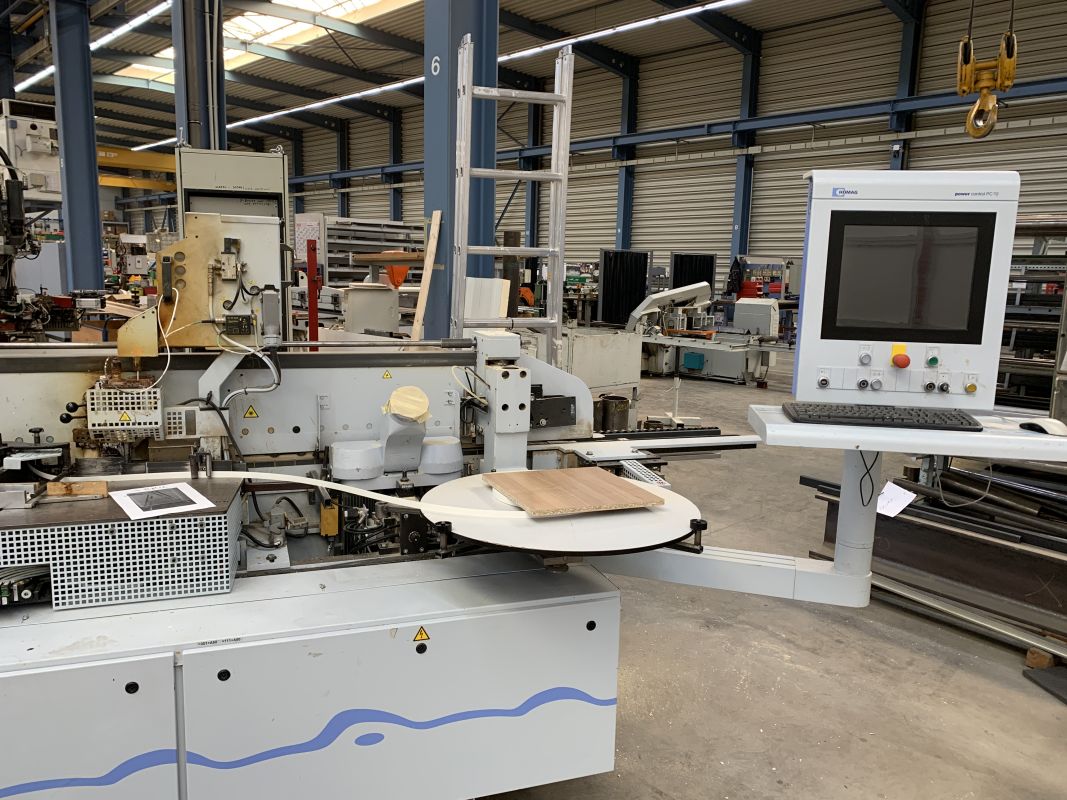

power control PC22
Modern control system based on Windows PC

Technical data
- Feed rate 18 - 25 m/min.
- Feed rate with form milling FK11 max. 20 m/min.
- Workpiece thickness 8 - 60 mm
- Edge material strip max. 0.4 - 20 mm
- Edge material roll 0.3 - 3 mm

Joint milling unit
- 2 motors each 3 kW, 150 Hz., 9,000 1/min.
for joint milling of the workpiece edge before gluing on
- electro-pneumatic control of both motors

Gluing unit A20 - 2 rollers
Quickmelt gluing unit
- Temperature control electronic with LED display

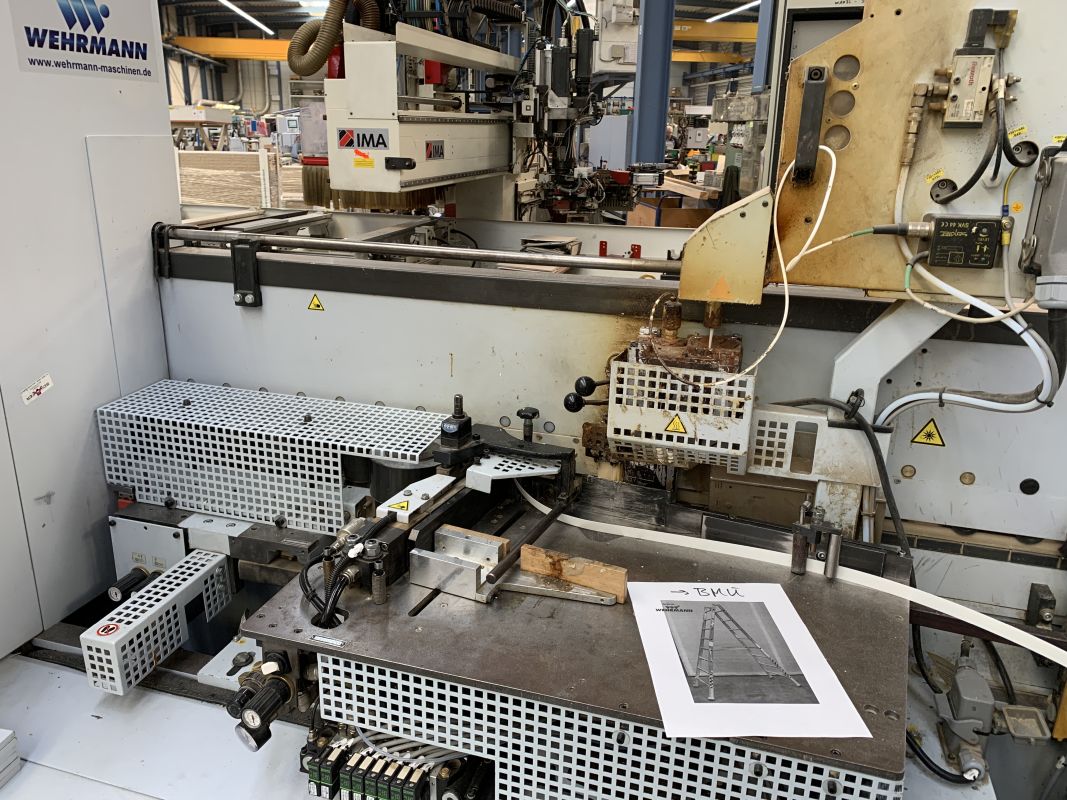

magazine 1 rolls manual
- for solid edges, strips and rolls
- 1 edge feed
- 1 roll holders

Pressure zone C
- 1 driven pre-press roll diam. 150 mm
- 6 pressing rollers diam. 70 mm

end trimming unit HL84 / 0,8 kW
- 2 motors each 0,8 kW, 200 Hz., 12.000 1/min.
- Motors can be swivelled manually for bevel cutting

Pre-milling unit 1.5 kW
- 2 motors one above the other, 1.5 kW each, 200 Hz., 12,000 1/min.

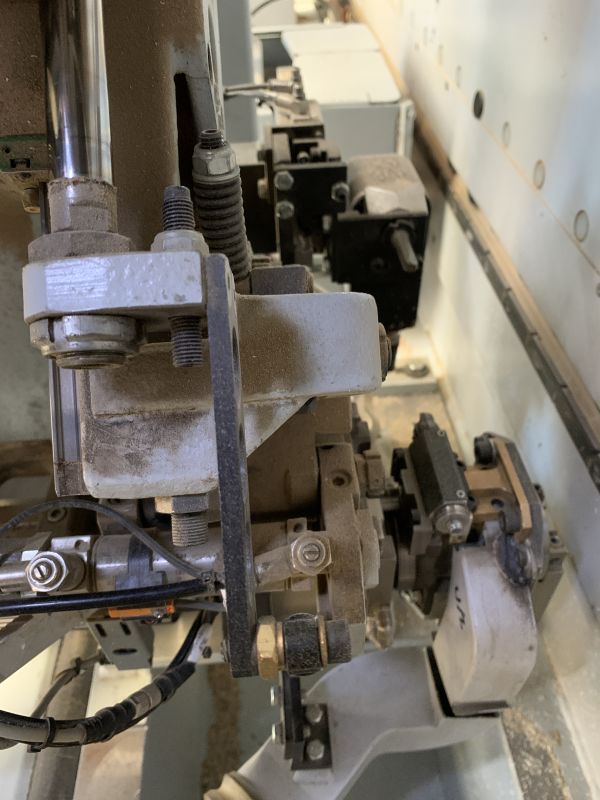

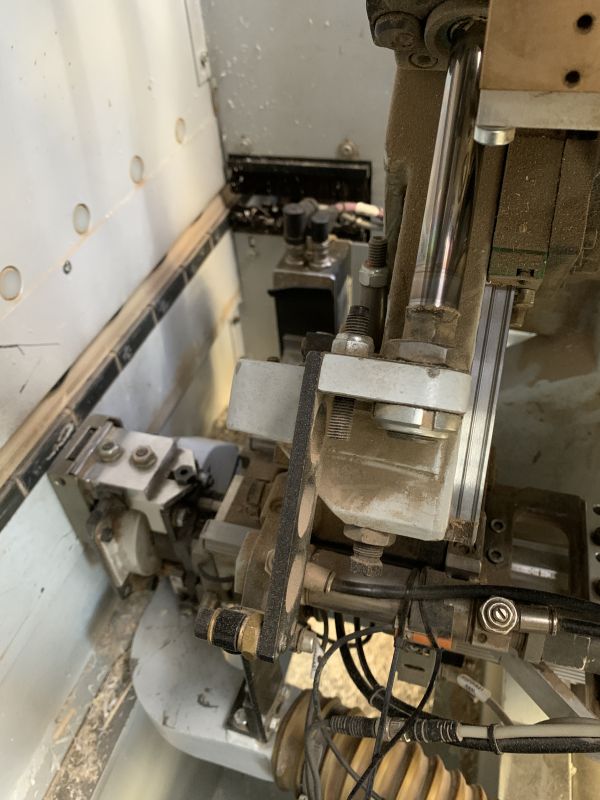

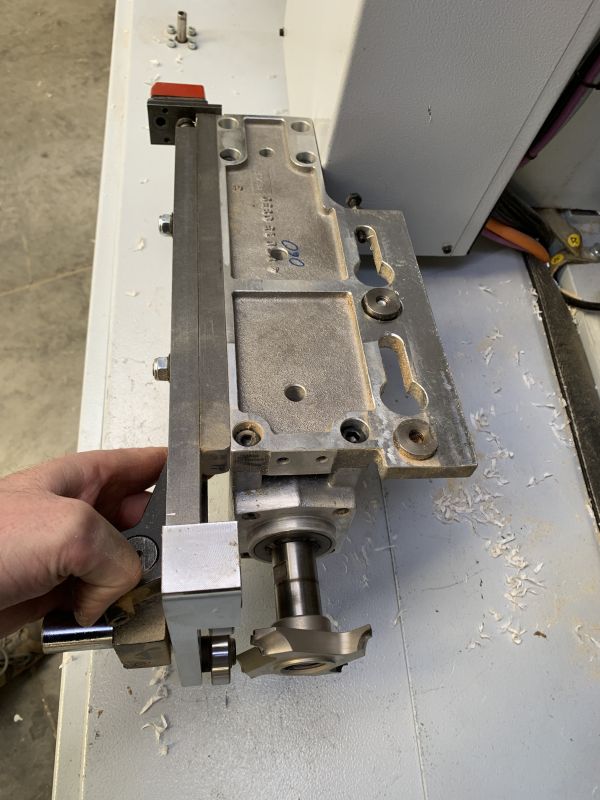

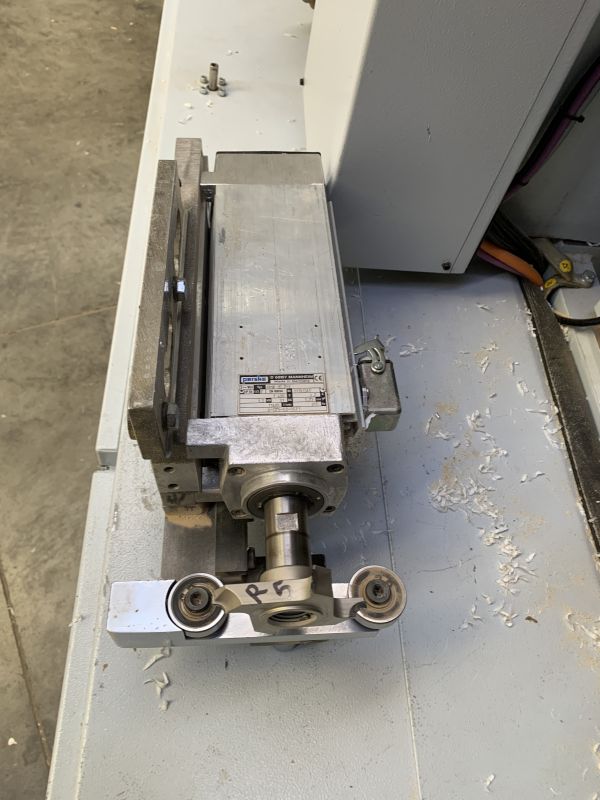

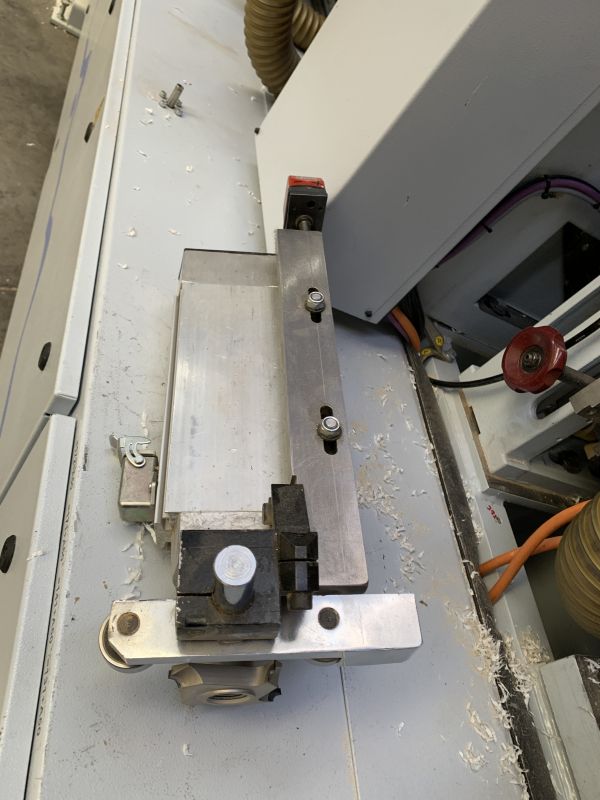

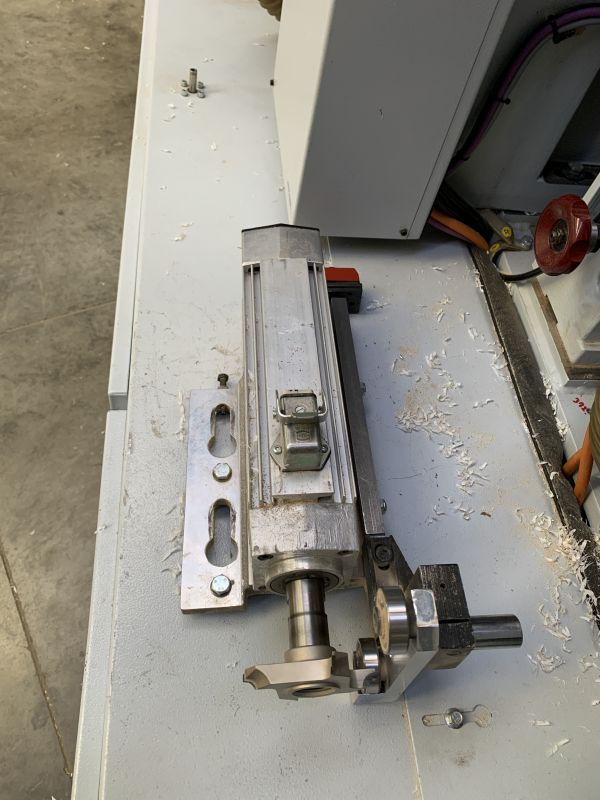

Shape trimming unit FK11 manual
- For machining the edge protrusions on the
the upper and lower edge of the workpiece and for
milling of the workpiece front and rear edge

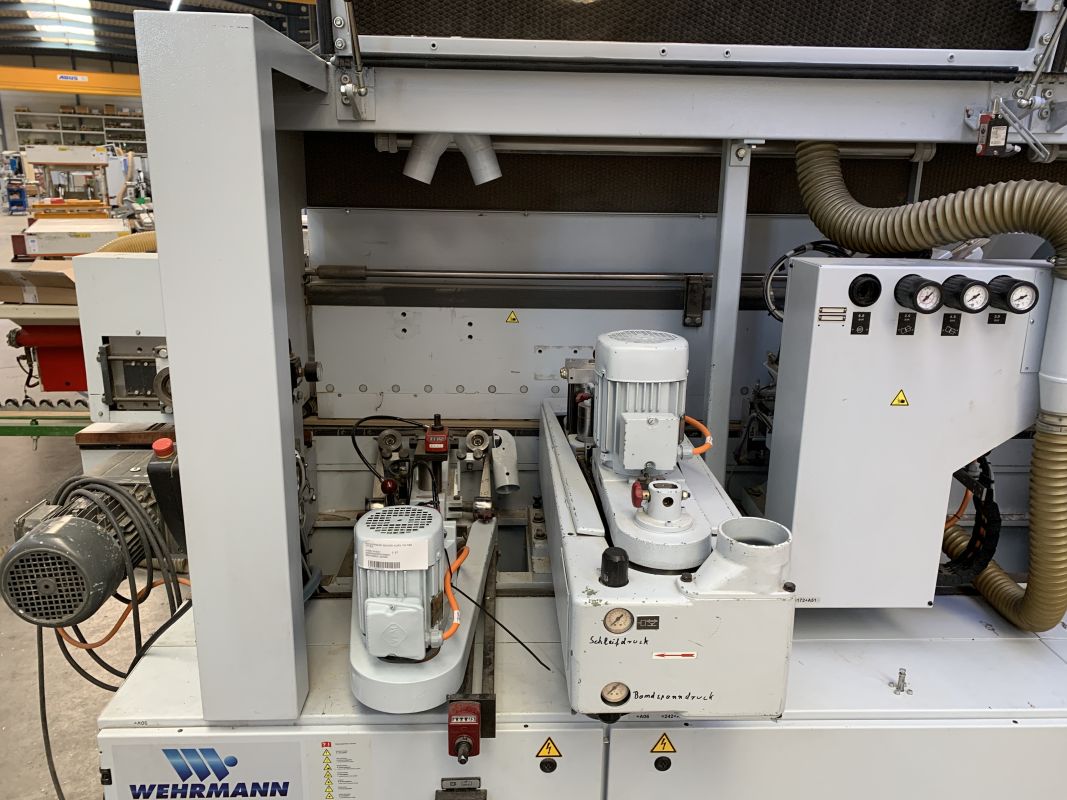

Belt Sanding Unit KS 10
- For sanding straight and solid-wood edges
Oscillating sanding belt
Manually adjustable sanding pressure

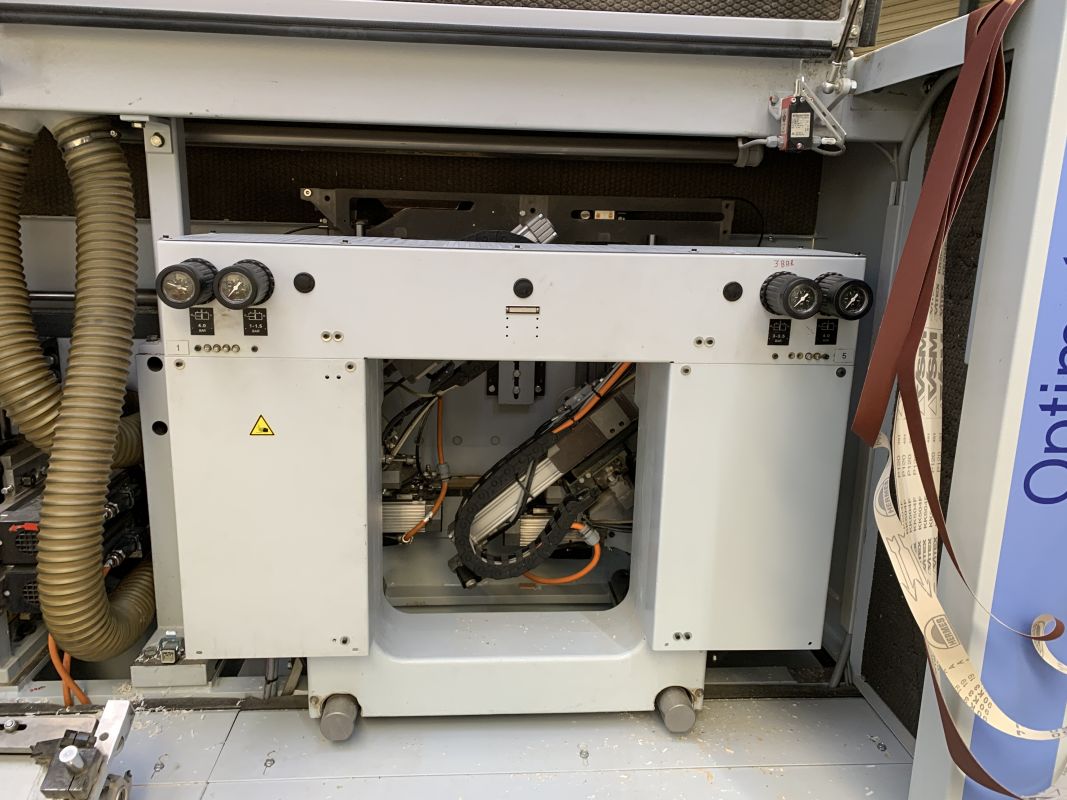

Profile Sanding Unit PS 10
- Bottom-mounted sanding unit
For sanding profiles
Manually adjustable sanding pressure

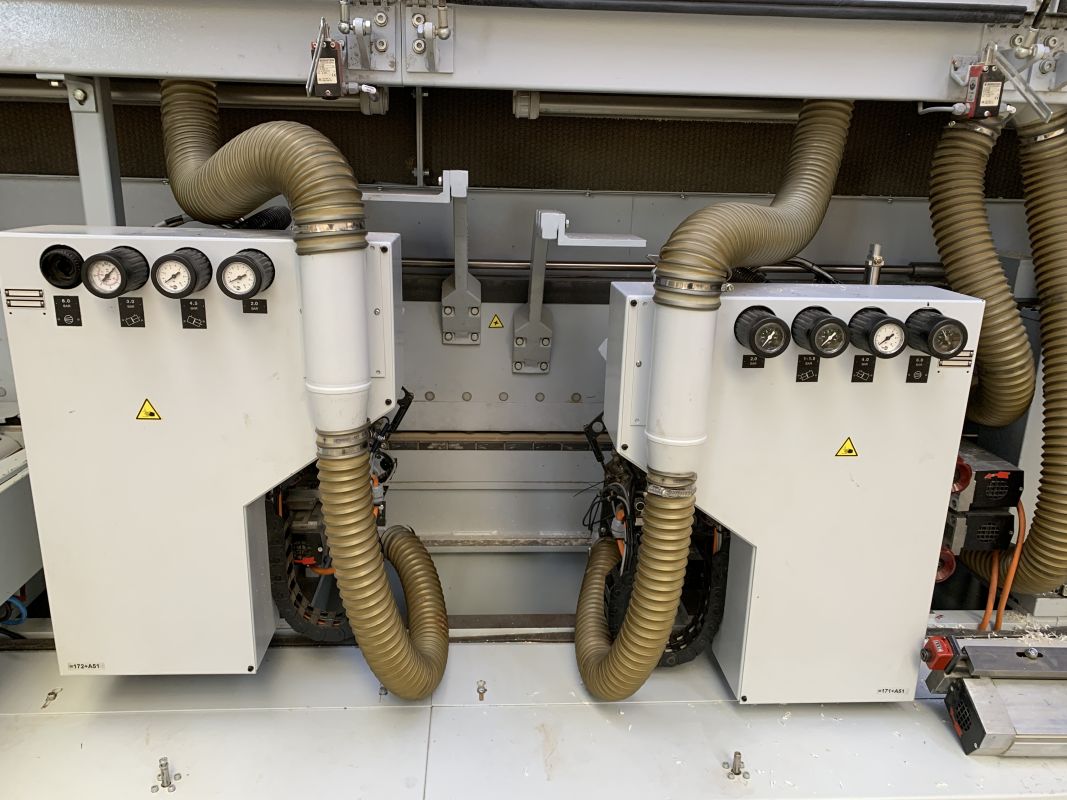

Automation package chamfer / radius KAL210/6/A20
- Automatic adjustment of infeed ruler
- Automatic adjustment of pressure zone
- Pneumatic adjustment from chamfer to straight cut
- Pneumatic adjustment of the trimming motors for flush or projection trimming
- Pneumatic adjustment of pre-milling unit for flush or projection milling
- Automatic adjustment from chamfer to radius milling for form milling
- Pneumatic adjustment PN10 / FA11
- Electronic height adjustment


Note:
The specifications and descriptions are a copy of the order confirmation at that time. Data are for information and are not binding.
