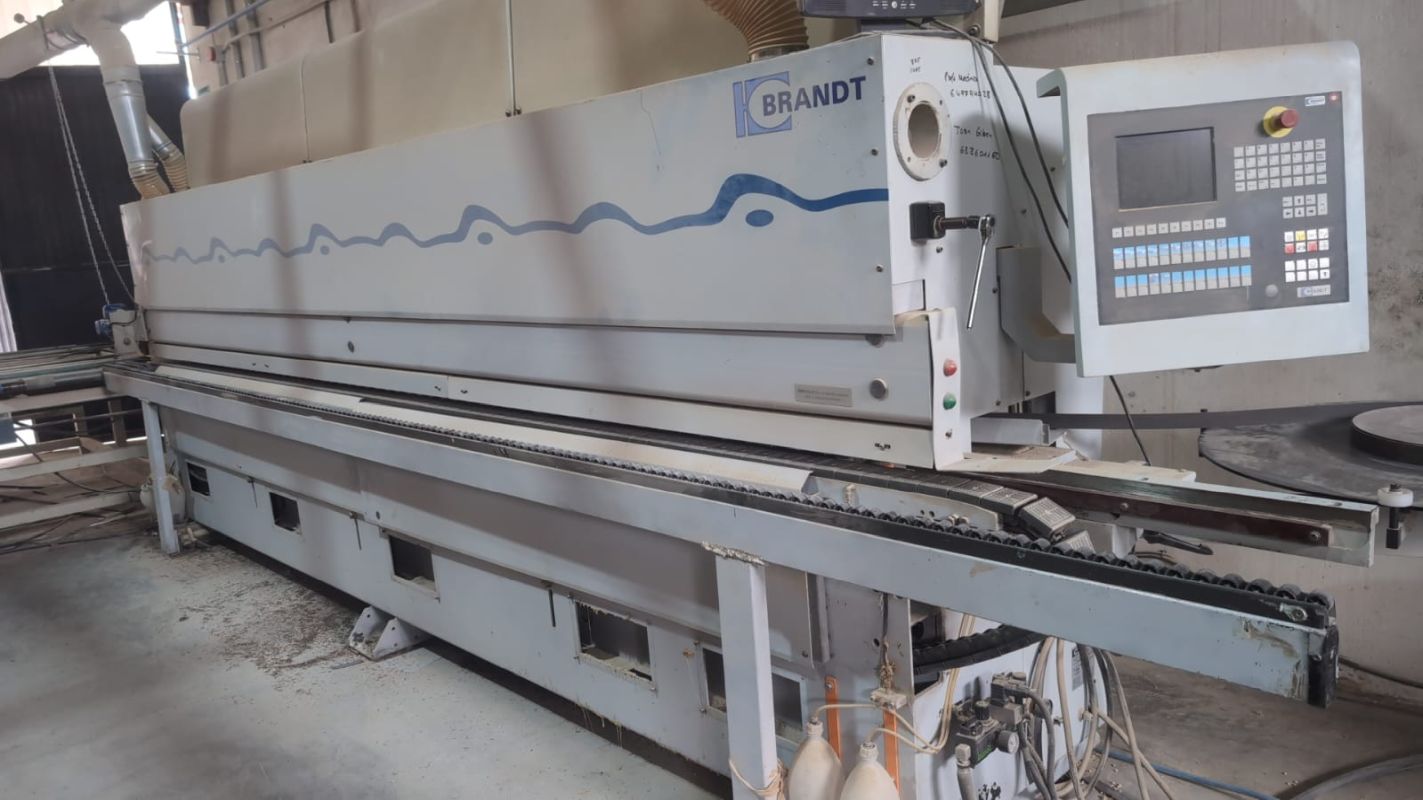

edge banding machine

edge banding machine
Brand: Brandt
Type: KDF 560
Year of manufacture: 2004


Technical data
- Voltage: 400 V / 50 Hz / 3-phase
- Power consumption: 13.2 kW
- Fuse rating: 35 A

Features
- Automatic unit adjustment via PC control
- Control system: Brandt Power Control PC20+
- Suitable for thin and thick edging (ABS, PVC, veneer, and solid wood edging)
- Edge thickness: approx. 0.4 to 8 mm
- Workpiece height: approx. 8 to 50 mm
- Feed speed: 14 m/min

Installed Units
- Pre-milling unit
- Glue application unit (hot melt)
- Pressure zone with pressure rollers
- Crosscut saw
- Flush/radius milling units (top and bottom)
- Corner rounding unit
- Radius scraper
- Glue scraper
- Polishing units



Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
