HOMAG Edge Processing Line

HOMAG Edge Processing Line
• Loading system for longitudinal and crosswise loading
• HOMAG single-sided edge banding machine with LASER GLUING
• Transfer station for longitudinal and crosswise outfeed
• Return conveyor for automatic recirculation

Pos. 1

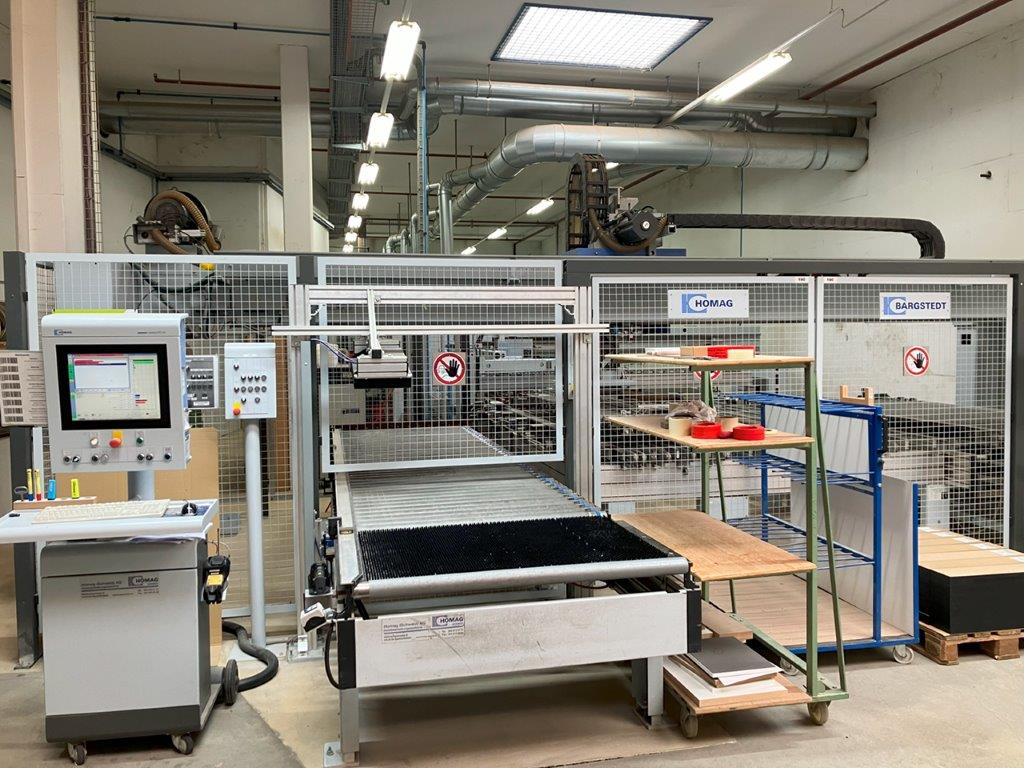

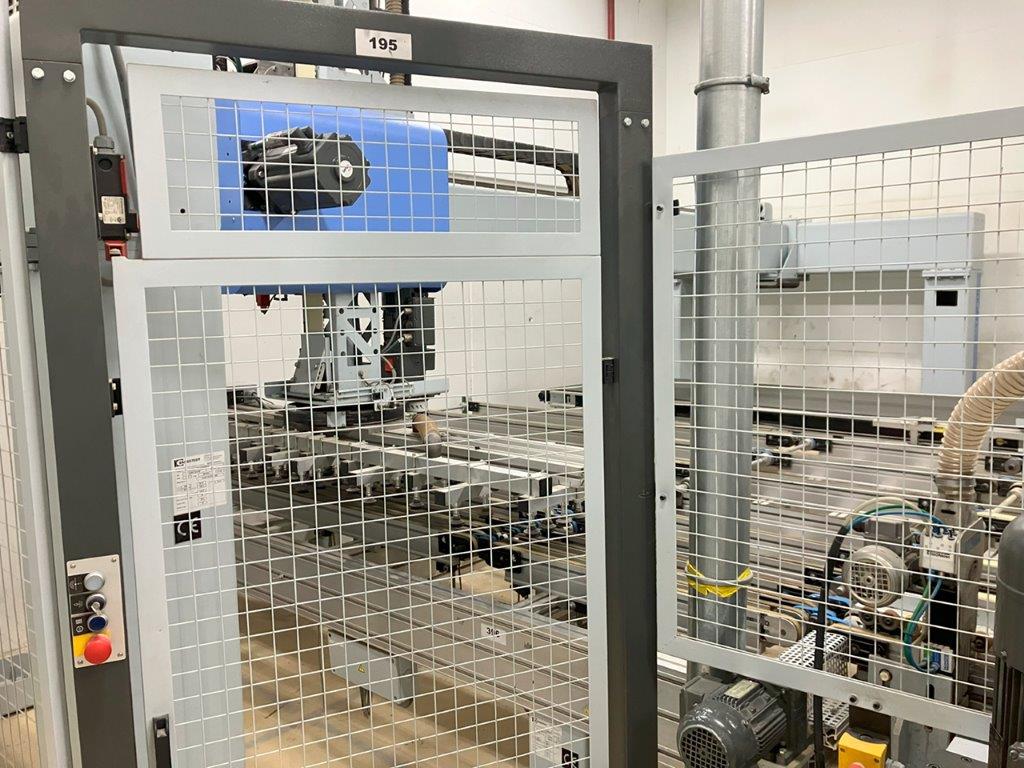

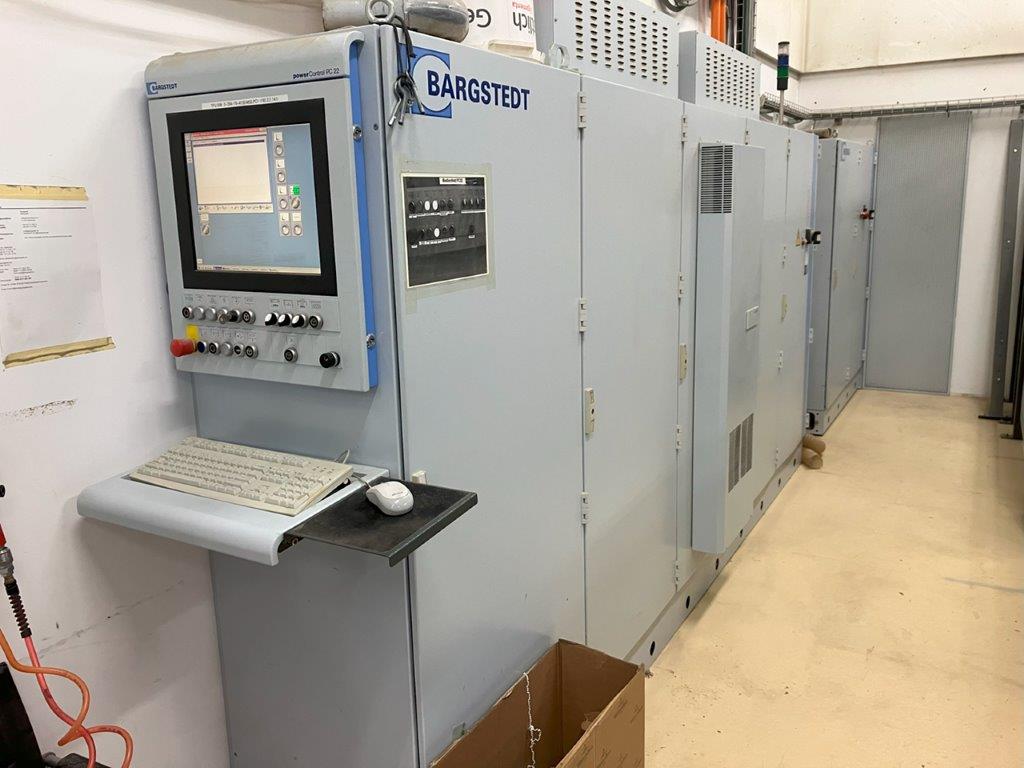

TBP 410 Vacuum Loading System
• Maximum workpiece size: 2,800 × 1,200 × 40 mm
• Maximum workpiece weight: 50 kg
• Small parts down to a minimum of 250 × 85 mm (longitudinal and crosswise)
• Narrow parts: 2,800 × 69 mm (longitudinal only)
• Servo-controlled lifting drive for up to 18 cycles/minute
• With servo-controlled rotary device, -90°/+180°

Pos. 2

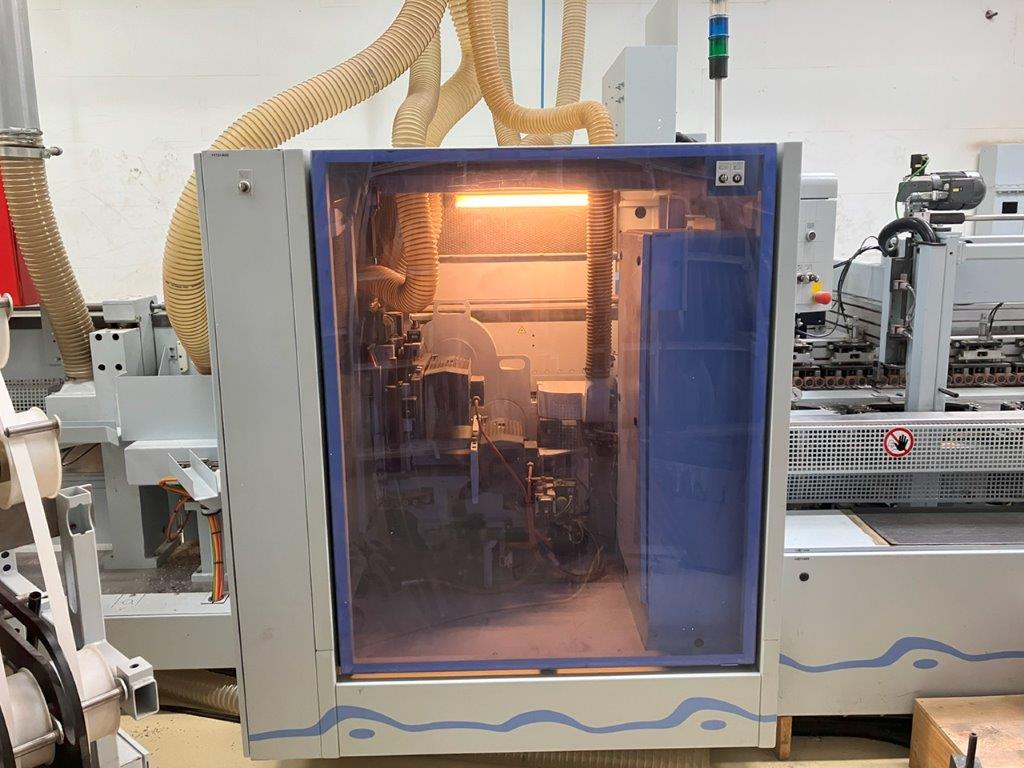

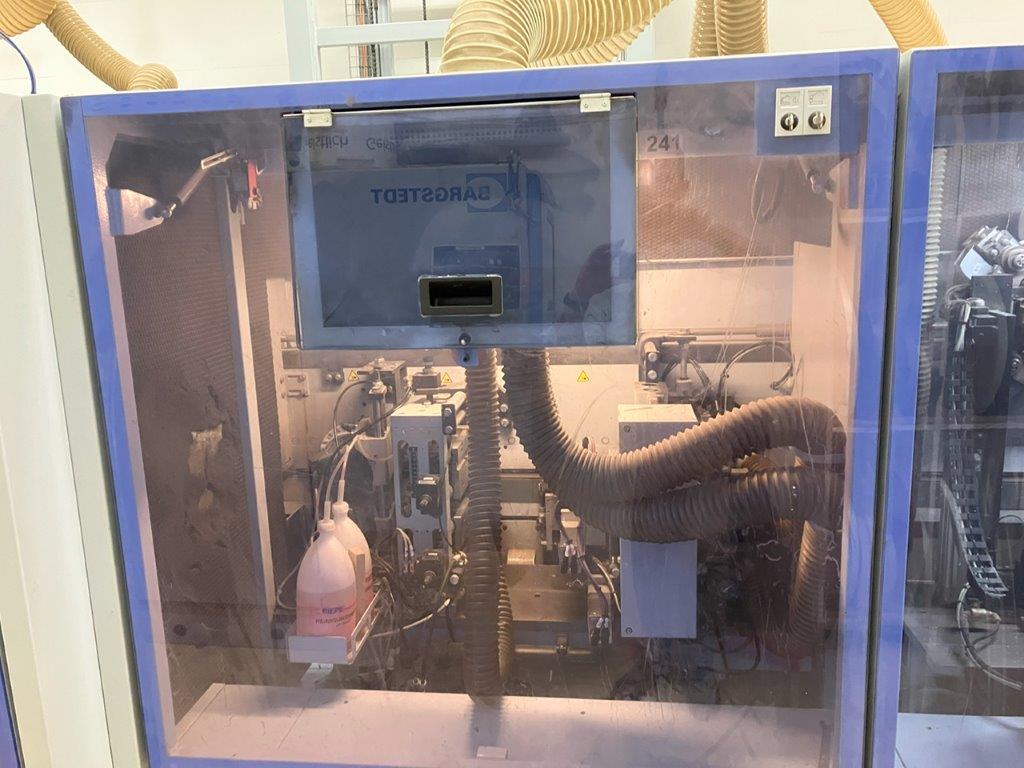

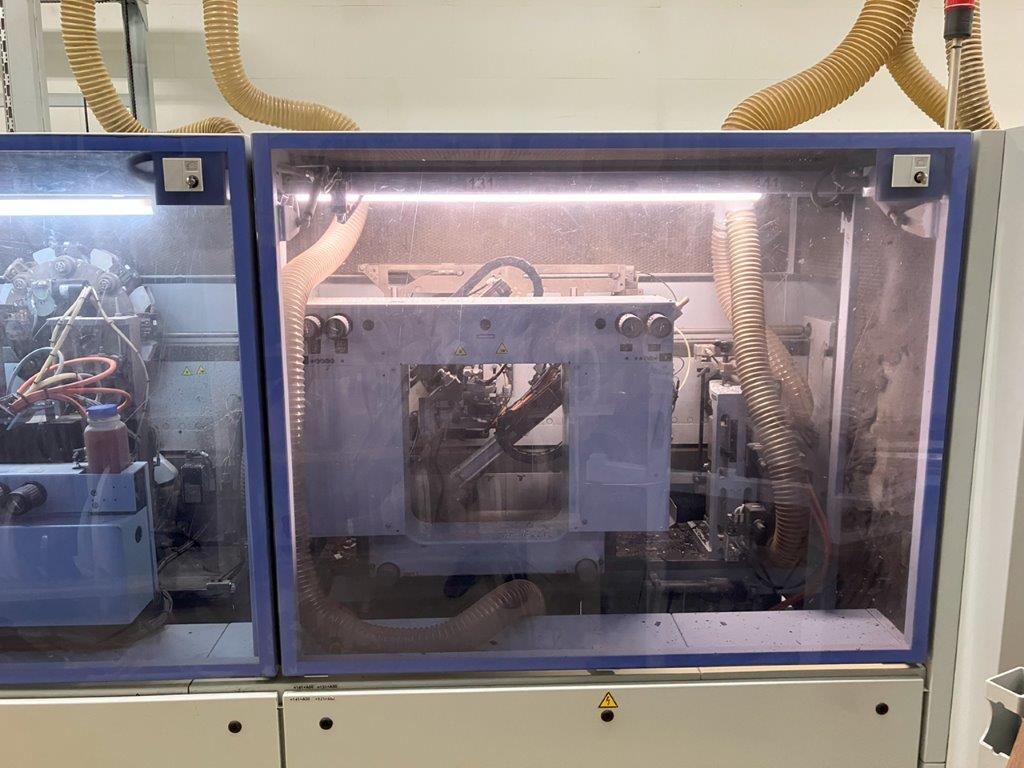

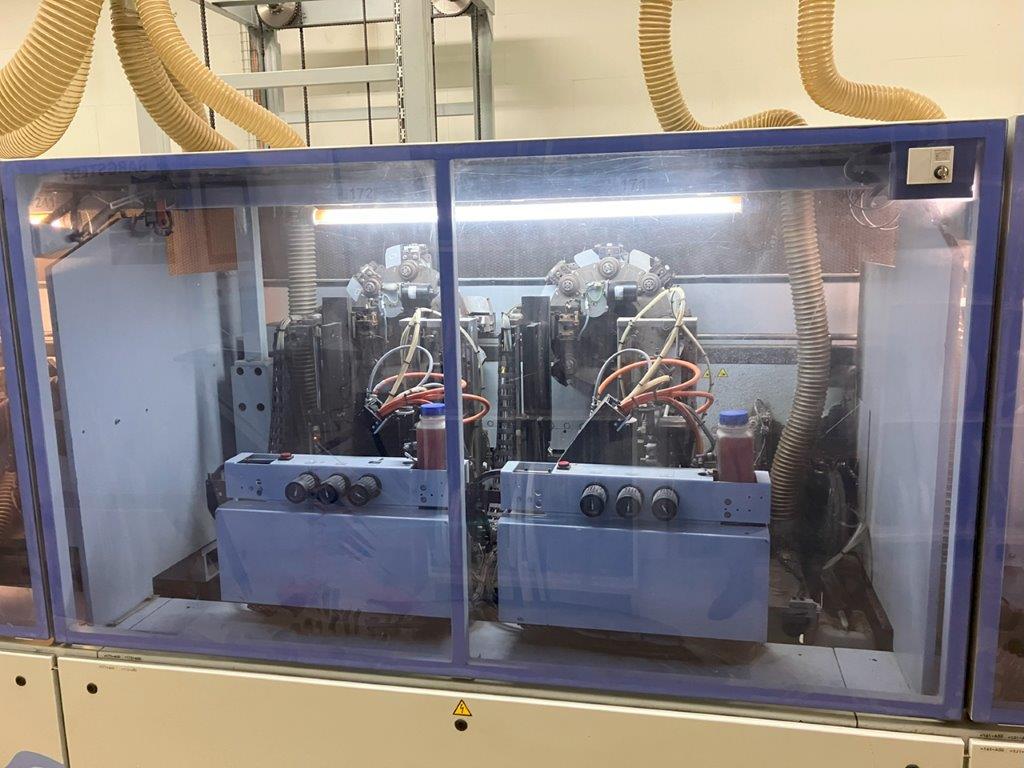

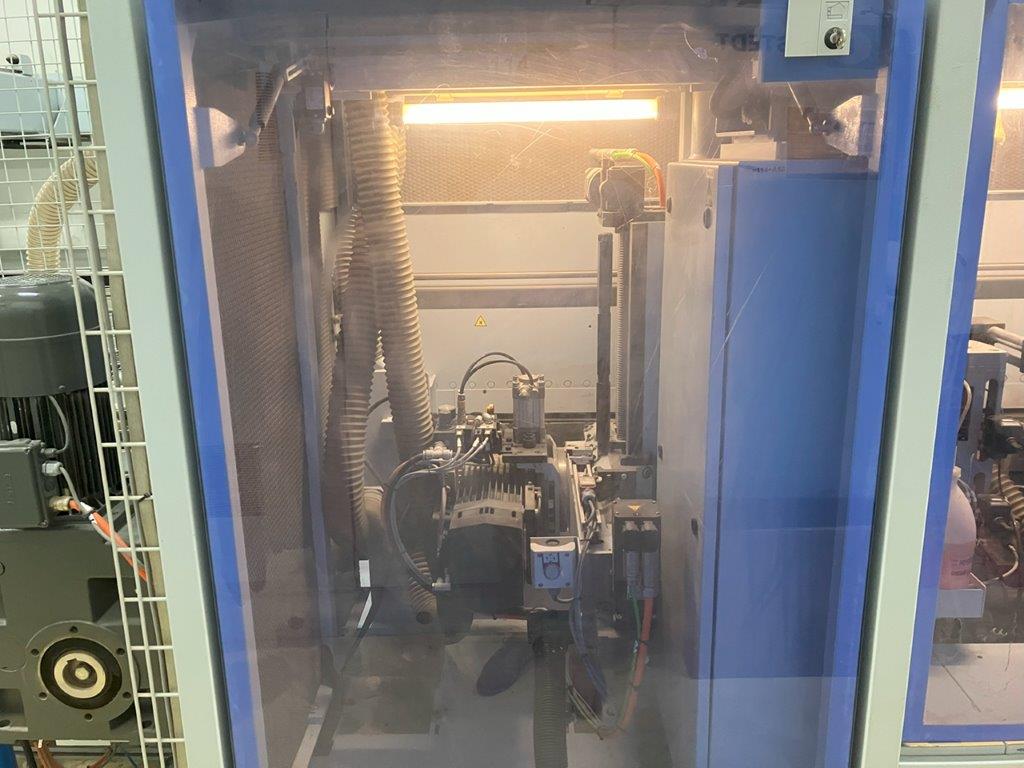

HOMAG KFL 610/21/PU/L/25/SI14 Single-Sided Laser Edge Banding Machine
For automatic four-sided processing in four passes.

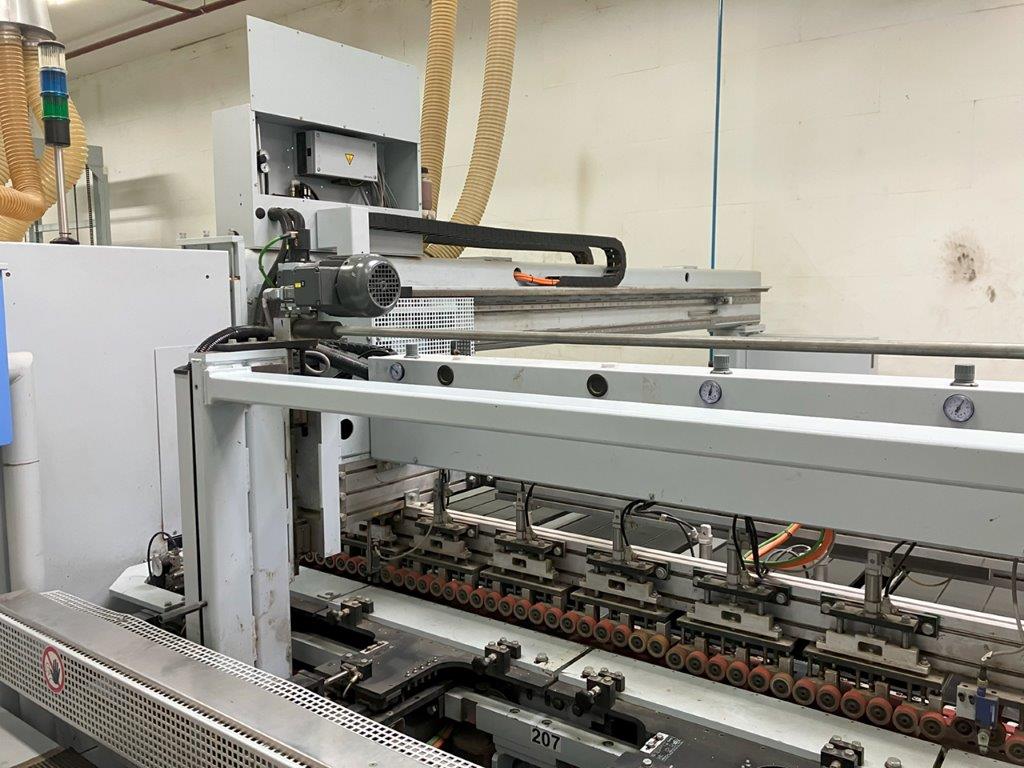

With SI 14 infeed system for the automatic feeding of longitudinal and crosswise workpieces.
Equipment:
• Release-agent application system, top and bottom
• Protective trimming unit, 4.5 kW / double chip removal unit, 2 × 6.6 kW
• Stepless vertical and horizontal axis adjustment
• Jointing unit, 2 × 4 kW
• LASERTAC activation unit, 3 kW / alternatively PU gluing
• Maximum edge thickness: 3 mm

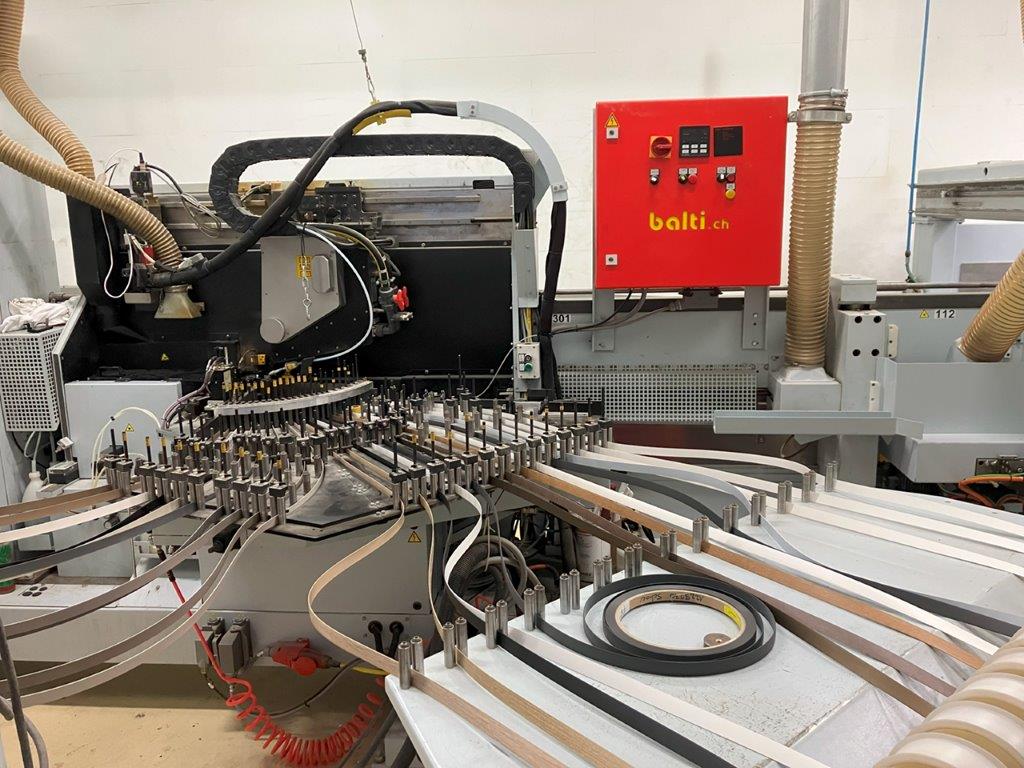

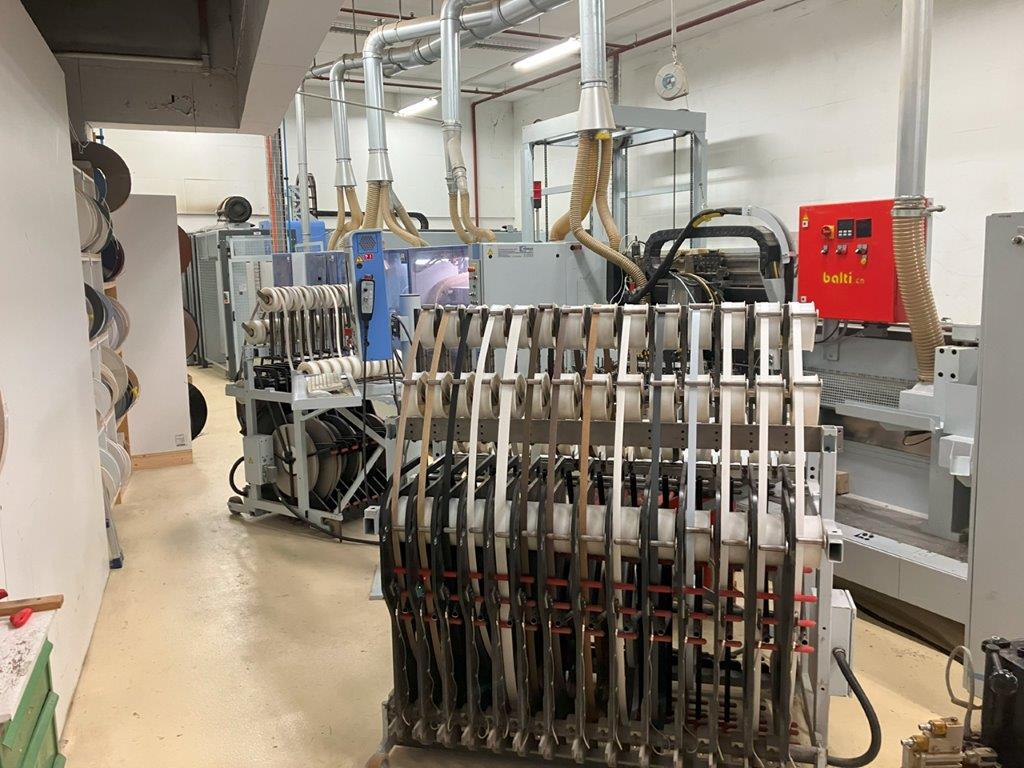

• 24-position roller magazine with servo-controlled edge feeding
• Release-agent spraying device, top/bottom
• End trimming unit, chamfer/straight HL 84 / 0.8 kW with 2 motors
• Pre-milling unit with 2 motors, 1.5 kW each (pneumatically adjustable to 2 positions)
• Release-agent spraying device, top
• Profile milling unit FK 23 with 2 × 8-position tool changers for 20 cycles/minute
• Automatic multi-scraper blade unit MN 21
• Finish unit FA 11, top/bottom (flat scraper blade and buffing unit)
• Milling unit with 6.6 kW motor, pivotable through 90°, with stepless vertical and horizontal axis adjustment
• HSK 63 F tool holder
• Machine designed for set-up during ongoing operation / in the gap

Pos. 3

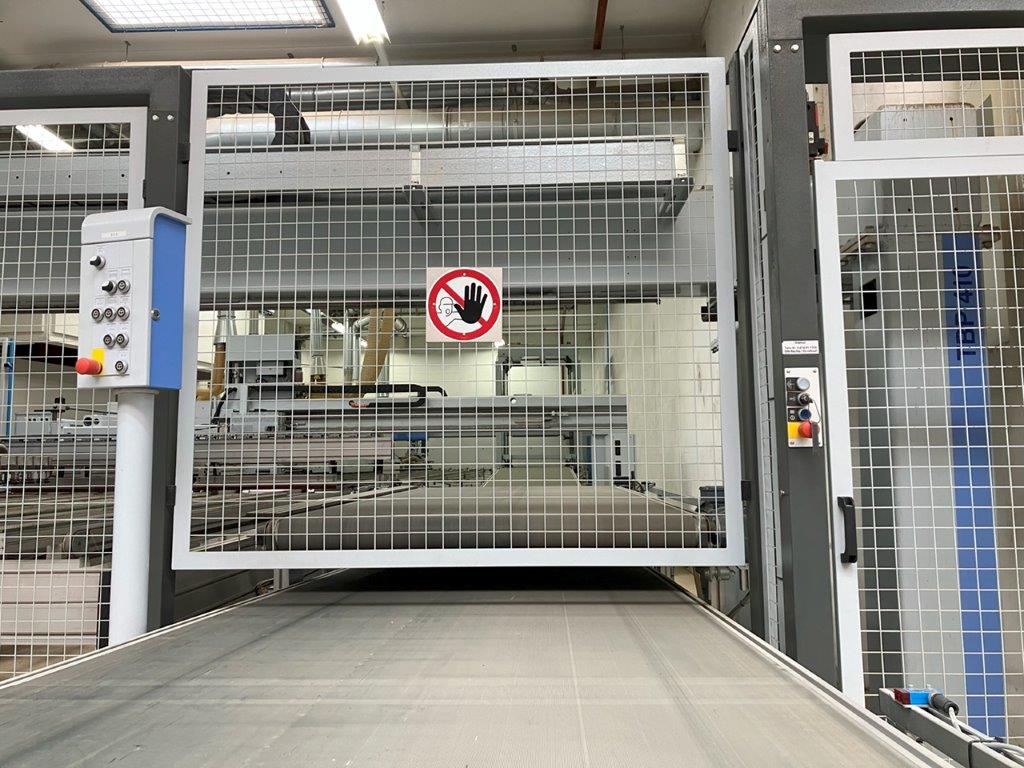

Workpiece Return System with Chain Buffer Storage
For decoupling processing machines by providing temporary intermediate buffering.
Return system via approx. 6 belt conveyors.

Pos. 4

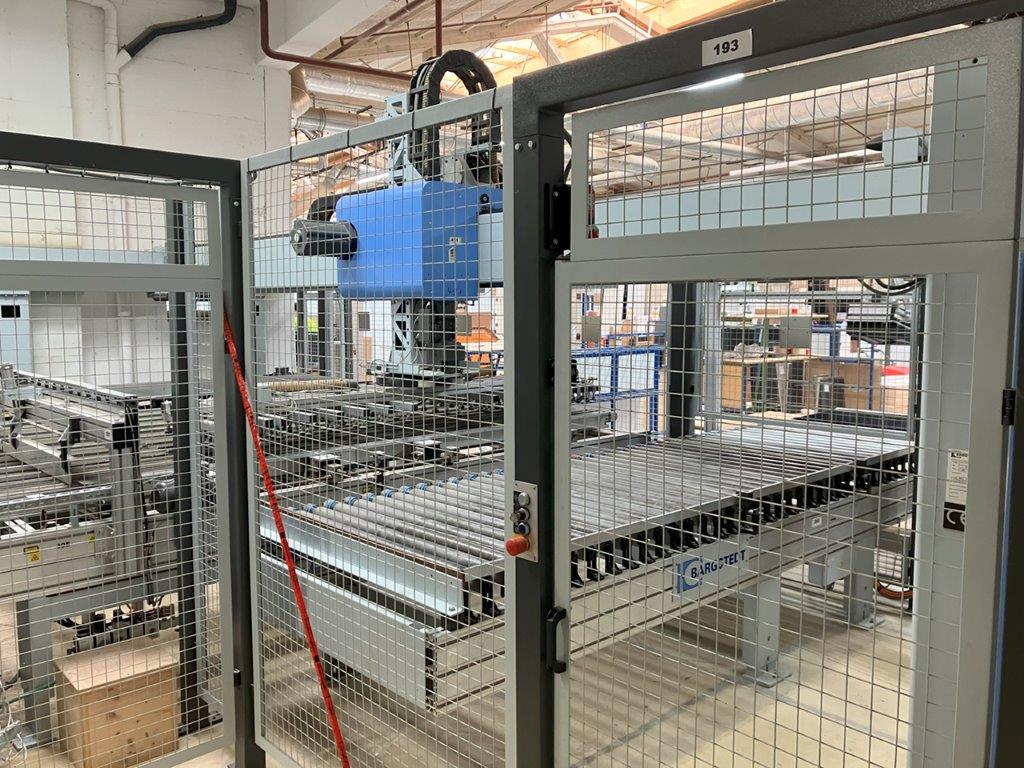

TBP 410 Vacuum Transfer Unit
• Maximum workpiece weight: 50 kg
• Small parts down to a minimum of 250 × 85 mm (longitudinal and crosswise)
• Narrow parts: 2,800 × 69 mm (longitudinal only)
• Servo-controlled lifting drive for up to 18 cycles/minute
• With servo-controlled rotary device, -90°/+180°
