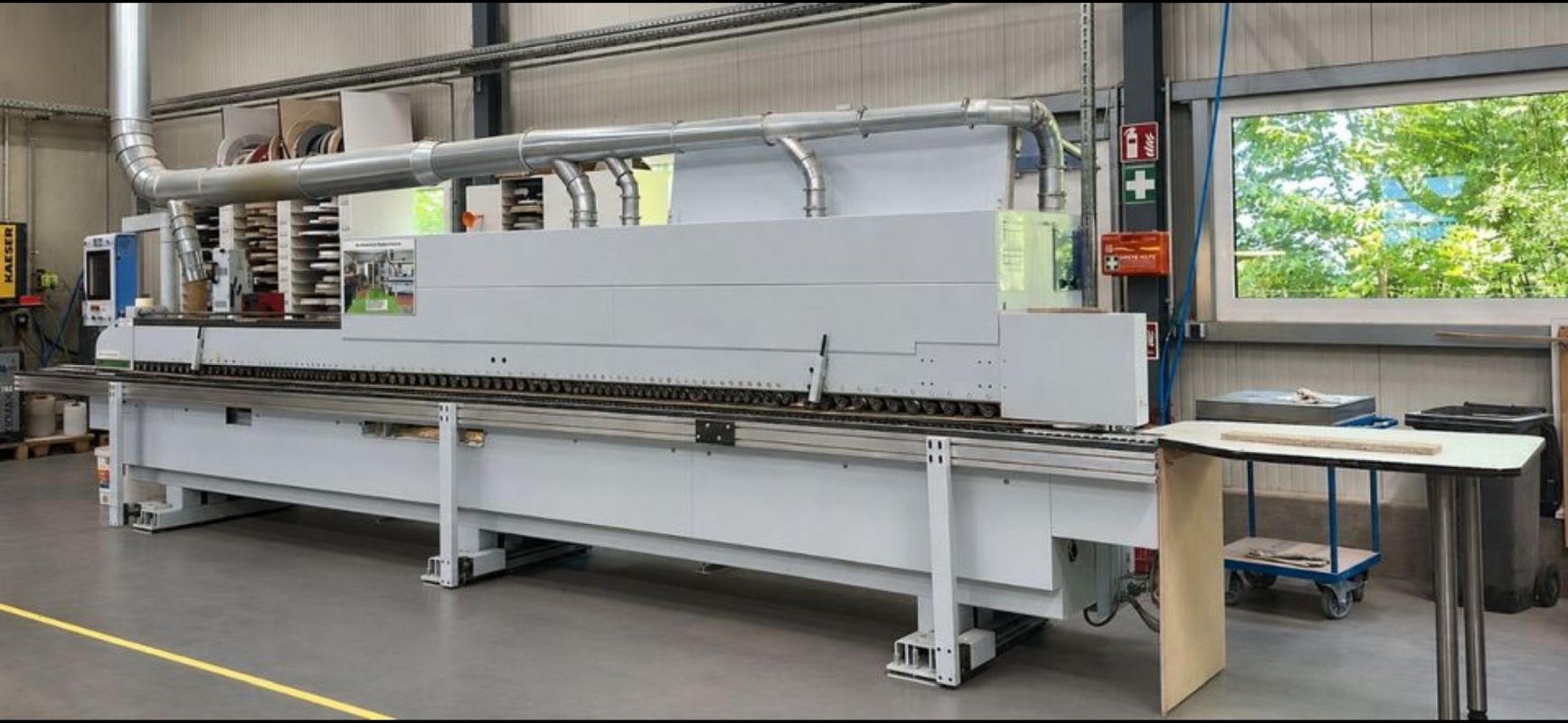

Edge Banding Machine
Brand: Homag
Type: KAL 211
Year of Manufacture: 2012


Technical Data
Feed rate: 18–25 m/min; with FK11, max. 20 m/min
Working height: approx. 950 mm
Machine length: approx. 7,845 mm
Workpiece thickness: 12–40 mm standard; version available up to 60 mm
Edge banding material (roll): approx. 0.3–3 mm
Edge banding material (strip): approx. 0.4–6 mm
Roll diameter: max. 830 mm
Pneumatics: 6 bar Electrical: 400 V / 230 V, 3-phase, 50 Hz

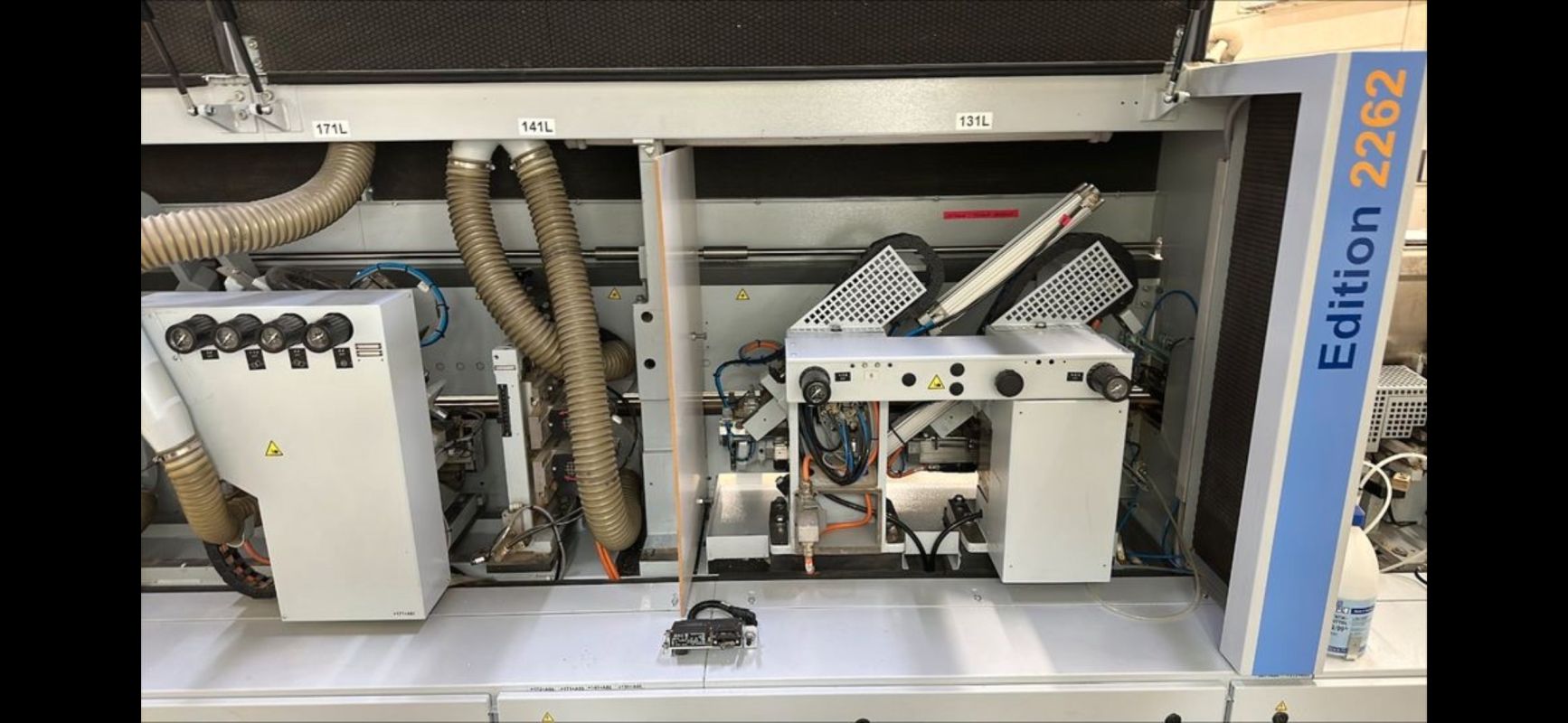

Units / Equipment
- Release agent spray unit (top/bottom)
- Joining milling unit
- Glue application unit
- 2-roll edge banding magazine
- Pressure zone
- End trimming unit HL81
- BF10 pre-milling unit
- FK11 profile milling unit
- PN10 profile scraper
- Finishing unit with glue joint scraper and buffing unit

- Preparation for HOMAG 1 laserTec
- powerControl PC22 with touchscreen
- Automation packages
- In addition, there are scrapers available for both 2 mm and 1 mm edges.

PUR retrofit in 2023

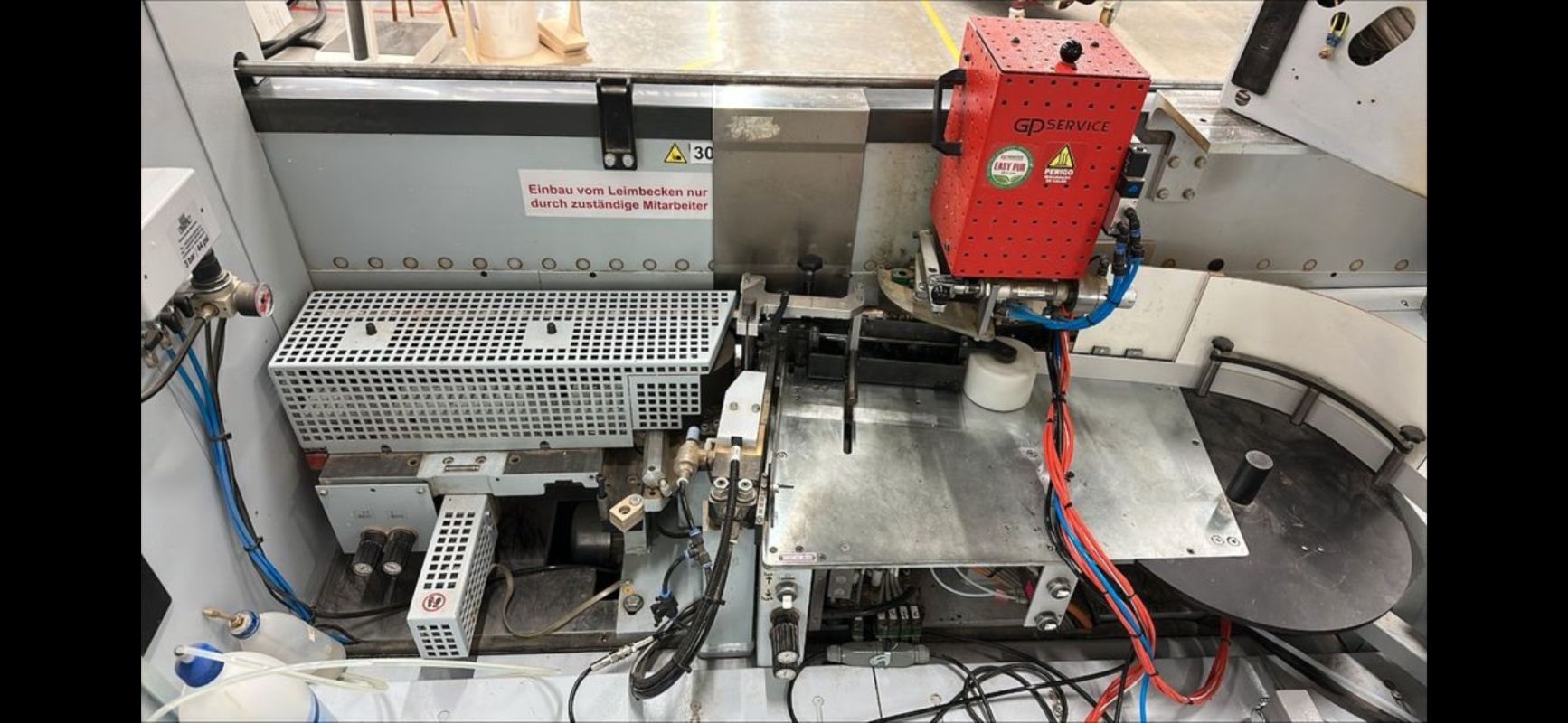

In 2023, the machine was retrofitted with a PUR glue applicator manufactured by GP Service, model EasyPUR AC 34, as well as a RIEPE spray system, model LP289/99 24 V Retrofit.



Note:
The technical data and descriptions are copies of the original order confirmation. This information is provided for informational purposes only and is not binding.
