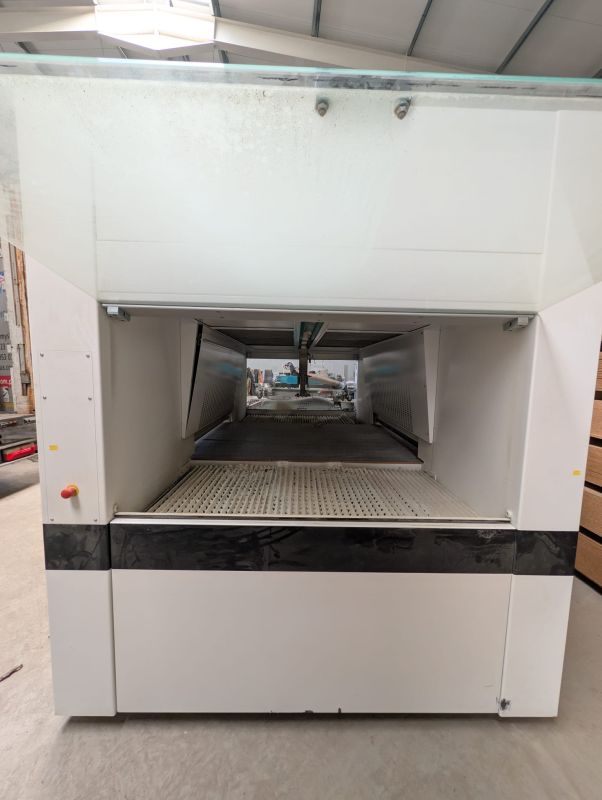

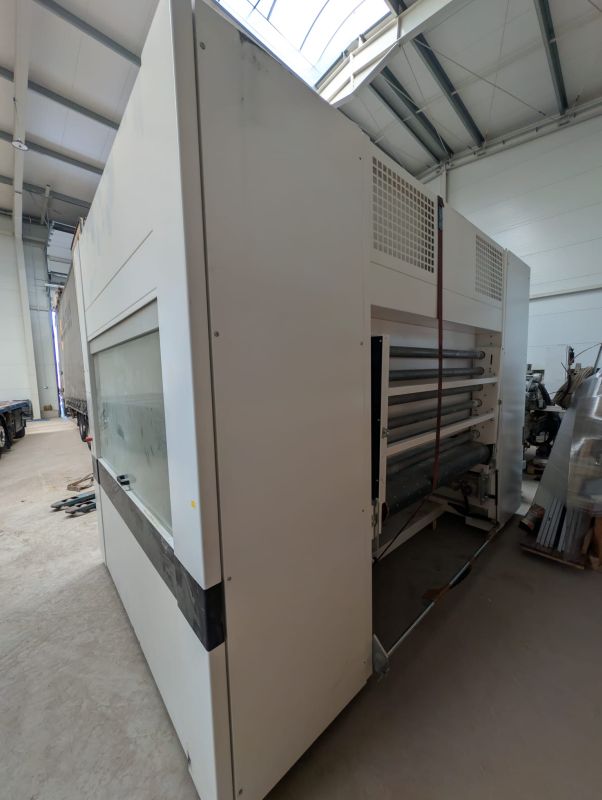

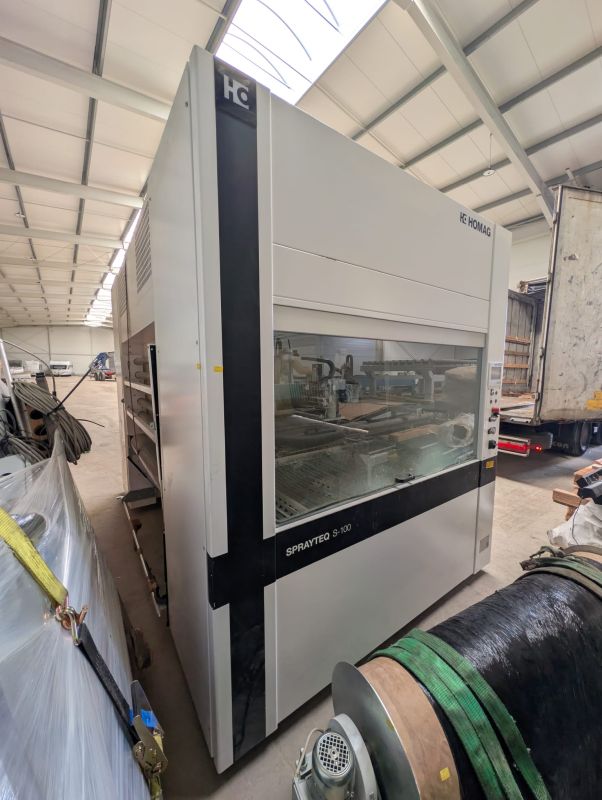

Spray Painting Machine

Spray Painting Machine
Brand: Homag
Type: PROFI GSF100/P/13
Year of Manufacture: 2020


Technical data
Spray painting machine for the automated painting of furniture parts, doors, stair components, and interior finishing elements using water- or solvent-based paints.

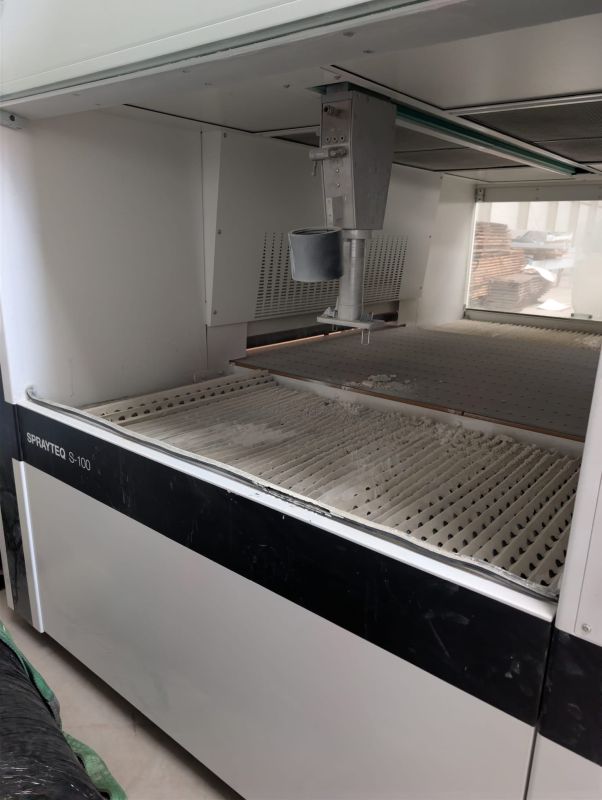

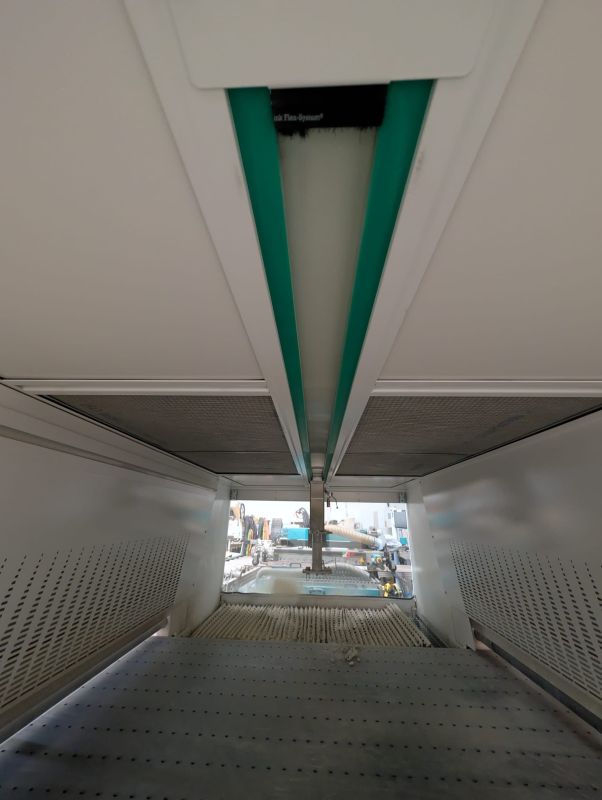

- Carriage-type conveyor with one spray arm capable of holding four spray guns

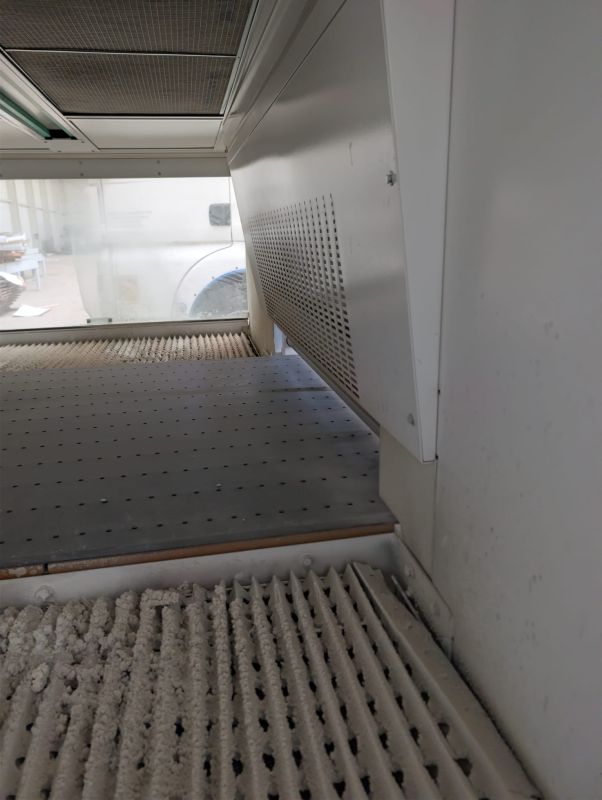

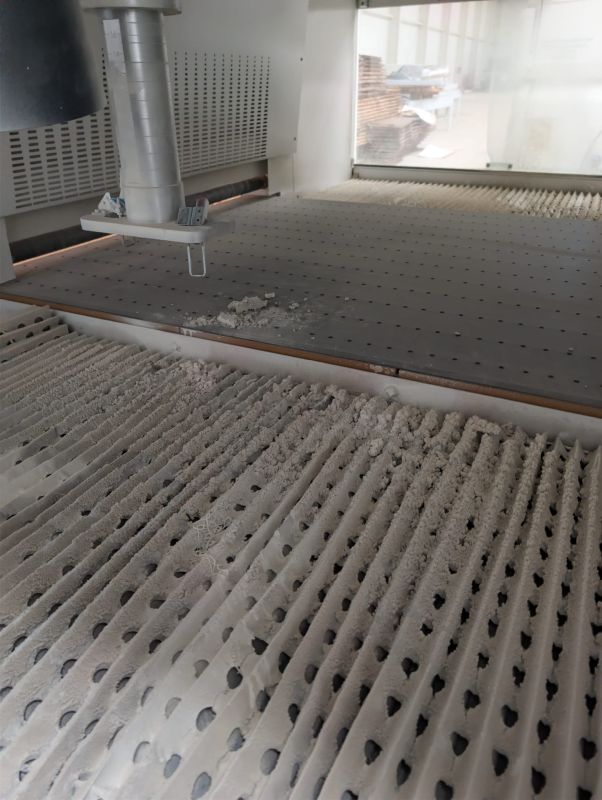

- Workpiece transport via a vacuum conveyor belt with an additional paper support layer

- Feed speed: 1–4.5 m/min
- Average coating speed: 1.5–2.5 m/min
- Working height: 900 mm
- Exhaust volume: approx. 10,000 m³/h
- Exhaust port diameter: 350 mm
- Electrical power consumption (without additional equipment): 10 kW
- Compressed air consumption (without spray application): approx. 150 nl/min

Workpiece Parameters
Workpiece width: 100 – 1,300 mm
Workpiece length: 300 – 3,000 (without additional workpiece support)
Workpiece thickness: 5 – 60 mm
Workpiece weight: max. 80 kg

Workpiece material
- Particleboard, MDF, and HDF panels
- Solid wood parts
- Lightweight panels
- Workpiece warpage must not exceed 2 mm

Coating material
- Water-based or solvent-based paint

Electrical Parameters
- Operating voltage: 400 volts, 50 Hz

Roller Table (Machine Infeed/Outfeed)
- Motorized roller table for automatic transport of workpieces

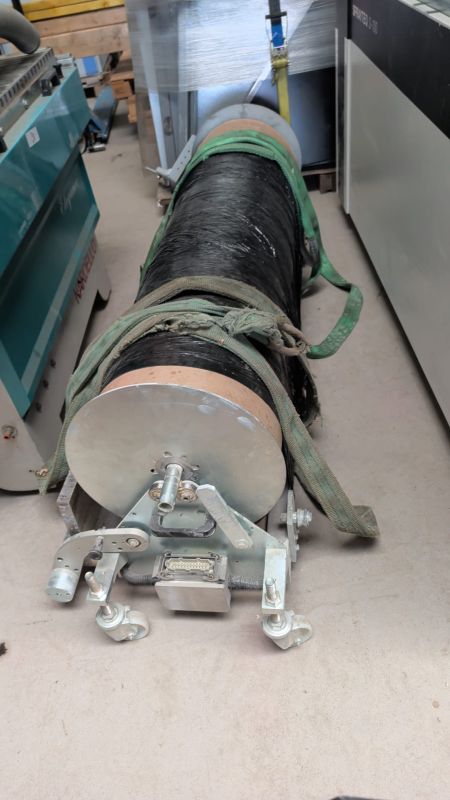

Mobile Paper Cart
- for quickly changing the paper roll

Touchscreen Operation
- The machine is operated via a touchscreen terminal, which is ergonomically positioned on the operator side of the machine.



Note:
The technical data and descriptions are copies of the original order confirmation. This information is provided for informational purposes only and is not binding.
