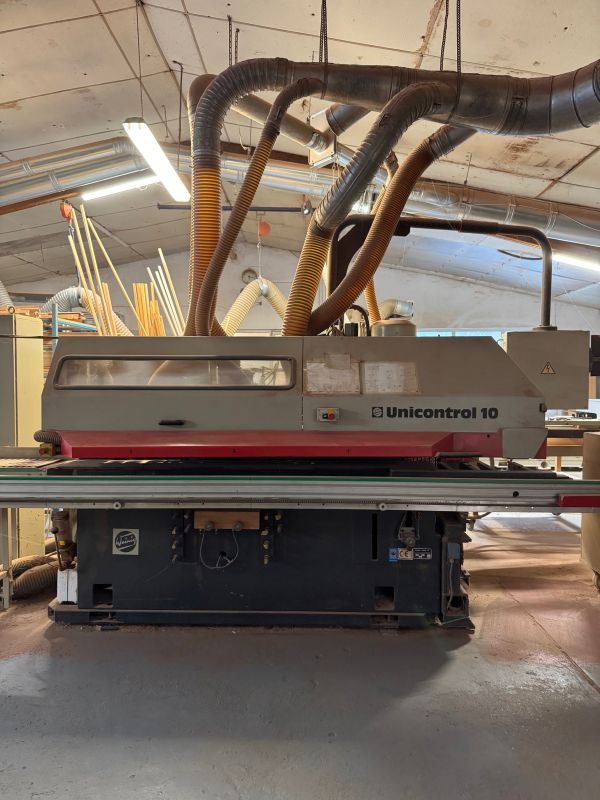

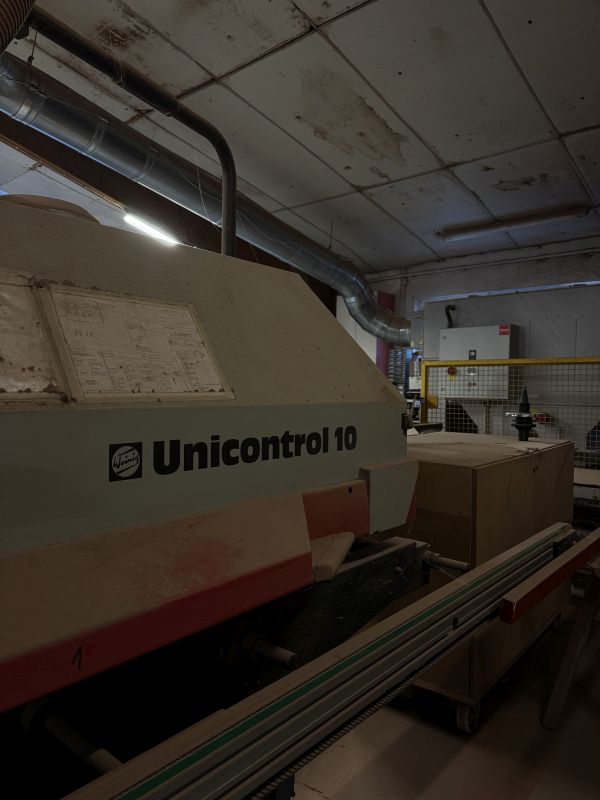

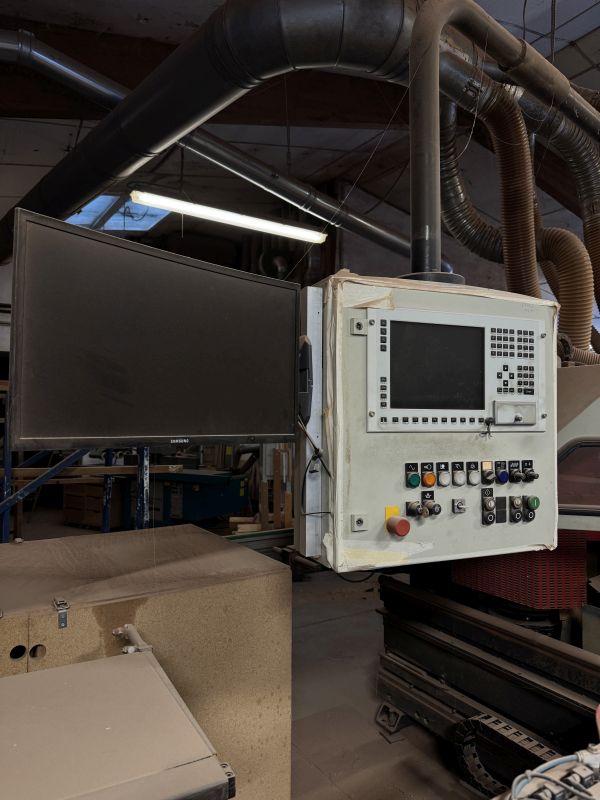

window manufacturing machine

window manufacturing machine
Brand: Weinig
Type: Unicontrol 10-5
Year of manufacture: 1998


Technical data
Working width: 40-220 mm
Working height for longitudinal machining: 40-100 mm
Working height for cross machining: 40 - 100 mm (80 mm counter wood height)
Workpiece length for longitudinal machining: min. 220 mm + 2 x tenon length
Workpiece length for cross machining: min. 275 mm + 1 x tenon length with 320 mm tool diameter

Feed (cross machining)
Motor power: 0.3 kW
Feed speed: 3 - 25 m/min
Workpiece clamping: by means of 2 clamping claws
Length stop: with scale and reading magnifier for frame or sash outer dimensions
Counter: pneumatically clocked - 4 positions - (not for studio windows) up to wood height max. 80 mm
Double part package: For single or double part feeding. With cross separation and retention system
1st piece of wood (lying on the stop) Wood width: 55 - 90 mm
2nd piece of wood Wood width: 130 mm

Feed (longitudinal machining)
Motor power: 2.2 kW
Feed speed: 4 - 18 m/min (infinitely variable via frequency converter)
Feed roller spacing: 100/120 mm
Feed roller width: 30/50 mm
Feed roller diameter: 95 mm

Machining units
Crosscut saw
Motor power: 3 kW
Spindle diameter: 40 mm
Spindle speed: 2800 rpm
Tool swing: max. 400 mm
Axial adjustment: pneumatic against 4-fold turret

1. Spindle with tenon and slot
Motor power: 11 kW
Spindle diameter: 50 mm
Spindle speed: 3250 rpm
Tool swing: max. 320 mm
Tool clamping length: 320 mm
Axial adjustment range: 240 mm
Number of tools: 4 x 80 mm
Axial adjustment: hydraulic

1. Profiling spindle
Motor power: 11 kW
Spindle diameter: 50 mm
Spindle speed: 6000 rpm
Tool diameter: max. 232 mm
Tool zero swing circle: 130 to 140 mm
Tool clamping length: 320 mm
Axial/radial adjustment range: 240/80 mm
Number of tool positions: 4 x 80
Axial adjustment: hydraulic

2nd profiling spindle
Motor power: 11 kW
Spindle diameter: 50 mm
Spindle speed: 6000 rpm
Tool diameter: max. 232 mm
Tool zero flight circle: 130 to 140 mm
Tool clamping length: 320 mm
Axial/radial adjustment range: 240/80 mm
Number of tool positions: 4 x 80 mm
Axial adjustment: hydraulic

2 Mechanical spindle brake for profiling spindle

3 Mechanical spindle brake for crosscut saw and profiling and sawing units

Profile milling unit (horizontal at top) in front of the last profiling spindle
Radially indexed to 2 positions
Axially indexed to 2 positions
Motor power: 3 kW
Spindle diameter: 40 mm
Spindle speed: 5850 rpm
Tool swing: 130 mm
Tool clamping length: 40 mm
Axial adjustment range: 52 mm
Radial adjustment range: 125 mm

Profile milling unit (vertical right) at the end of the machine
Radially indexed to 2 positions
Axially indexed to 2 positions
Motor power: 3 kW
Spindle diameter: 40 mm
Spindle speed: 5850 rpm
Tool swing: 210 mm
Tool clamping length: 160 mm
Axial adjustment range: 90 mm
Radial adjustment range: 100 mm

Length tenoning and slotting spindle with 640 mm tool clamping length (instead of 320 mm spindle)
Motor power: 15 kW
Spindle speed: 2925 rpm
Number of tool positions: 8 x 80 mm
Axial adjustment range: 560 mm

Laser guide light for crosscut saw for section detection

Studio window device
Swiveling length stop +/- 60° with electronic digital display and pneumatic clamping
Sliding counter bar
Special pressure for slanted part production
Restriction: wood thickness max. 120 mm
At -60° position: workpiece width max. 110 mm with 80 mm tenon length, or max. 150 with counter profiles

Milling package
Synchronization device with automatic immersion (on 1st profiling spindle)
Support rail with sliding belt
High/low clocked feed roller up to the 2nd profiling spindle to shorten the milling path
Software extension with 100 freely programmable milling types

2 axially clocked feed rollers opposite both profiling spindles for the production of narrow, short parts

Rung guide consisting of
Automatically clocked guide bar in the stop for rung production.
Rung support bar from above in the area of the profile milling unit (vertically on the right) at the end of the machine

Electronic height adjustment for feed, including electronic digital display

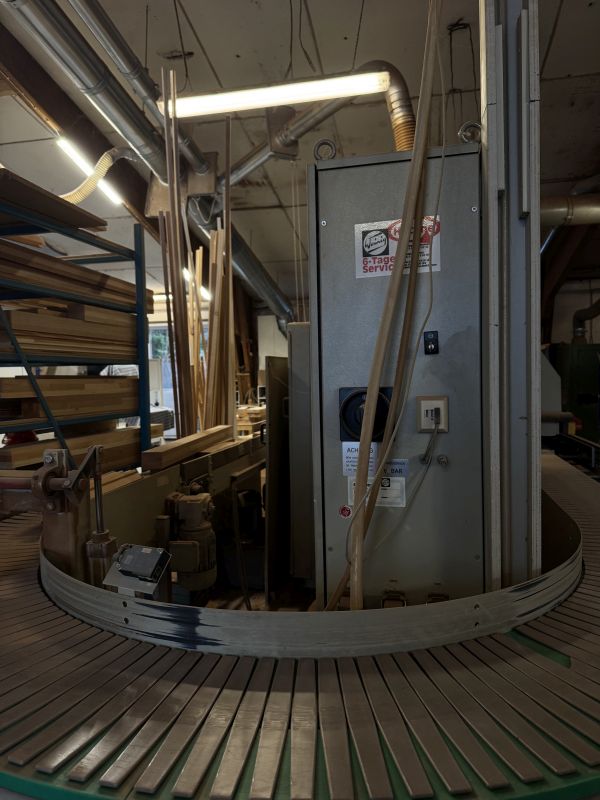

Automatic turning system for one-man operation, including conveyor belt



Note:
The technical data and descriptions are copies of the order confirmation at the time. Data is for information purposes only and is not binding.
