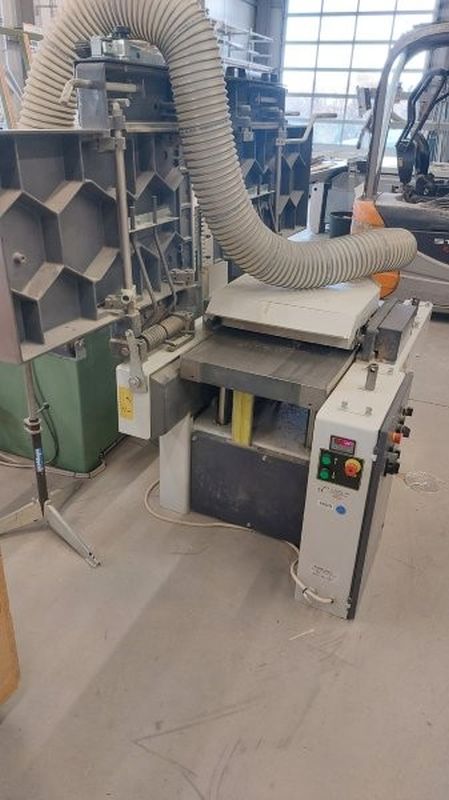

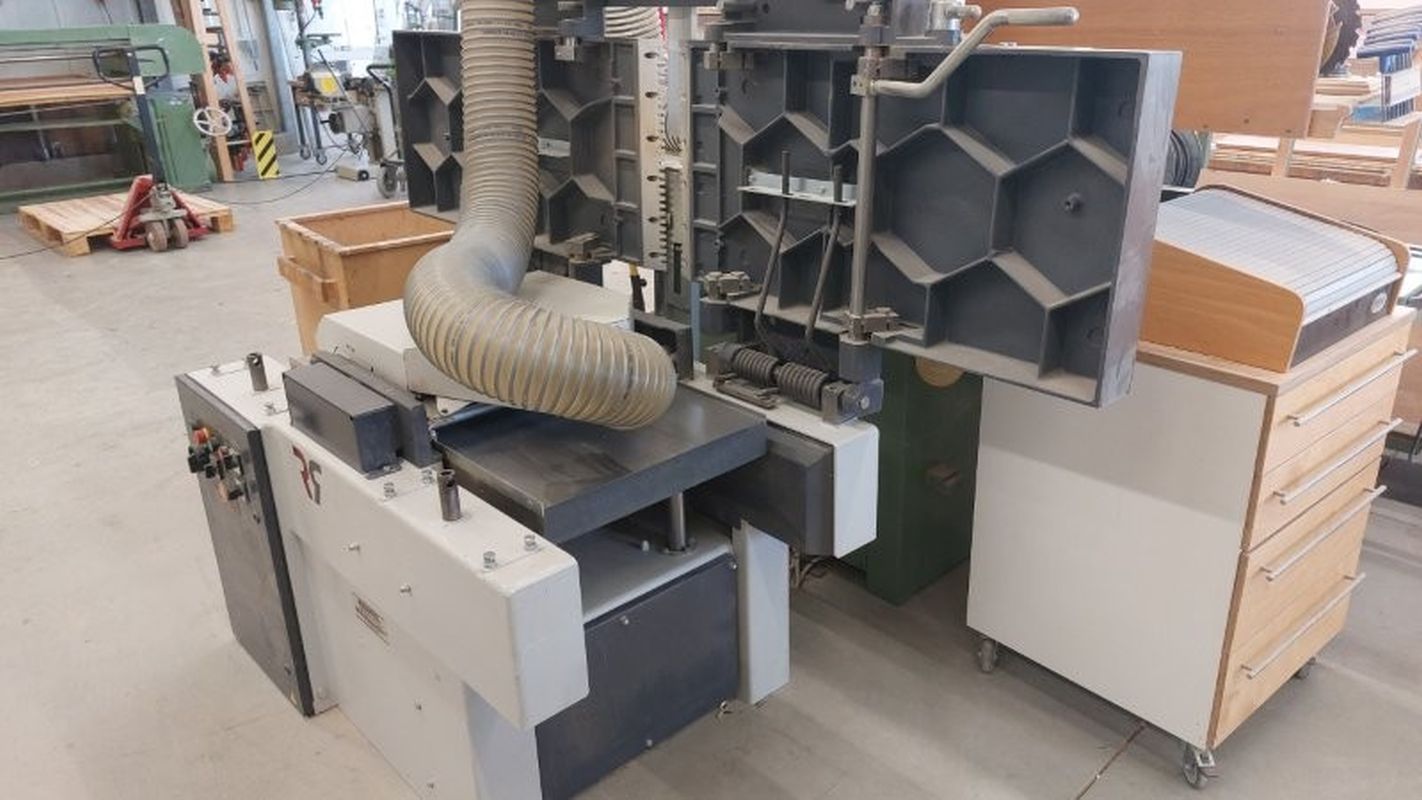

Surface and Thickness Planer

Surface and Thickness Planer
Brand: Werkhuizen Landuyt
Year of manufacture: 2008

Technical data
Planing width: 510 mm
Planing shaft    Ø: 100 mm
Blades: 4
Blade dimensions: 510 x 30 x 3 mm
Planer spindle speed: 6,000 rpm
Max. chip removal during planing: 6 mm
Planing table length: 2,250 mm
Planing stop: approx. 1,100–1,350 × 200 mm, swivels 45–90°
Thickness planing height: up to 250 mm
Thickness planer table: approx. 1,050 x 510 mm
Feed rollers: Ø 50 mm



Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
