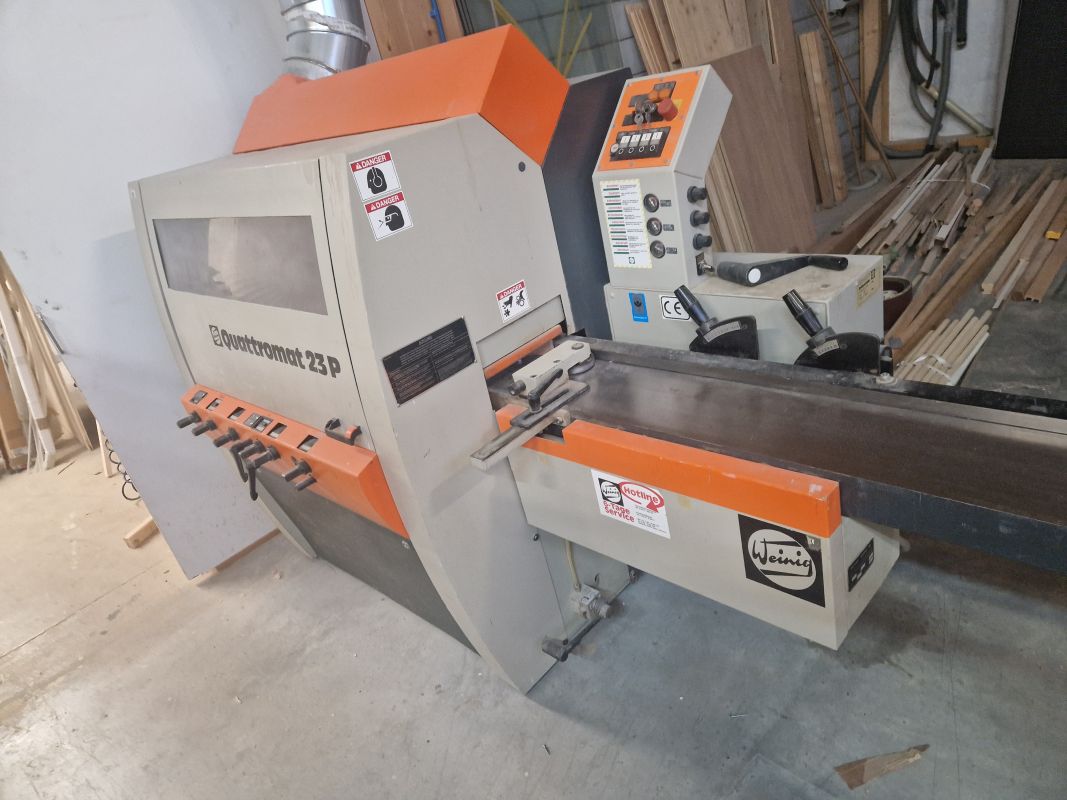

four-sided planing machine

four-sided planing machine
Brand: Weinig
Type: Q 23 P
Year of manufacture: 1999


Technical data
- Working width 13-230 mm
- Working height 6-120 mm
- Number of spindles 4
- Motor power of the planing spindle 4-7.5 kW (5.5-10 hp)
- Motor power of the vertical spindles 5.5-11 kW (7.5-15 hp)
- Motor power of the upper spindle 4-11 kW (5.5-15 hp)
- Motor power of the feed 1.5 kW (2 hp)
- Spindle speed 6000 rpm
- Spindle diameter 40 mm
- Tool swing of the throat spindles 125-200 mm
- Spindle adjustment range (axial)* 30 mm
- Adjustment range of the dressing spindle 5 mm
- Feed speed 8 m/min
- Diameter of the feed rollers 140 mm
- Width of the feed rollers 2x50 mm
- Width of the roller in the outfeed table 50 mm
- Adjustment range for dressing table and jointing ruler 10 mm
- Height of the right stops 60 mm
- Length of the planing table 2 m



Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
