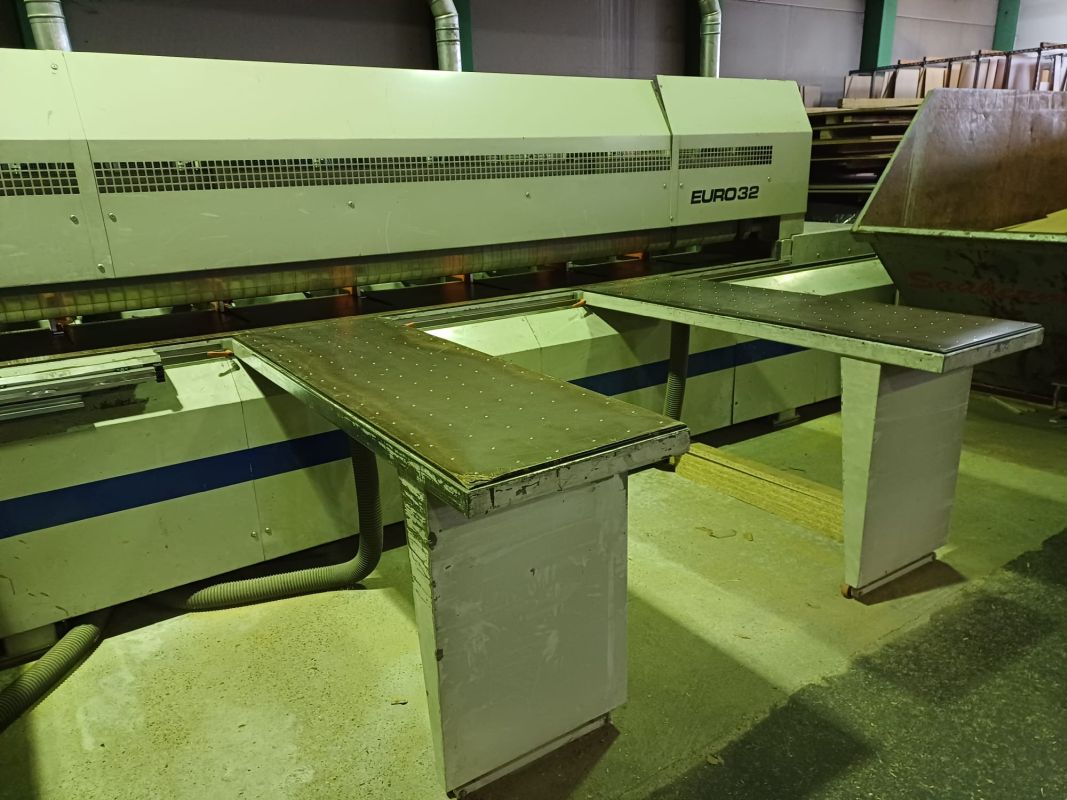

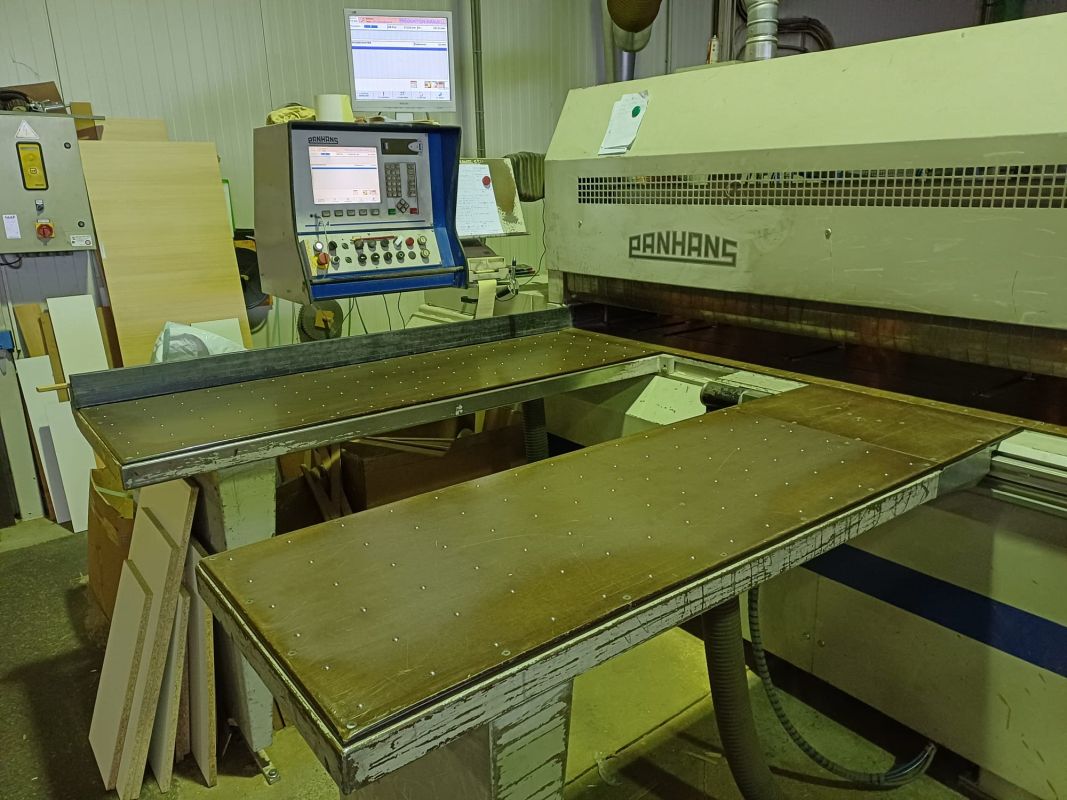

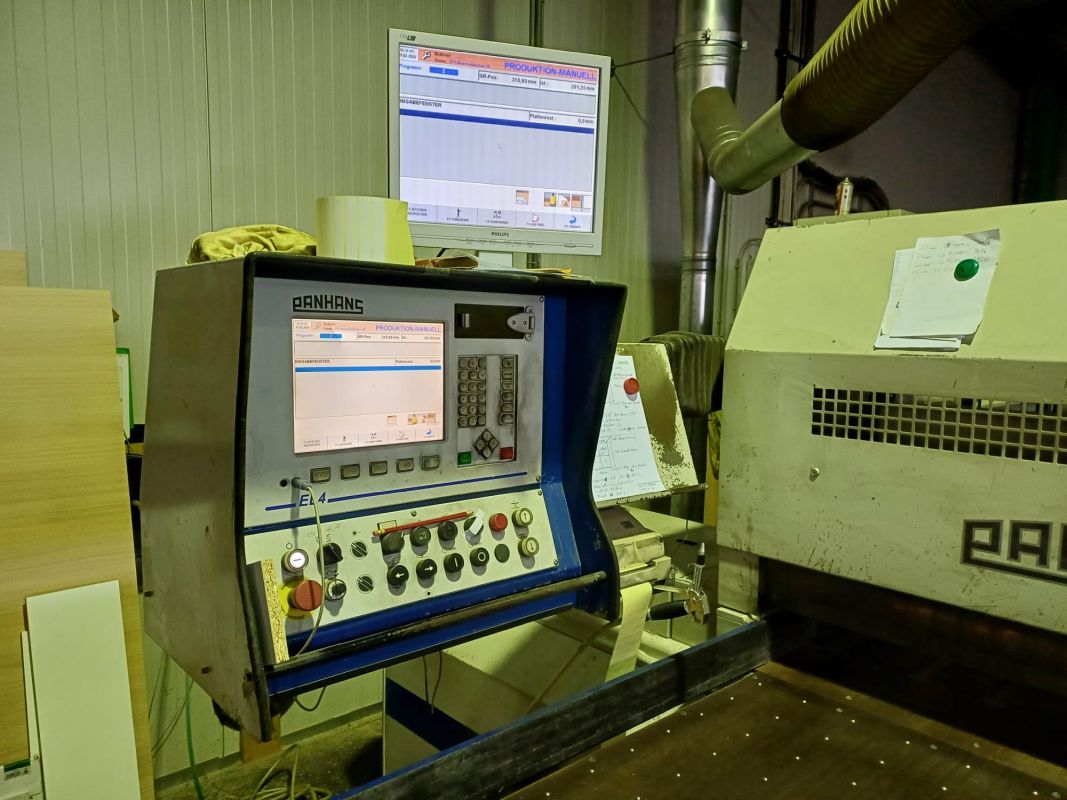

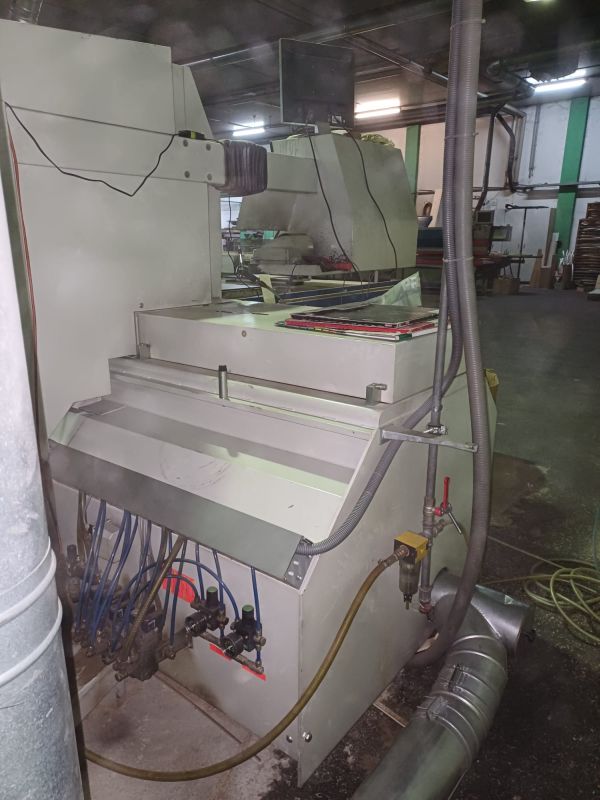

panel cutting and solid wood saw

panel cutting and solid wood saw
Brand: PANHANS
Type: EURO 32
Year of manufacture: 2001


Dimensions:
- Cutting length: 5800 mm
- Cutting width: 2x2200 mm
- Max. cutting height: 100 mm

Machine attachments:
-Roller table at rear: 3982 mm
-Support beam at rear: 9 pcs. 40 x 4056 mm
- Front air cushion table: 2 pcs. 600 x 1800 mm, movable
Front air cushion table for angle cutting device: 1 pc. 600 x 1400 mm
- Air cushion angle table: 600x1800mm left
- Angle ruler: up to 2060 mm
- Clamping collets: 9 pcs. liftable
- Stop jaws: 2 pcs. liftable
- Side pressure: 65-1365 mm infinitely variable
Special accessories: Automatic angle cutting device

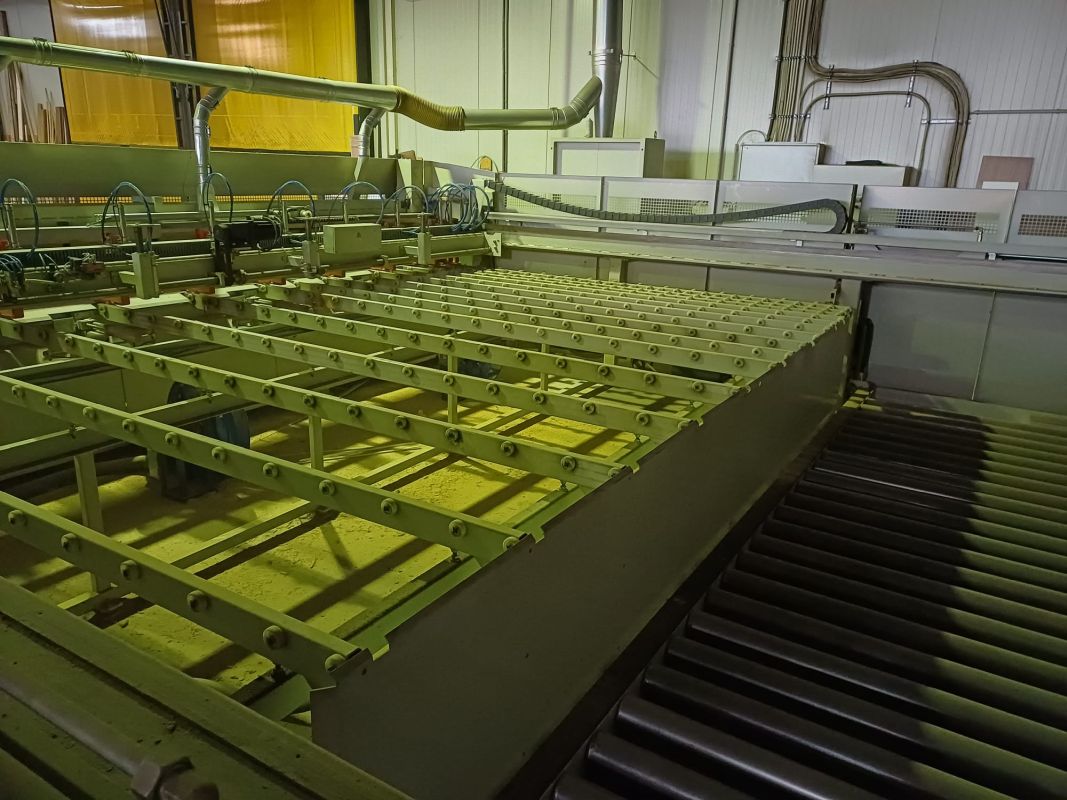

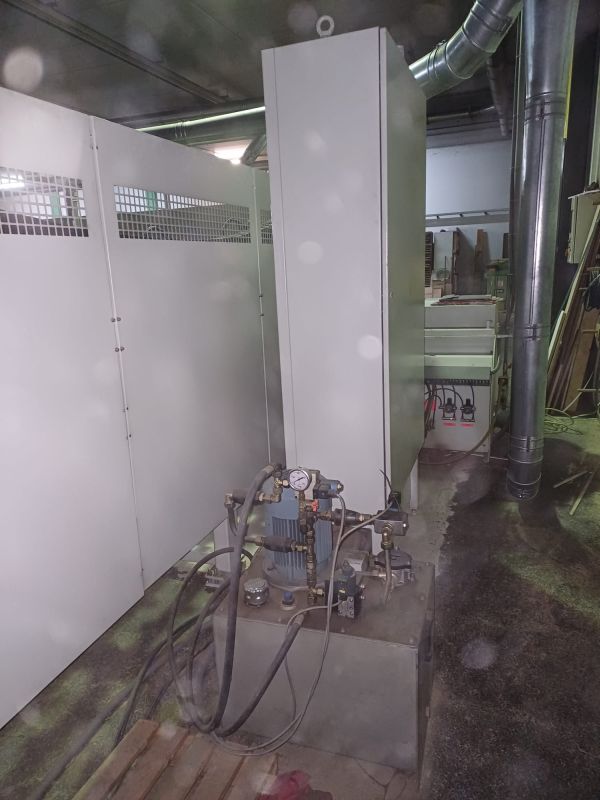

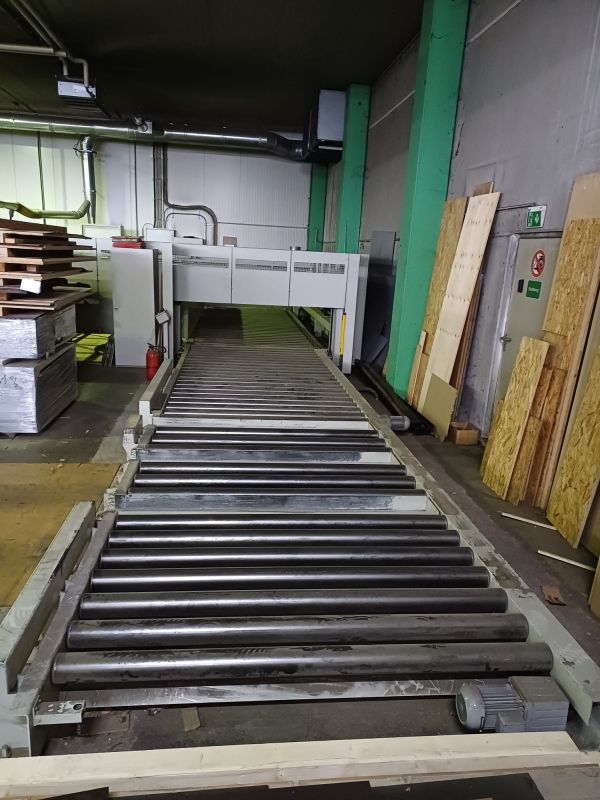

- Special design: Hydraulic lifting table with roller conveyor, feed roller conveyor, 4 longitudinal aligners, 4 plate pullers

Note:
The technical data and descriptions are copies of the order confirmation at the time. The information is for informational purposes only and is not binding.
