BrandPAUL
typeSlimLine 110
stateUsed
stock number0401958
year2021
- Cutting direction: right to left
- Wood types: MDF, particleboard, solid wood, Kerto, plywood
- Wood length: 300-3000 mm
- Wood width: 30 - 350 mm
- Wood thickness: 15 - 110 mm
- Minimum cross-section: 15 x 30 mm
- Maximum cross-section: 58 x 125 mm
- Cutting length: 80 - 2700 mm
- Processing: automatic cutting
Questions about this machine

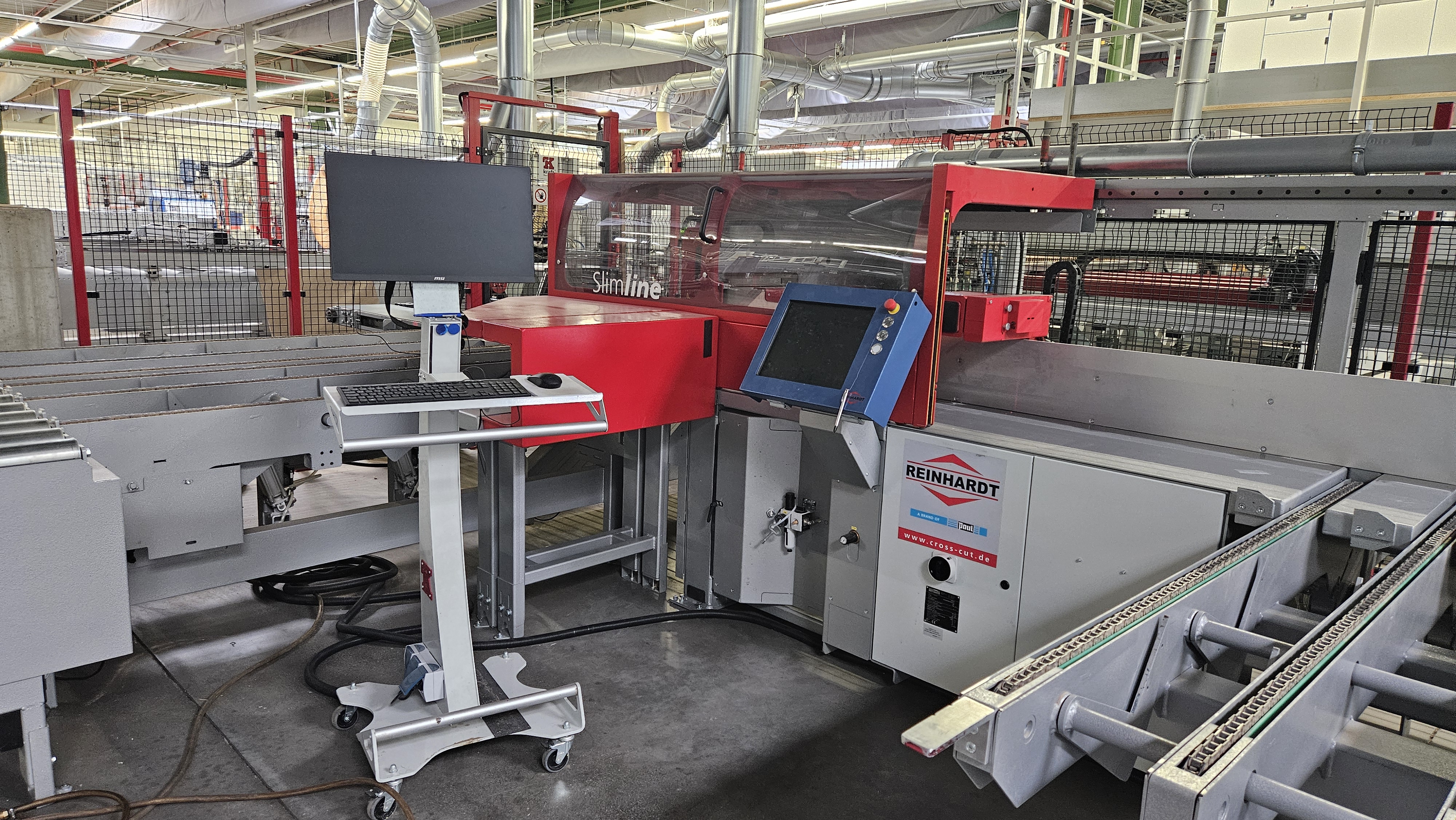

optimization crosscut saw
Brand: Reinhardt / Paul
Type: SlimLine 110
Year of manufacture: 2023
Technical specifications
- Cutting direction: right to left
- Wood types: MDF, particleboard, solid wood, Kerto, plywood
- Wood length: 300-3000 mm
- Wood width: 30 - 350 mm
- Wood thickness: 15 - 110 mm
- Minimum cross-section: 15 x 30 mm
- Maximum cross-section: 58 x 125 mm
- Cutting length: 80 - 2700 mm
- Processing: automatic cutting
- Working height: 900 mm
- Operating voltage: 400V / 50Hz / 3Ph
- Motor: 5.5 kW 400VD / 690VY 50Hz
- Feeding with 3 buffer stations
- Electronic control with Windows 10 and Beckhoff TwinCAT
- Full optimization without error cutting
- Backlog monitoring
- PALETTI PROCESS VIEWER
- PALETTI OFFICE
Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
