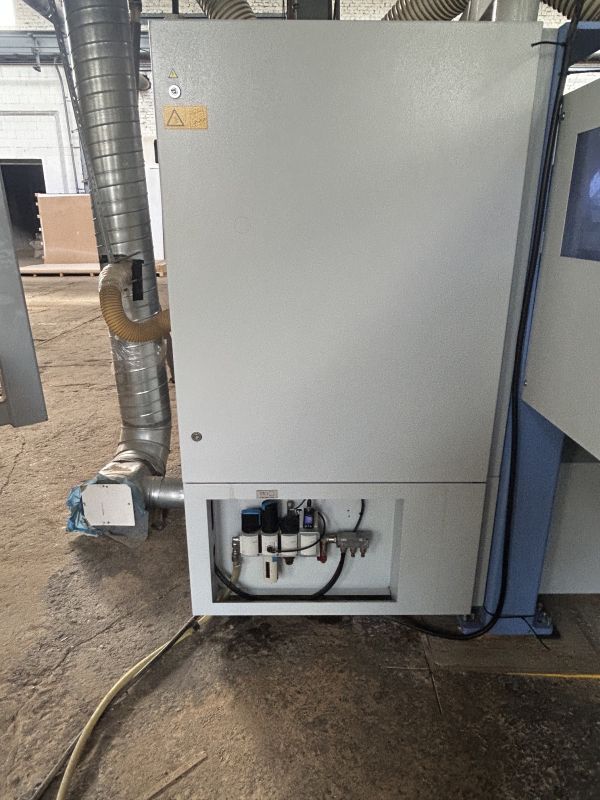

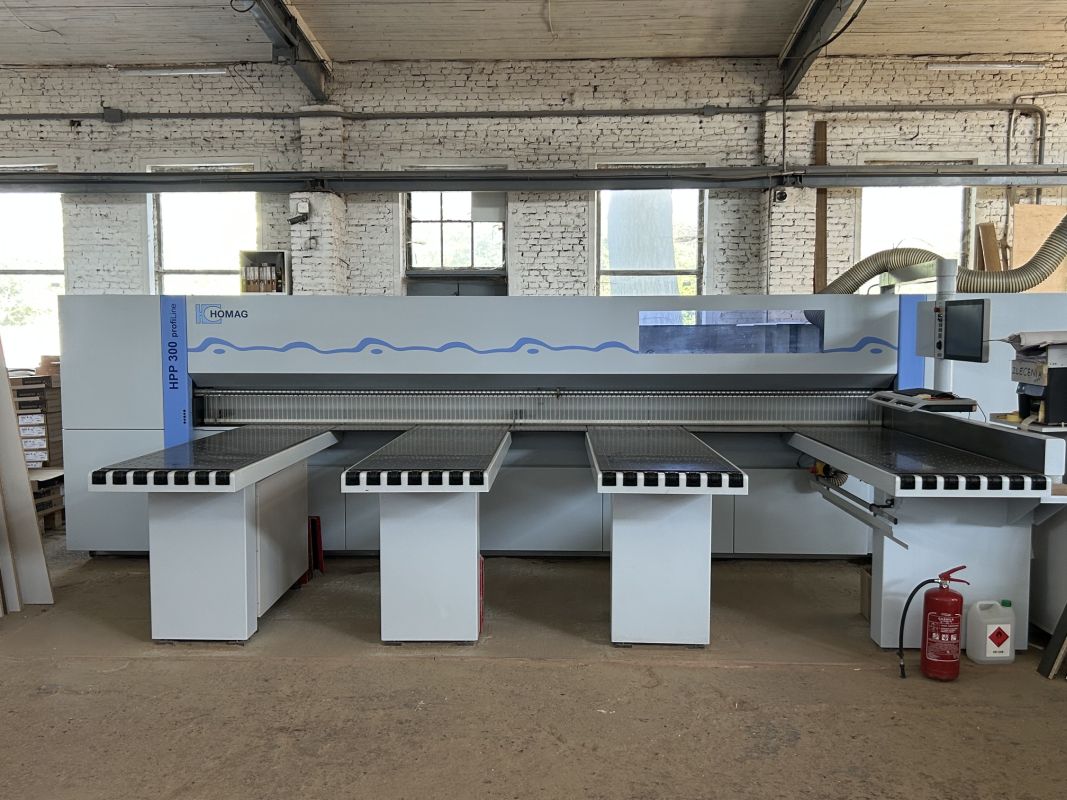

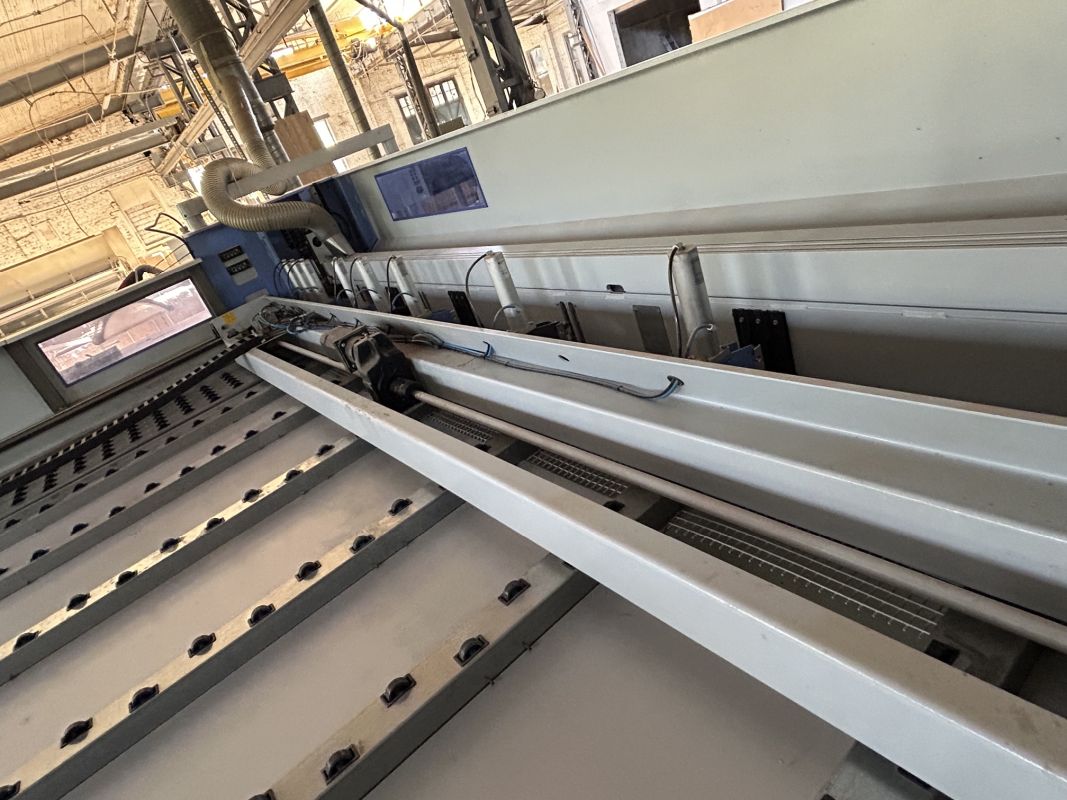

panel saw

panel saw
Brand: Homag
Type: Profi HPP300/43/43
Year of manufacture: 2018


Technical data

Cutting length 4,300 mm
Cutting width (programmable pusher) approx. 4,250 mm
Max. saw carriage feed speed 130 m/min
Optional saw carriage feed speed up to 150 m/min
Saw blade projection 80 mm (optional 95 mm)
Max. saw blade diameter 350 mm
Main saw motor 11 kW
Scoring saw motor-adjustable
Clamps 7 units (2-finger design)

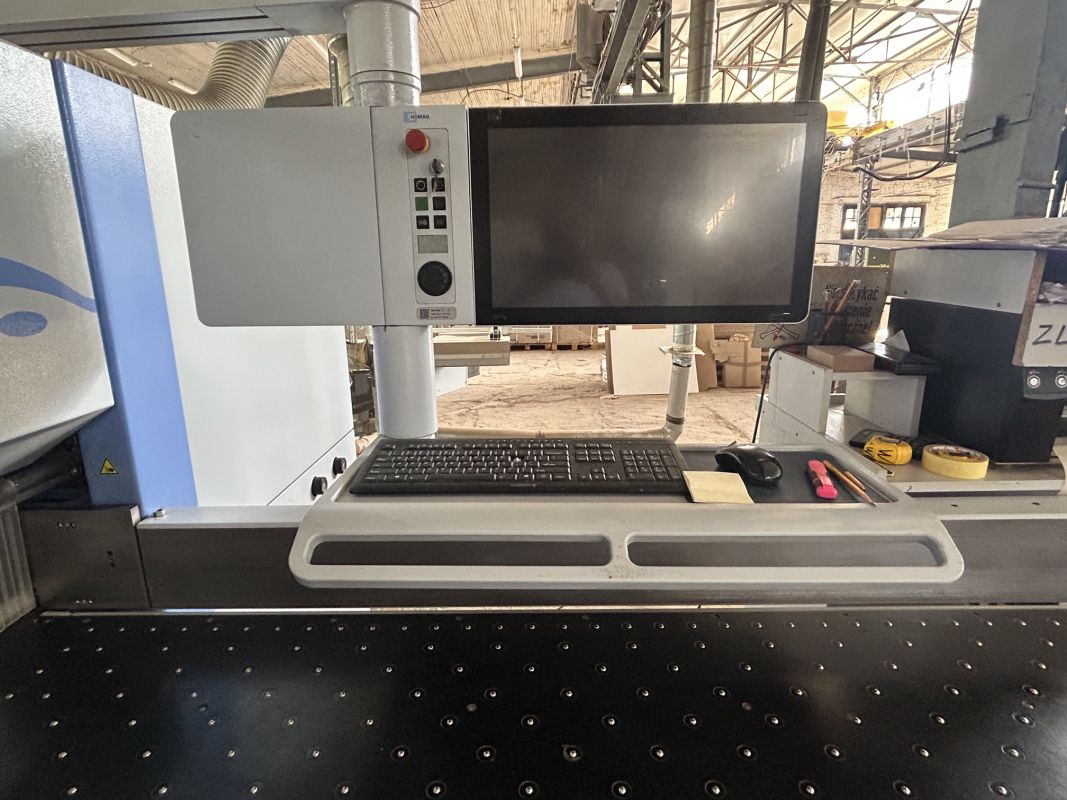

Control system CADMATIC 4.1 / 4.5 or powerTouch
Total connected load approx. 18.4 kW
Compressed air 6 bar
CE marking


Stack height up to approx. 80 mm (standard)
Max. saw blade 350 mm
Main saw blade 350–380 mm (depending on configuration)
Scoring saw motor 1.5–2.2 kW
Extraction capacity approx. 3,350–5,230 m³/h
Processing Single panels and stack cuts




Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
