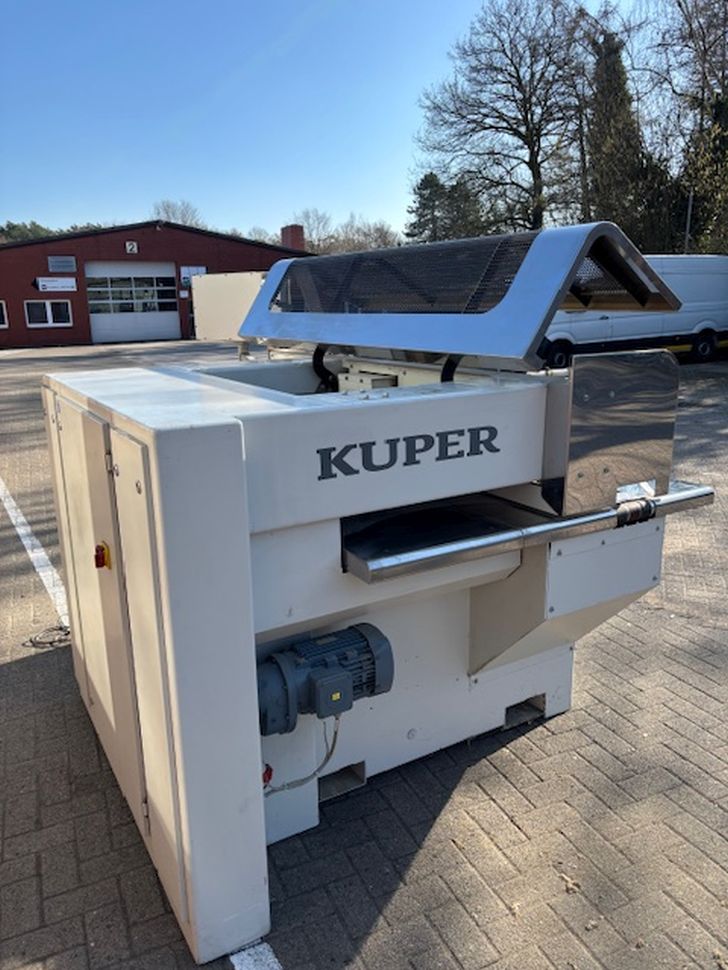

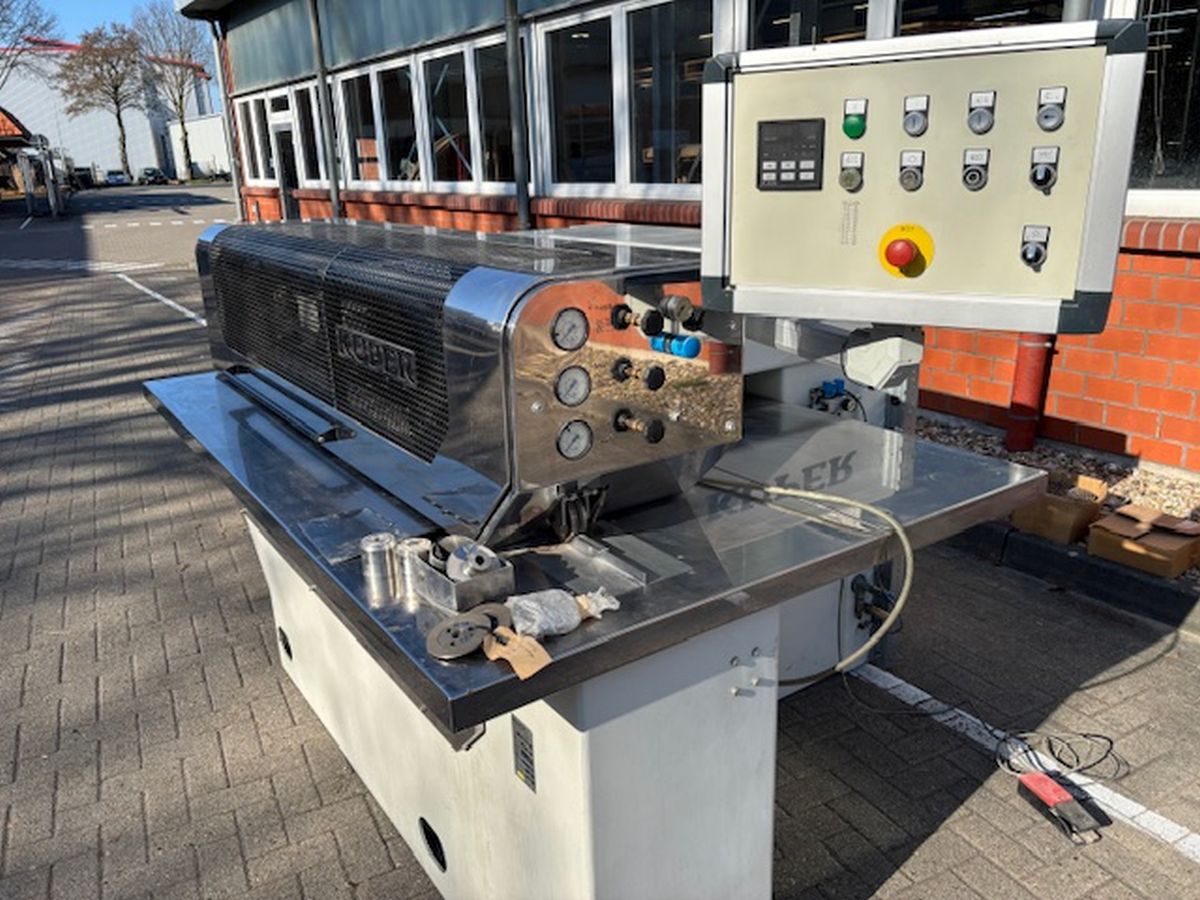

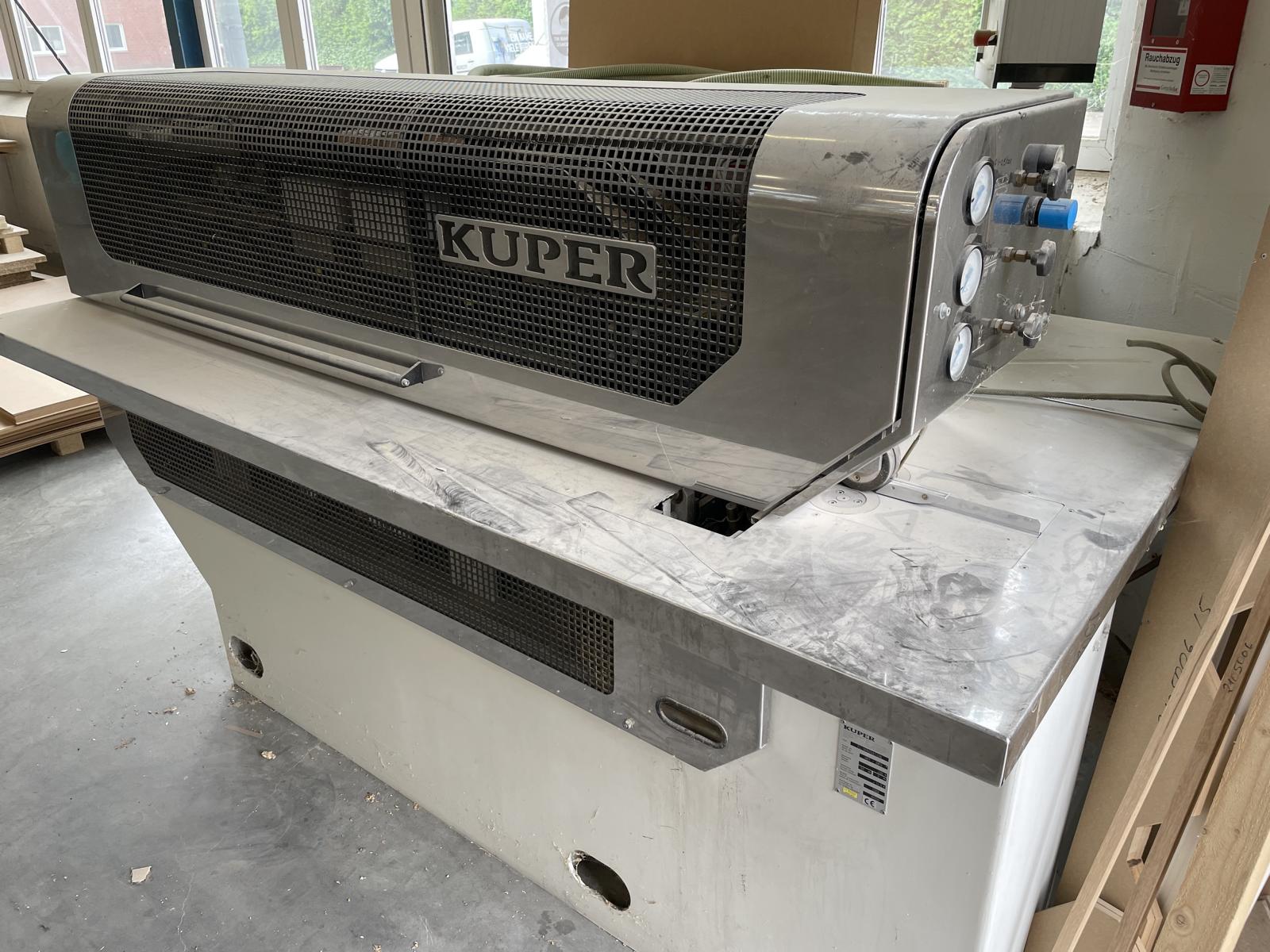

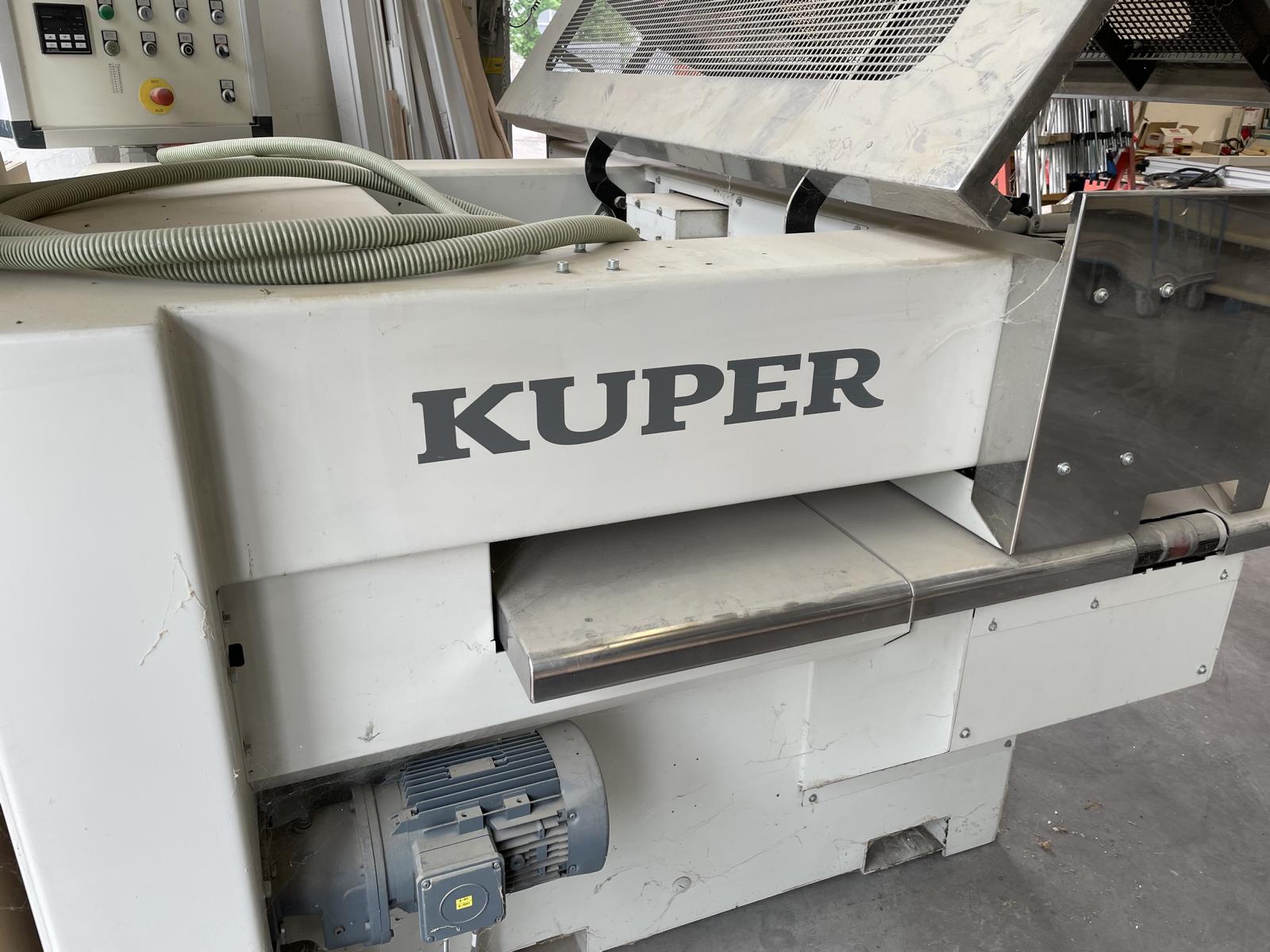

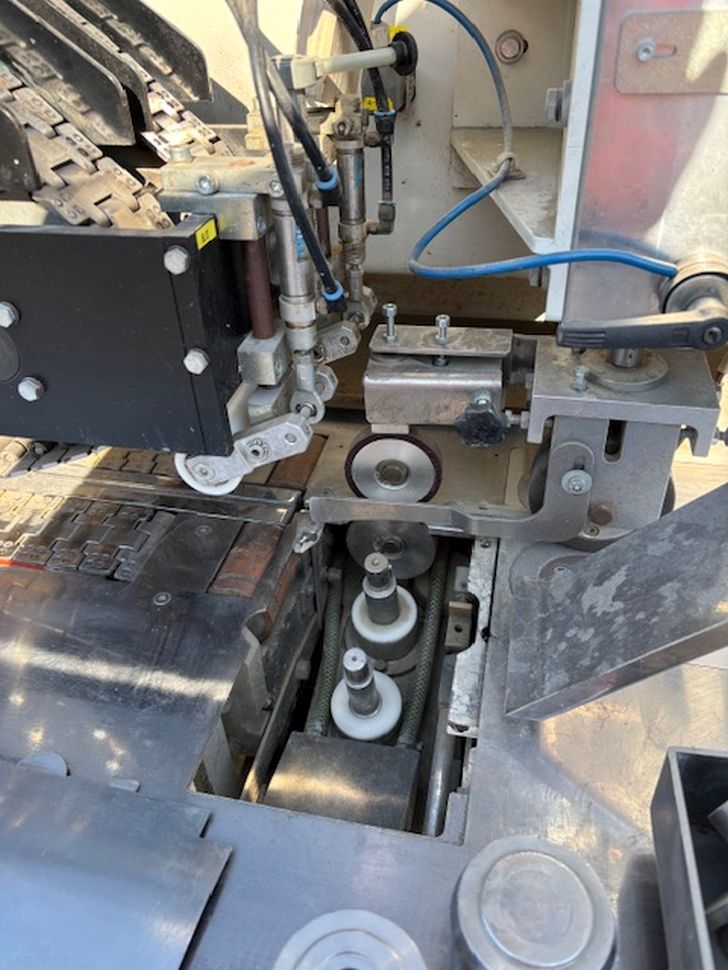

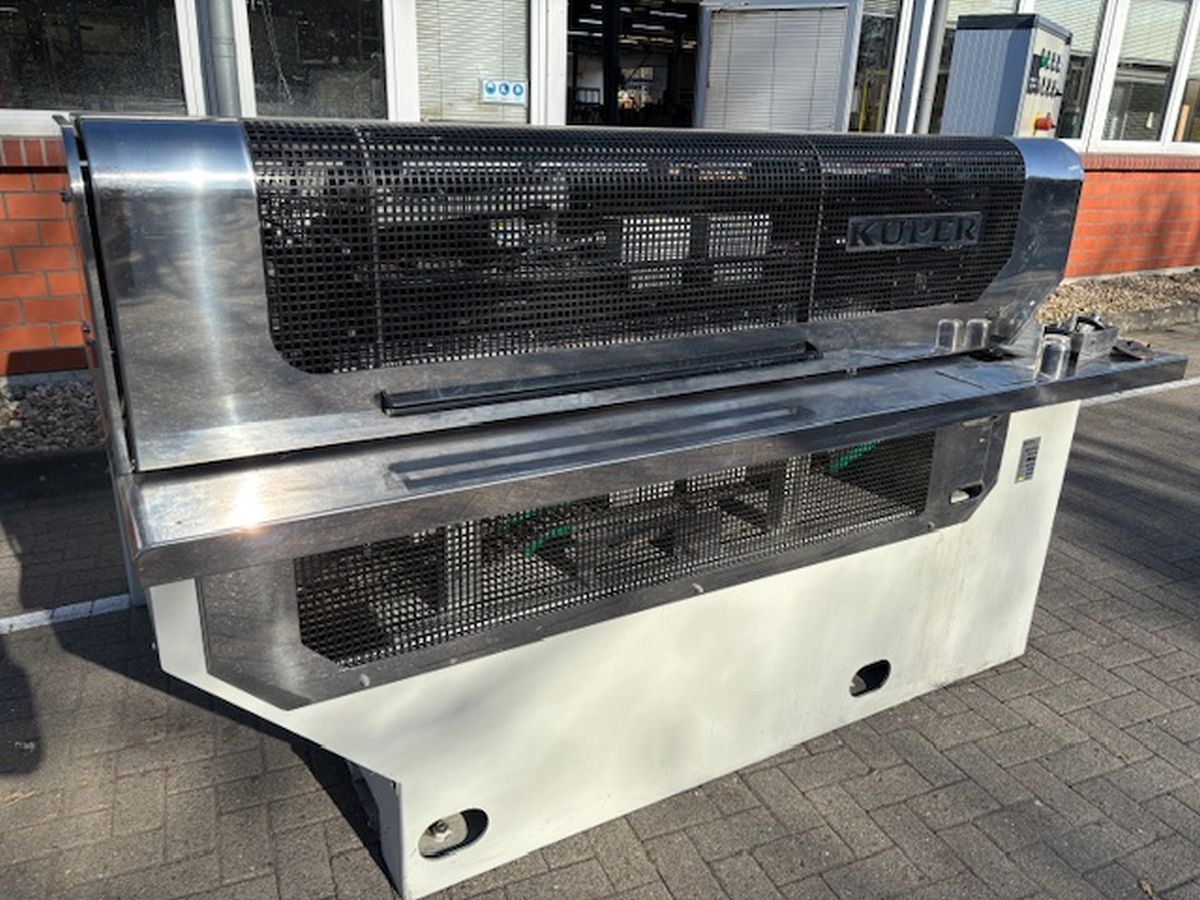

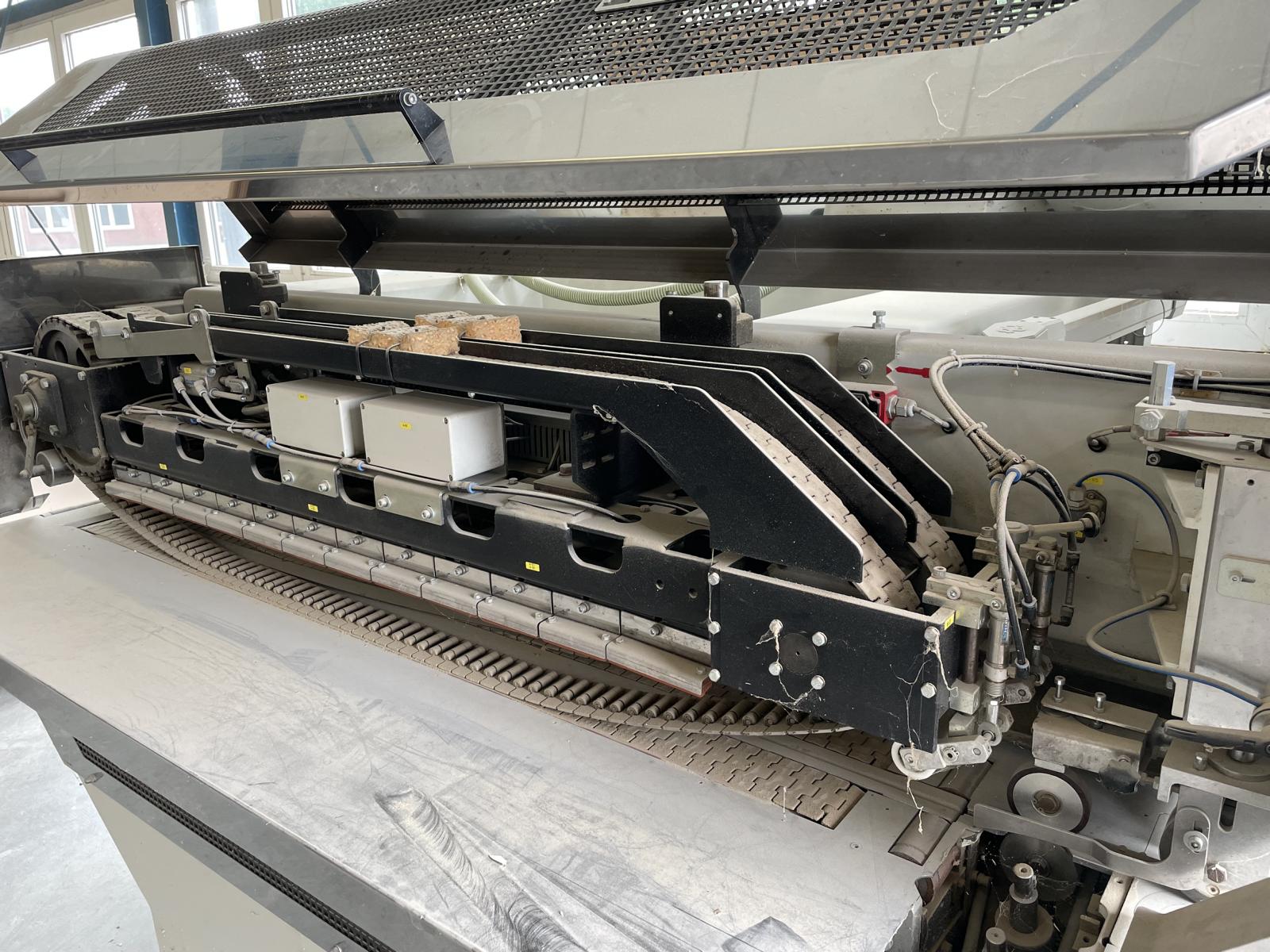

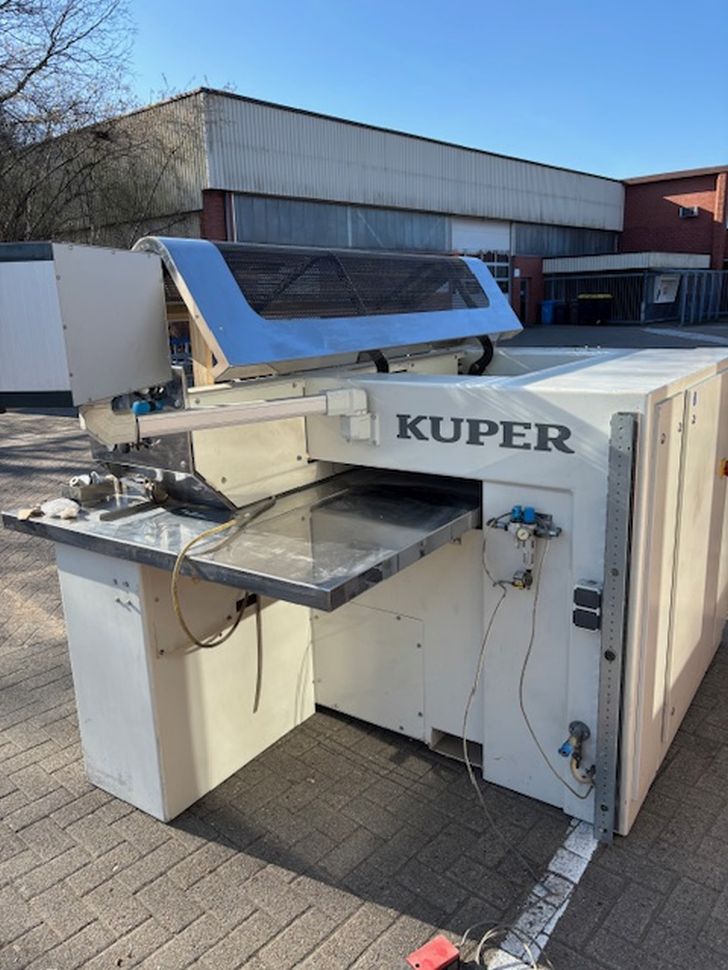

veneer splicer

veneer splicer
Brand: Kuper
Type: FL / Innovation
Year of manufacture: 2008


Technical data
- Stand projection: 1000 mm
- Min. veneer strip length: approx. 350 mm
- Min. veneer strip width: approx. 45 mm
- Veneer thickness: approx. 0.3 - 1.5 mm
- Feed speed: approx. 20 - 50 m/min
- Heating zone length: 1200 mm
- Temperature control: 0 - max. 220°C
- Working height: 970 mm
- Total connected load: approx. 9.3 kVA
- Average power requirement: approx. 5.0 kW
- Drive: 2.2 kW
- Heating rail: 0.46 kW
- Operating voltage, standard (special voltages possible): 400V, 3Ph, 50Hz
- Installation-side short-circuit protection: max. 32A
- Compressed air connection: G1/4 / 9 mm
- Compressed air: 6 bar
- Compressed air consumption: approx. 30 l/min

Note:
The technical data and descriptions are a copy of the order confirmation at that time. Data are for information and are not binding.
