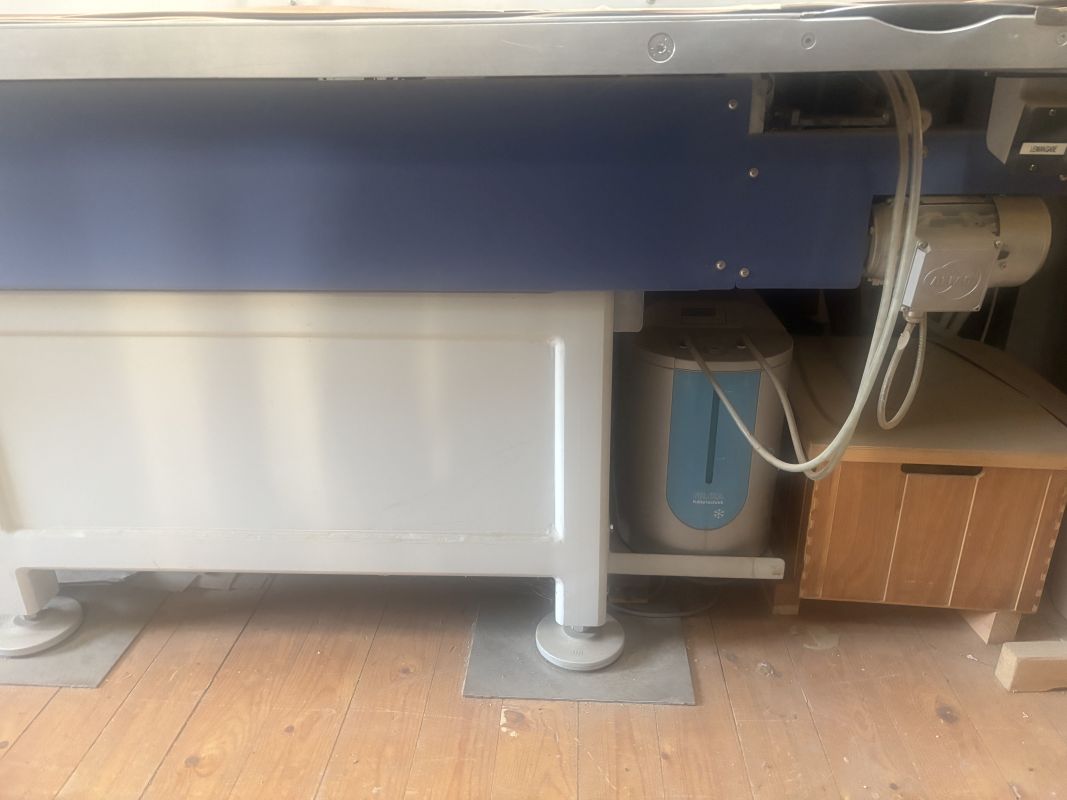

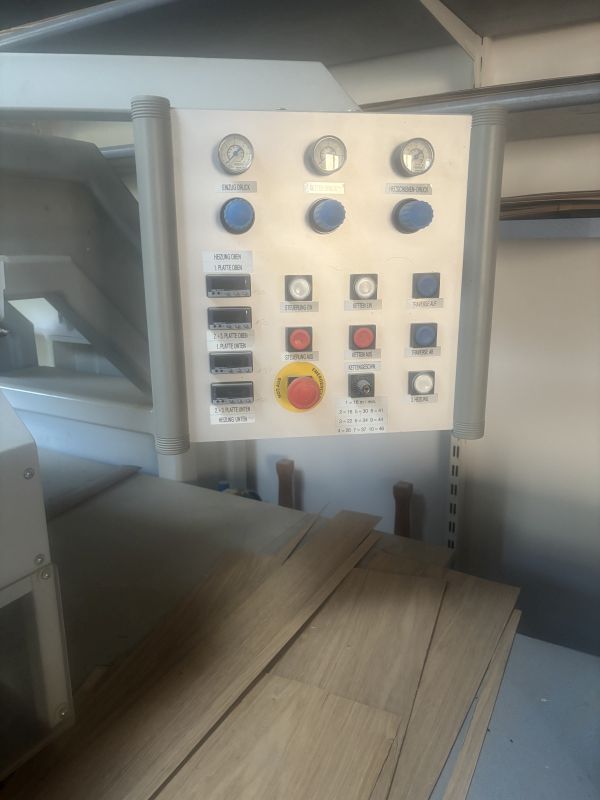

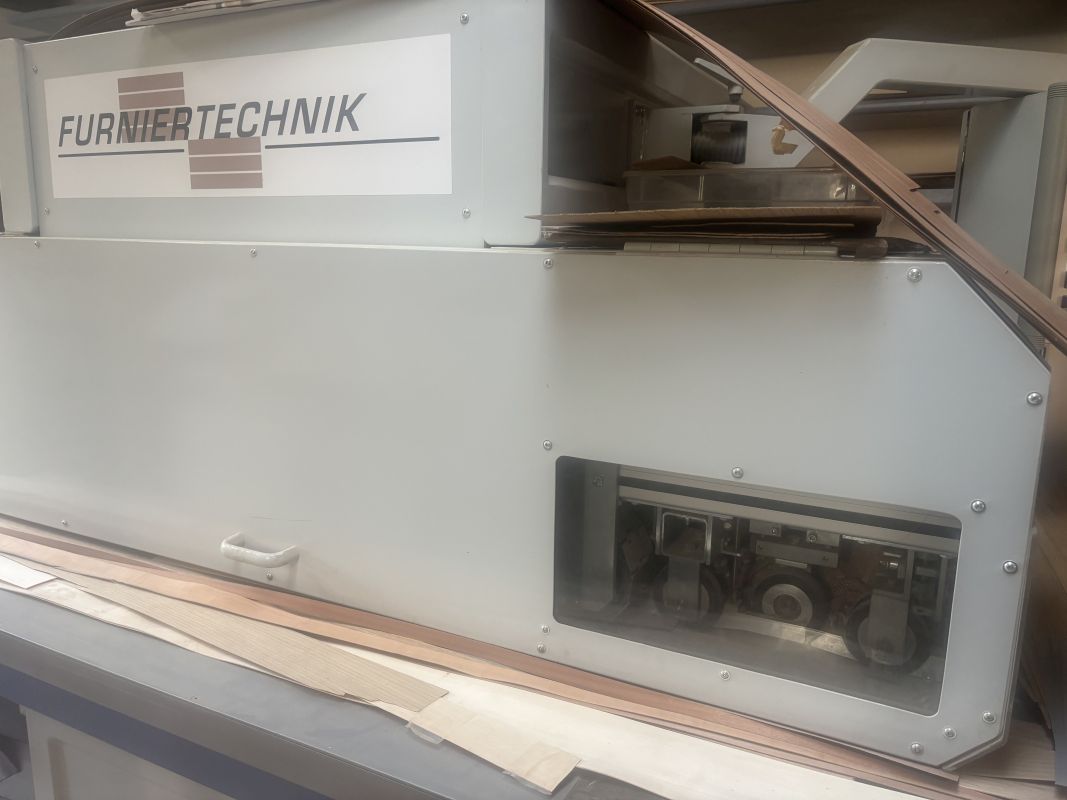

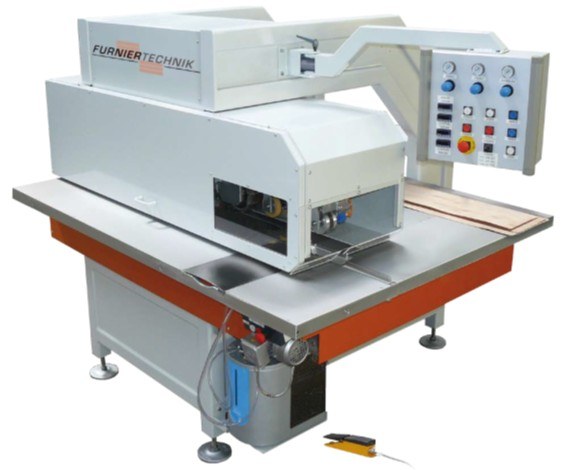

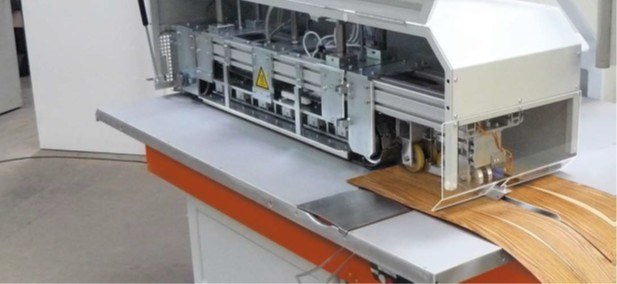

veneer splicing machine

veneer splicing machine
Brand: Furniertechnik
Type: LZM-LA 1000
Year of manufacture: 2010


Technical specifications
Veneer dimensions
- Thickness: 0.4 - 2.5 mm
- Minimum width: 40 mm
- Max. width: 1000 mm

Glue
- Pre-gluing: Urea and PVAc glue
- Integrated gluing: Urea glue
- Transport speed: approx. 10 - 40 m/min
- Heating zone length: approx. 1000 mm
- Heating temperature: up to 230° Celsius
- Heating elements: infinitely variable

Electrical
- Power rating: 6 kW
- Voltage: 400 V / 50 Hz

Compressed air
- Connection: 6 bar
- Consumption: approx. 5 l/min



Note:
The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.
